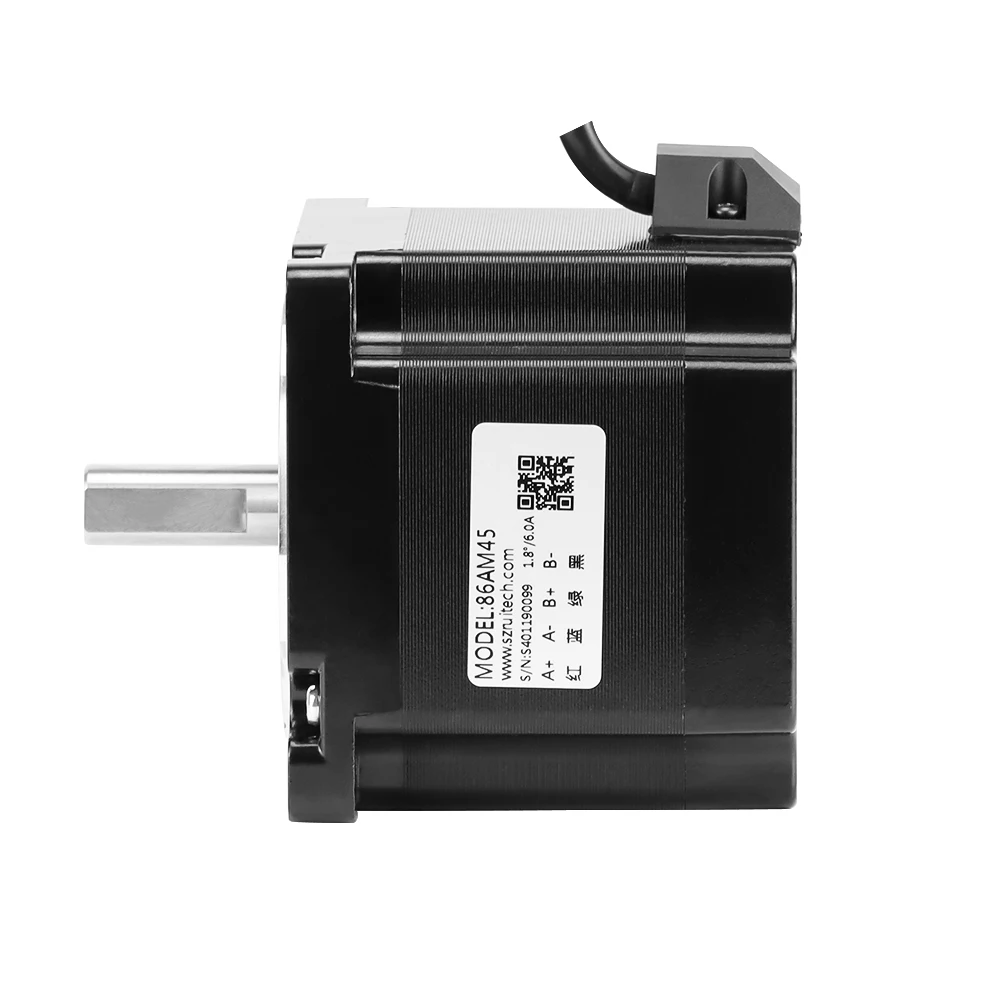

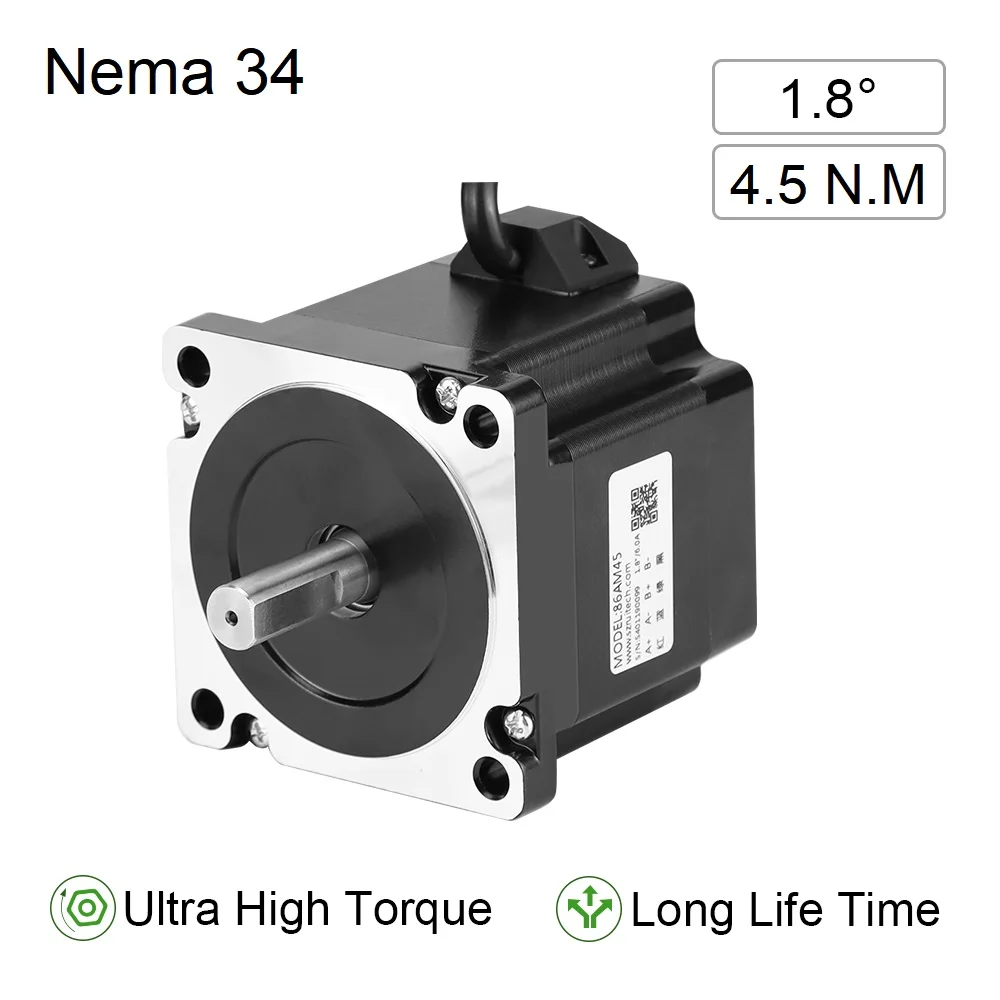

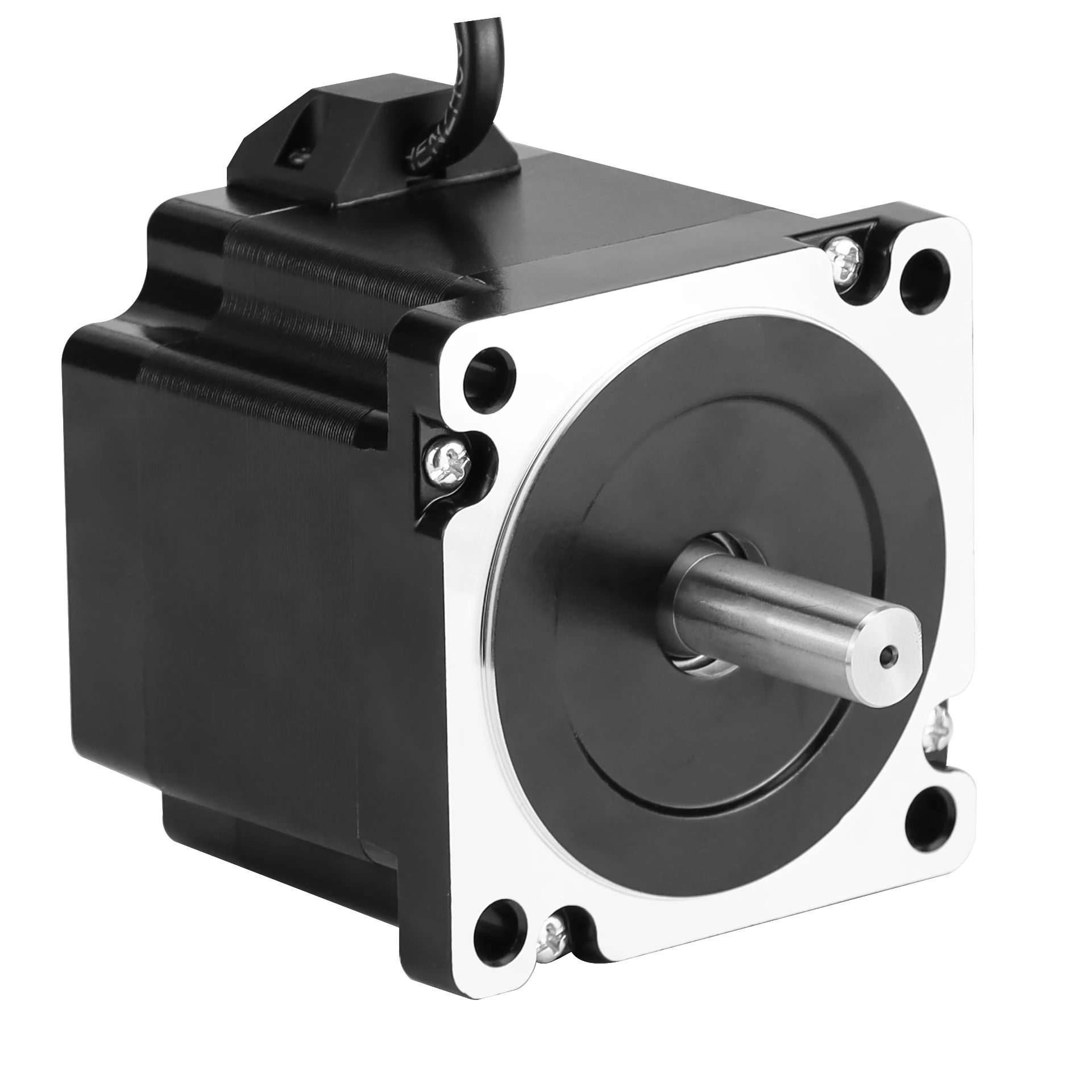

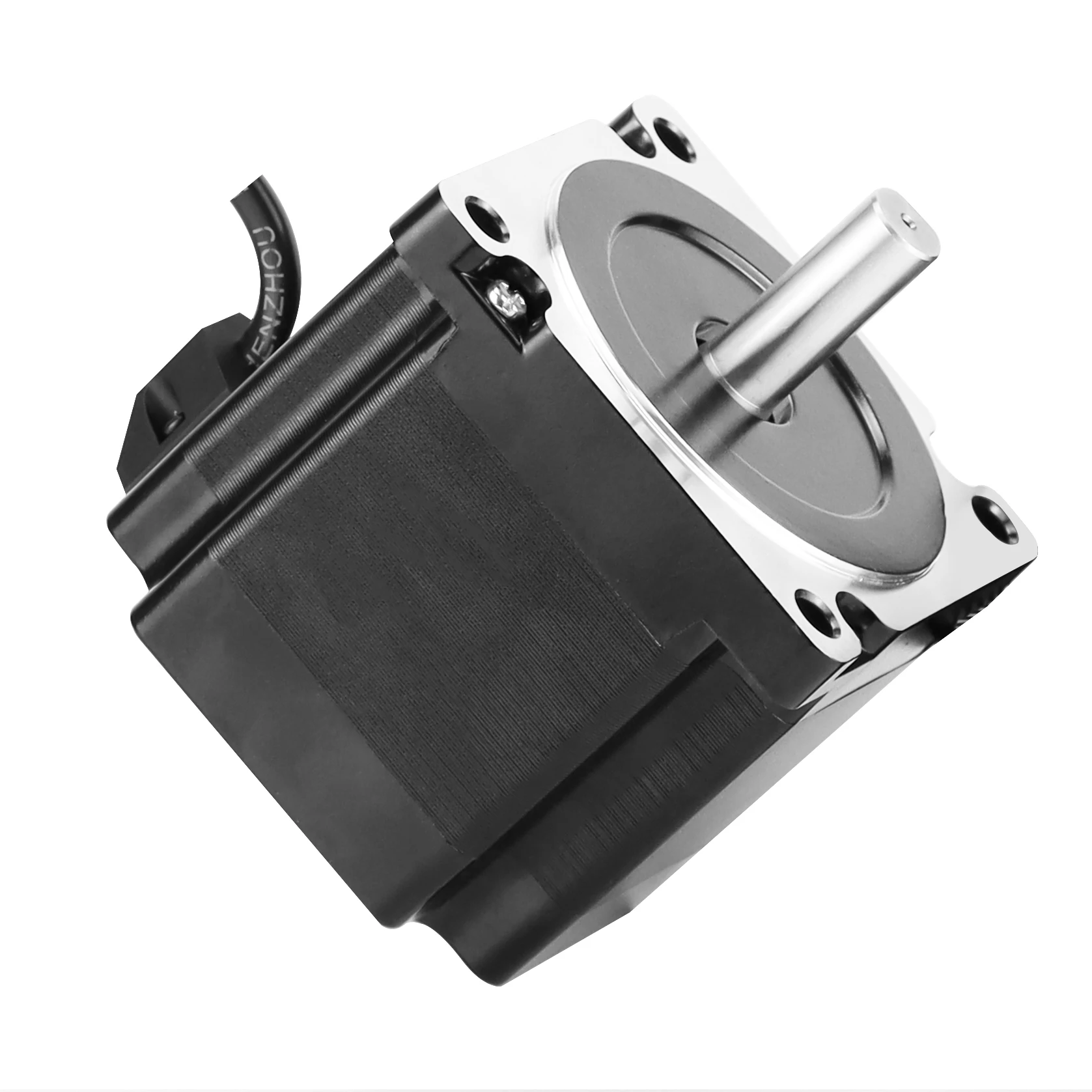

Rtelligent 86AM45 Hybrid 1.8 degree 4.5 N.M 6.0A 2 Phase Nema 34 Nema 32 Stepper Motor
- Category: >>>
- Supplier: Shenzhen Rtelligent Technology Co. Ltd
Share on (62063679040):
Product Overview
Description
Product Description
General specification | ||
Step accuracy | ±5%(synchronizing, no-load) | |
Temperature rise | 80℃Max | |
Ambient temperature | -10℃—+50℃ | |
Insulation resistance | 100MΩmin.500VDC | |
Voltage resistance | 500VAC for one minute | |
Radial runout | 0.06Max.(450g-load) | |
Axial runout | 0.08Max.(450g-load) | |
Technical specifications | ||||||||||||||||||

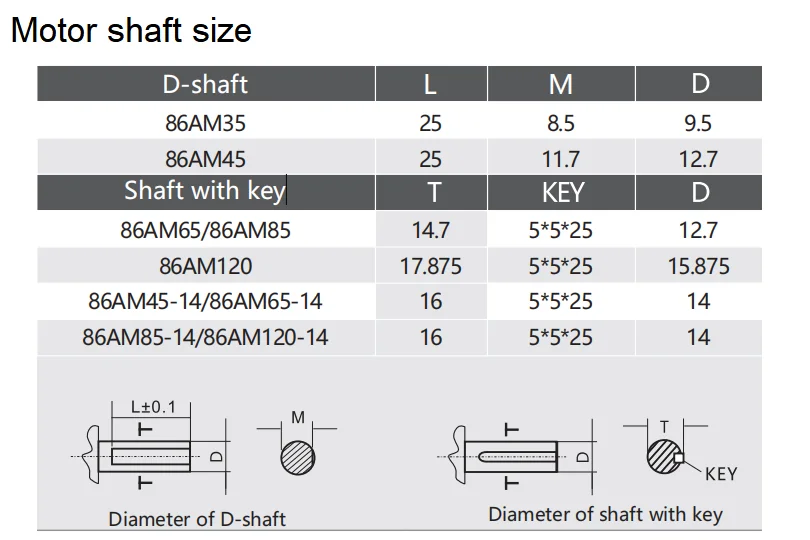

Model | Step angle (o) | Holding torque N.M | Rated current A | Phase resistance Ohm | Shaft diameter | Rotor inertia (kg.cm2) | Shaft length | Phase inductance mH | Motor body Length L(mm) | |||||||||
86AM35 | 1.8 | 3.5 | 4.0 | 0.8 | 9.5\u007F | 800 | 32 | 3.8 | 64 | |||||||||
86AM45 | 1.8 | 4.5 | 6.0 | 0.4 | 12.7 | 1400 | 32 | 2.8 | 78 | |||||||||
86AM65 | 1.8 | 6.5 | 6.0\u007F | 0.5 | 12.7 | 2300 | 32 | 4.1 | 98 | |||||||||
86AM85 | 1.8 | 8.5 | 6.0\u007F | 0.55 | 12.7 | 2800 | 32 | 5.5 | 112 | |||||||||
86AM120 | 1.8 | 12 | 6.0\u007F | 1.72 | 15.875 | 4000 | 32 | 8.3 | 155 | |||||||||

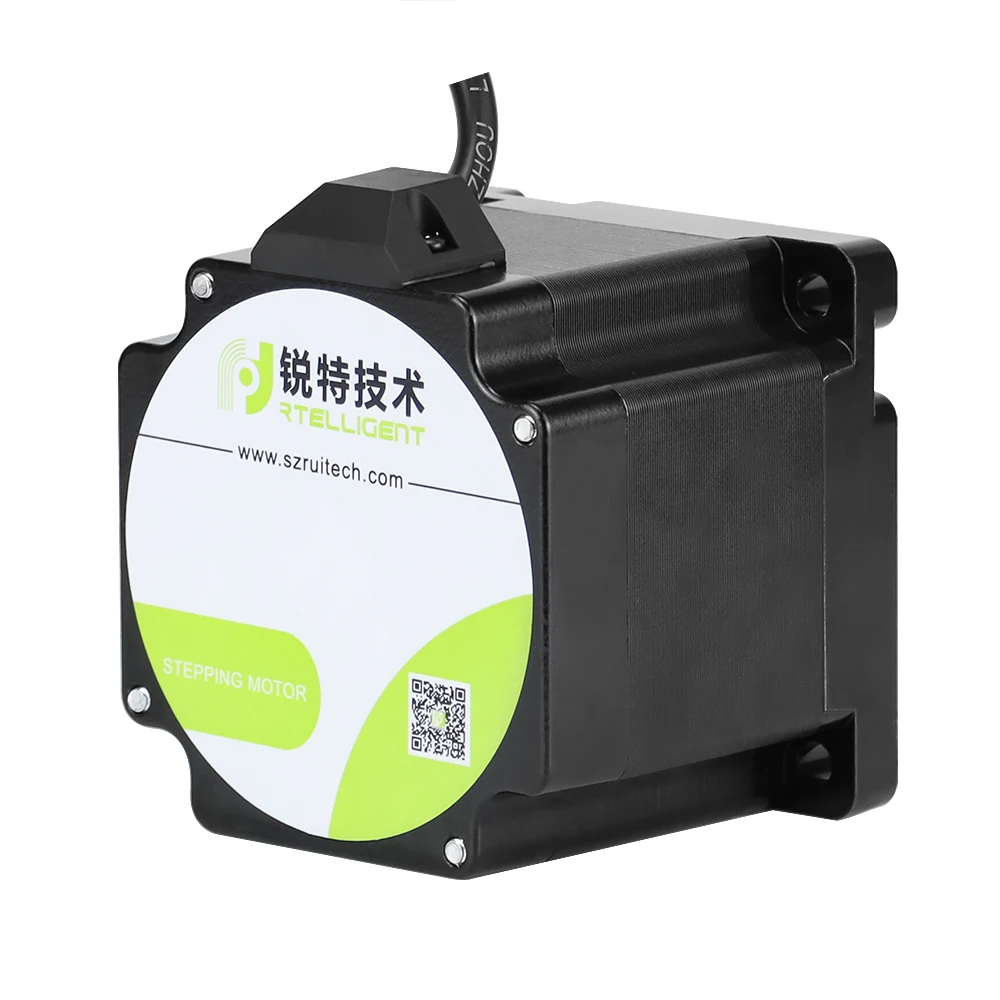

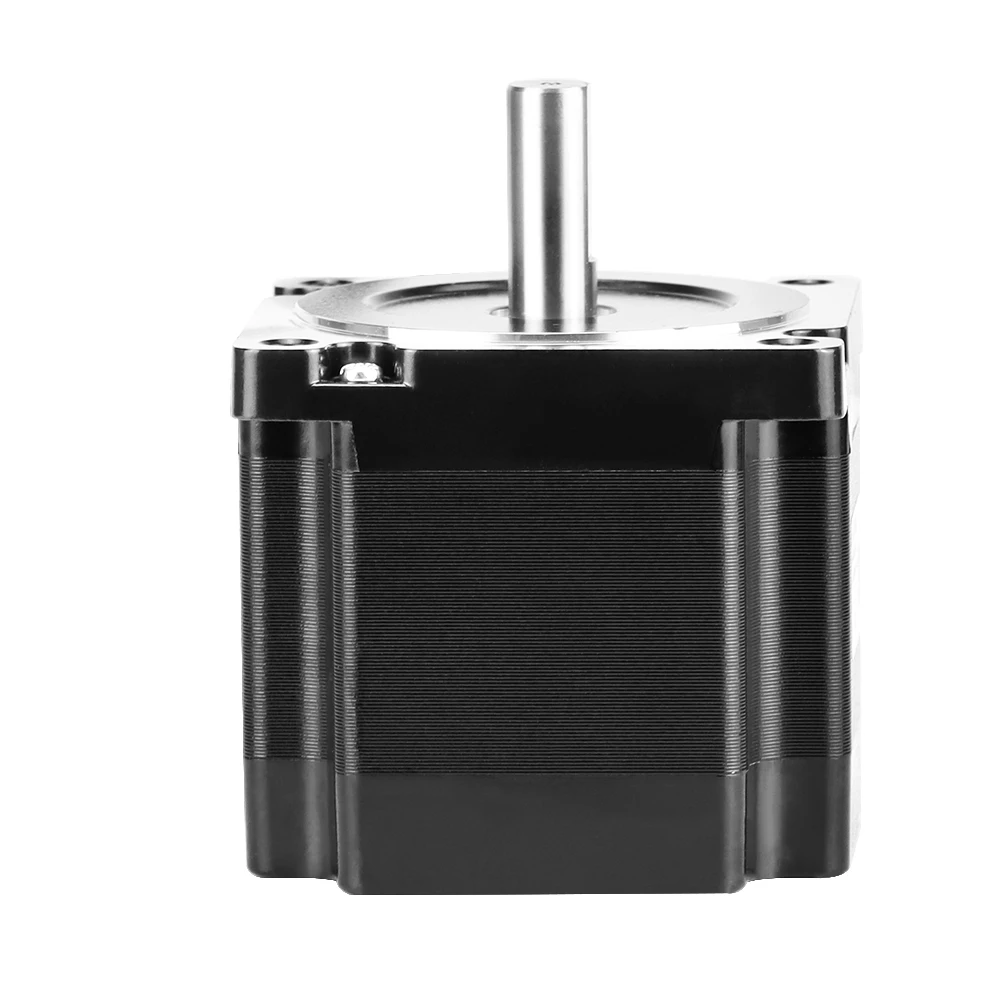

Detailed Images

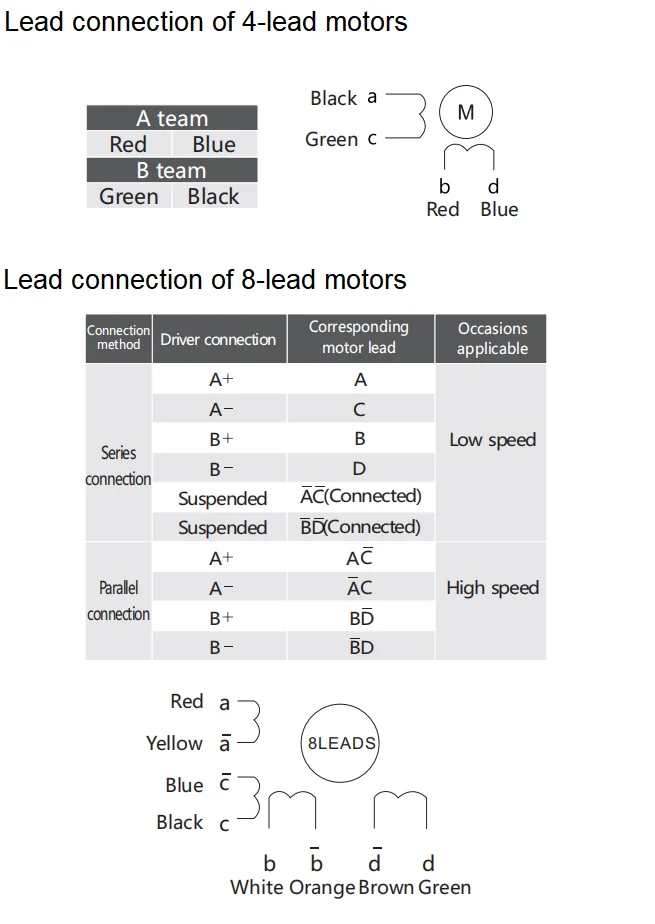

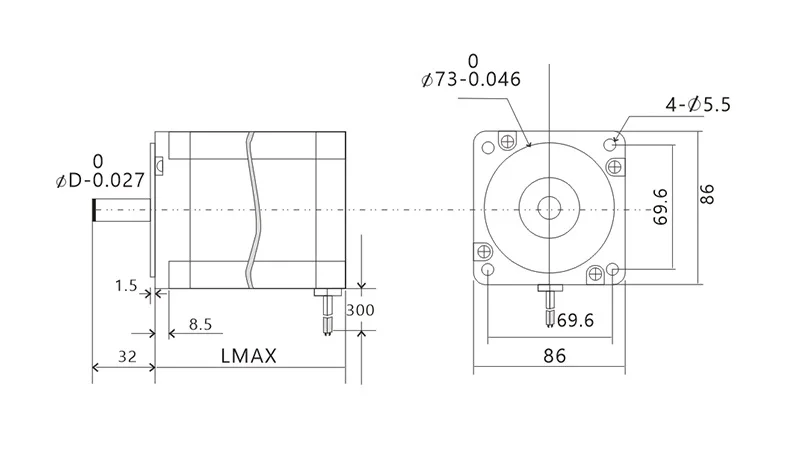

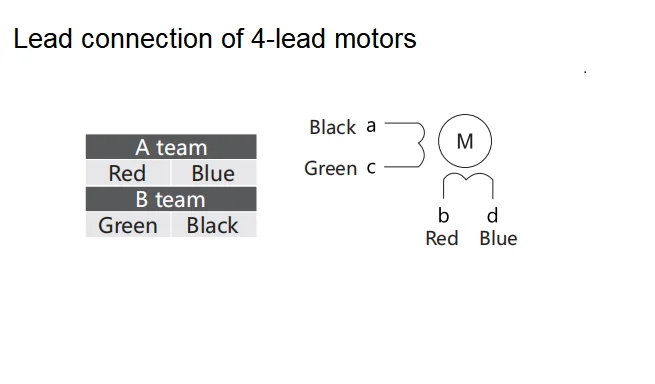

Installation Instructions
