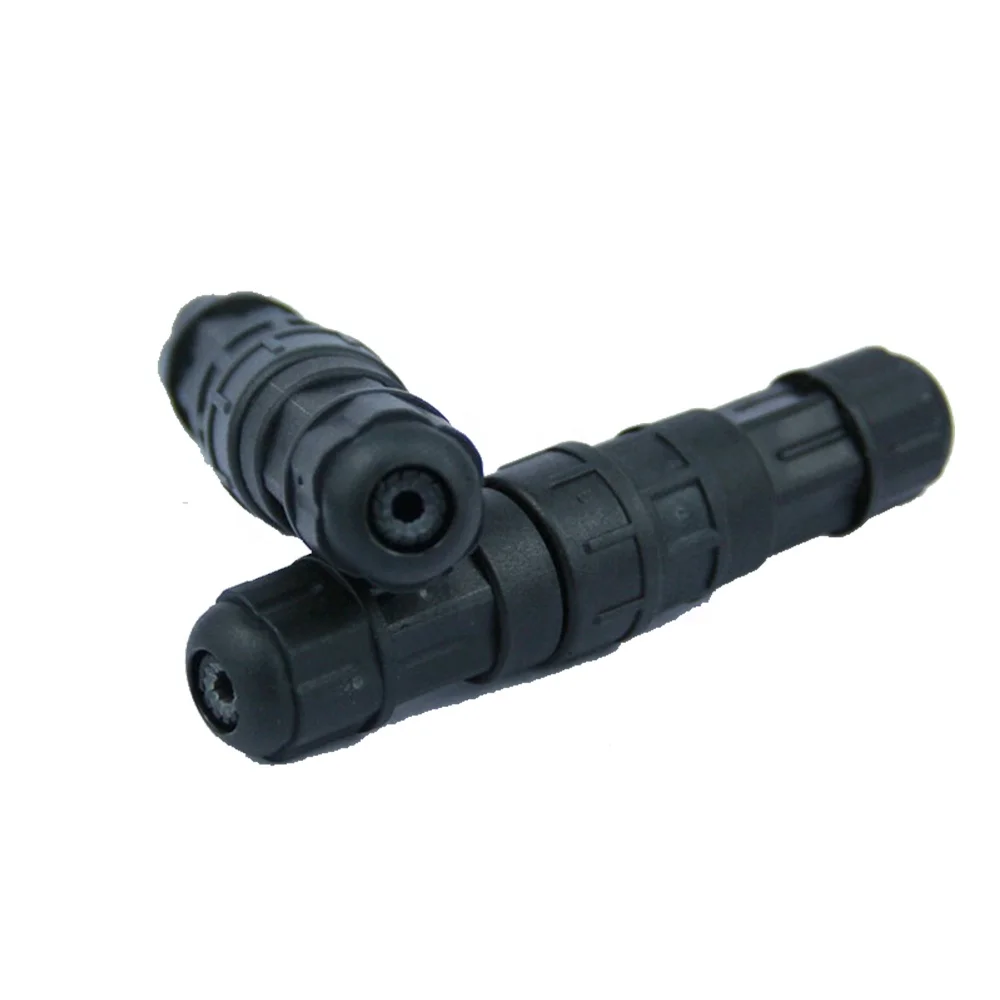

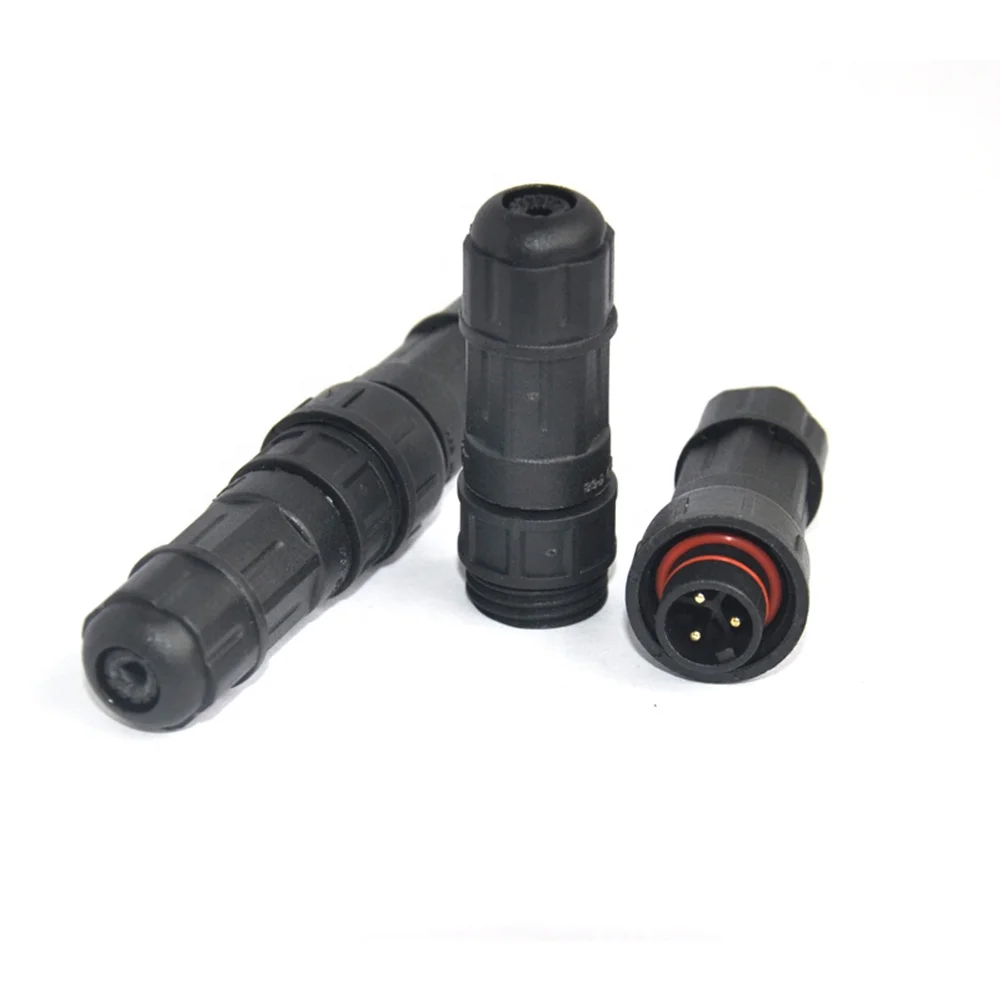

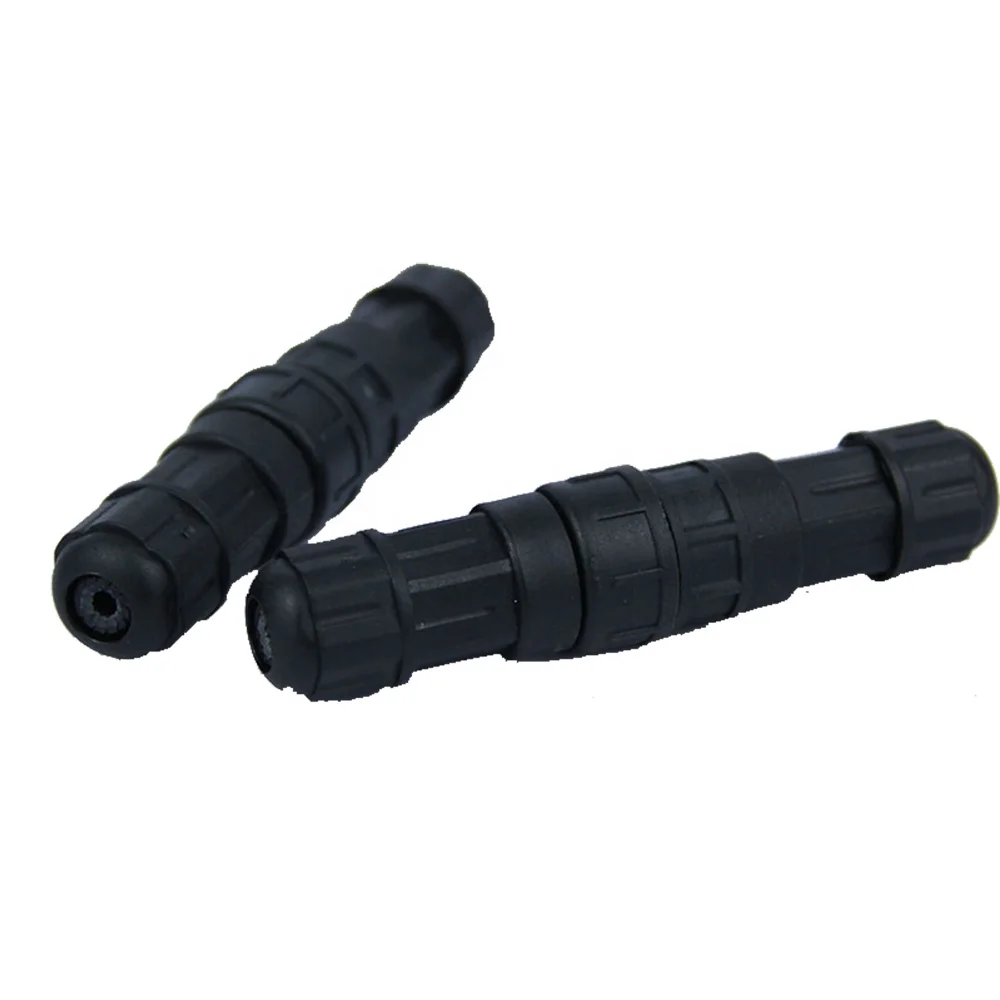

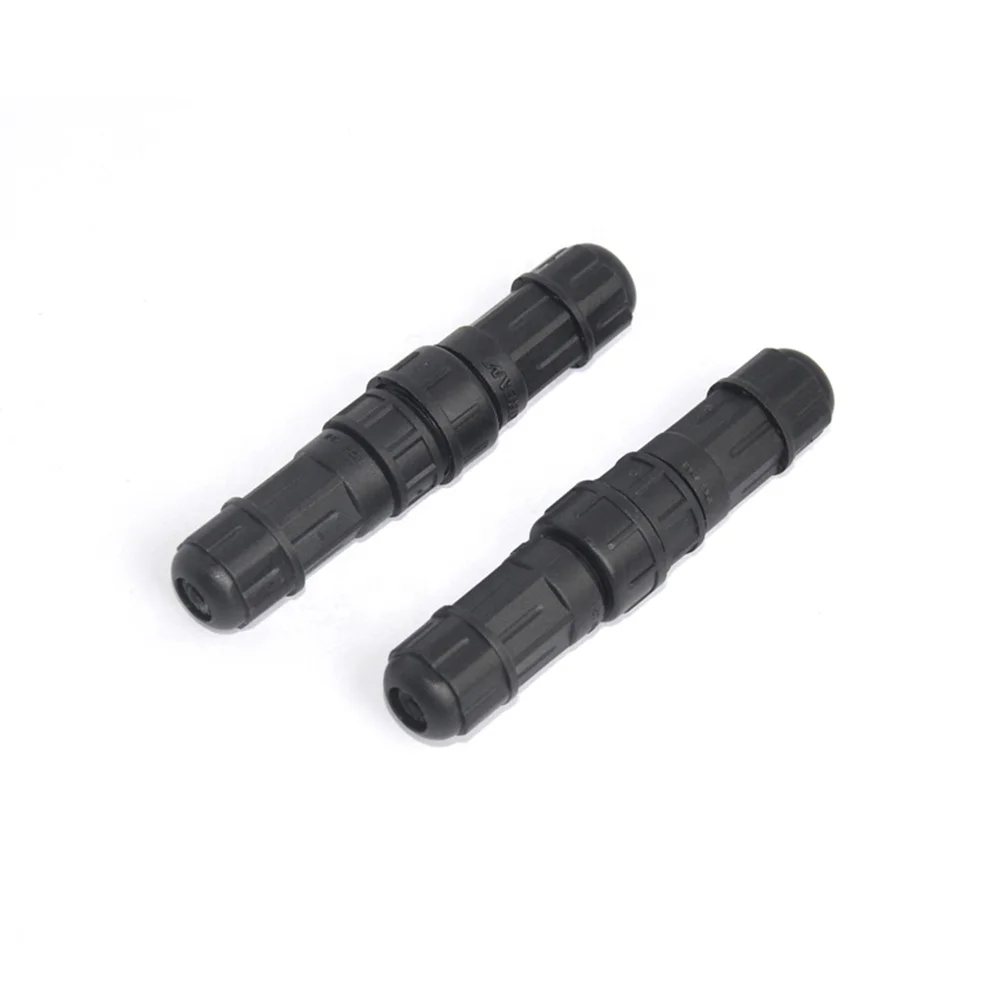

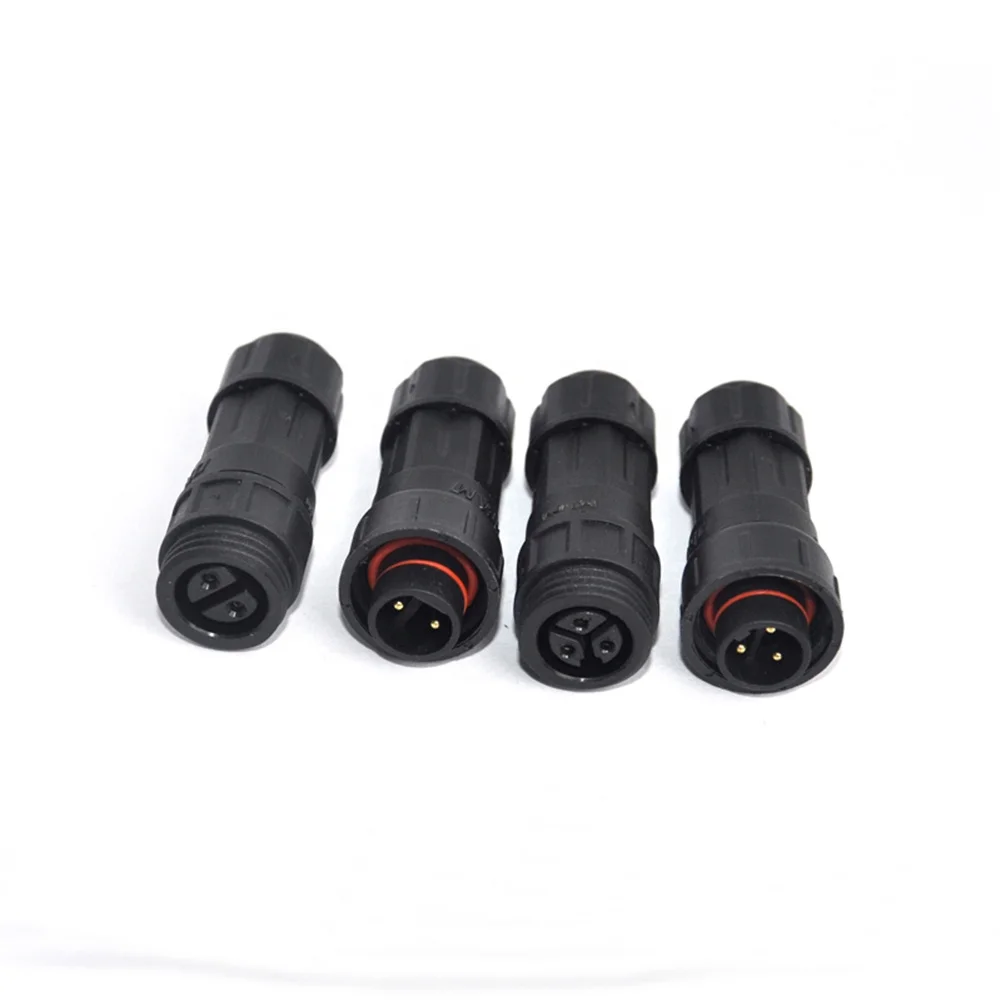

2 3 4 pin IP67 Landscape Lighting Screw Lock Electrical Wire Junction Box External Cable Waterproof Connector
- Category: >>>
- Supplier: Shenzhen Realeader Industrial Co. Ltd.
Share on (62063748313):
Product Overview
Description
Products Description
3 pin waterproof connector male female electrical wire IP67 24AWG
1. Screw threaded & Quick lock assembly, simple in using, convenient in installation;
2. Multi-functional waterproof connector which integrated signal & current transmission in one;
3. Products are made of nylon material, which greatly improves the durability and safety of products;
4. Pins are all gold-plated to ensure that the products' conductivity lasting and stable, safe and reliable;
5. Quick threaded plugs, convenient installation.Both male and female plugs are small sizes, beautiful appearance, high performance,and easy assembly. The strong shells are explosion-proof, waterproof.
2. Multi-functional waterproof connector which integrated signal & current transmission in one;
3. Products are made of nylon material, which greatly improves the durability and safety of products;
4. Pins are all gold-plated to ensure that the products' conductivity lasting and stable, safe and reliable;
5. Quick threaded plugs, convenient installation.Both male and female plugs are small sizes, beautiful appearance, high performance,and easy assembly. The strong shells are explosion-proof, waterproof.
Product Specification
Contact Cores | 2Pin | 3Pin | 4Pin |
Rated Voltage | 10A | 10A | 10A |
Rated Current | 250V AC | 250V AC | 250V AC |
Contact Resistance | 10mΩ | 10mΩ | 10mΩ |
Insulation Resistance | 200MΩ | 200MΩ | 200MΩ |
IP-Code | IP67 | IP67 | IP67 |
Cable Specifications | ≦1.0mm² | ≦1.0mm² | ≦0.75mm² |
Cable Range | 3.5-7.2mm | 3.5-7.2mm | 3.5-7.2mm |
Details Images

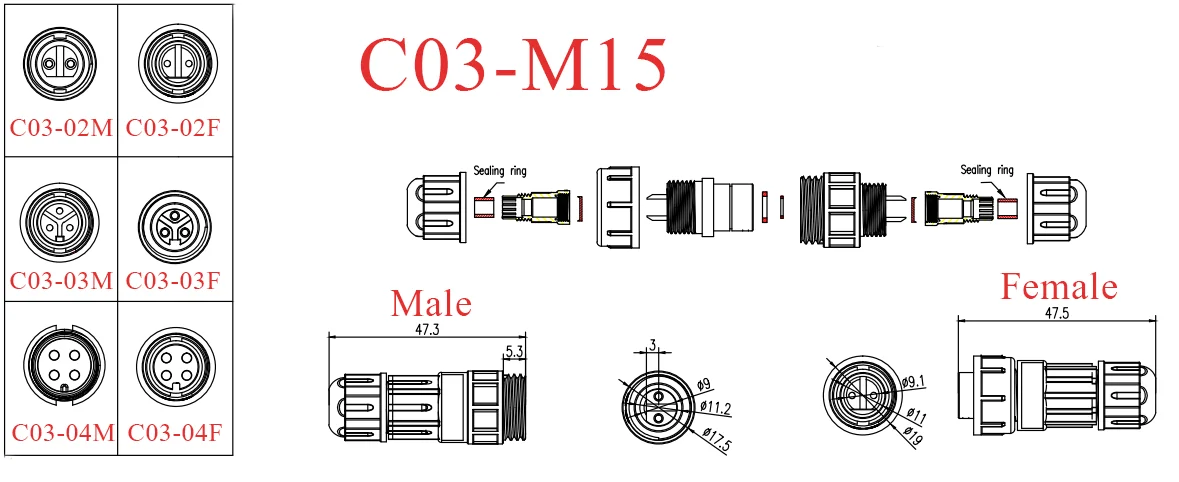

Product Paramenters
Core Number | Item number | Suitable Diameter | Metal Terminal | ||||
Male | Female | Specifications | Dosage | ||||
2 | C03-02M | C03-02F | φ4.0~7.3mm | φ1.5 L=23.5 | 2 | ||
3 | C03-03M | C03-03F | 3 | ||||
4 | C03-04M | C03-04F | 4 | ||||
Customer Feedback
Product packaging
Why Choose Us
Shenzhen Realeader Industrial Co.,Ltd
Shenzhen Realeader Industrial Co.,Ltd , which focus on waterproof connectors for over 14 years. Realeader's main products are waterproof plugs , waterproof connectors and circular connectors . The company with independent research and development capabilities , scientific and sound production management system and a wide rang of testing equipment , has passed ISO9001 quality management system.
Adhering to the spirit of continual learning and striving for perfection, the company has developed a variety of waterproof signal connectors , waterproof power connectors , waterproof motor plugs , waterproof mufti-function plugs, "T" type connectors , "Y" type connector , as well as other types of waterproof connectors and circular connectors . The products are widely used in LED lighting lamp , intelligent induction products , household products , new energies , electrical bicycle motor , outdoor appliance, transportation , agricultural machinery and other industrial and fields .
We sincerely look forwarder to working with the board masses of new and old customers sincere cooperation, mutual benefit the industry level and create a better future !
Adhering to the spirit of continual learning and striving for perfection, the company has developed a variety of waterproof signal connectors , waterproof power connectors , waterproof motor plugs , waterproof mufti-function plugs, "T" type connectors , "Y" type connector , as well as other types of waterproof connectors and circular connectors . The products are widely used in LED lighting lamp , intelligent induction products , household products , new energies , electrical bicycle motor , outdoor appliance, transportation , agricultural machinery and other industrial and fields .
We sincerely look forwarder to working with the board masses of new and old customers sincere cooperation, mutual benefit the industry level and create a better future !
FAQ
1. Q: Do you have E-catalog? Can you send me the catalog to check all your products?
A: Yes,we have product catalog.Please contact us online or send an Email for catalog.
2. Q: I need your price list of all your products, do you have a price list ?
A: Sorry , we do not have the price list of all the product , we also need to check the price from our company price system ,thanks for your kindly understanding .
3. Q: Does your company provide OEM and ODM service ?
A: Yes , Our Company provide OEM & ODM service , Pls kindly provide your company Logo and Your own drawing for our engineer reference , thank you
A: Yes,we have product catalog.Please contact us online or send an Email for catalog.
2. Q: I need your price list of all your products, do you have a price list ?
A: Sorry , we do not have the price list of all the product , we also need to check the price from our company price system ,thanks for your kindly understanding .
3. Q: Does your company provide OEM and ODM service ?
A: Yes , Our Company provide OEM & ODM service , Pls kindly provide your company Logo and Your own drawing for our engineer reference , thank you
4. Q : Can I have my own design for the package ?
A : Yes. Pls kindly provide your design and Dimension of the Cartons , thanks
5. Q: Can you provide Free samples ?
A: Yes , we can provide 2 piece free sample for your test , just pay the shipping cost we can send the sample to you .
6. Q: What kind of payment do you accept ?
A: We accept T/T(Wire transfer), Western Union and Paypal.
A : Yes. Pls kindly provide your design and Dimension of the Cartons , thanks
5. Q: Can you provide Free samples ?
A: Yes , we can provide 2 piece free sample for your test , just pay the shipping cost we can send the sample to you .
6. Q: What kind of payment do you accept ?
A: We accept T/T(Wire transfer), Western Union and Paypal.
7. Q : What about your delivery time ?
A : We have a lot of products in stock . We can send the stock products in 3-4days. If without stock , we need to confirm the delivery time according to your detailed quantity .
A : We have a lot of products in stock . We can send the stock products in 3-4days. If without stock , we need to confirm the delivery time according to your detailed quantity .
