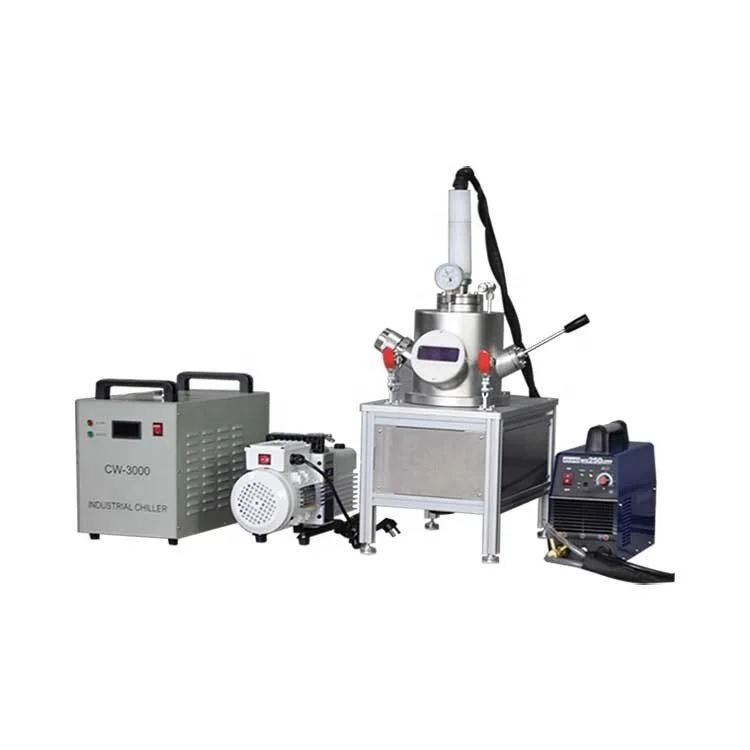

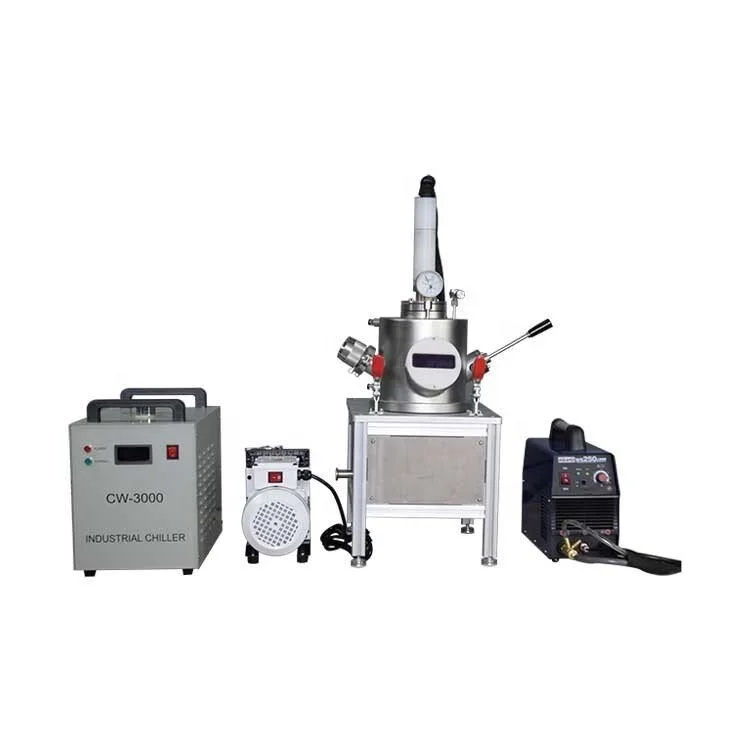

Lab Small Amount Metal Tungsten Electrode 3000C Vacuum Arc Melting Furnace

Features

1. Melting sample < 10 g (each cavity), melting temperature: up to 3000 °C.

2. Using a transparent quartz chamber (with protective cover) for 360° observation of sample melting.

3. Water-cooled copper crucible.

4. The melting gun and sealing flange are connected by flexible bellows, which makes it easy to adjust the angle of the melting gun.

5. The manipulator is mounted on the flange to facilitate the turning of the melting sample (without destroying the chamber vacuum or atmosphere)

Vacuum Gauge

1. A mechanical pressure gauge is installed on the equipment to measure the pressure in the chamber

2. Optional digital anti-corrosive pressure gauge

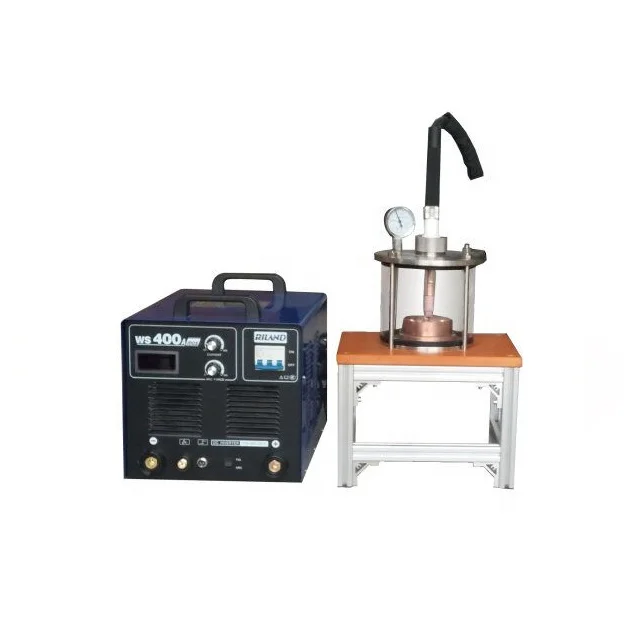

Argon Arc Power Source

1. Input voltage: 380VAC, three phase

2. Maximum input current: 18A. (Requires a 20A air switch)

3. Output voltage / current: 24.4 V / 360A, 40% duty cycle

4. Optional pulse DC and AC output modes

5. Use foot switch to control power output

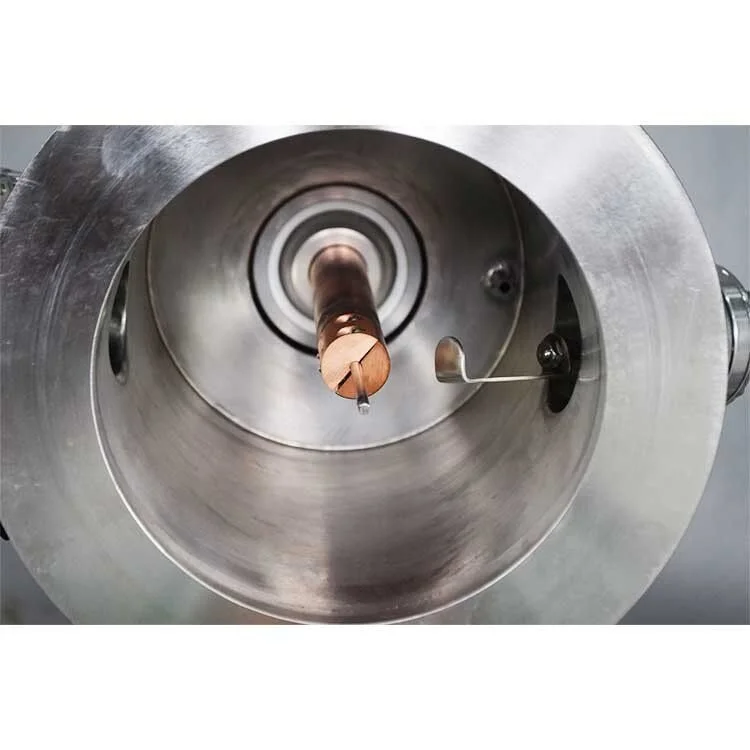

Tungsten Electrode

1. Equipped with a 4mm diameter tungsten electrode, with water cooling on the gun head.

2. Angle and height of the electrode gun can be adjusted (15mm) for melting multiple samples.

3. Melting sample < 10 g (each cavity), melting temperature: up to 3000 °C.

       10g tungsten                  4.5g tungsten

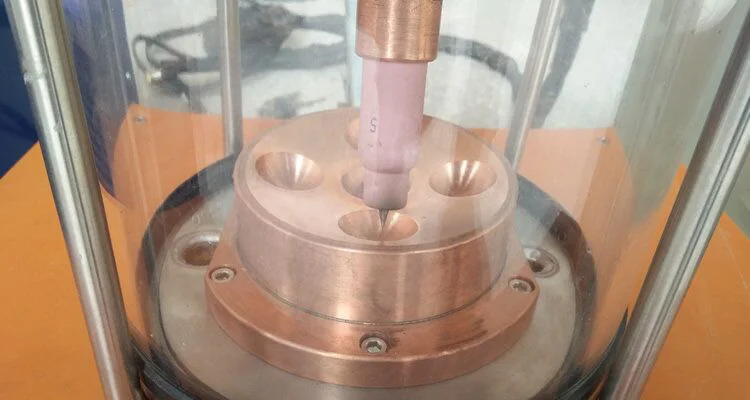

Crucible

Standard configuration with 5 cavities, Ø25 mm*8mm (special size can be customized according to customer's requirements)

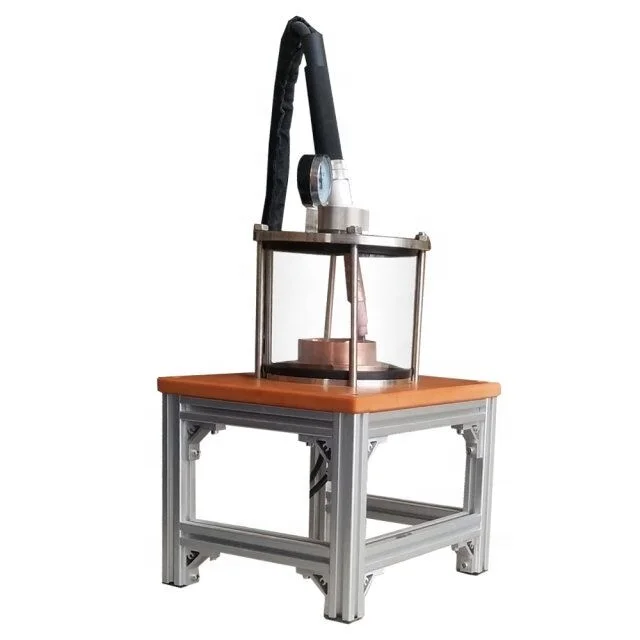

Chamber

Quartz Chamber, dimension: Ø150mm*150mmH

Furnace Dimension

· Furnace body: 540 mm L 340 mm W 835 mm H

· Power supply: 330mm L * 500mm W * 300mm H

Certificate

CE certificate

Warranty

One year warranty with lifetime technical support.

Consumable parts such as heating elements, quartz tubes, sample files, etc. are not included.

Damage caused by the use of corrosive gases and acid gases is not covered by the warranty.
