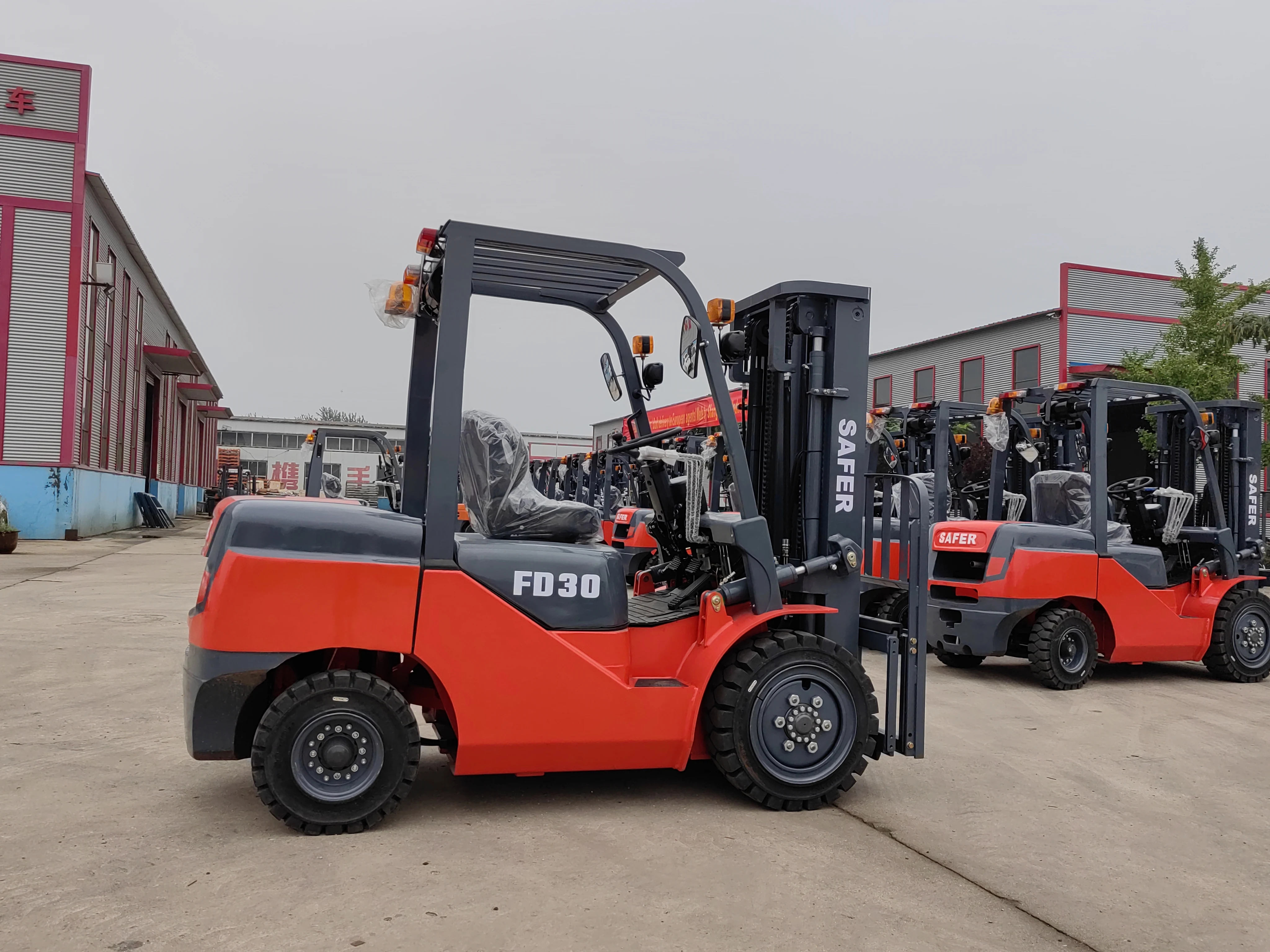

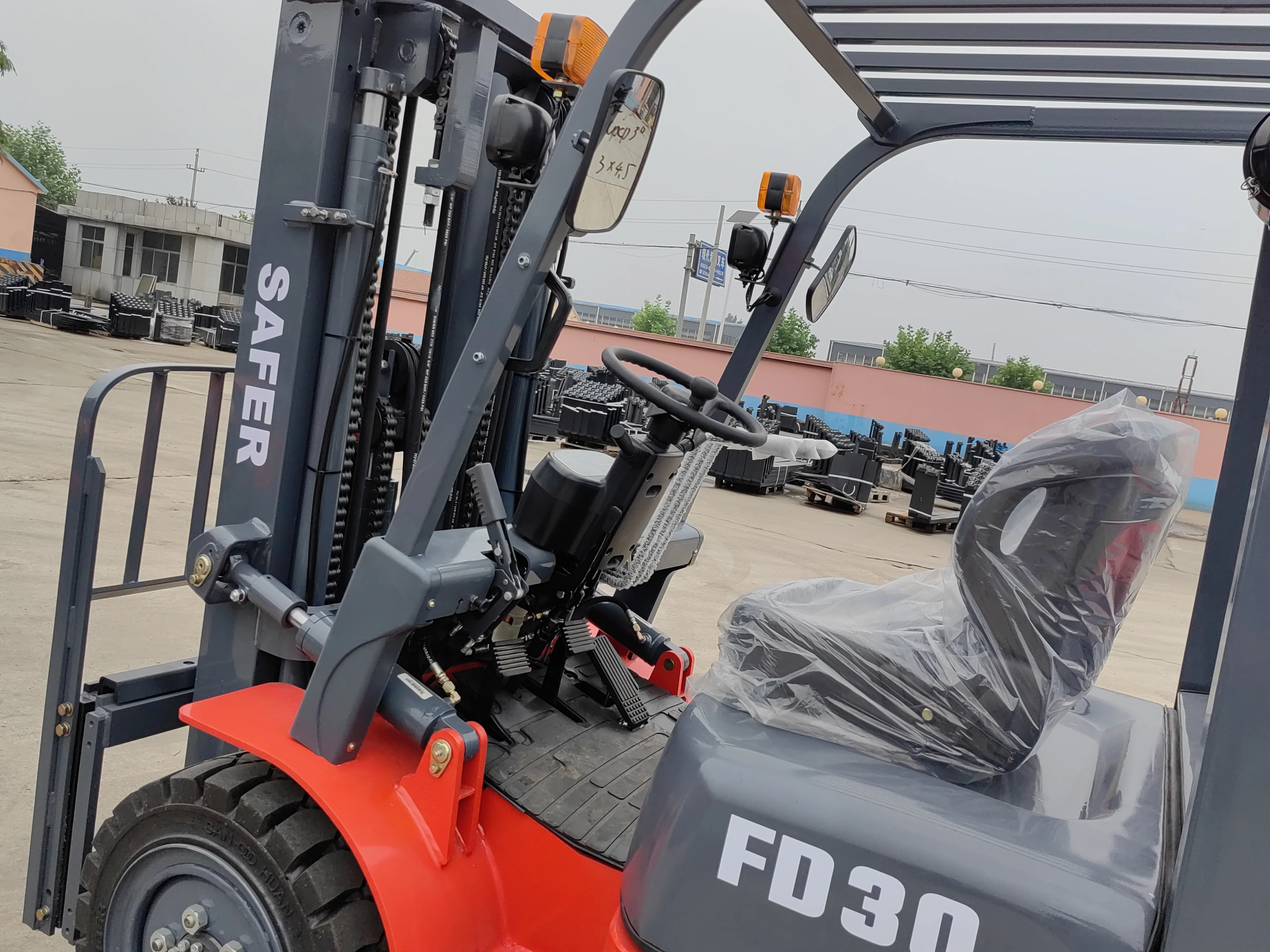

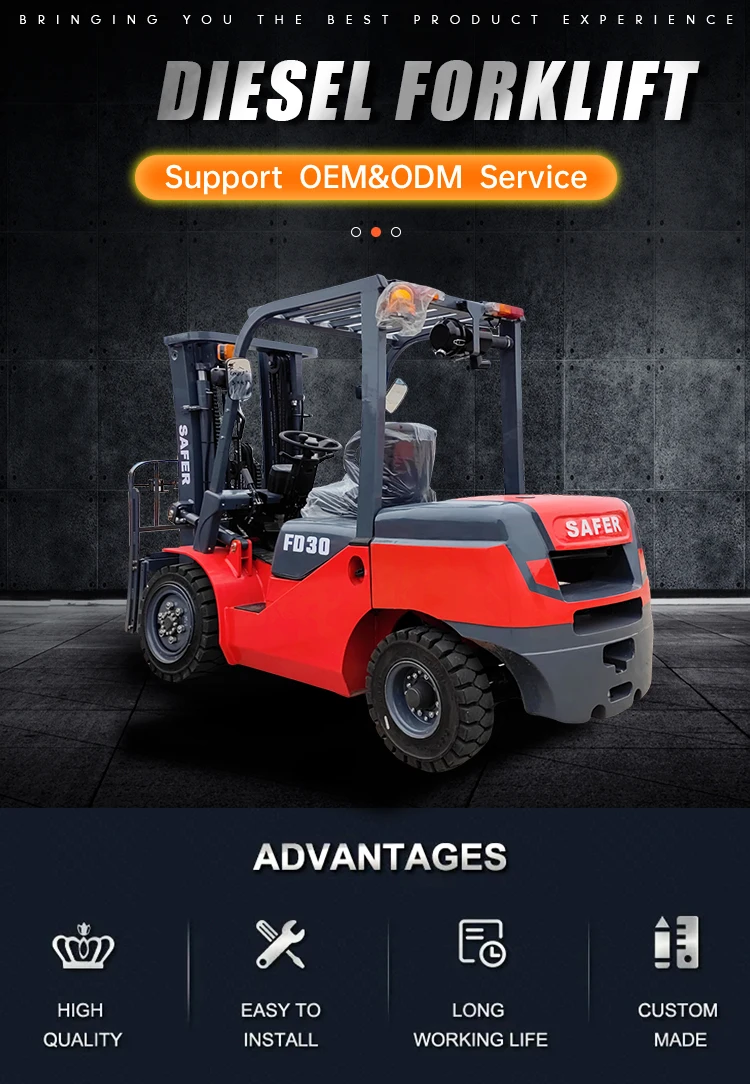

montacarga carretilla elevadora forklift truck diesel 2.5tn 3 3.5 4 5 ton 7 8 10 tons fork lift fork lift forklift
- Category: >>>
- Supplier: Shanghai Saferlifts Machinery Co. Ltd.
Share on (62064108679):
Product Overview
Description

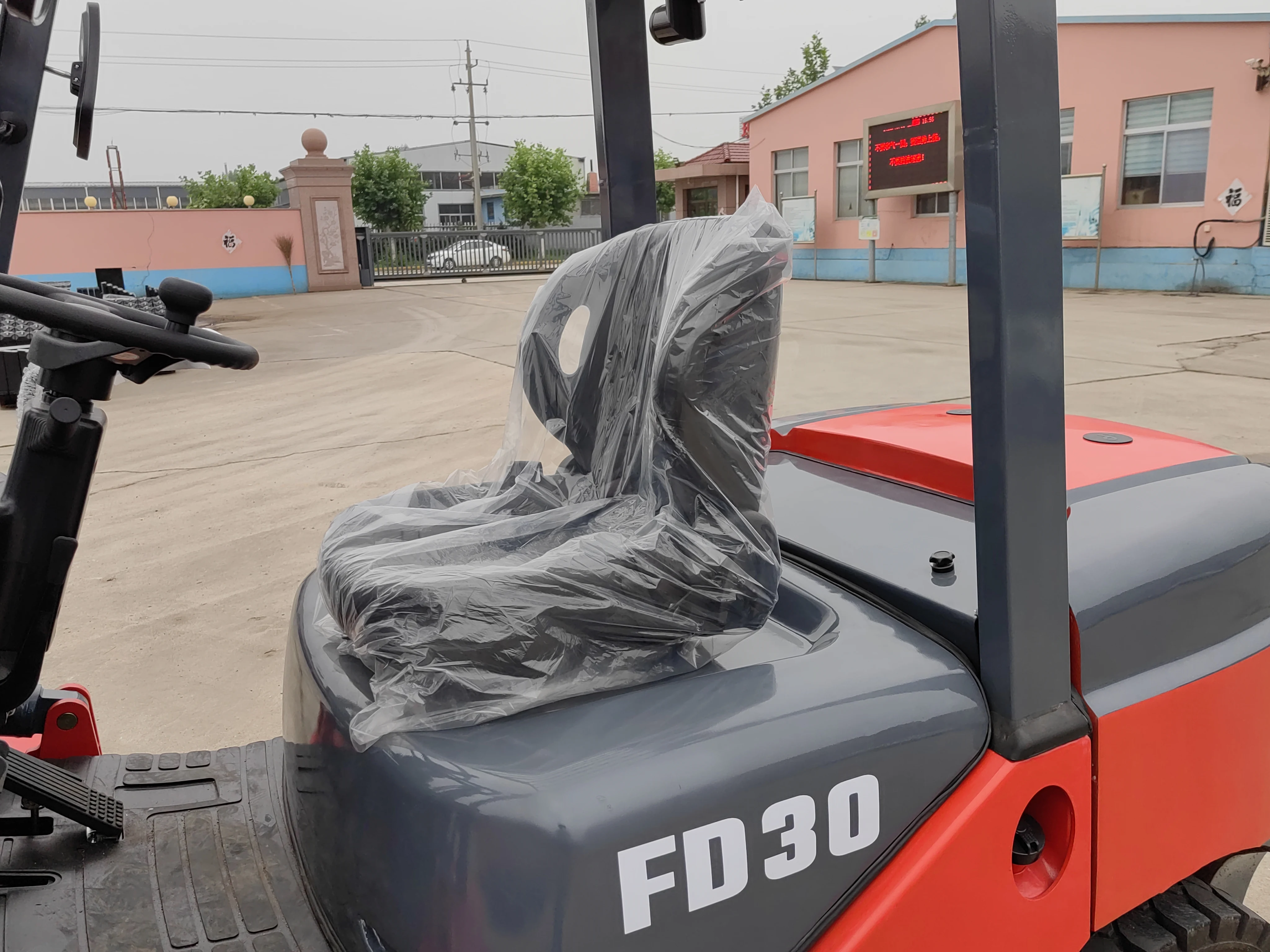

1 | Model | FD30 | FD35 | |
2 | Power Type | Diesel | Diesel | |
3 | Rated Capacity | kg | 3000 | 3500 |
4 | Load Centre | mm | 500 | 500 |
5 | Lift Height | mm | 3000 | 3000 |
6 | Fork Size LxW*T | mm | 1070x120x45 | 1070x120x45 |
7 | Mast Tilt Angle F/R | Deg | 6°/12° | 6°/12° |
8 | Front Overhang (Wheel center to fork face) | mm | 480 | 485 |
9 | Ground Clearance (Bottom of mast) | mm | 140 | 140 |
10 | Length to face offork(Without fork) | mm | 2730 | 2775 |
11 | Overall Width | mm | 1225 | 1225 |
12 | Overall Dimension Mast Lowered Height | mm | 2115 | 2115 |
13 | Mast Extended Height(With backrest) | mm | 4150 | 4150 |
14 | Overhead Guard Height | mm | 2090 | 2090 |
15 | Turning Radius (outside) | mm | 2440 | 2480 |
16 | Min insecting aisle | mm | 2490 | 2530 |
17 | Speed Travel (Empty load) | km/h | 20 | 20 |
18 | Speed Lifting(Full load) | mm/s | 510 | 510 |
19 | Max.Gradeability | % | 20 | 20 |
20 | Tire Front | mm | 28 x9-15-12 PR | 28 x9-15-12 PR |
21 | Tire Rear | mm | 6.50-10-10 PR | 6.50-10-10 PR |
22 | Wheelbase | mm | 1700 | 1700 |
23 | Service weight | kg | 4300 | 4500 |
24 | Battery Voltage/Capacity | V/Ah | 12/80 | 12/80 |

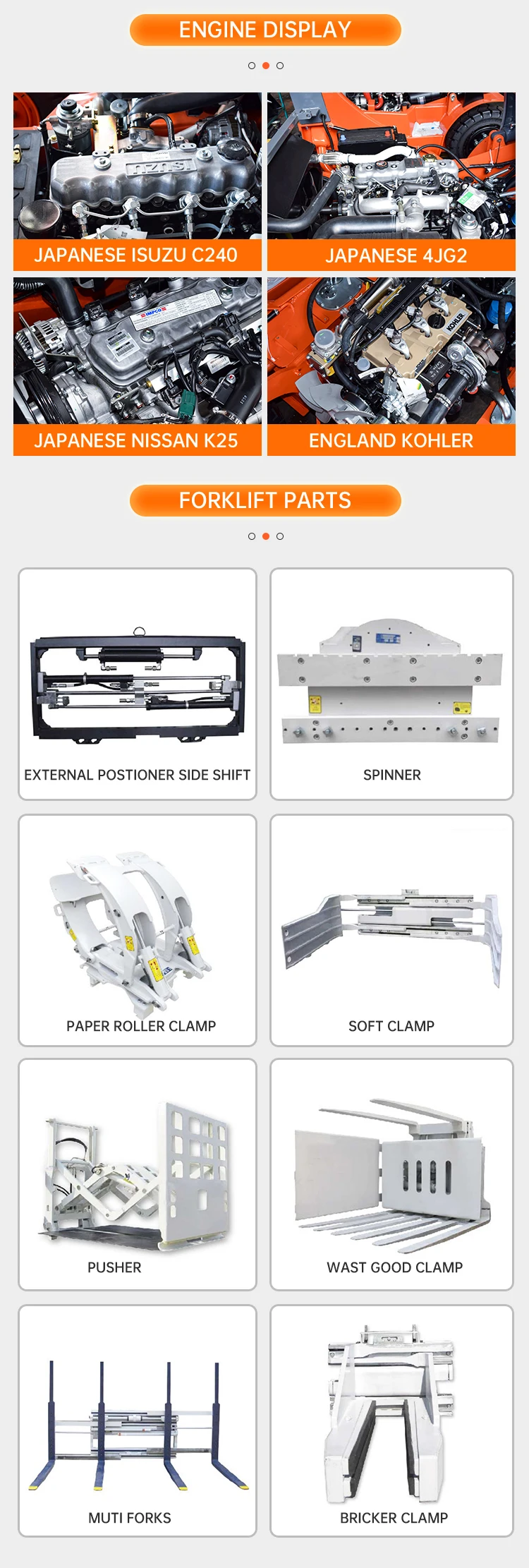

25 | Model | C240 | 4JG2PE-01 | |
26 | Manufacture | ISUZU | ISUZU | |
27 | Engine Rated output/r.p.m. | kw | 35.4/2500 | 46/2450 |
28 | Engine Rated torque/r.p.m. | N-m | 137.7/1800 | 184.7/1600-1800 |
29 | Engine No.of Cylinder | 4 | 4 | |
30 | Engine BorexStroke | mm | 86 x 102 | 95.4 X 107 |
31 | Engine Displacement | cc | 2369 | 3059 |
32 | Engine Fuel Tank Capacity | L | 60 | 60 |
33 | Transmission Type | Hydraulic | Hydraulic | |
34 | Transmission Stage FWD/RVS | 1/1 | 1/1 | |
35 | Transmission Operating Pressure for Attachment | Mpa | 18 | 18 |
