Tobee Effluent Handling
$12,600
diaphragm pump BML 10C Flow rate 15L MIN Suitable for spraying industry
- Category: >>>
- Supplier: Shantou Rongtai Packaging Equipment Co. Ltd.
Share on (62064235785):
Product Overview
Description
Product Description

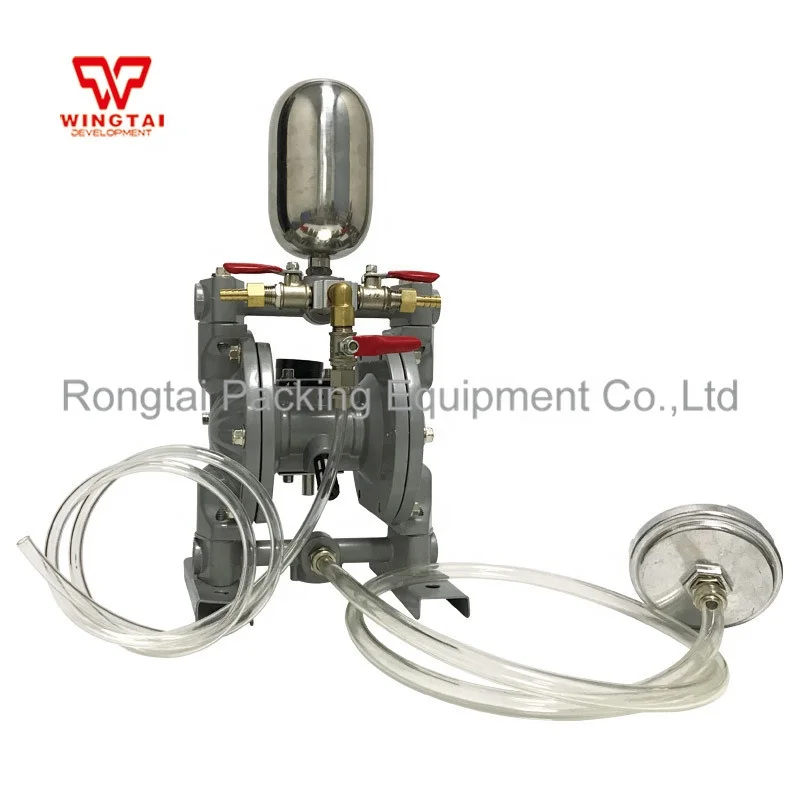

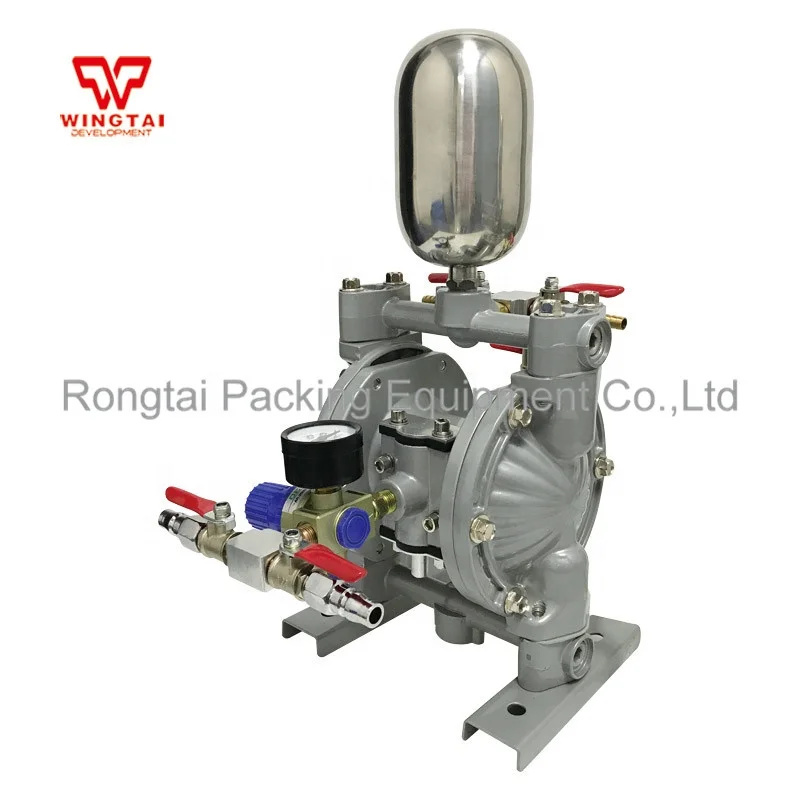

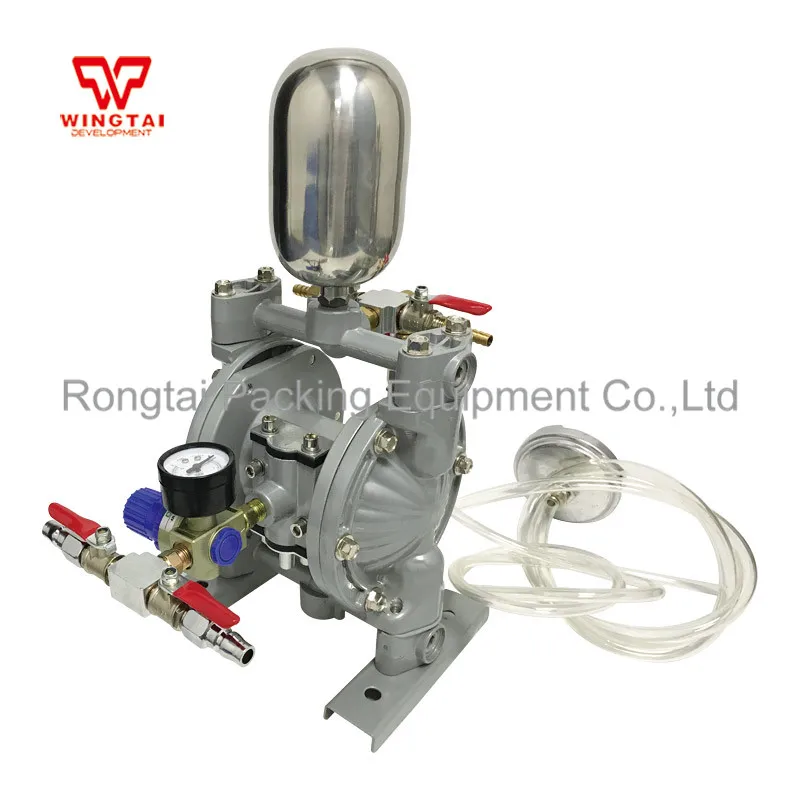

BML-10C Double Way Pneumatic Diaphragm Pump For Printing Machine
* Supporting spraying configuration, suitable for decoration spraying industry
Features:
1. Because it is using air as power, the diaphragm pump does not heat and produce sparks; suitable for use in flammable and explosive environment.
2. Use PTFE diaphragm, can be used for chemical properties relatively volatile liquid, corrosive medium.
3. Diaphragm Pump can pump particle liquid;
4. The liquid can be conveyed by diaphragm pump is wide, the viscosity from low to high, from corrosive liquid to viscous liquid.
5. Diaphragm Pump is small, light and easy to move.
Applicable industries:
Used for coating, circulation, transmission of water-based ink printing machine, gravure printing, flexo printing and the ink on the compound machine, glue, and the liquid with particle, inflammable liquid.
1. Because it is using air as power, the diaphragm pump does not heat and produce sparks; suitable for use in flammable and explosive environment.
2. Use PTFE diaphragm, can be used for chemical properties relatively volatile liquid, corrosive medium.
3. Diaphragm Pump can pump particle liquid;
4. The liquid can be conveyed by diaphragm pump is wide, the viscosity from low to high, from corrosive liquid to viscous liquid.
5. Diaphragm Pump is small, light and easy to move.
Applicable industries:
Used for coating, circulation, transmission of water-based ink printing machine, gravure printing, flexo printing and the ink on the compound machine, glue, and the liquid with particle, inflammable liquid.
Origin: China
Product name: two-way pneumatic diaphragm pump
Model:BML-10C
Pump material: aluminum alloy
Diaphragm material: PTFE
Included accessories

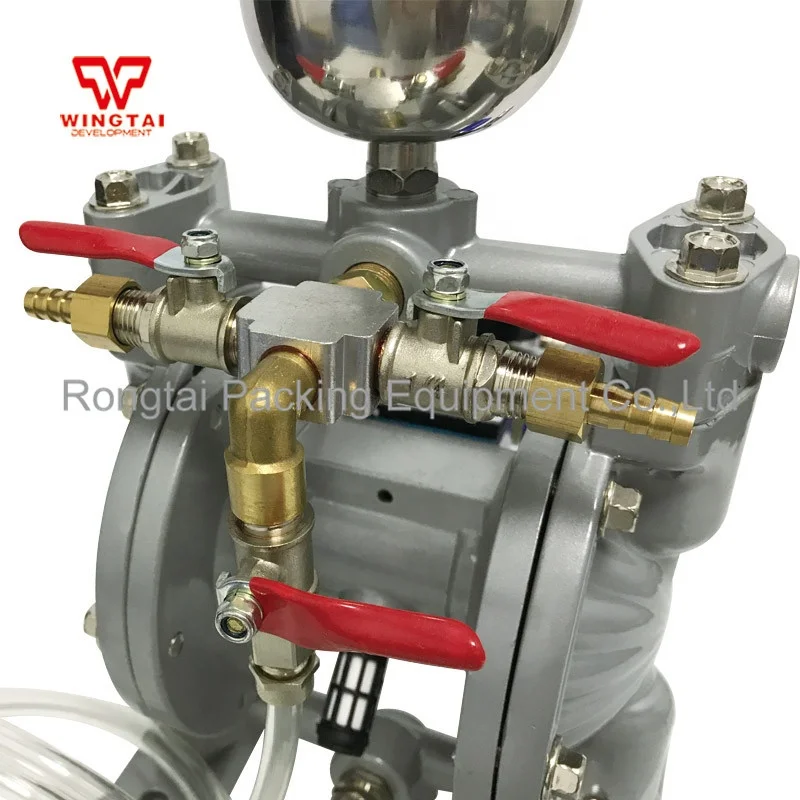

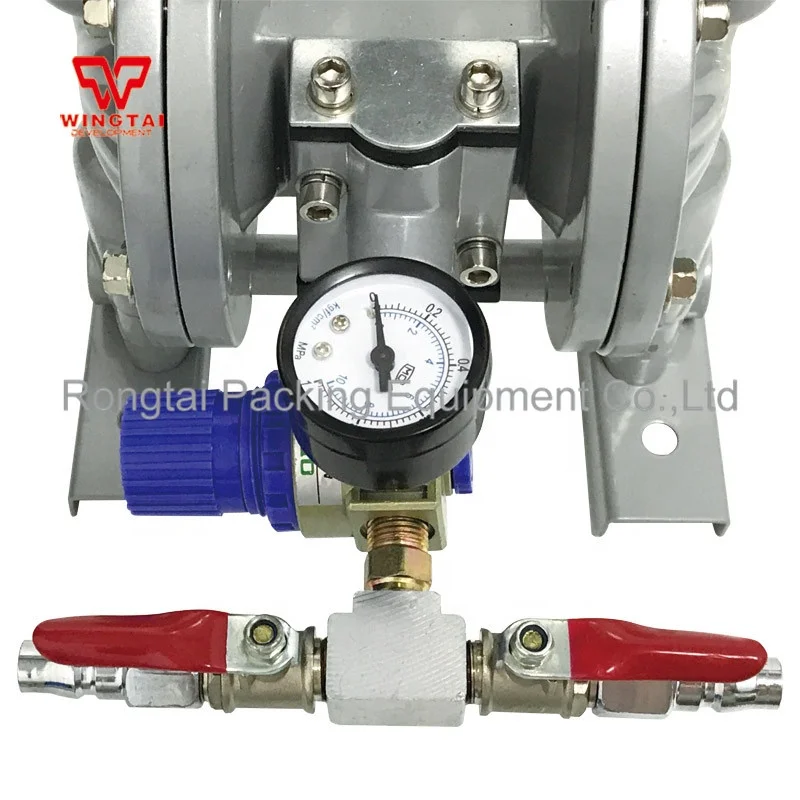

1、Buffer tank and barometer
Product name: two-way pneumatic diaphragm pump
Model:BML-10C
Pump material: aluminum alloy
Diaphragm material: PTFE
Included accessories
1、Buffer tank and barometer
2、Air Tube (Length:1 meter ,outer diameter: 8mm)
3、G -5 Clamp
4、Sucker
4、Sucker
Flux | 15L/min 0.9m³/h | Screw Thread | British System BSPT |
Suction Lift | 6mm | Lift | 60mm |
Liquid Inlet caliber | 3/8" | Liquid Outlet caliber | 3/8" |
Air Connection | 1/4" | Material of Diaphragm | PTFE |
Air Supply Pressure Range | 0.2-0.7Mpa | Pump Body Material | Aluminum |
Limit of Slurry | 2mm | Model No. | BML-10A / BML-10B / BML-10C |

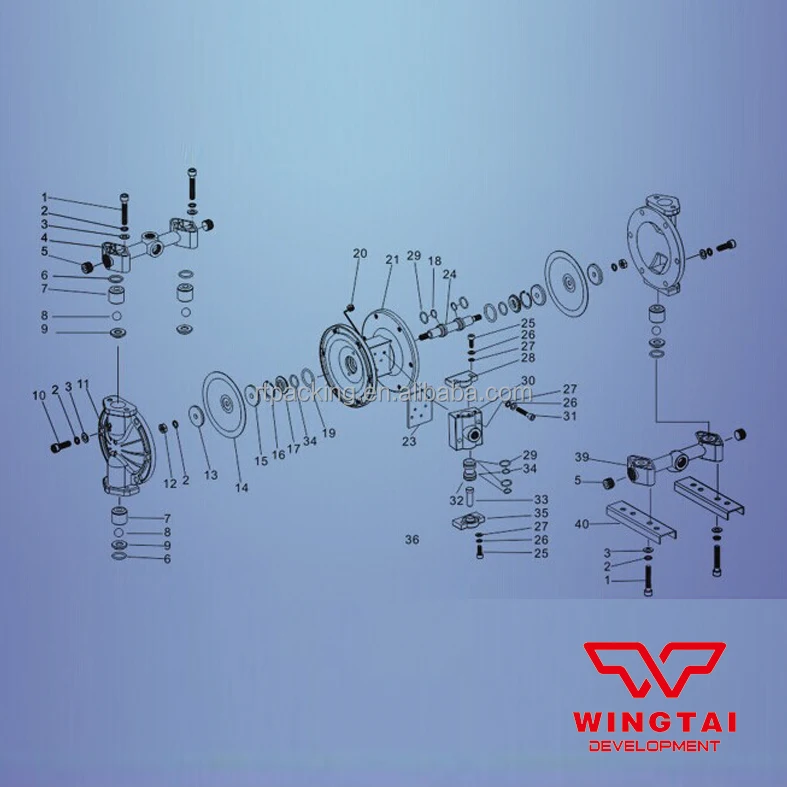

Diaphragm Pump BML-10C repair
Diaphragm Pump BML-10C repair
Please refer to the number in the picture when purchasing.
Tell me the number you chose so that I can quote you a price
Please refer to the number in the picture when purchasing.
Tell me the number you chose so that I can quote you a price
Product Detail
Product name: diaphragm plate
Model: PTFE - 109mm
Material: PTFE
Diameter: 109mm,
Model: PTFE - 109mm
Material: PTFE
Diameter: 109mm,
Our Service
Notes.
I ) We can arrange shipment 2-7 days after payment received,depends on your order quantity.
II) The Price we offer is not include destinatio
III) Please check the outer package if in good conditional before you sign for the package,if demage please don't sign for it and
make a claim for your local express company
IV) If you Satisfied with our services and products We will appreciated if you can send us good feedback on our website.
II) The Price we offer is not include destinatio
ncountry customs duty or tax,customers need to pay the customs duty or tax if your
local customs need collection.
local customs need collection.
III) Please check the outer package if in good conditional before you sign for the package,if demage please don't sign for it and
make a claim for your local express company
IV) If you Satisfied with our services and products We will appreciated if you can send us good feedback on our website.
Contact Us
Xia LinShantou Rongtai Packing Equipment Co., Ltd.
T: 86 754 88733293 | Fax:86 754 88782162
Email: rongtai @ rtpacking.com.cn
Mobile/WeChat/Whatsapp:86-13825881959
QQ:2364543767
Skype :rtpacking
W: www.rtpacking.en.alibaba.com
https://www.aliexpress.com/store/901397?spm=5261.11305287.0.0.cf534a9bJIyxuR
