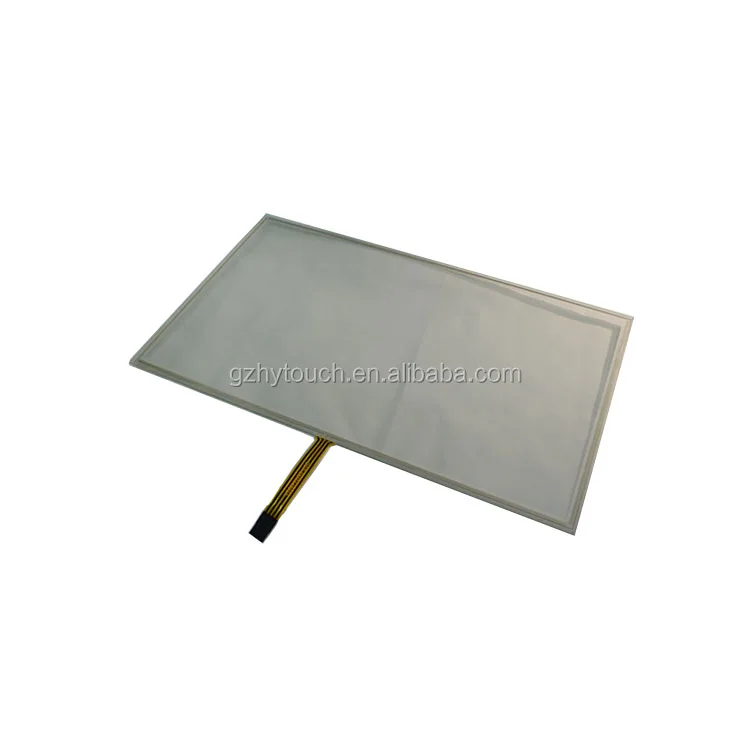

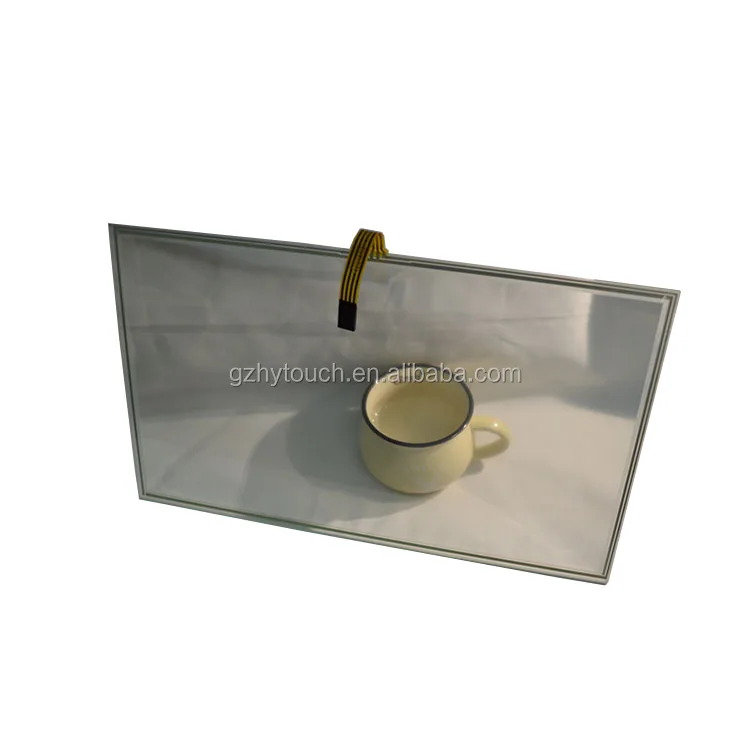

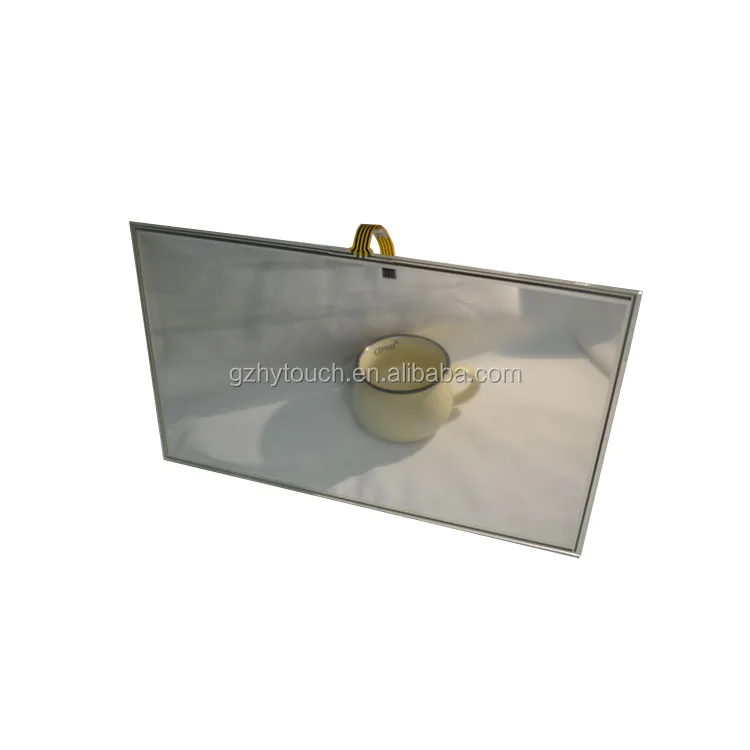

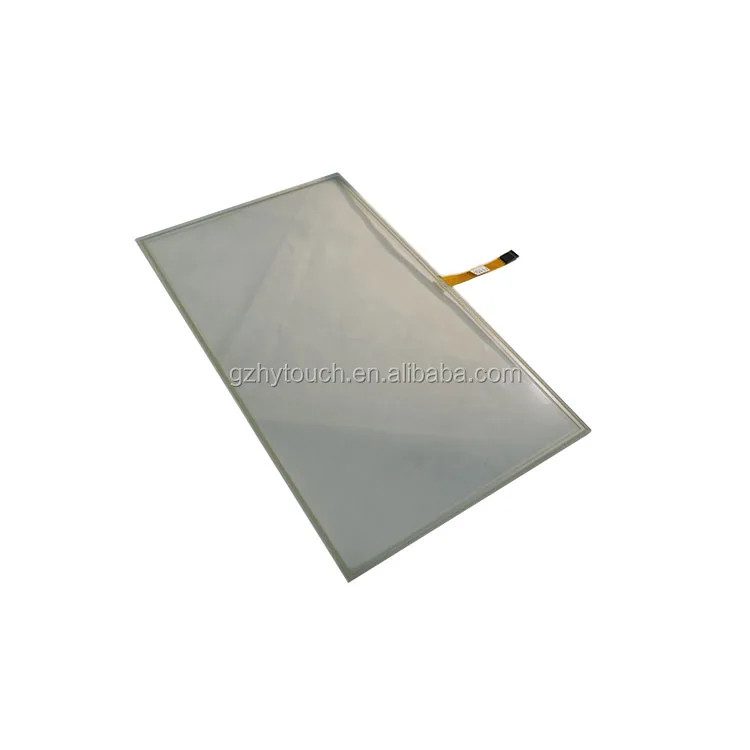

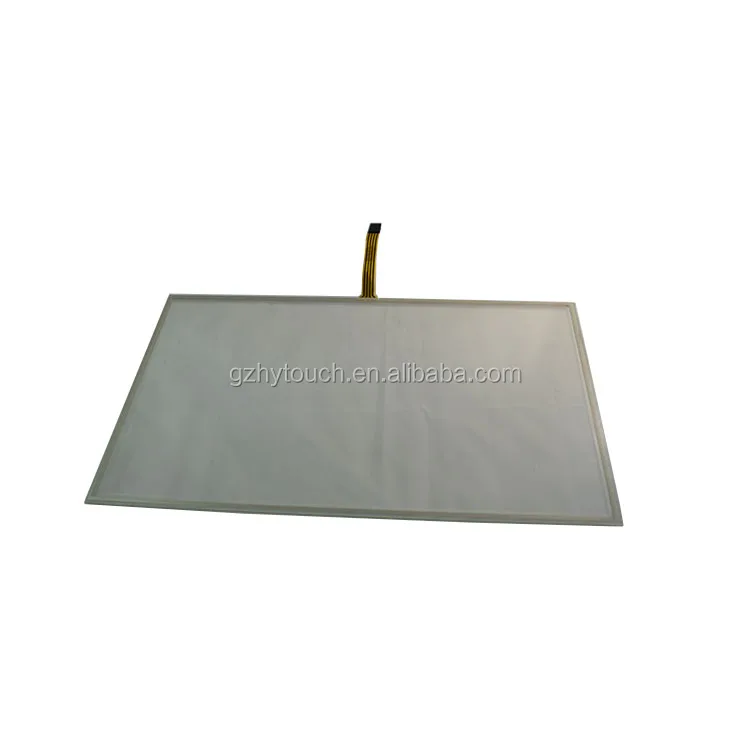

4 wire 5.7 inch resistance LCD panel portable medical devices resistive touch screen for vehicle-mounted
Product Description
Specification:
Item
Resistive Touch Screen
Dimensions
From 3.2'' to 24''
Thickness
1.8mm or customize
Conductive Glass Thickness
ITO 0.7mm, 1.1mm or 1.8mm
Conductive Film
188 μm
Structure
Conductive film, ITO film
Insulation Distance
3 * 3mm
Connector
FPC, flexible printed circuit
Electrical Performance
Loop Resistance
50~300Ω
Linearity
≤1.5%
Insulation Resistance
≥10MΩ, @25V (DC)
Maximum Operation Voltage
5V (DC), 1mA
Chattering Time
≤15ms
Response Time
≤20ms (from the touch moment to response)
Mechanical Behavior
Input Method
Pen or Finger
Operation Force
OD 2mm pen within 60g~150g pressure
Surface Hardness
3H
Transparency
83 ± 3% @550nm wave length
Environmental
Operation Temp
-10~60°C
Storage Temp
-20~70°C
Resistive Lifetime for Single Point
> 1,000,000 times
about us
packing
FAQ
1. How is the price? We are a factory in Guangzhou, China. All the products have factory price, the more your quantity,
the lower the price will be.
2. How long is the warranty period? Generally the warranty period is one year. It depends on different products.
3. Have you ever exported to foreign countries? We have exported to North America, South America, Eastern Europe, Southeast Asia, Africa, Mid East, Eastern Asia, Western Europe, South Asia, ect.
4. Could we place an order as OEM to produce under our own brand?
Yes, our company accepts OEM and ODM ONLY for the following types:
Resistive Touch Panel (2 inch to 24 inches)
Capacitive Touch Panel ( 2 inch to 65 inches)
The sizes of the Touch Panel can be adjusted according to the customers' requirements
