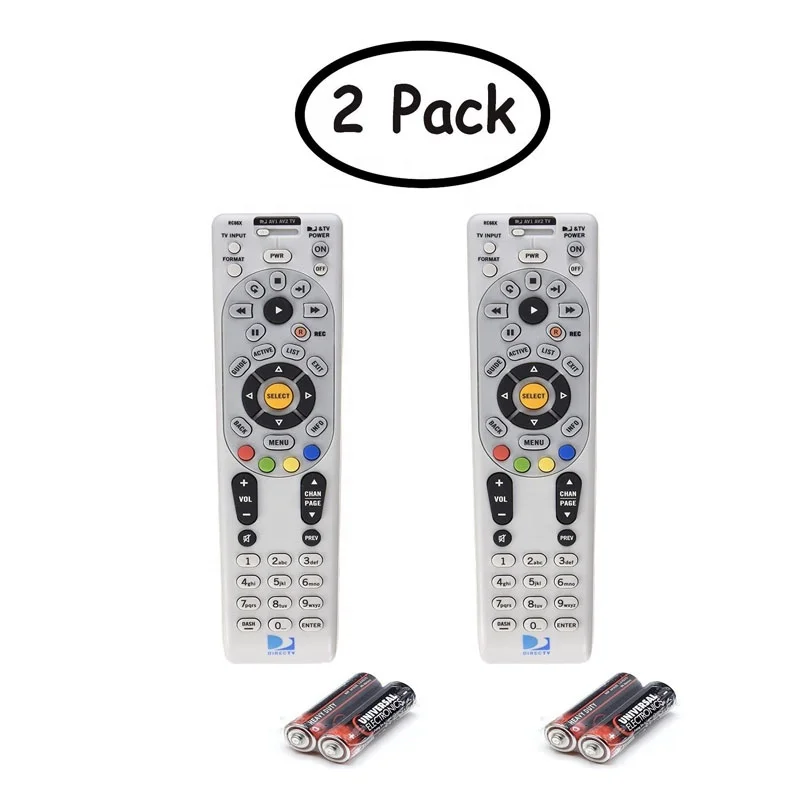

New Original Replacement Remote Control for DIRECT TV RC65, RC65X,RC66, RC66X,RC66RX

Product Overview

Description

Description



Replacement IR Remote Control For DIRECTV RC65RX RC65R 4 - Device LCD LED HDTV Plasma TV TVs AV Receiver

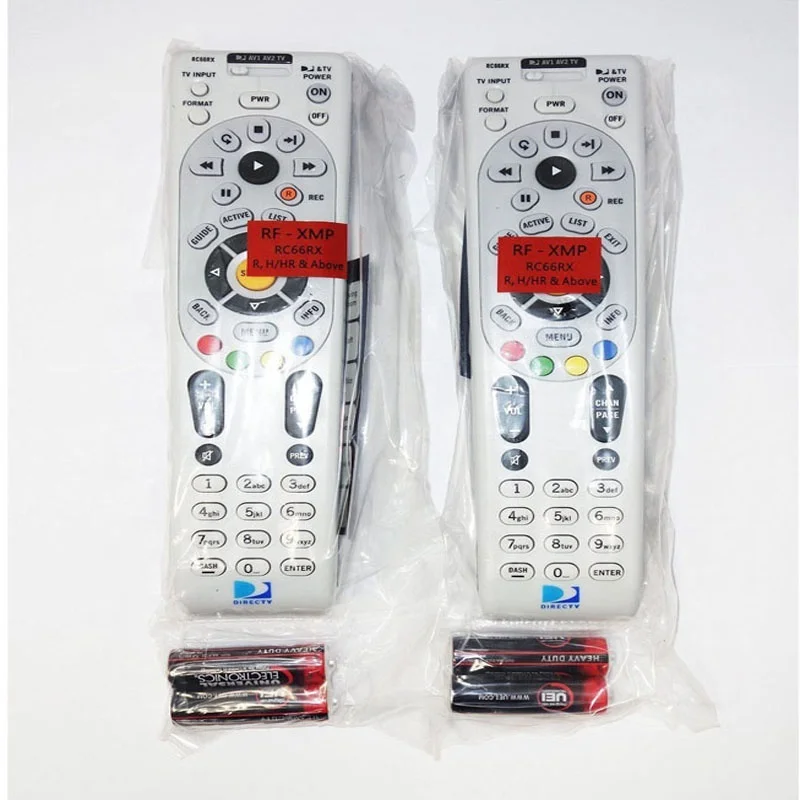

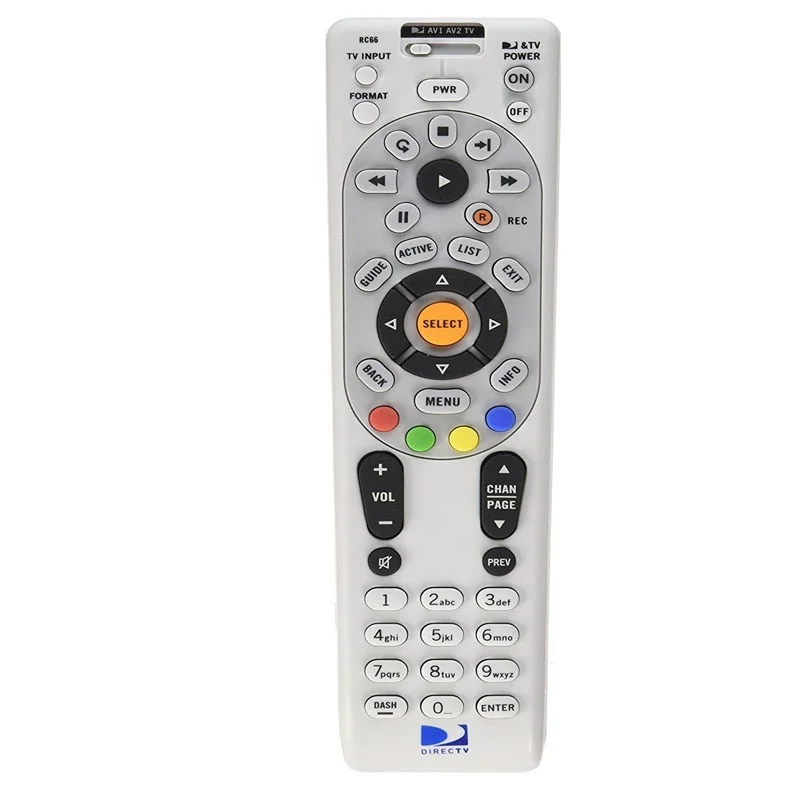

The RC66RX has more codes available than it's predecessors (RC65RX, RC65R and RC64R). It can do everything the Infrared(IR) can do, and more. It's Radio Frequency (RF) capable, so you don't have to point your remote at your receiver to control it. You change channels from other rooms. Older model receivers may require an antenna to use this remote in RF mode (look for remote antenna input on the back panel of the receiver). This remote will also work in IR mode if your receiver is not RF capable (must change remote to IR mode).





Specification



Model	RC66RX
Plastic shell	ABS/ new material (in line with ROHS requirements),white
Silicone button	methyl vinyl silicone rubber
PCB	single-sided printed board (V board or KB)
IC type	ard package (non bonding mode)
Operating voltage range	2.5V~3.3V
Rated operational voltage	DC 3V
Working current	≤40mA
Quiescent current	≤5uA
Infrared wavelength	950±50nm
Carrier frequency	37.9±0.2KHz
Use power	3V  5 or 7 dry battery
Firing angle	30°-45°  6 meters
Service life	Average service life of 5 years
Key force	120±30g
Key life	≥100 thousand times
Free fall test	76cm
Electrostatic environment test	±15KV
Ambient temperature	-5~45℃
Relative humidity	≤95%
Battery ambient temperature	-10℃~60℃
High temperature storage test	60℃(12hr×4)
Low temperature storage test	-10℃(12hr×4)
Constant humidity test	40 degree relative humidity of 90% (12hr)
High temperature cycle test	(four cycles) - 60 degrees C * 3hr, * 3hr
Storage temperature	-10℃~60℃
Coverage	≥8m
Directive	≥30°
Directivity function distance	≥8m
Undervoltage (2.5V) state acting distance	≥6m





Pictures
