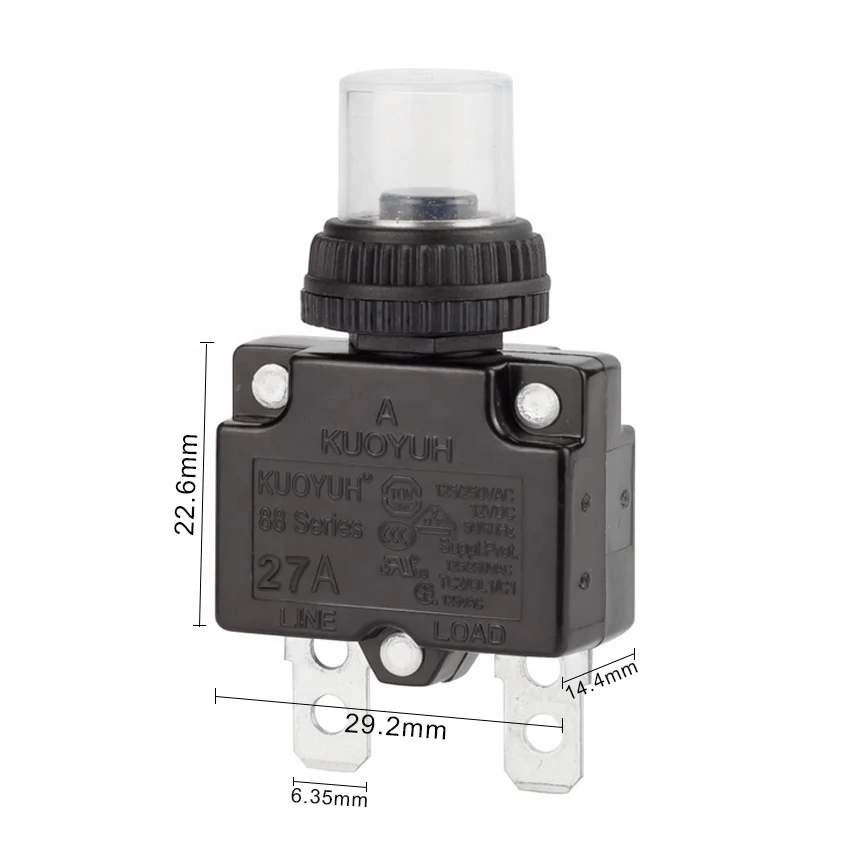

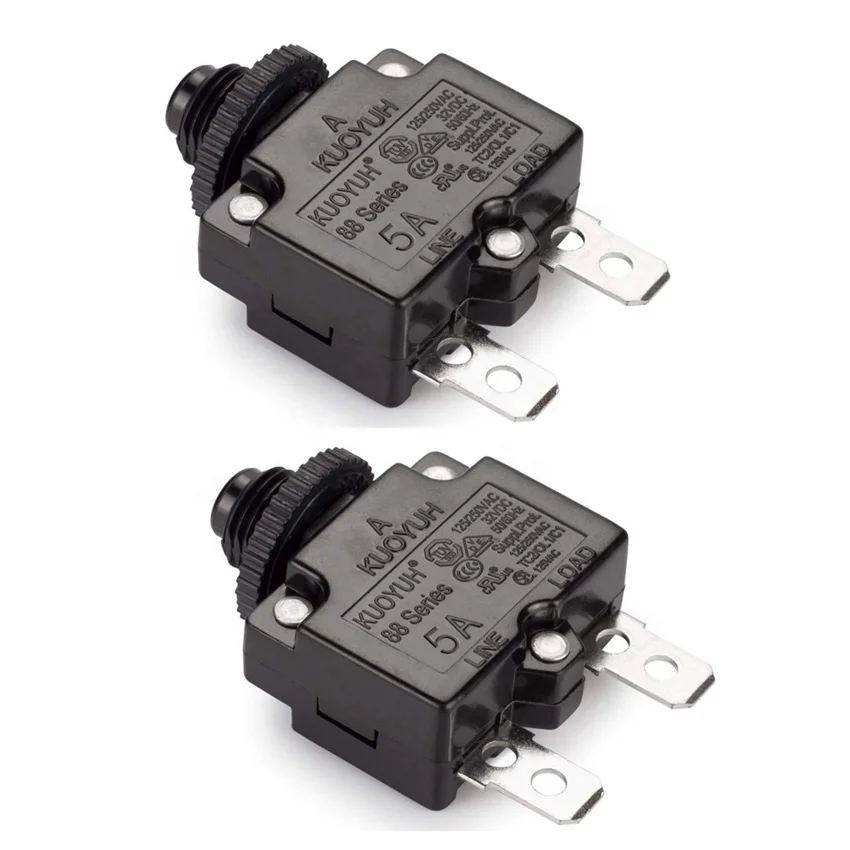

KUOYUH 88 series 5A straight PIN Metal Nut Mini Circuit Breaker Manual Reset Thermal Overload protector switch

Current rating range:3~30A

Input voltage rating :125/250VAC; 32/50VDC
Interrupting Capacity : 125/250VAC x 1,000A(UL 1077)
Typical life : 1,000 operations at 200% overload

Insulation co-ordination:Rated impulse withstand voltage 2.5kV

Dielectric Strength:> 1.500VAC/min.

Insulation Resistance:>100MOHM (DC 500V)

Degree of protection:Terminal area IP00, operating area IP40

Mechanical/Environmental Data

Operating Ambient Temperature: -10℃ to +60℃

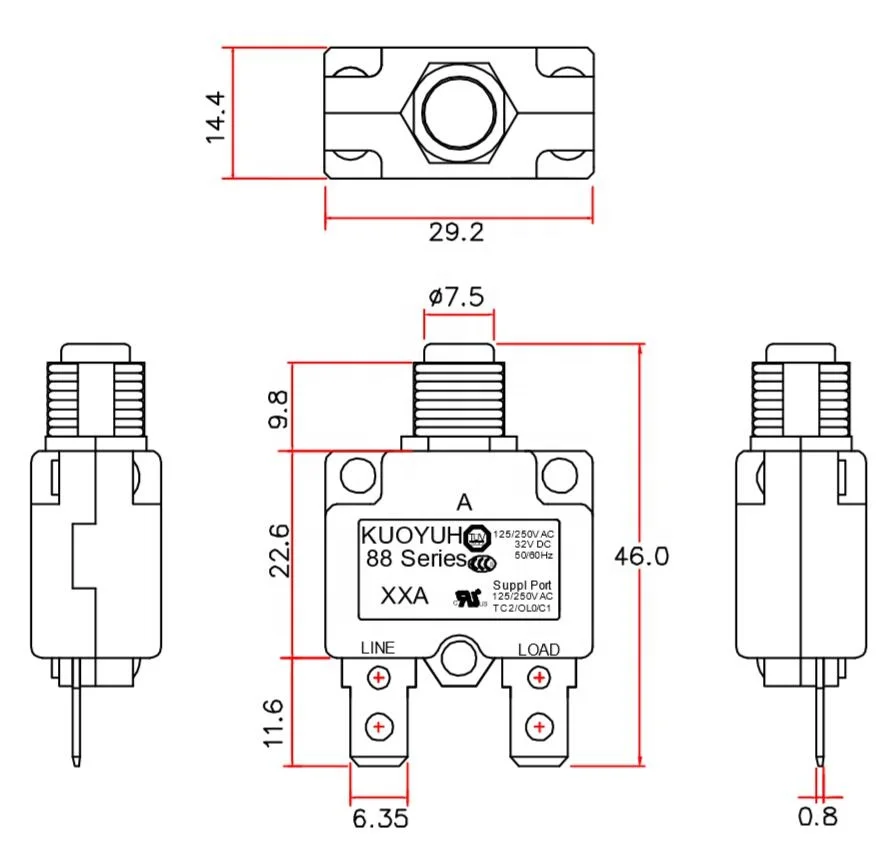

Mounting: Various options. See Ordering Information and drawings

Termination: 250’’(6.35mm）quick connects or solder terminals

Calibration(at25℃)

100% of Rated Current: Hold , No Trip

300% of Rated Current: 1.5-5.0 sec Trip •

200% of Rated Current: 5-30 sec Trip •
150% ofRated Current: Trip Within 1 Hour

Approval

Approval & File No                      Rated current                   Rated voltage
CUL UL E155159                         3-30A                                125/250VAC; 50VDC

TUV SUD B15 09 58611 007     3-20A                                125/250VAC; 32VDC

VDE 40036160                             3-16A                                125/250VAC

CSA 102199                                 3-16A                                250VAC

IEC  60934                                    3-20A                                250VAC

Typical applications

Tarnsforms, Motors, Battery chargers, Power supplies, appliances, extra low voltage systems, machinery
