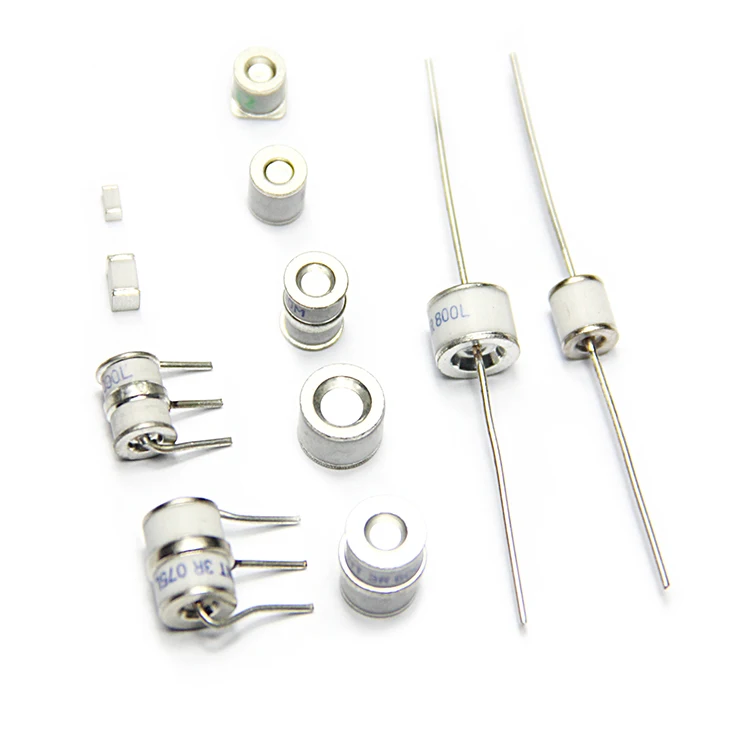

Surge protector gas discharge tube GDT SMD1206 in stock available

Product Overview

Description



Circuit Protection 2Pole GDTs (ceramic gas discharge tubes), are commonly used to help protect sensitive telecom equipment such  as communication lines, signal  lines  and  data transmission lines from damage caused by transient surge voltages that typically result from lightning strikes and equipment switching operations.

Circuit Protection GDTs offer a high level of surge protection, low capacitance and a broad array of breakover voltage levels, making them suitable for applications such as MDF (Main Distribution Frame) modules, high data-rate telecom applications (e.g. ADSL, VDSL), and surge protection on power lines.  Circuit Protection GDTs can help  equipment meet the most stringent regulatory standards.

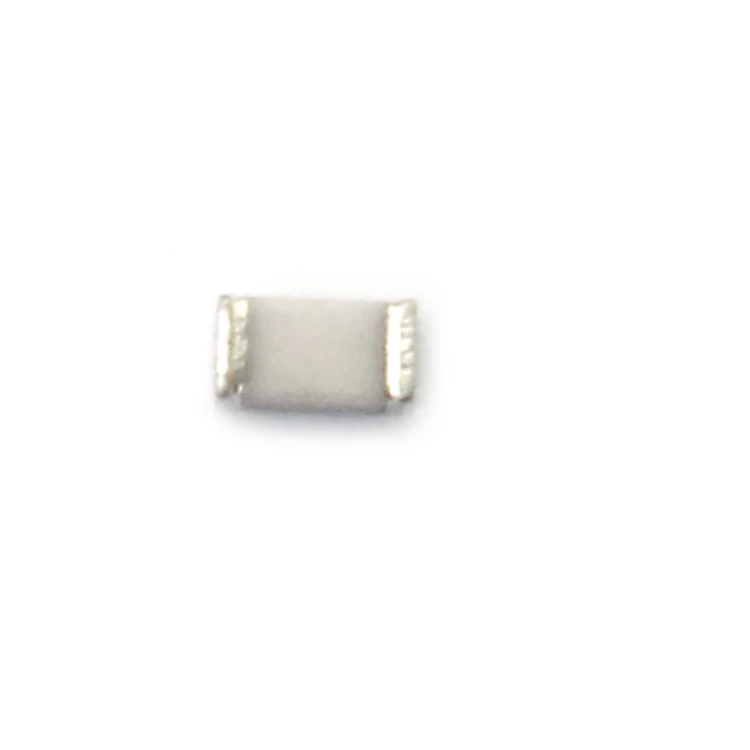

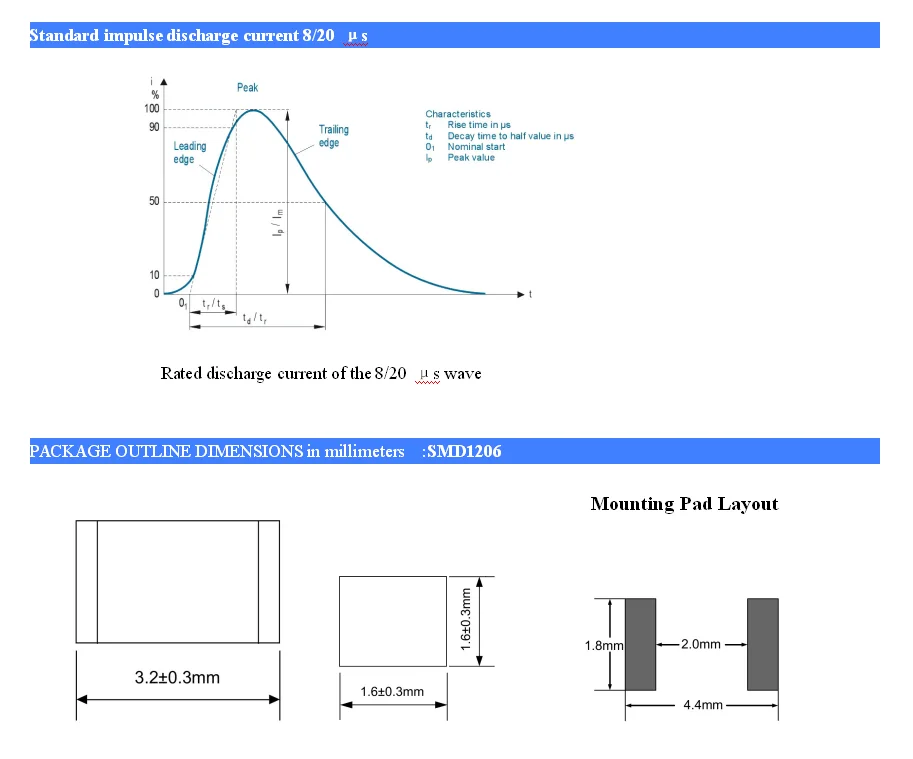

l Size3216(1206)

l High insulation resistance.

l Crowbar overvoltage protection

l Low capacitance and insertion loss

l Optional fail-short mechanism on some devices

l Devices tested per ITU K.12 recommendations
