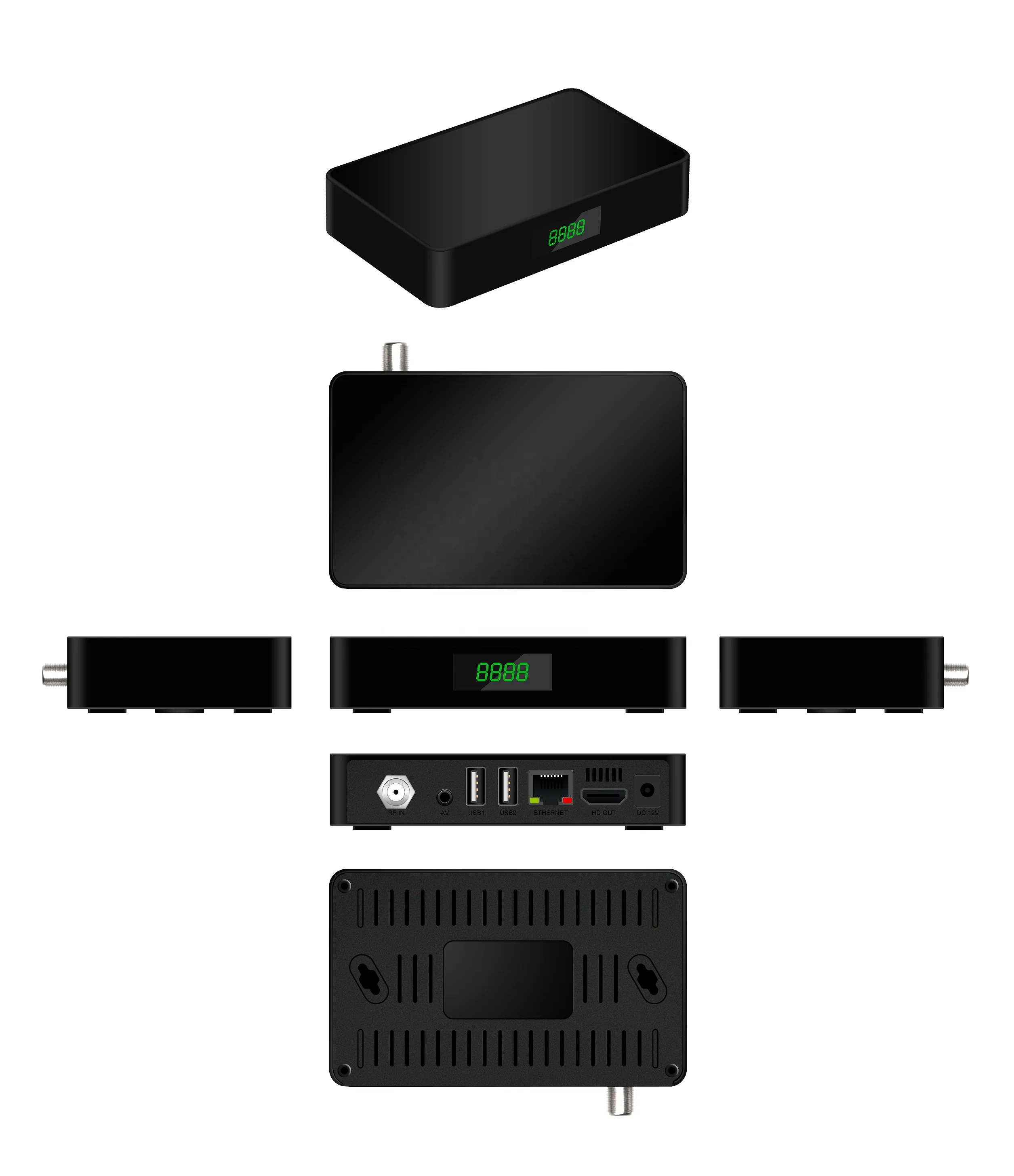

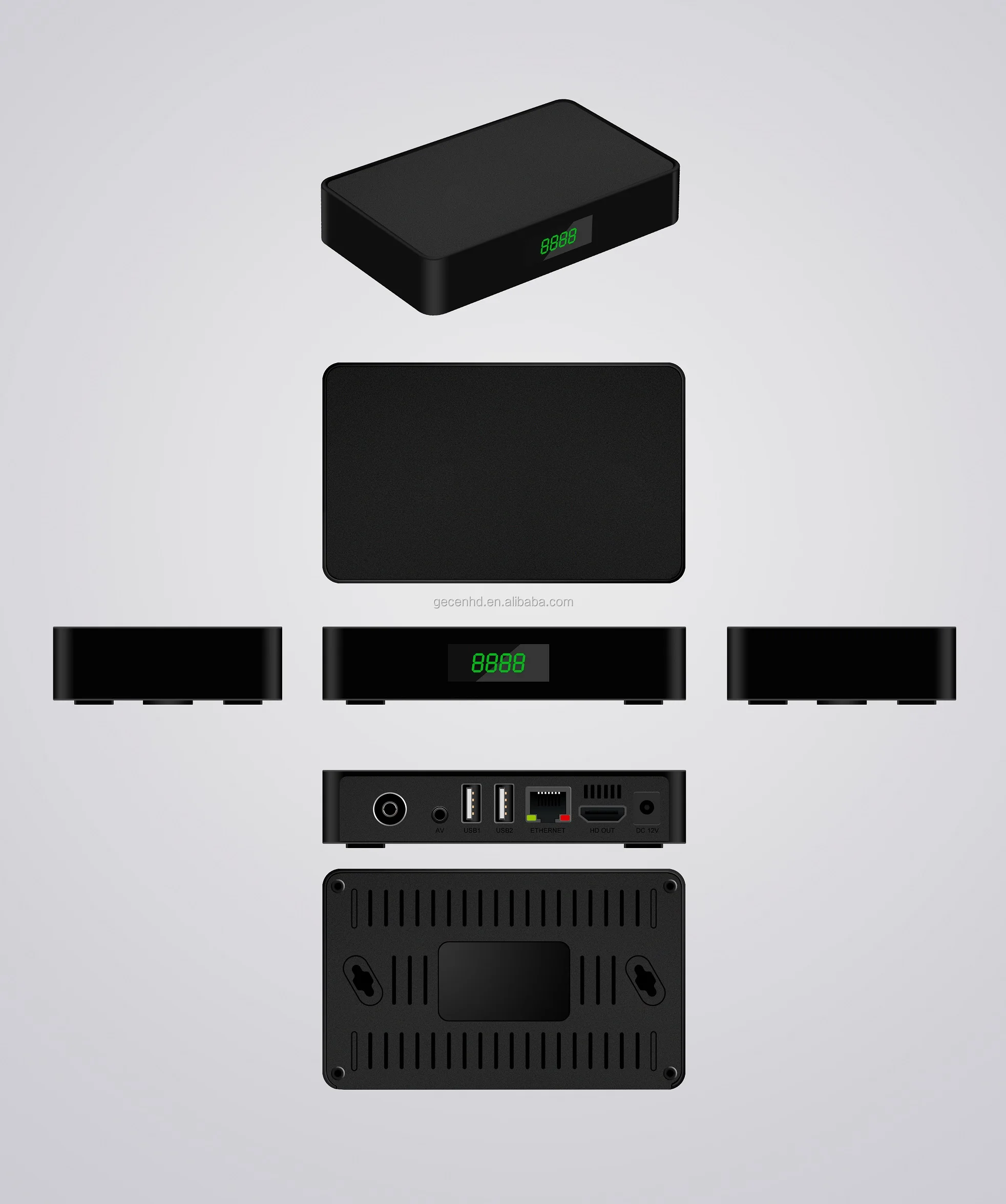

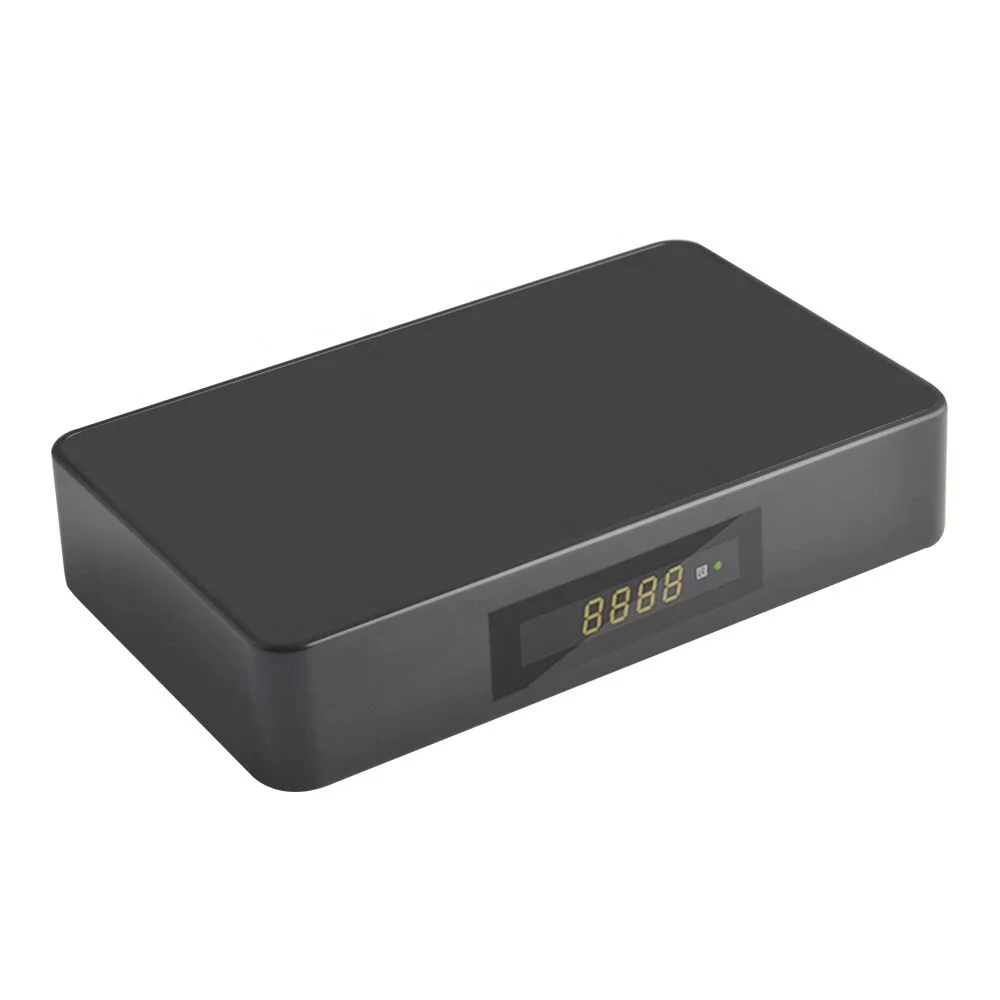

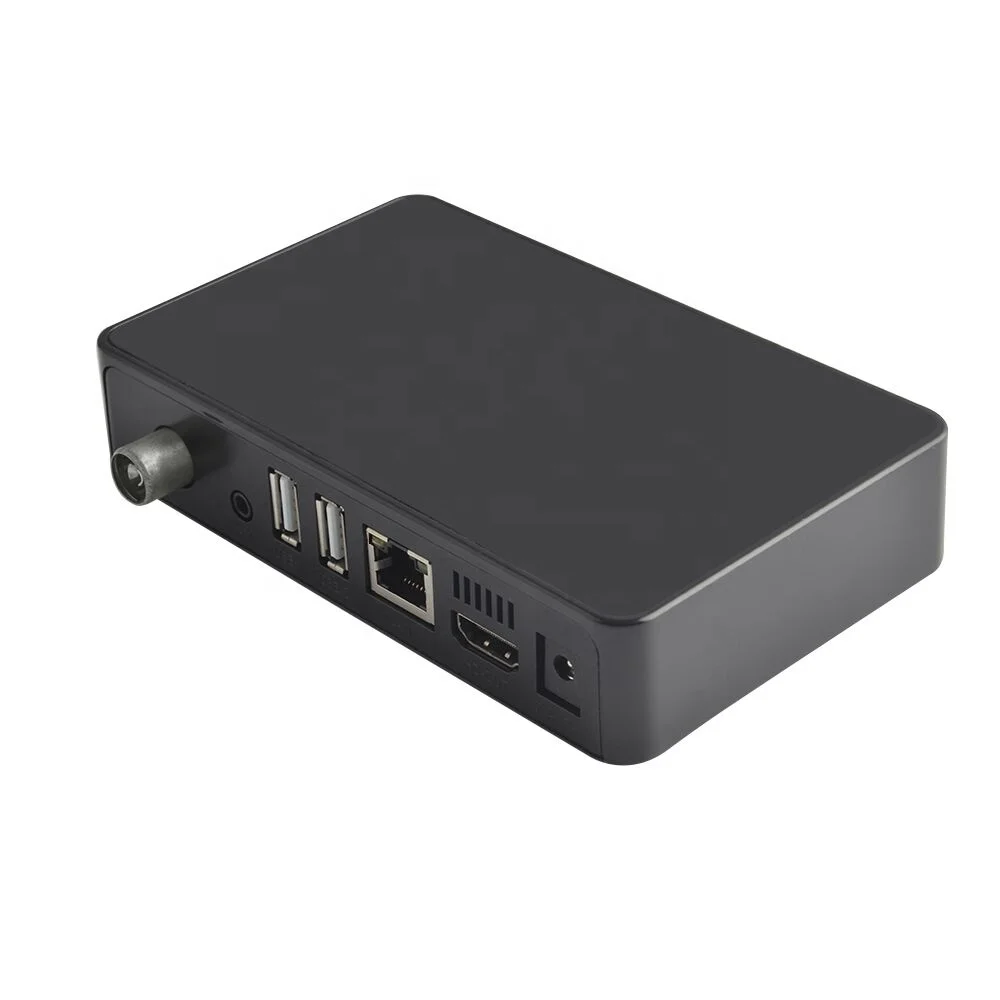

High Quality Allwinner H3 Option OTT DVB T2/DVB S2 Android Combo Smart TV Box
- Category: >>>
- Supplier: Zhuhai Gecen Intelligent Technology Co. Ltd.
Share on (62064437241):
Product Overview
Description
Product Description
1.OEM/ODM 1000pcs+ free do UI design.
2.Free to install customers boot logo,apps,KD etc.
3.Do custom logo on box.
4.Free support OTA update and monthly firmware update.
5.Free to do packing design if not complicated(or little charge to design as your idea).
6.support to develop custom model.

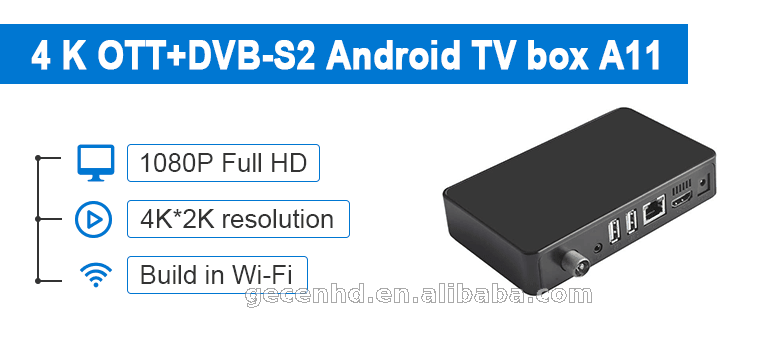

1.OTT DVB-T2/DVB-S2 is a quad core 4K Android combo Box supporting T2&S2

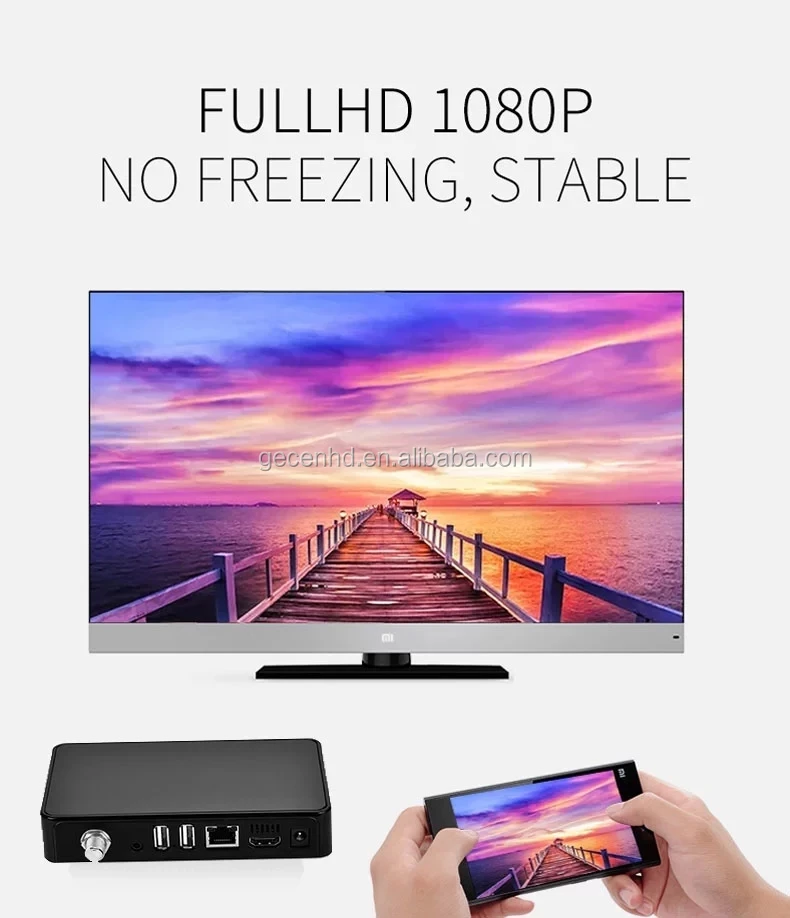

2. H.264/H.265 decoding up to 4K×2K@30fps
3.DRAM: DDR3 1GB (512MB Optional)
4. Flash: EMMC 8GB( Nand/EMMC 4GB,8GB,16GB,32GB Optional)
5. BT 4.0 ( Optional )
6. Build in Wi-Fi 2.4GHz 802.11a/b/g/n(2.4GHz, 5GHz Optional )
| Product Name | 2022 High Quality OTT DVB-T2/DVB-S2 Android Hybrid Box |
| Basic parameters: | |
| SoC | Allwinner H3 |
| CPU | ARM Quad Cortex-A7 up to 1.2GHz |
| GPU | Mali-400MP2 |
| OS | Android7.0 |
| DRAM | DDR3 1GB (512MB Optional) |
| Flash | EMMC 8GB( Nand/EMMC 4GB,8GB,16GB,32GB Optional) |
| Network | RJ45 Interface 10M/100M adaptive |
| Build in Wi-Fi 2.4GHz 802.11a/b/g/n(2.4GHz, 5GHz Optional ) | |
| Support most external 3G/4G USB dongle(Optional) | |
| Tuner S2 | Tuner+DEMO: AV2012+AVL6862 |
| Frequency Range: 950~2150MHZ | |
| Input Level: -65~-25dBm | |
| Input impedance: 75Ω | |
| Tuner T2 | Tuner+DEMO: MXL608+AVL6862 |
| Frequency Range: (VHF)174~230MHz, (UHF)474~858MHz | |
| Input Level: -85dBm~-20dBm | |
| Input impedance: 75Ω | |
| Peripheral Interface | USB2.0 x2, SD card slot, CA card slot |
| Power Interface | DC 12V |

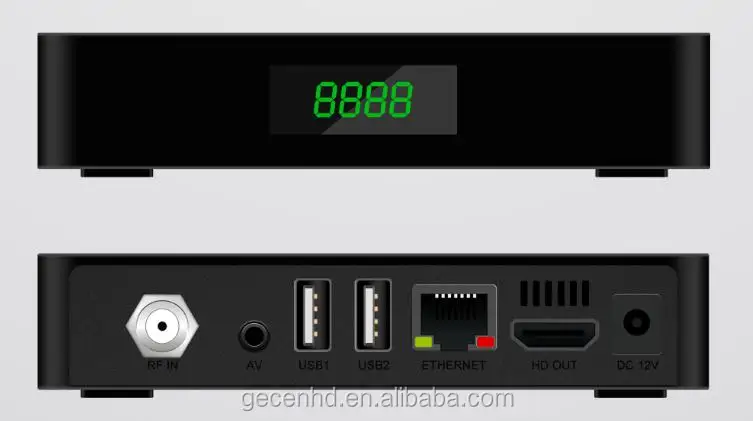

| Other Interface | Front panel: IR receiver, LED indicator Rear panel: IR IN |
| Features: | |
| Digital TV | Fully compliant with DVB-S2/DVB-S, 7 days EPG, USB PVR, Timeshift, Program playback, Timing playing |
| CAS | Conax CA (Optional), Patch, BISS, CCCAM, NEWCAM, GSCAM, MGCAM |
| Network Streaming | HTML5, RTSP, HLS, Smooth streaming |
| Multi-screen interactive | Miracast, DLNA and Airplay |
| System Upgrading | Upgrading via USB disk or SD card, internet |
| Local Media Playback | Video/Audio/Picture |
| External Storage | USB storage, SD card max to 32GB (FAT32/NTFS) |
| Games | Android 2D/3D games |
| APP | Facebook, YouTube, Skype, etc. |
| Other parameters: | |
| Input Voltage | DC IN 12V/1.5A |
| Power Consumption | 8W Max |
| Operation Temperature | 0~40℃, Humidity<95% |
| Physical characteristics | Size: 140mm*120mm*25mm |
| Weight: 326g | |
| Material: plastic+aluminum | |
| Proposed Accessory | Remote control and Battery, User manual, Power adapter, AV cable, |
Contact Us
Packing&Shipping
1*Android Smart TV Box
1*AC Power Adapter
1*Remote control
1*Cable
1 x User Manual (English for standard version), other version requirement could be discussed
Company information
About us(quality--factory--service)
Workshop

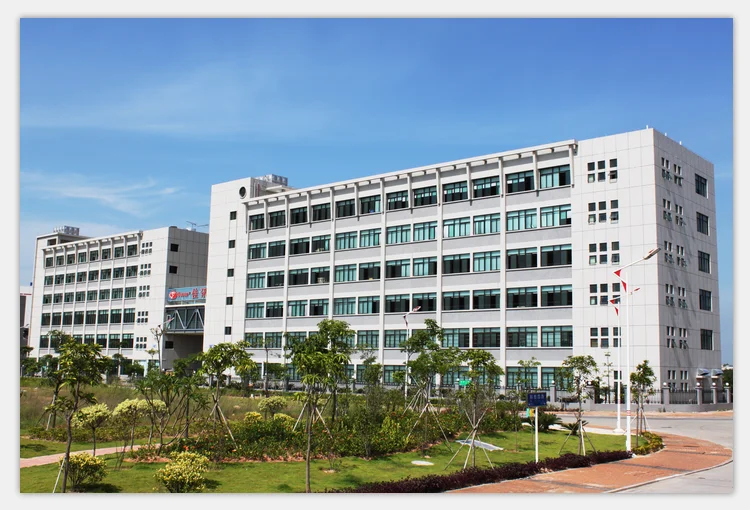

Factory
Zhuhai Gecen Electronic Co.,Ltd has been operating in the electronics industry for more than 20 years.
We have our own factory, which has more than 20,000 square meters.
What’s more, we are building our new factory which will be started to be run at the end of 2020 and our production capacity will be increased remarkably. We have strict quality control from raw materials to processing to finished products.
