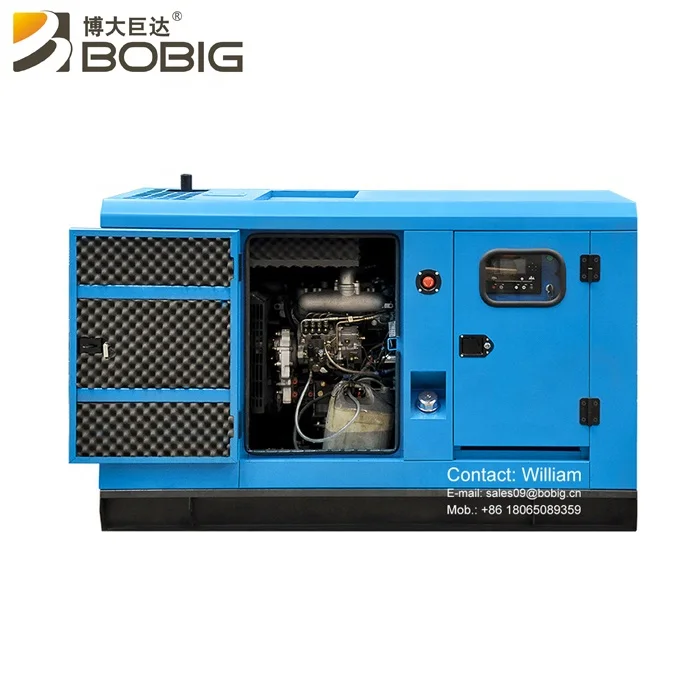

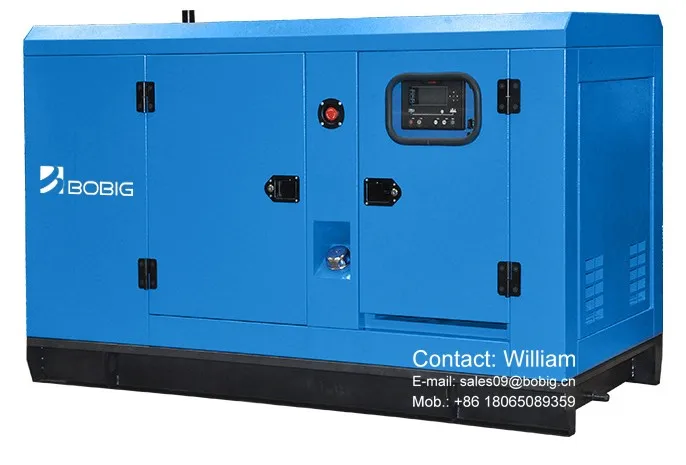

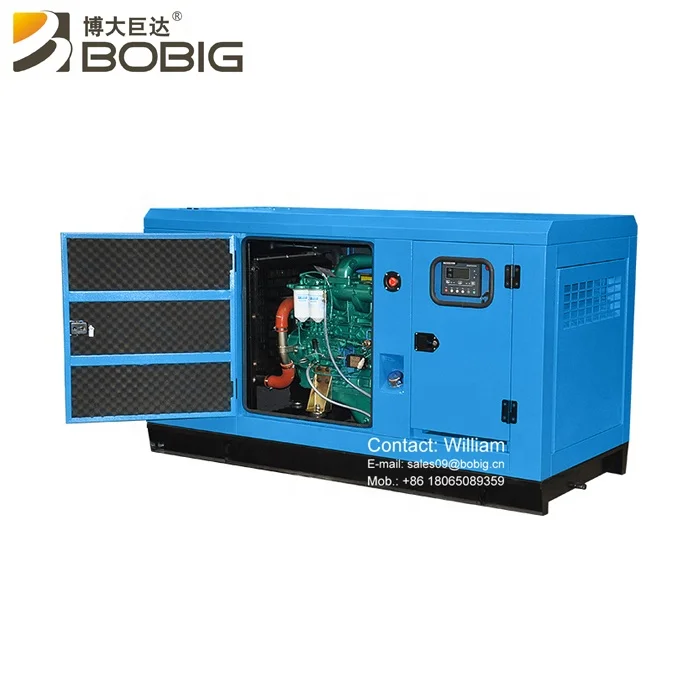

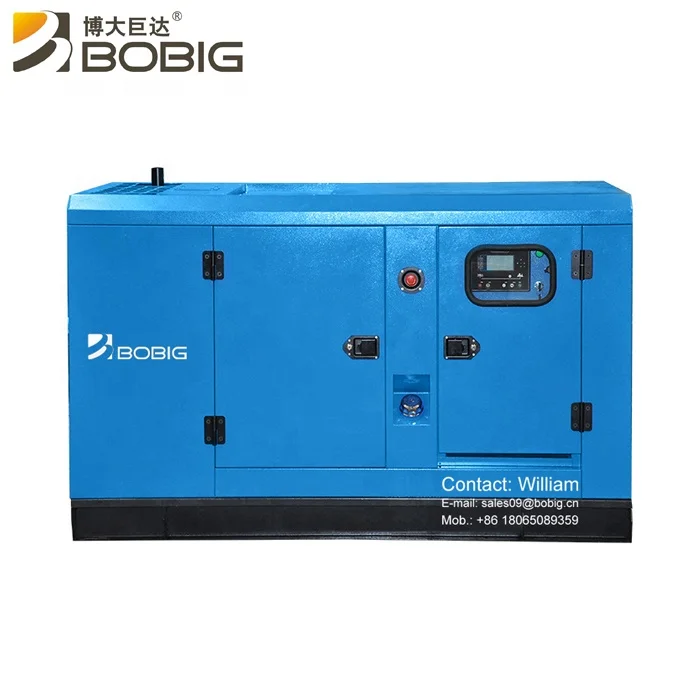

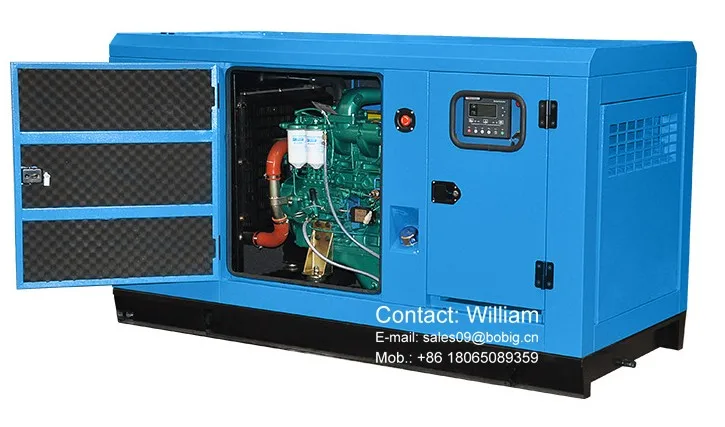

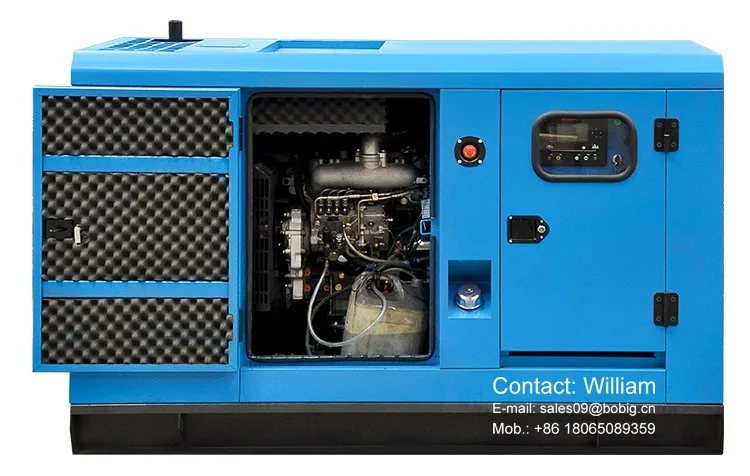

110 480V 50/60Hz 3 Phase Silent Type Ricardo N4105ZDS Diesel Engine Generator 50KW
110-480V 50/60Hz 3-Phase Silent Type Ricardo N4105ZDS Diesel Engine Generator 50KW
110-480V 50/60Hz 3-Phase Silent Type Ricardo N4105ZDS Diesel Engine Generator 50KW
110-480V 50/60Hz 3-Phase Silent Type Ricardo N4105ZDS Diesel Engine Generator 50KW
110-480V 50/60Hz 3-Phase Silent Type Ricardo N4105ZDS Diesel Engine Generator 50KW
110-480V 50/60Hz 3-Phase Silent Type Ricardo N4105ZDS Diesel Engine Generator 50KW
110-480V 50/60Hz 3-Phase Silent Type Ricardo N4105ZDS Diesel Engine Generator 50KW

110 480V 50/60Hz 3 Phase Silent Type Ricardo N4105ZDS Diesel Engine Generator 50KW

Share on (62064487797):


Price:

Quantity:


Product Overview

Description


Product Description

Product Application

* With strong power and stable performance, the Bobig diesel generators are really good at tough works.


* Stability is demonstrated everywhere in Bobig diesel generators, from performance to manufacturing craftwork. High stability makes Bobig diesel generators the best choice for applications in harsh environment, like desert, mining, etc.

\t
SPECIFICATIONS
\t
Model #
\t
\t
BW69S
\t
Rated Voltage
\t
V
\t
110-480
\t
Rated Frequency
\t
Hz
\t
50Hz
\t
60Hz
\t
Phase No.
\t
\t
3
\t
Prime output
\t
KW/KVA
\t
50/63
\t
Standby output
\t
KW/KVA
\t
55/69
\t
Engine model
\t
\t
Ricardo N4105ZDS
\t
Engine type
\t
\t
Water-coold, Turbocharged, 4-cylinder, 4150cc
\t
Alternator model
\t
\t
Bobig BW224E
\t
Bobig BW224D
\t
Alternator type
\t
\t
Brushless, Self-excited, IP23, Class H, AVR +/- 1%
\t

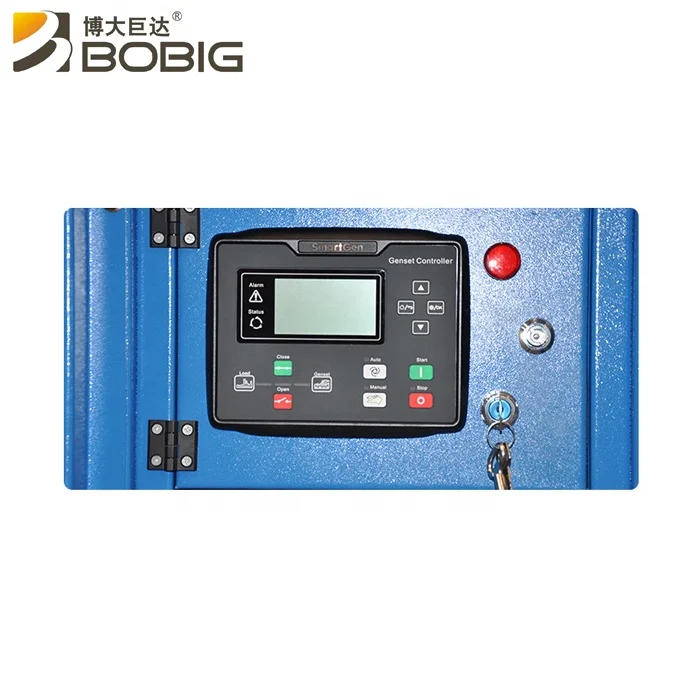

Controller Model
\t
\t
Smartgen HGM6120U / Deepsea DSE6120
\t
Auto shut-down protections
\t
\t
Overload, Overcurrent, Overspeed, Overtemp.
\t
AMF (Auto Mains Failure) function
\t
\t
Yes
\t

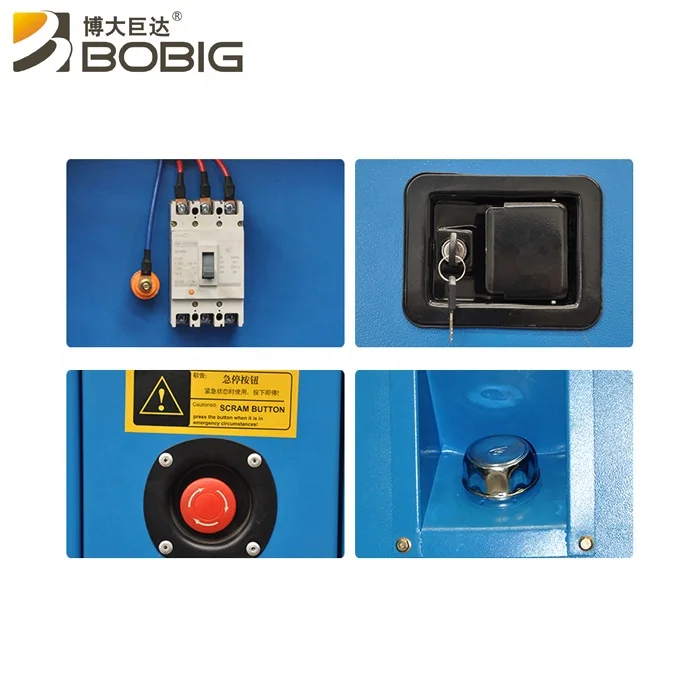

Emergency stop button
\t
\t
Yes
\t
Fuel Consumption @ 100% load
\t
Liter/Hr
\t
14
\t
Fuel Tank Capacity
\t
Liter
\t
125
\t
Noise Level @ 7 meters
\t
dBA
\t
69
\t
Dimensions (LxWxH)
\t
mm
\t
2220x960x1200
\t
Net Weight
\t
Kgs
\t
1030
\t
Please feel free to contact me get technical datasheet with more detailed specifications.
Features
Packing & Delivery
\t
Packaging
\t
Size
\t
LxWxH: 2220mmx960mmx1200mm
\t
Weight
\t
1030KGS
\t



Packaging Details
\t
The standard packing is wooden crate fumigation free.

If container is too tight,we will use pe film for packing or pack it according to customers special request.
