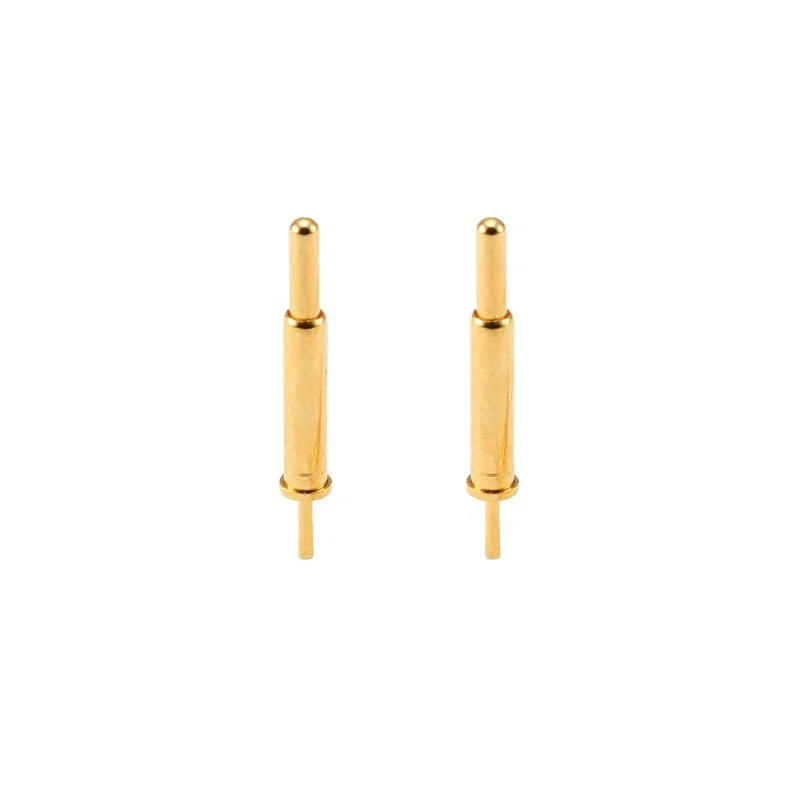

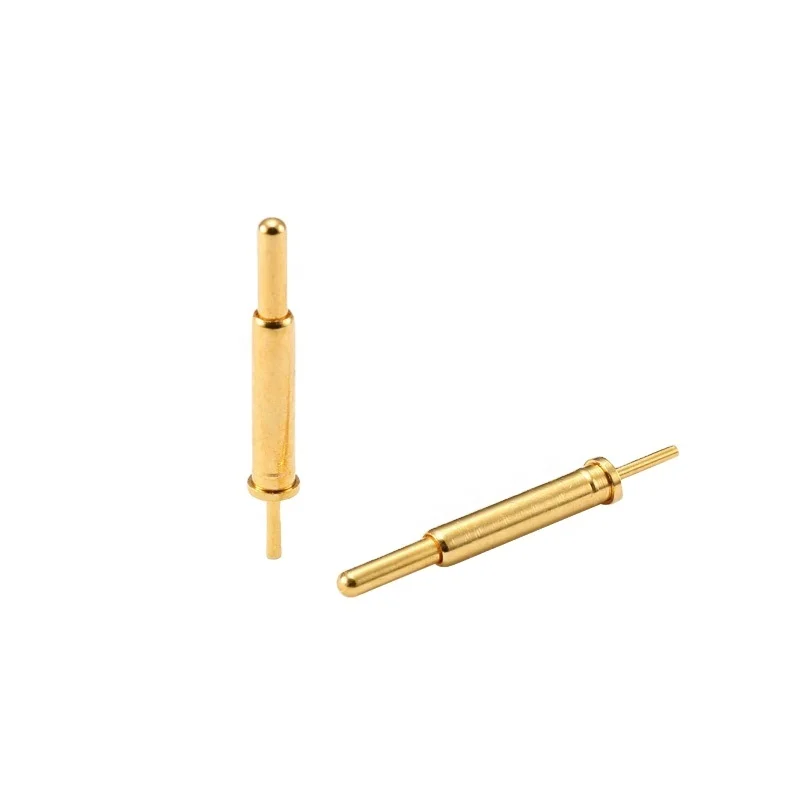

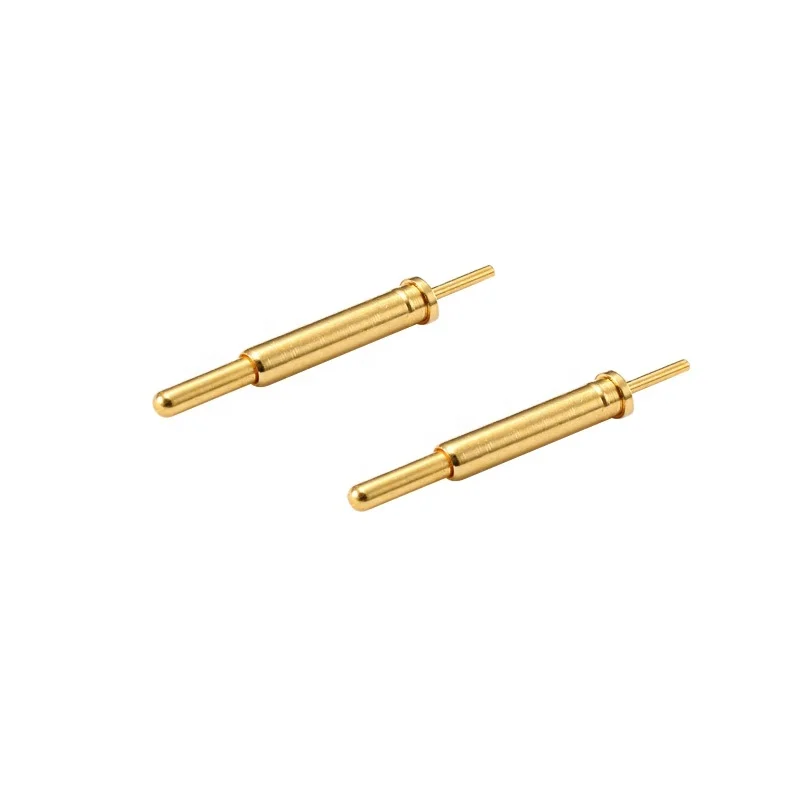

Current 3A through hole DIP type pogo pin for connectors
- Category: >>>
- Supplier: Dongguan Cfe Electronic Co. Ltd.
Share on (62064907307):
Product Overview
Description
Current 3A through hole DIP type pogo pin for connectors
| Material | Brass(C3604) |
| Color | Gold |
| Size | Depends on customer requirements |
| Type | DIP |
| Plated | Gold palted(10U")(can customized) |
| Cycle life | 20,000 times |
| Contact resistance | 50m Ohm Max. |
| Salt fog | 72H |
| Rated current&voltage | 3A/12V(can customized) |
| Applications | PCB,power ,charging equipment |
| Certificate | ISO9001/ROHS/REACH/MSDS/SGS |
| Packing | 100pcs/PE bag(or according to customer requirements) |
| Payment Term | T/T,30% Deposit,70% Balance |
| Payment method | T/T,PayPal,HSBC |
| Freight | Air,Sea,Express |
| Sample Lead Time | Inventory simple 2-3day /customizd simple3-5day |
| Production Lead Time | 10-15day |
| Made For | America,Europe,Asia,South African |
| Trade Term | EXW,FOB,CIF |
| Service | High quality with reasonable price. OEM serivce, any special size, color, designs are acceptable. Original sample can be re-made. |
Pogo pin connectors- A single pin consists of a plunger, spring and barrel by riveting and pressing with precision equipment.
CFE has developed numerous of new structures for customers during the past decade and continues to add more parts such as a precision insulating bead, precision positioning column,
precision positioning tail plug, precision inner bushing, precision outer sheath, precision steel ball, precision spring, peek sleeve, sealing ring, etc.
A number of invention and utility model patents have been obtained.
Application Field
1: Aerospace Electronics,medical equipment electronics, automotive electronics,
industrial electronics.
5G communication electronics, military, and police equipment electronics.
2: UAV equipment, medical products, Internet of things equipment
(IoT), intelligent data center, portable equipment, intelligent robot.
3: Smart home appliances, smart hair appliances, smart handheld devices,
intelligent sports equipment, intelligent physiotherapy and beauty equipment.
4: Smart wearable products (TWS Bluetooth headset,
headset, smartwatch, smart bracelet, smart clothing, etc.)
5: Consumer electronics (printers, smartphones, laptops,
tablets, atomizers e-cigarettes, LED lamps)
1) Our normal packing is : Depond on buyer's packing requirements.
2) Shipping : courier (UPS,DHL,FEDEX,EMS,TNT), Air/Sea are all available .
Q:What is pogo pin ?
A: Pogo pin is a special connector the basic structure of a turning barrel ,a cutting plunger and Compression spring .The barrel tube mouth edge,keep the plunger in the barrel,by the spring provide contact force the Electrical connections between plunger and the butt joint parts.
Q:Do you make customized products ?
A:Yes,we have a prefessional team to make custom products as your requirement.
Q: Can you provide the sample?
A: Yes,but you need to pay samples cost and we will return fee if you order 20K.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery,you can also pay in full, We'll show you the photos of the products and packages before you pay the balance.
If you have any question about the products, feel free to contact us.We will process your feedbacks and inquiry ASAP !
Current 3A through hole DIP type pogo pin for connectors
Current 3A through hole DIP type pogo pin for connectors
Current 3A through hole DIP type pogo pin for connectors
