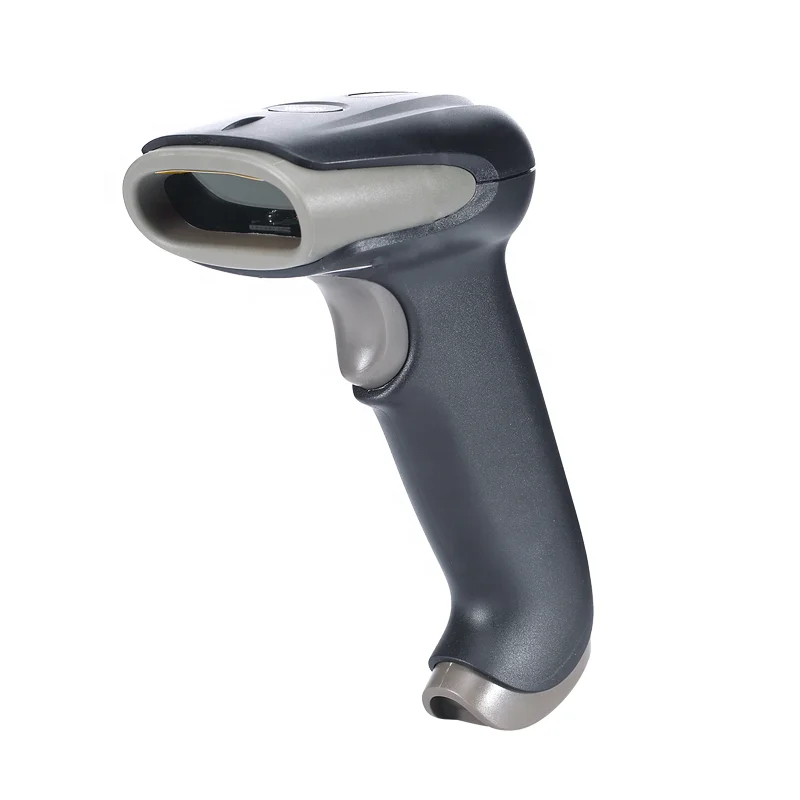

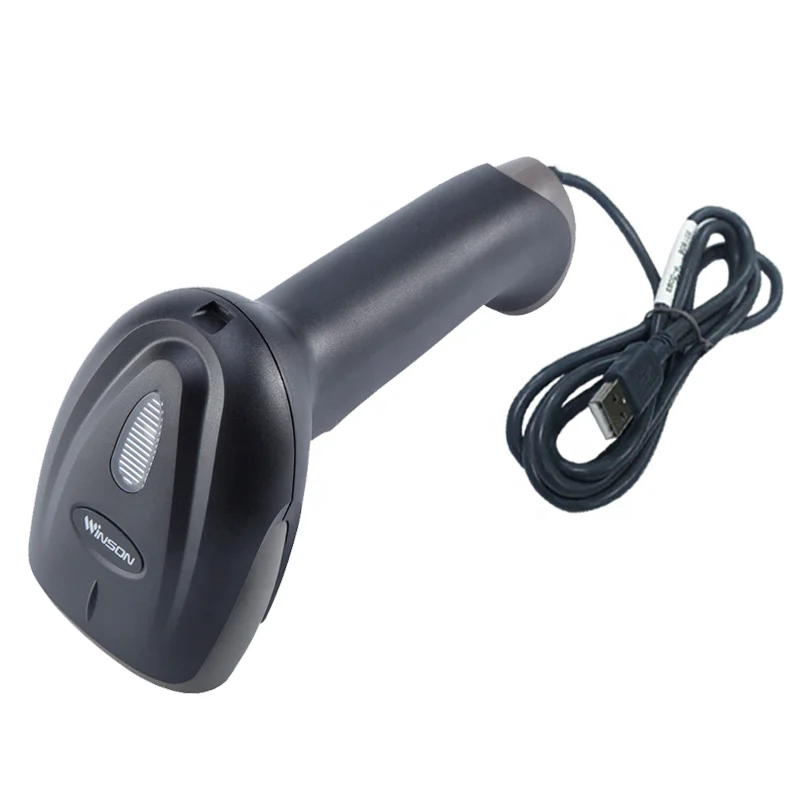

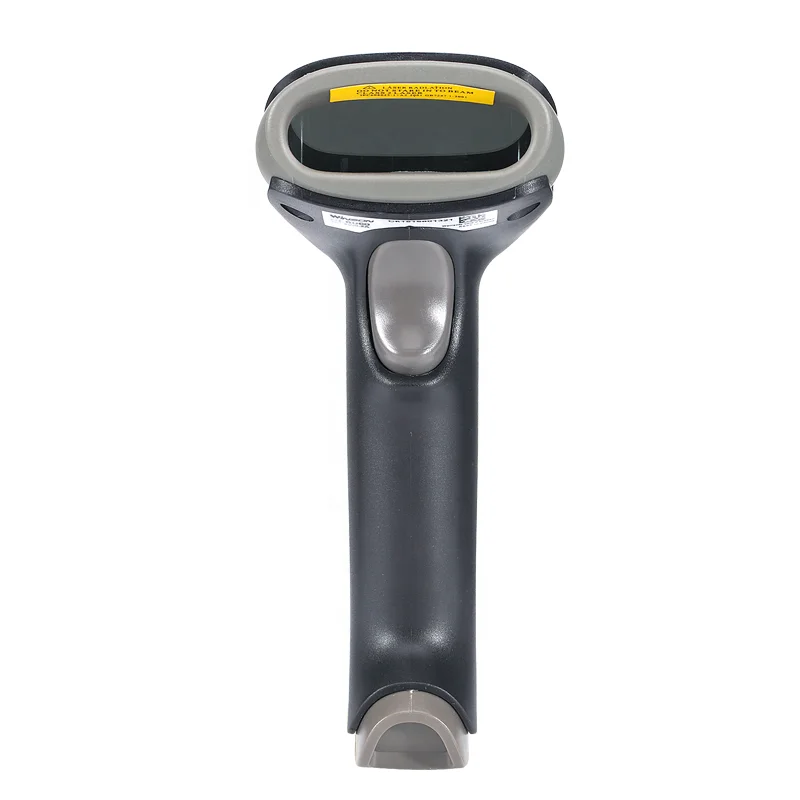

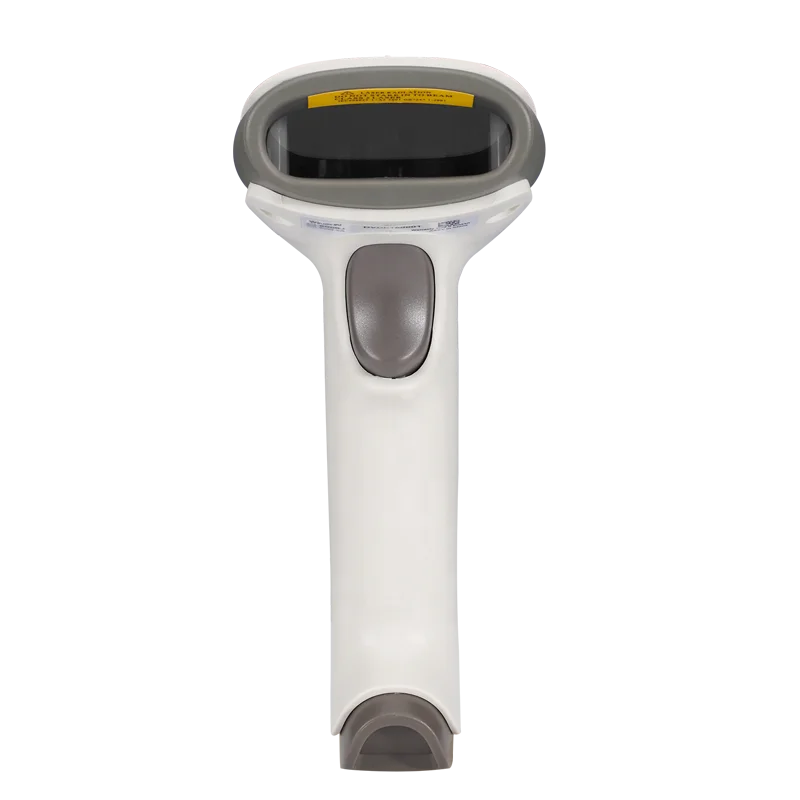

Winson WNL 6000 1d barcode verifier laser handheld bar code reader lector codigo barras
- Category: >>>
- Supplier: Guangzhou Yingbin Mould & Die Co. Ltd.
Share on (62064924555):
Product Overview
Description
Excellent decoding performance Laser Bar code Reader Portable
1D Wired Barcode Scanner
Features
| 1.Winson WNL-6000 1d barcode verifier laser handheld bar code reader lector codigo barras. |
| 2.Support read 1d paper barcodes,plug and play,no any driver or app needed. |
| 3.Support add a prefix/suffix,delete the last 4 characters,interlaced upload data and so on. |
| 4.Support multiple keyboard language: USA,Germany,French,Italy,Spanish,Turkey,Belgium and so on. |
Technical Parameters | |
Electrical Characteristics | |
Interface | RS-232/USB HID KEYBOARD/USB VCP/RS-485/PS2 |
Voltage requirement | DC 5V±10% |
Current consumption | Max:135mA |
Optical Characteristics | |
Light source | 650nm visible laser diode |
Performance Characteristics | |
Operating mode | Single read Multiple read Continuous read |
Scan Rate | 100 scans/second± 20 scans/second |
Decode angle | Pitch angle:±35° Skew angle:±75° Tilt angle:±40° |
Curvature | R≥15 mm (EAN8),R≥20 mm (EAN13)(resolution=0.26mm,PCS=0.9) |
Min resolution | SR:0.127/5mil(PCS 0.9) HD:0.08/3.2mil(PCS 0.9) |
Min.PCS value | >25%UPC/EAN 13(13mil) |
Error rate | 1/500W |
Language | Multiple languages |
Identification | EAN13,EAN8,UPC A,UPC E,CODABAR(NW-7),CODE 39,CODE 93,INTERLEAVED 2OF5,STANDARD 2OF5,MATRIX 2OF5,CODE 128,EAN/UCC 128,CODE 11,CHINESE POST |
Physical Characteristics | |
Dimensions | 70mm*95mm*168mm(L*W*H) |
Weight | 132.4g |
Environmental Characteristics | |
Temp | -20°-65°C / -4°-149°F(operation) -30°- 70°C /-22°-158°F(storage) |
Humidity | 5 - 90% (operation) 5 - 90% (storage) |
Ambient Light | Fluorescent light 4000 lx max , direct sun light 80,000 lx max ,white light 4000 lx max |
Shock drop test | 1.5m drop onto concrete surface |
MBTF | 30,000 hours except laser diode (10.000 hours) and except mirror scan unit (10,000 hours) |
Regulatory | |
Laser Safety | JIS-C-6802 Class 2 |
Electrical Safety | UL 60950,EN/IEC 60950 |
EMI/RFI | FCC Part 15 Class B,EN 55024/CISPR 22 |
Environmental | RoHS |
Product Description
Better scanning performance 32-bit CPU, scanning code speed up to 120 scans per second. Support bidirectional scanning |  |
 | |
 | |
Compatibility Compatible with the current system used by the general public, such as Windows, Android, Mac OS, IOS, Linux, and so on. | Mechanical Shock After 1.8m drop onto concrete surface, still work as usual,shockproof and Anti-broken. |
