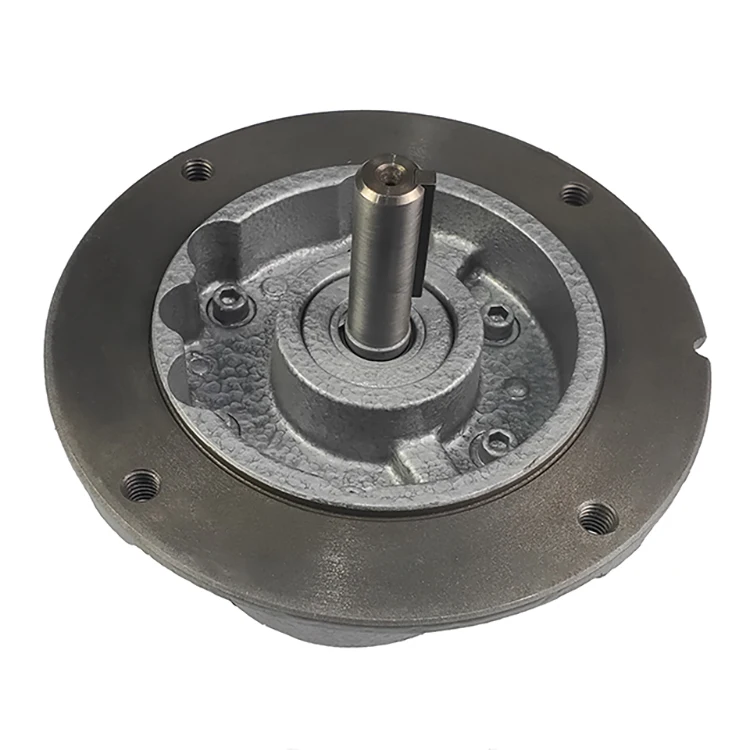

compressed air turbine tool motor air motor specification Blade 4AM-F114.3 air motor manufacturer
compressed air turbine tool motor air motor specification Blade 4AM-F114.3 air motor manufacturer
compressed air turbine tool motor air motor specification Blade 4AM-F114.3 air motor manufacturer
compressed air turbine tool motor air motor specification Blade 4AM-F114.3 air motor manufacturer
compressed air turbine tool motor air motor specification Blade 4AM-F114.3 air motor manufacturer
compressed air turbine tool motor air motor specification Blade 4AM-F114.3 air motor manufacturer

compressed air turbine tool motor air motor specification Blade 4AM F114.3 air motor manufacturer

Share on (62064994397):


Price:$200.00 - $215.00

Quantity:


Product Overview

Description


Product Description

Product Application

With compressed air as medium and make use of expansion function of it,blade air motor converts pressure energy       into mechanical energy.It can be operated in tough environment which is damp,high temperature,excessive dust or        other poor working environment. So it is widely used as power in mine rock drilling or loading machinery and more         popular in many fields,e.g. ship,offshore platform,metallurgy,papermaking and petrochemical industries,etc.

\t

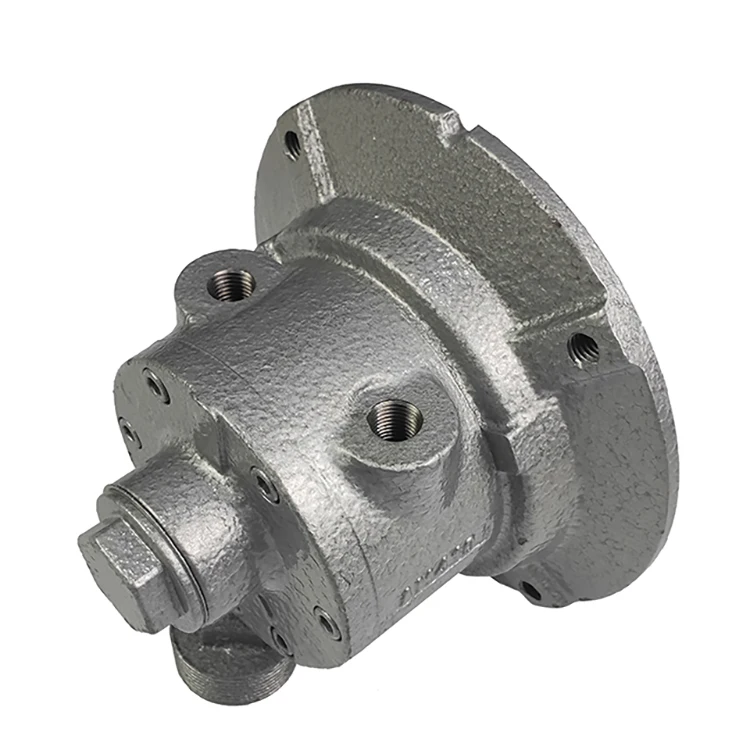

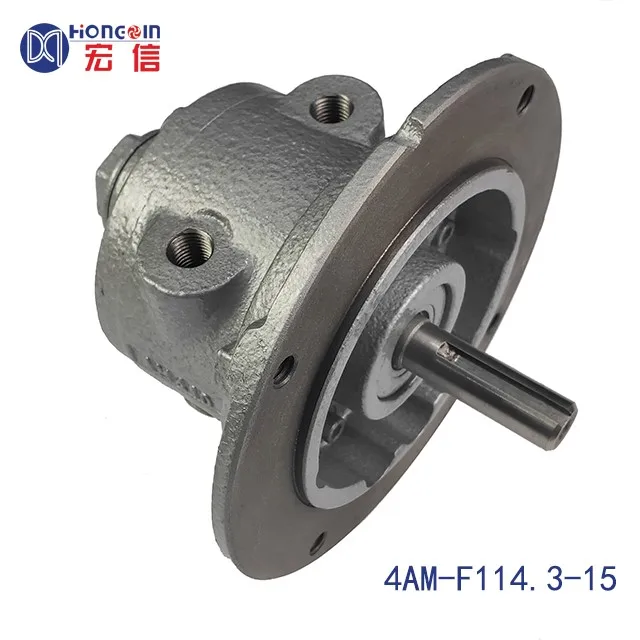

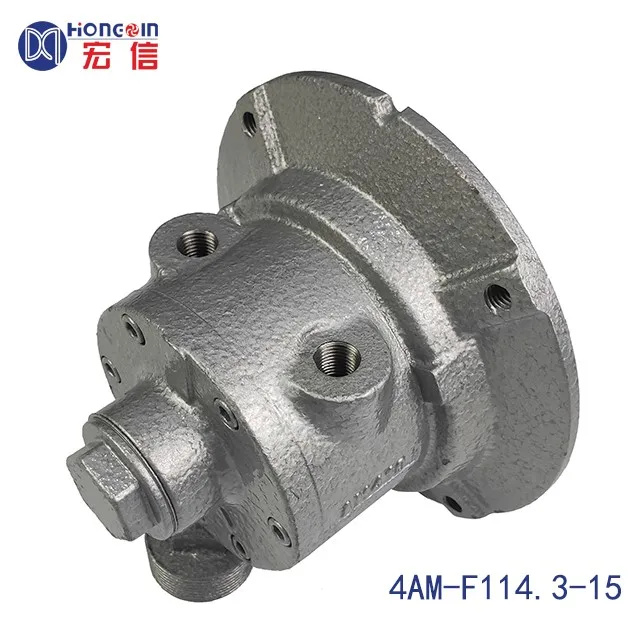

                                                        HX4AM-F114.3-15  BLADE AIR MOTOR
\t



   Operation Data
\t
Power
\t
Hp/Kw
\t
1.70/1.30
\t
Torque
\t
Nm/lb.in
\t
4.10/36.00
\t
Rotate Speed
\t
rpm
\t
3000
\t
Air Consumption
\t
cfm
\t
78
\t

Maximum Torque
\t
Rotate Speed
\t
rpm
\t
300
\t
Torque
\t
Nm/lb.in
\t
6.30/56.00

Main Features

•Variable speed.

•Nonelectrical sparking.

•Instantly reversible.

•Cool running.

Certifications
Detailed Images

Machine Parts

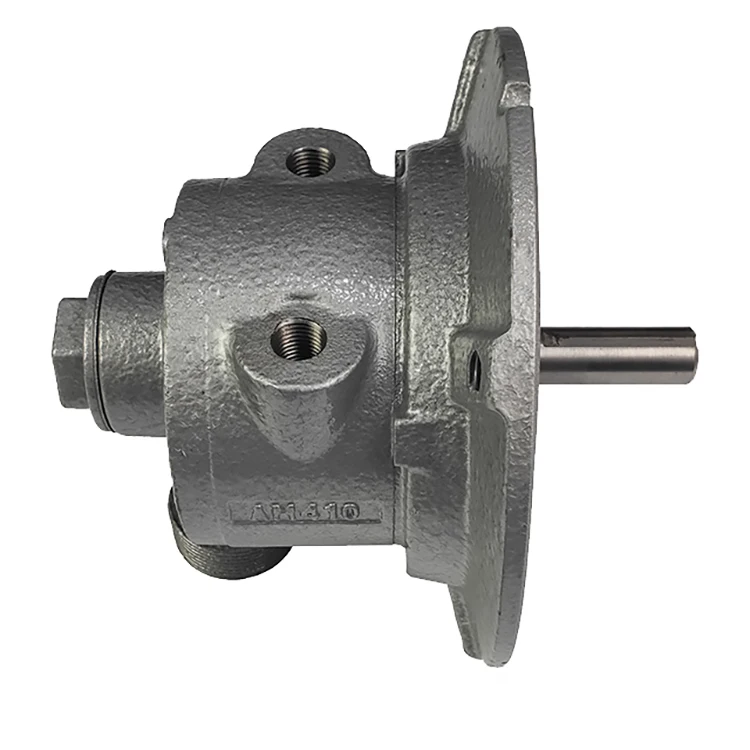

Name: Air inlet/outlet

Brand: hongxin

Original: china


Main Features

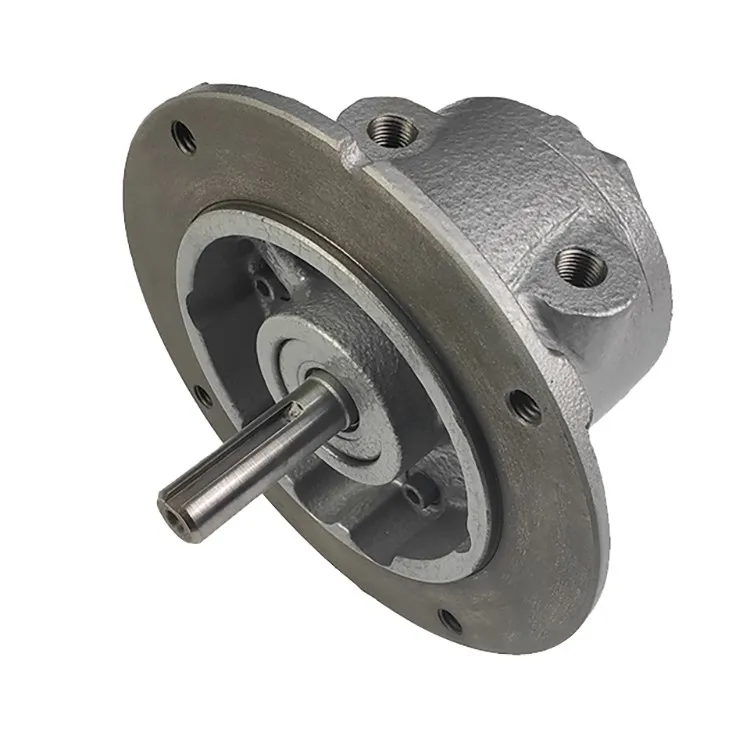

Name: Pneumatic motor spindle
Brand: HONGXIN
Original: CHINA

Machine Parts

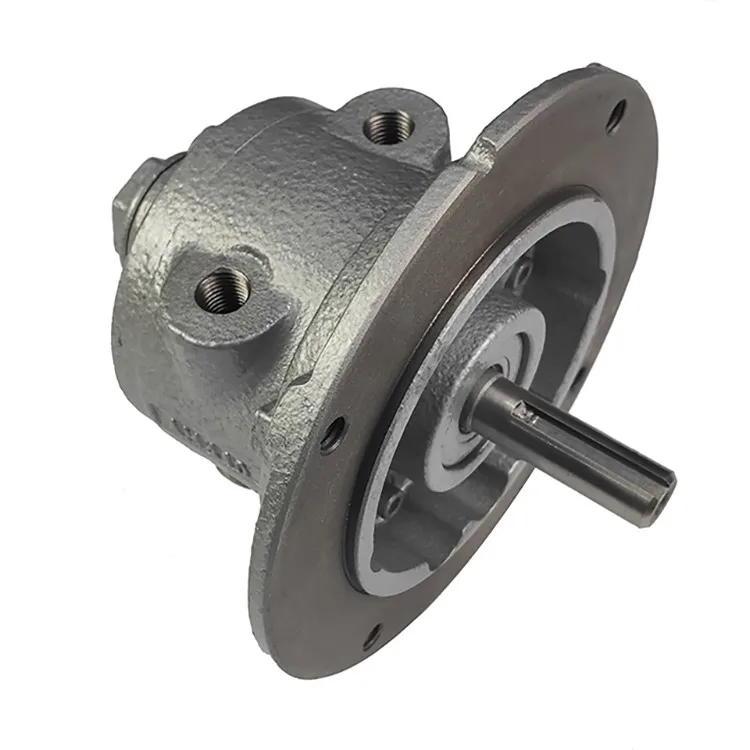

Name: 2-NPT 1/4 Threaded hole
Brand:HONGXIN
Original: CHINA

Main Features

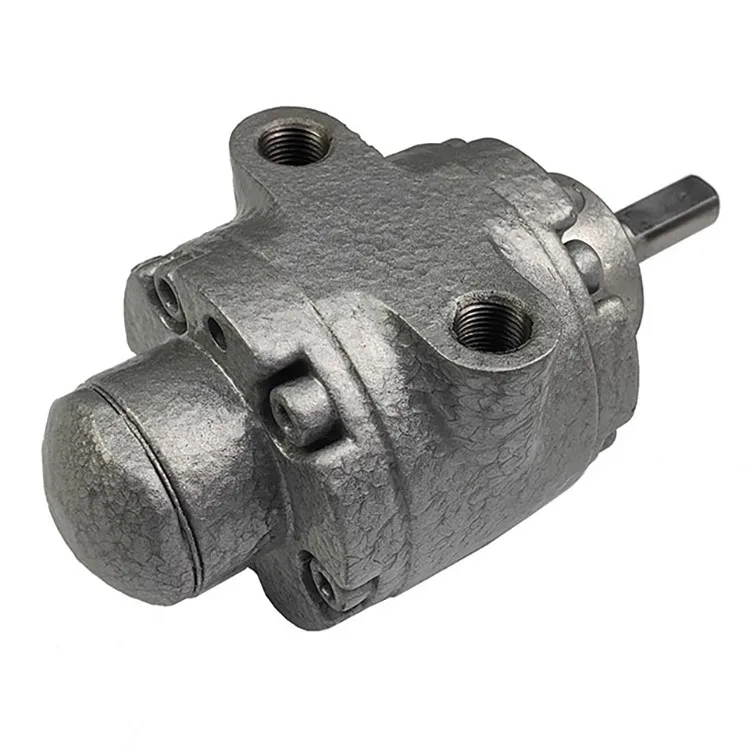

Name: END CAP
Brand:HONGXIN
Original: CHINA

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

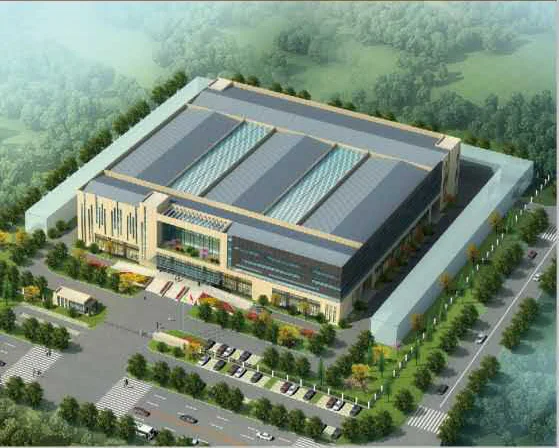

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
\t
Packaging
\t
Size
\t
171(L) * 170 (W) * 170(H)
\t
Weight
\t
5 KGS
\t



Packaging Details
\t

One set per carton/60set per plywood   case

If container is too tigher,we will pack itaccording to customers special request
\t
Packaging
\t
Size
\t
171(L)*170(W)*170(H)
\t
Weight
\t
5 KGS
\t



Packaging Details
\t

One set per carton/60set per plywood    case.

If container is too tigher,we will pack itaccording to customers special request
