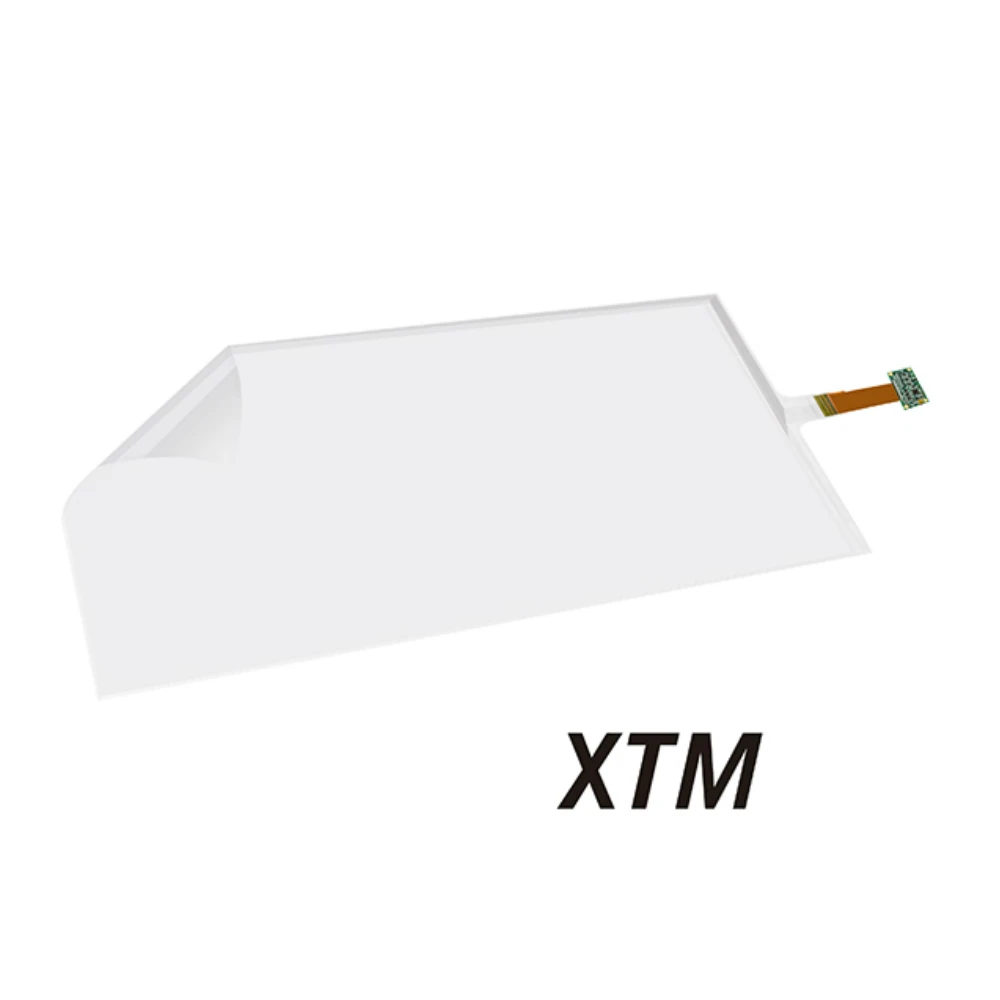

24 inch capacitive touch panel 24 inch projection touch foil

Multi-Touch Foils

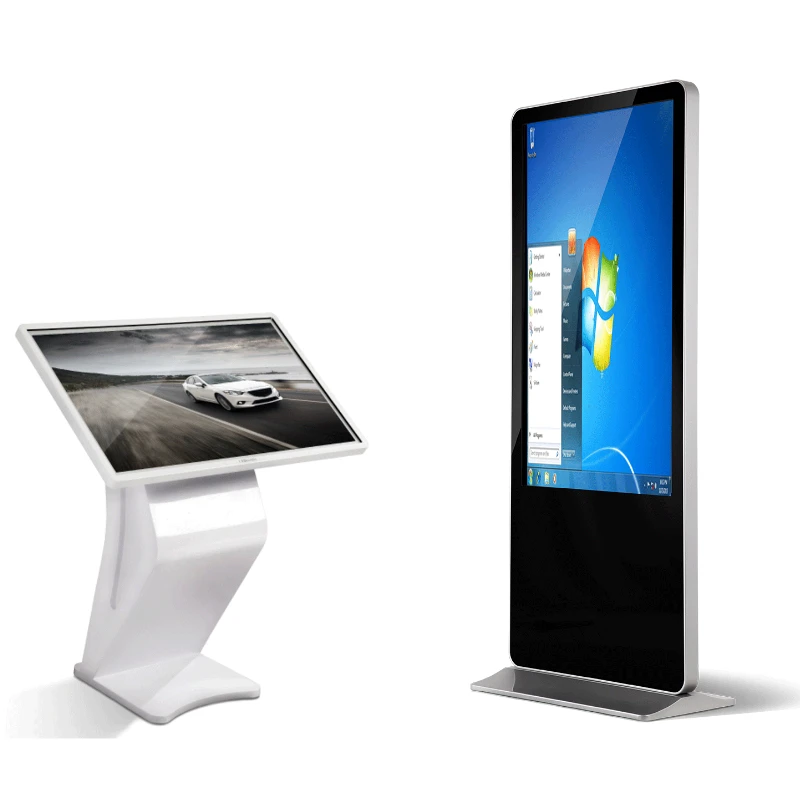

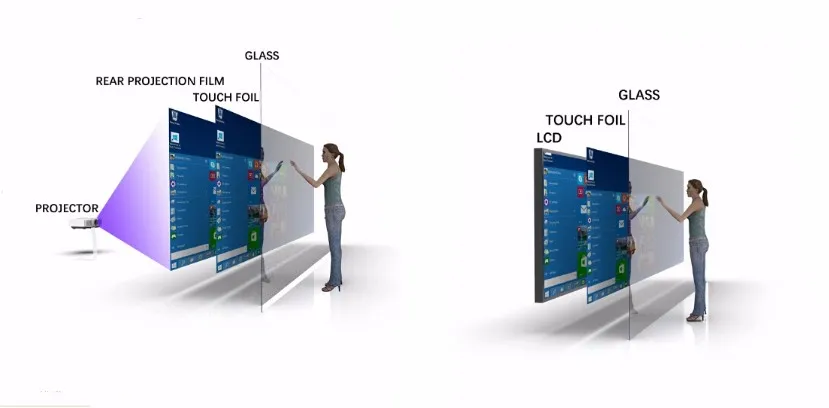

Transforms any glass/acrylic panel or store window into an interactive touch screen display. Ideal for integration within the gaming/vending industry, digital signage and table top applications

Features

*Light weight, suitable to be laminated to glass, acrylic or photographic film.
*Transparent, no frame, durable and safe.
*Accurate positioning
*No mechanical or pressure-sensitive elements, durable and stable
*Not sensitive to outer light, the change of light would not affect.
*Premium quality transparent multi-touch foils (up to 50 touch points)
*Simple & quick to install – removable & reusable cling liner
*Multi touch function – glass up to 12mm thick
*High resolution controller
*1 year comprehensive warranty

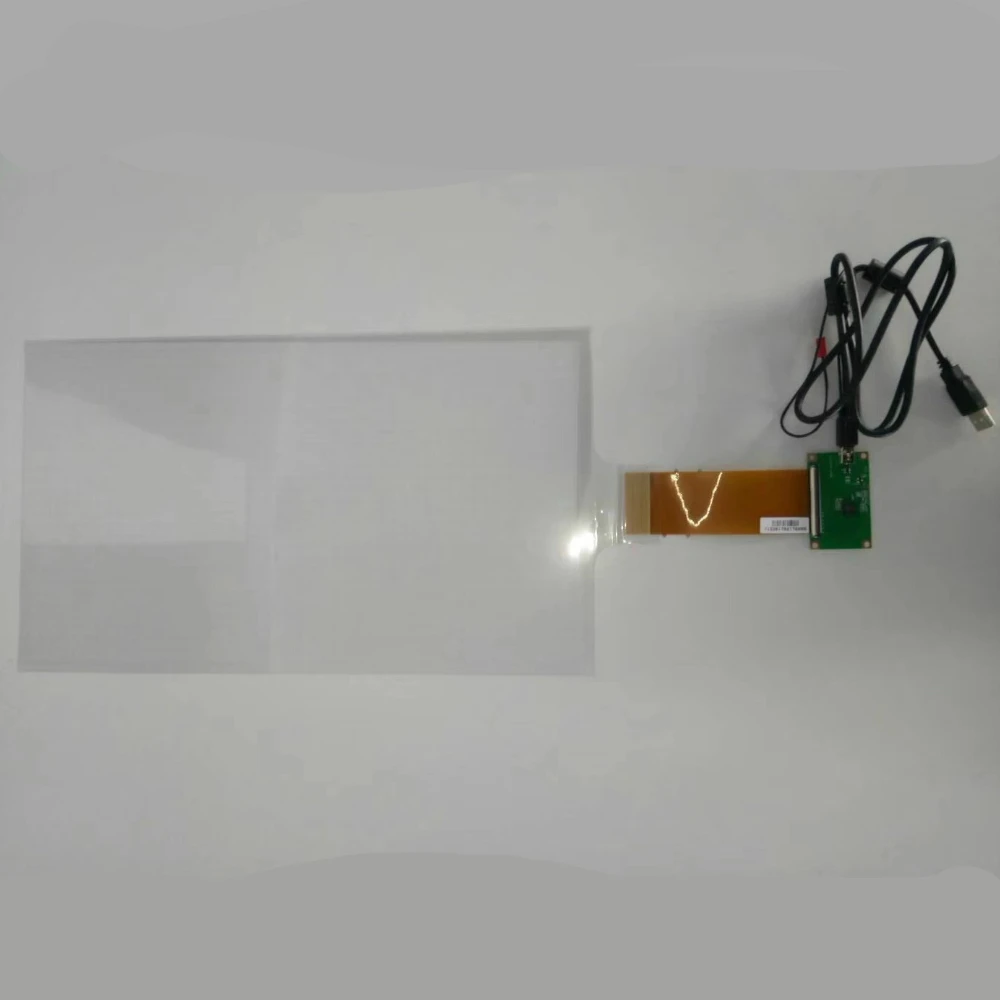

*Includes full installation kit – software, controller board & cable

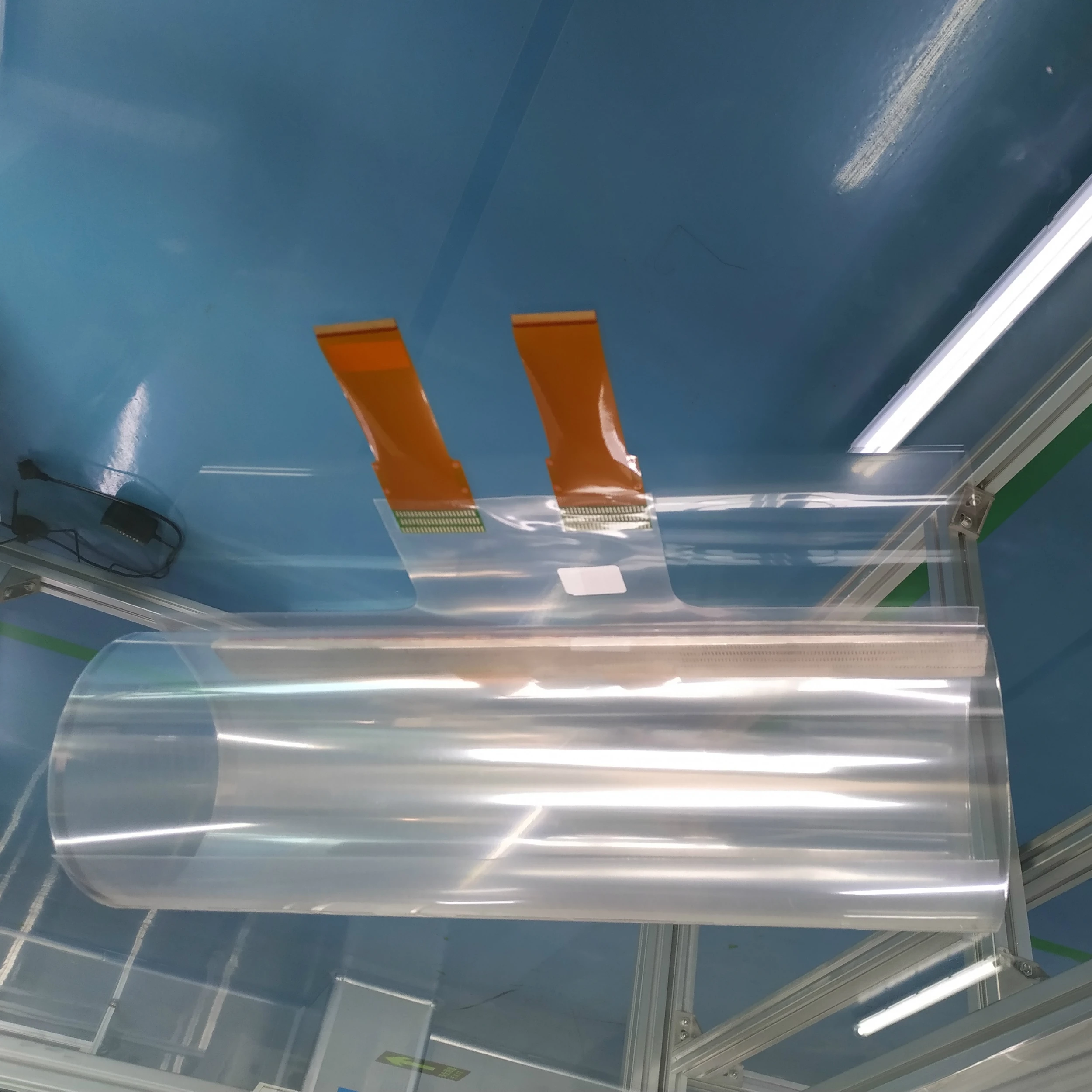

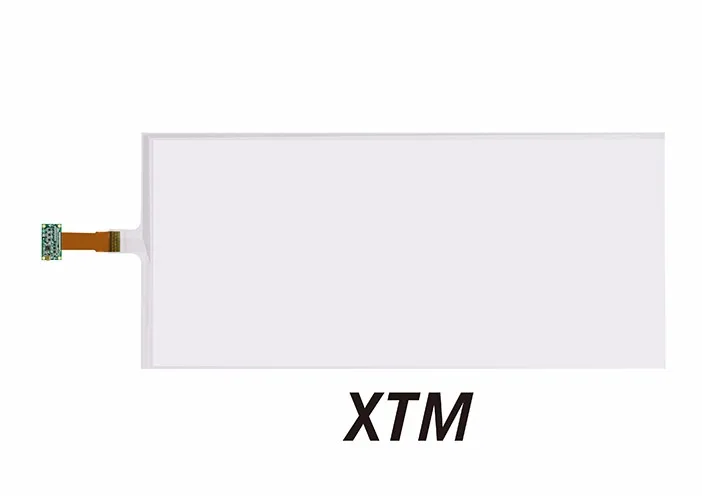

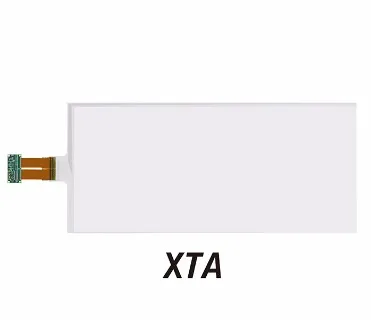

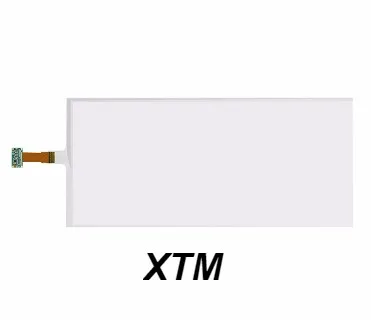

Detailed Image

Specification

Parameteres Item	Technical specification for XT series projected capacitive touch foil

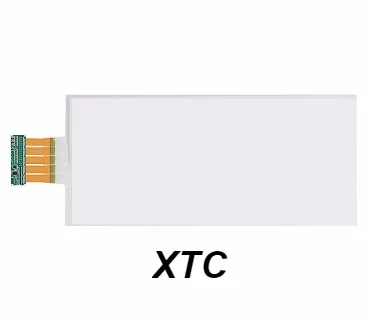

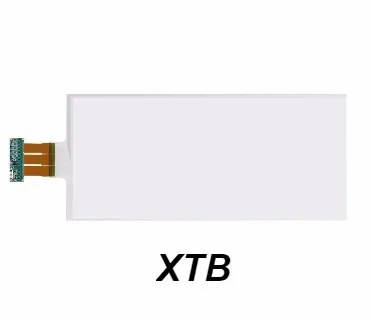

Series	XTM	XTA	XTB	XTC
Touch points	12	20	30	40
Sizes	10.1''-32''	42~ 65	55''-86''	86''-200''
Deviation	≤0.5mm	≤0.5mm	≤0.5mm	≤0.5mm
Sensor	TX : 24(MAX) RX : 48(MAX)	TX : 56(MAX) RX : 96(MAX)	TX80 RX142	TX136  RX240
FPS	130	120	120
Power Consumption	1W	0.5W	1.15W
Driver	No need
Windows	Win7/8/8.1/10
Andriod	Kernel3.10 or higher
Linux	Kernel3.10 or higher
Interface	USB2.0,UART
Power supply	USB(5V+/-5%DC)
Customize	Customizable
Waterproof	YES
Calibration	Software calibration
Certificates	CE,ilac-MRA,CNAS,CAL,CMA,FCC,ROHS,ISO
Packing list	touch foil*1 , controller*1 , USB line*1
Thickness	≤200um
Transmittance	>93%
Voltage	5V
Transmission	USB2.0
Transmit distance	≤50m (Add USB signal amplifier, etc.)

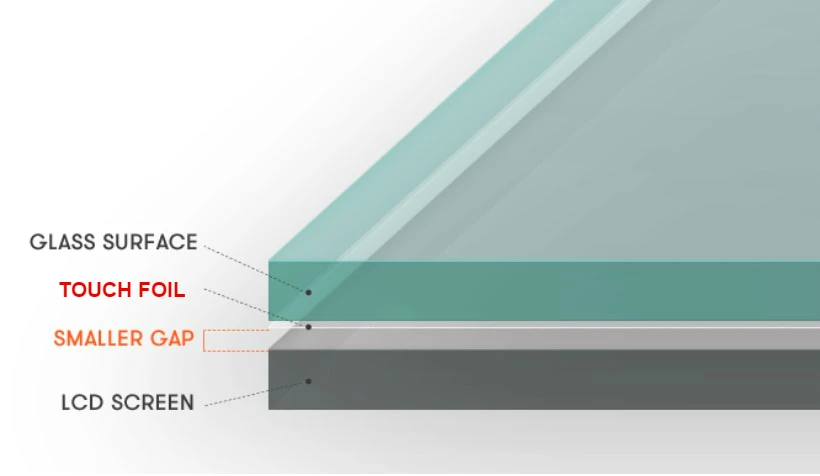

Safe distance	2mm(Distance beteween LCD& foil)
Operating Temperature	-20℃ ~ 70℃
Storage temperature	-20℃ ~ 80℃
Ambient lightness	Full-angle anti-glare illumination
Touch gesture	Click,Drag,Zoom,Rotate
Sensing range	≤10mm

Our Company

Touch Explorer Photoelectric Co., Ltd is Wholly owned subsidiary of SuZhou TouchPlanet Techonology Co.,ltd.

What we do!?
1.Capacitive moultitouch foil.
Transforms any glass or store window into an interactive touch screen display. Ideal for integration within the gaming/vending industry, education,entertainment,meeting,digital signage and table top application.
Size:10''-240''.

2.Control circuit board.
Our independently developed controller board for all sizes of touch foils.Maximum of touch points can reach 50. With advantage of 30% higher speed than others.

Why choose us!?

1.Self developed priting machine with high accuracy and low cost.

2.Raw material import from Japan and Germany.

3.Customise any big size as your requirement.

4.Capacity of 400sets per day.(eg.86'')

5.Easy to debug within 1 minute.

6.Multi touch functionality is supported on laminate or toughened glass up to 12mm thick.

FAQ

Q: What operation system it support ?
A: WIN7 /WIN8 /Linux (Ubuntu 2.04.4,kernel version:3.11.0-15-generic) / Android4.2 or above ( kernel version>A20->3.3.0,RK3188->3.0.36)

Q: What is your MOQ?
A: 1pcs

Q: Which certificates passed ?
A: CE,FCC,RoHs.

Q: How proceed the order?
A: online or offline

Q: What is your guarantee period?
A: 1year touch foil warranty.

Q: What is your delievey time ?
A: Sample order : within 5 days, 5-12 working days for bulk production after confirmed

Payment terms: TT, Western Union, PAYPAL, Trade Assurance.

1) For sample order : 100% T/T, Western Union, Paypal.
2) For bulk order more than ten thousand dorllors : 30% T/T in advance.  70% Blance before delivery.
