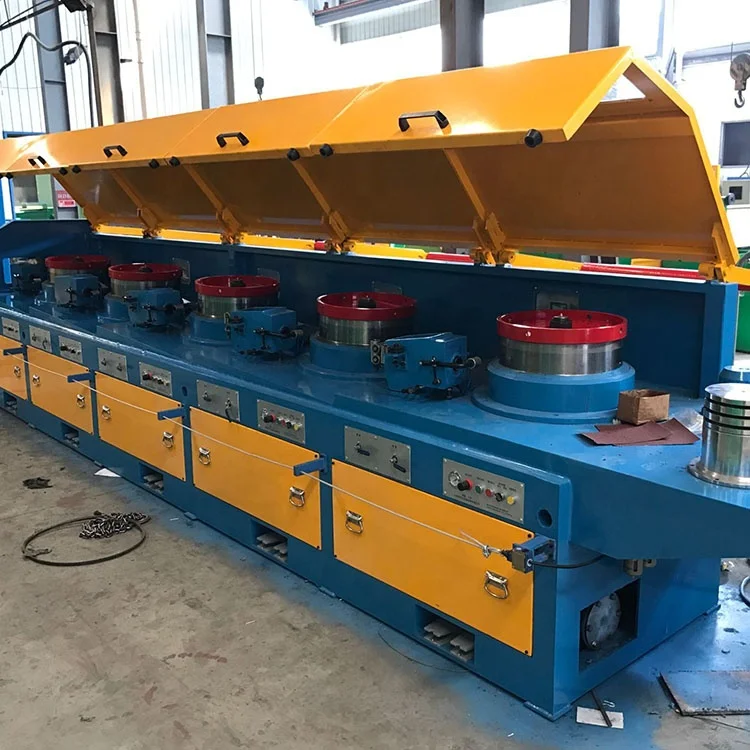

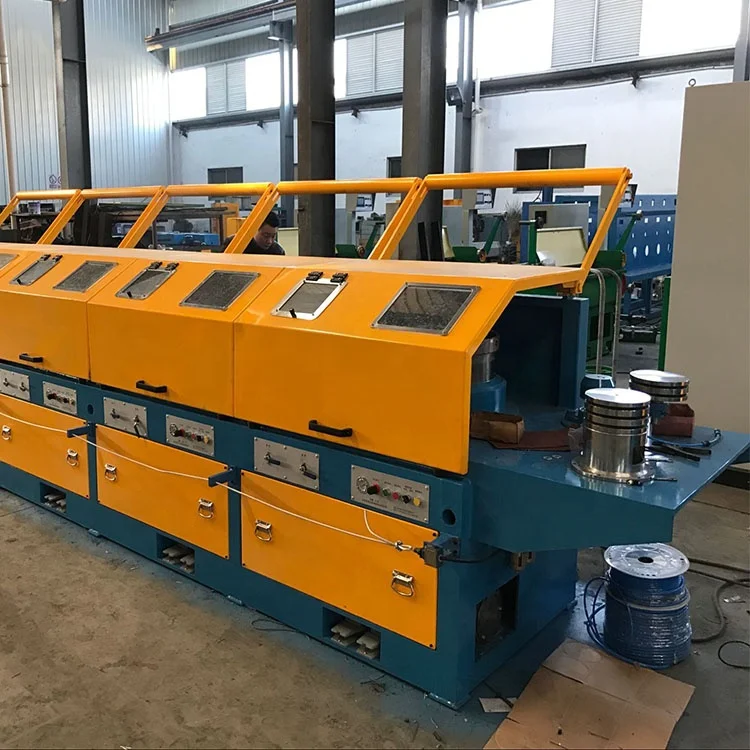

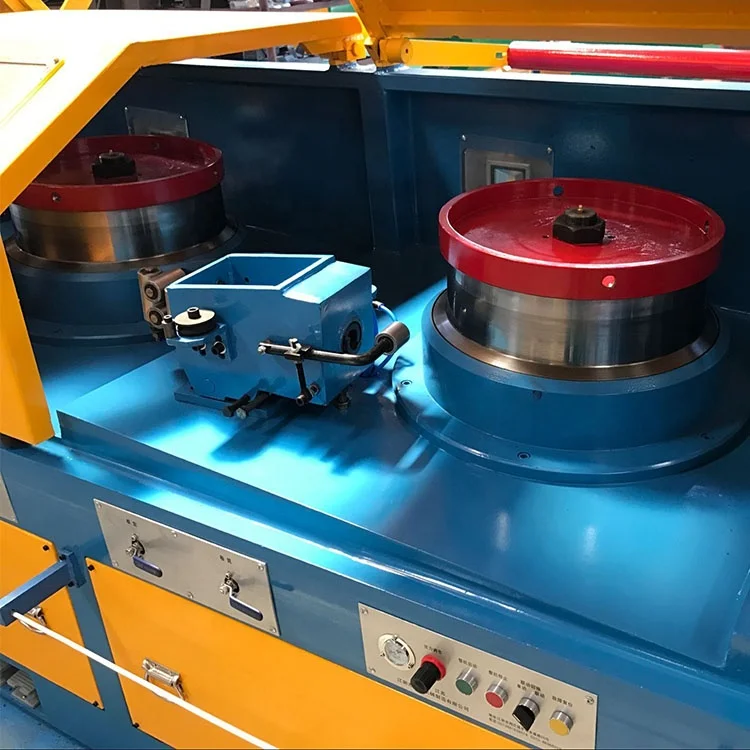

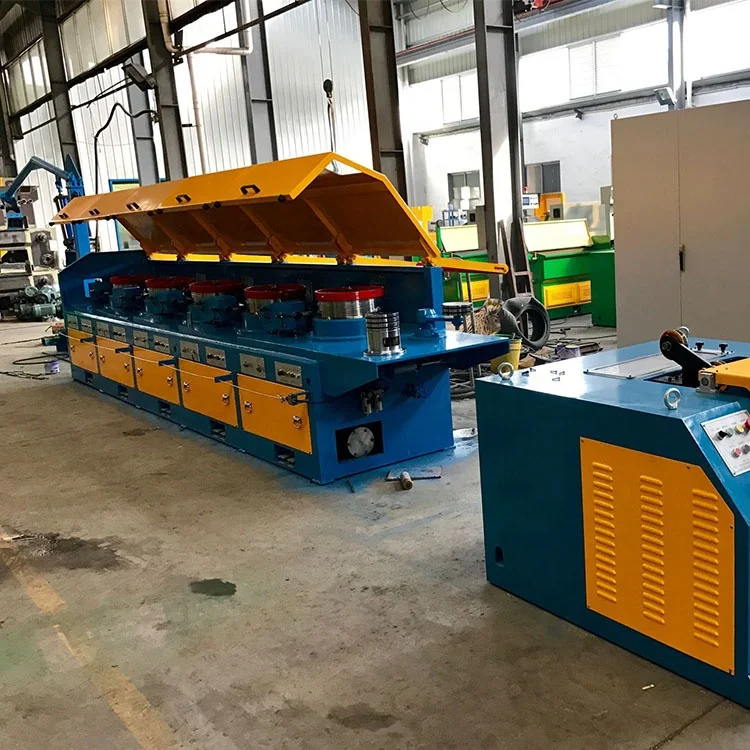

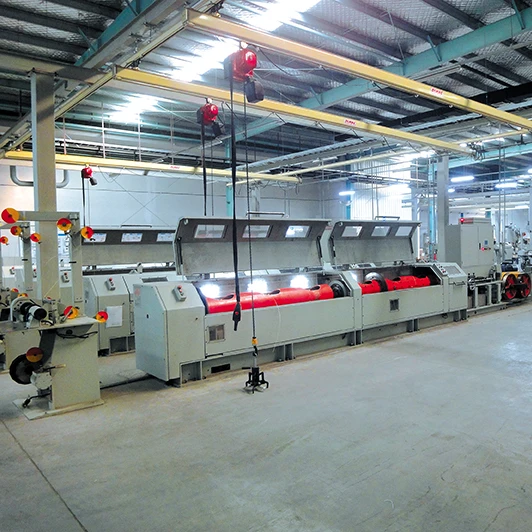

automatic straight line wire drawing machine made in china

Product Overview

Description

.Company information

https://xianglejixie.en.alibaba.com/?spm=a2700.11153138.mamo-user-profile.4.704d71d22ib9Fq

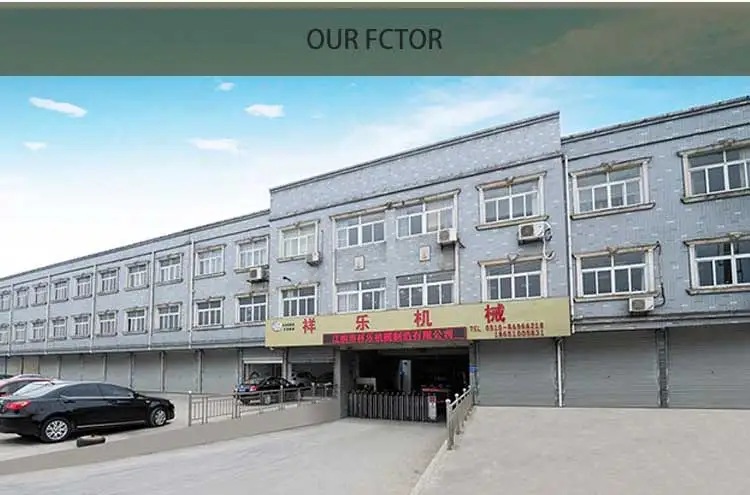

Our company Located in the southern part of Jiangsu----Jiangyin, rich in tourism resources and developed economy. Since its establishment, the company has achieved good results and good reputation with its rich resource advantages and advanced management and management concepts.



.Our service

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.

Product description

Specification

Items	Unit	LZ9-12/1200	LZ10/800	LZ9/700	LZ10/560	LZ10/400
Reel diameter	mm	900	800	700	560	400
Draw passage	time	9-12	10	9	10	10
Incoming dia	mm	Φ14-8	Φ10-8	Φ8-6.5	Φ6.5-5.5	Φ14-8
Outgoing dia	mm	Φ5-3	Φ4-3	Φ3-2.5	Φ2-1.8	Φ1-0.8
Wire darwing line	m/min	300	360	480	720	840
Incoming strength	Mpa	≤1300	≤1300	≤1300	≤1300	≤1300
Total compressibility	%	87.24-85.94	84-85.94	85.94-85.21	90.53-89.29	87.24-84
Average compressibility	%	20.48-19.58	18.42-19.58	19.58-19.13	21.00-20.02	18.61-16.74
Single motor power	Kw	110-90	90-55	75-55	37-22	15-7.5



 1.high efficiency, higher speed

2.  easy operation;

3.  much better finish wire quality due to less deviations , no torsion drawing

4.  high performance cooling system-water cooling plus high pressure wind cooling

Contact us

Mobile:15956982592

Fax:0510-86361361

Add:No.Yongsheng Road,Changshou,Zhouzhuang Town,jiangyin City

//www.xianglejx.com  //xianglejx.cn.alibaba.com

Weichat:zyj15956982592

Team style

We have an excellent foreign trade team, each employee is responsible and professional. We often go out to participate in the exhibition and have established a deep friendship with foreign friends. Customer trust and satisfaction is our greatest pursuit.

Certifications

Our company have passed ISO9001-2008 certificate of quality system,SGS china manufacturer certificate system,it was evaluate AAA quality enterprise,“jiangsu province excellent privacy enterprise”“Jiangsu province quality trustworthy organization”honorary title.Our machines’quality can meet CE certificate requirements.
