Pharmaceutical Manufacturing Companies Plant
- Category: >>>
- Supplier: Shanghai Iven Pharmatech Engineering Co. Ltd.
Share on (62065267950):
Product Overview
Description
Product Description
Main Features

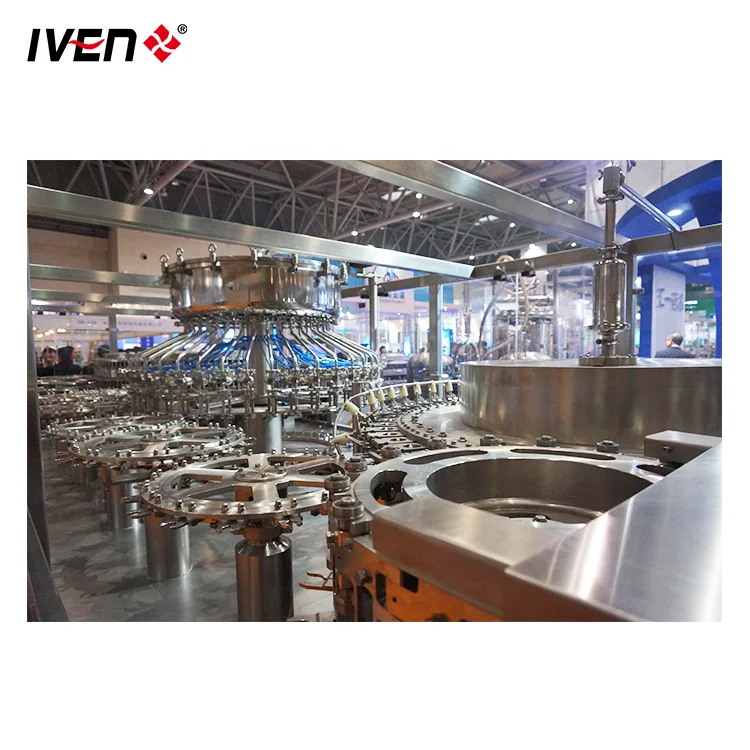

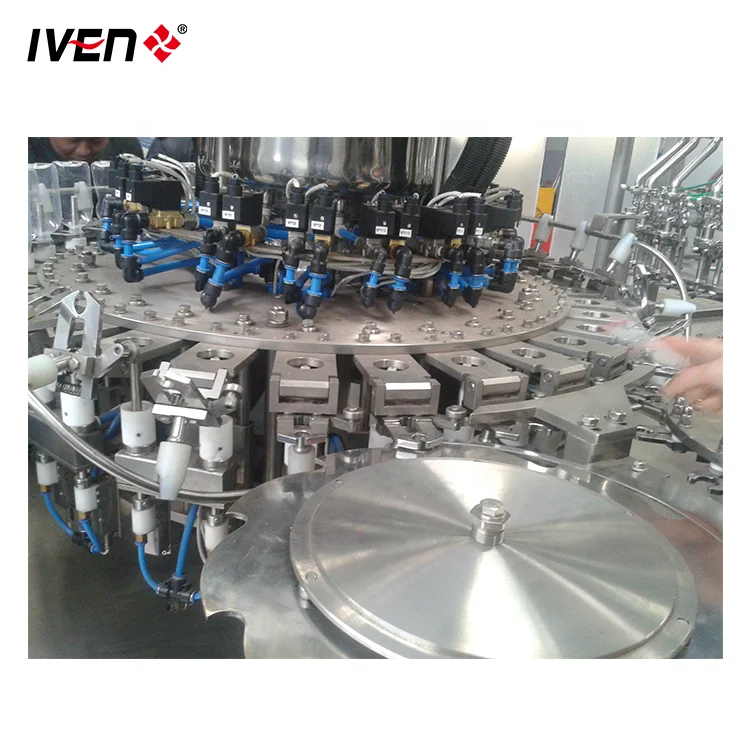

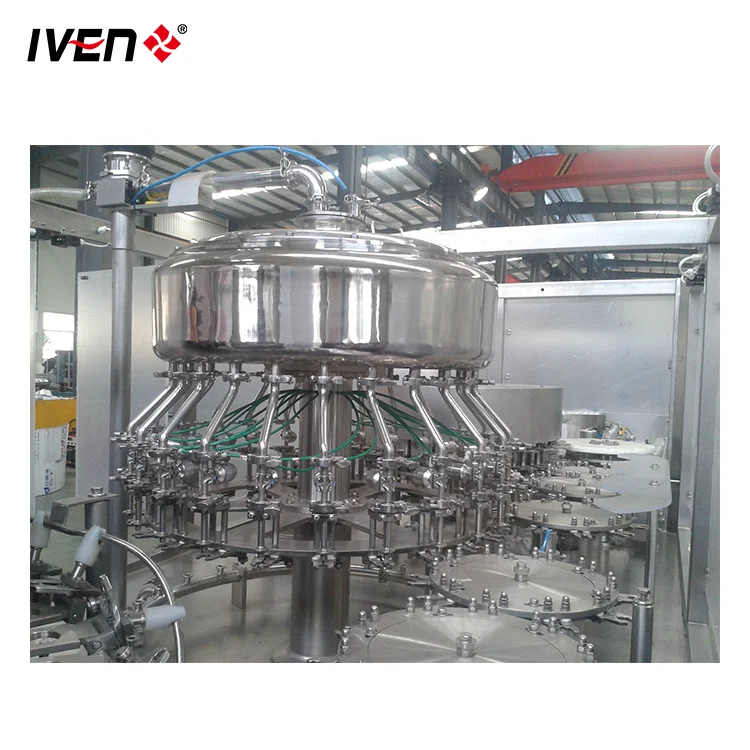

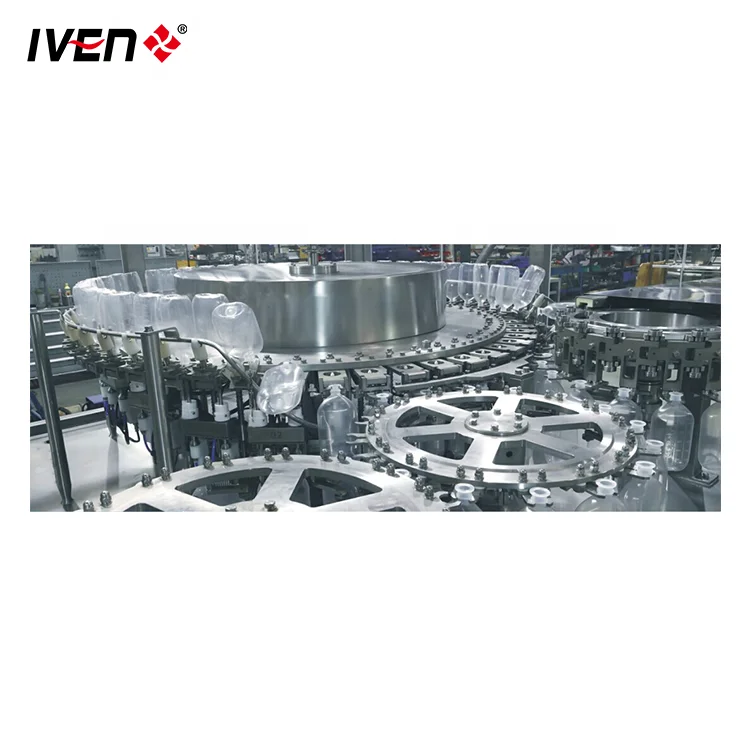

1. Compact integrated design of wash-fill-seal with smaller production area

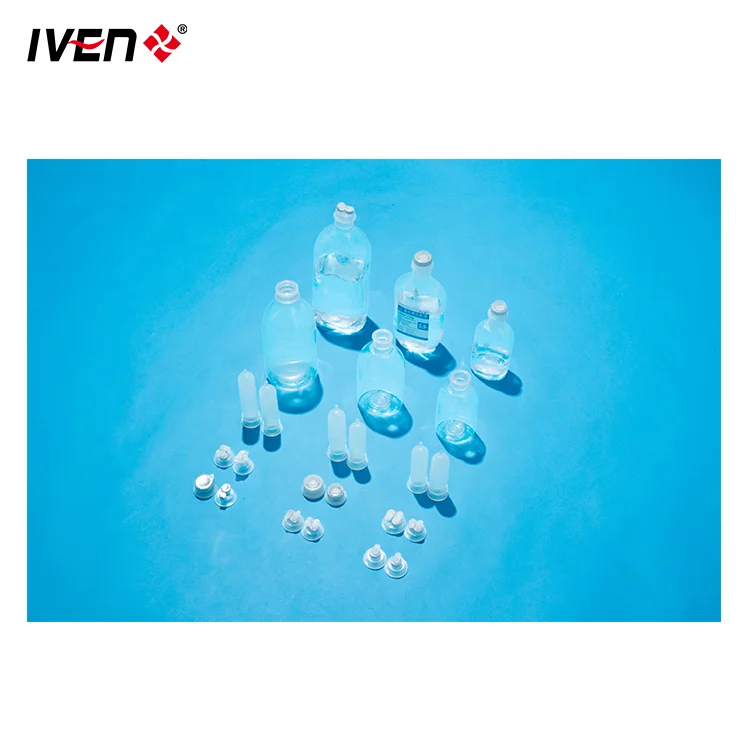

2. Applicable to any round or flat IV solution bottles with different shapes
3. Voice alarm when fault, and machine halt
4. PLV control, all operation data can be set, changed and kept on file
5. CIP/SIP on line
Technical Parameters
| Item | Data |
|---|---|
| Production capacity | 2000~20000 bottles/hour |
| Specification | 50~1000ml round or other shape PP bottle |
| Bottle washing | ionic air washing, or ionic air and water washing |
| Main filling medium | Liquid such as large volume infusion |
| Filling error | ±1% |
| Liquid filling temperature and pressure | 40~55℃ 0.6~2kg/cm² |
| CIP/ SIP | 125 ℃--30 min |
| Air consumption (clean air) | Pressure: 0.6~0.8Mpa 180(120)m³/h |
| Cooling water | 250L/h, 15~20℃ |
| Noise | max.75dB |
| Electric capacity | 18~35KW |
IVEN Can Do !
IVEN provides integrated engineering solution for worldwide pharmaceutical and medical factory include the clean room, auto-control and monitoring system, pharmaceutical water treatment system, solution preparing and conveying system, filling and packing system, automatic logistics system, quality control system and central laboratory and etc. According to the pharmaceutical industry's regulatory requirements of different countries and customer's individual demand, IVEN carefully customizes engineering solutions of turnkey projects and helps customers to win the target markets, IVEN creates value to customers.
Turnkey Project for IV Solution Plant from A to Z
• Project Design
• Pharmaceutical Water Treatment
• Solution Preparation
• IV Solution Production Line
• Sterilization
• Inspections Packing
• Clean Room & HVAC
• Stability Chamber
• Laboratory Instruments
• Utilities
• Documentation & Qualification
• Installation, Commissioning, Training
• Service
