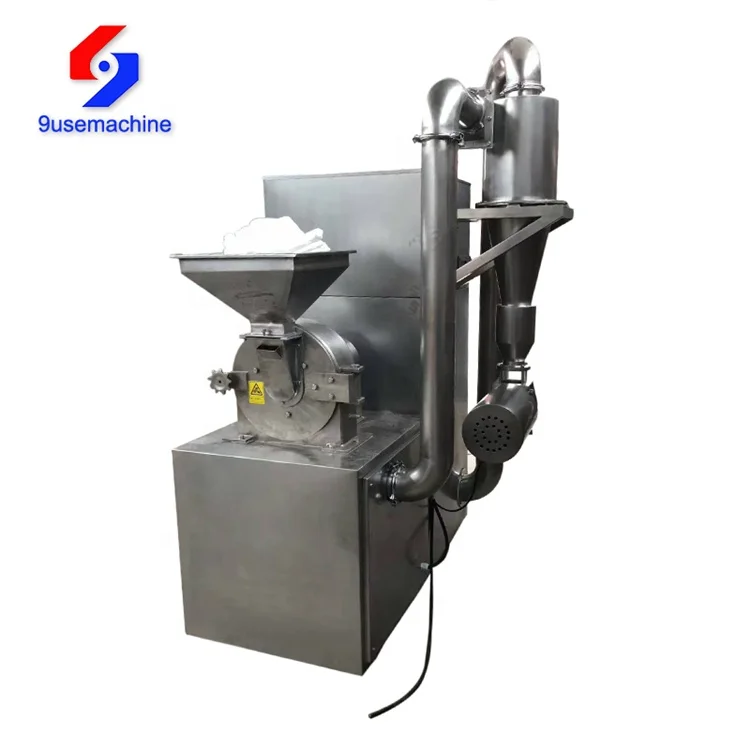

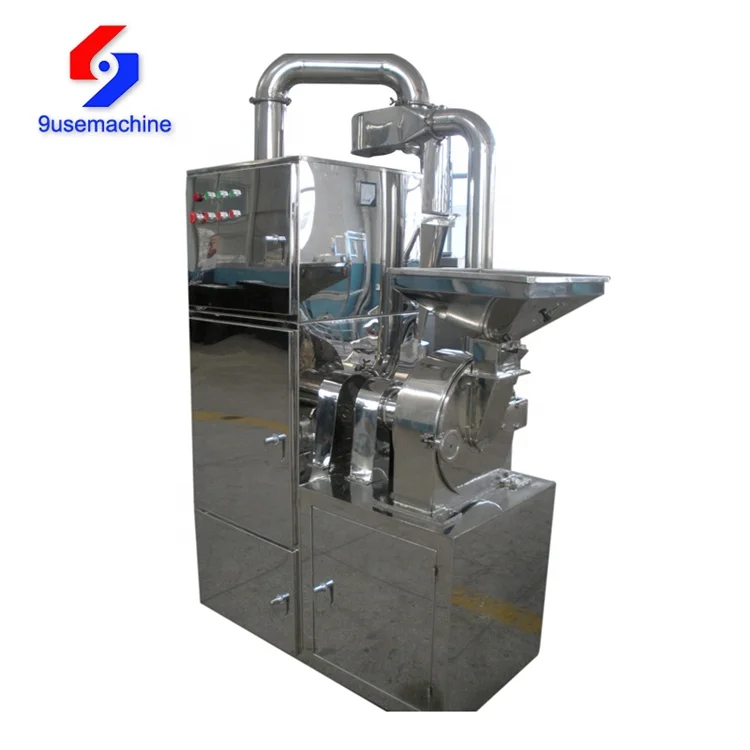

Pharmaceutical large pulverizer white sugar seasoning Chinese herbal medicine chemical

 what is grain milling/what is grain milling/what is grain milling Features:

Main Application

The machine is widely used for material crushing in the industries of pharmaceutics, chemical and foodstuff, etc.It is Particularly suitable for line production.

 grain mill setting/grain mill setting/grain mill setting Techinical parameter:

Model

Capacity

(kg/h)

Feeding size(mm)

Fineness of products(mesh)

Motor power

(kw)

Dust collection power(kw)

Spindle speed(r/min)

Weight(kg)

Overall dimension(mm)

ZFJ20

10-150

<10

60-280

4

1.5

5000

320

1250x 1000x 1900

ZFJ30

20-300

<12

60-280

7.5

2.2

4500

550

1350x 1100x 2000

ZFJ40

50-500

<15

60-280

11

3

4000

680

1500x 1250x 2100

 malt mill canada/malt mill canada/malt mill canada Description:

Working principle

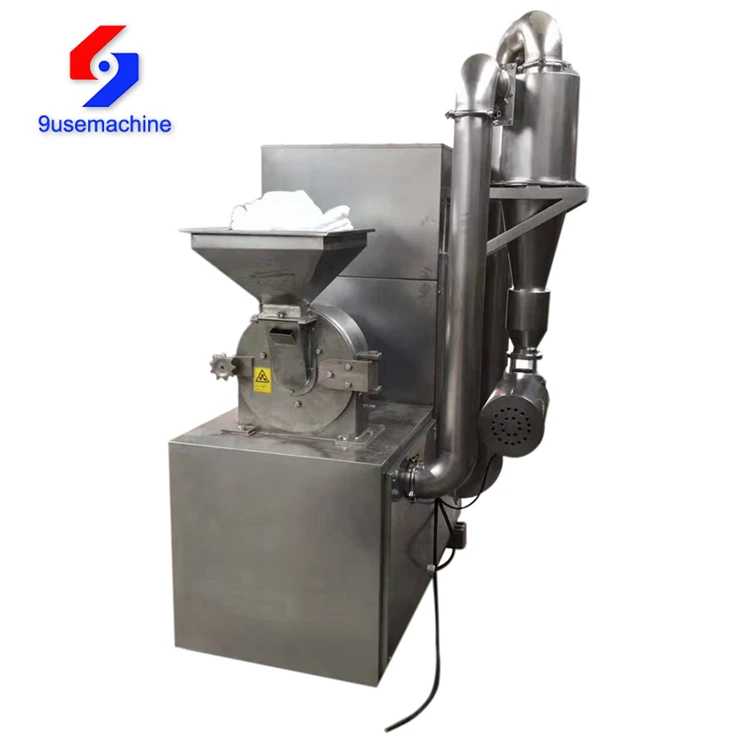

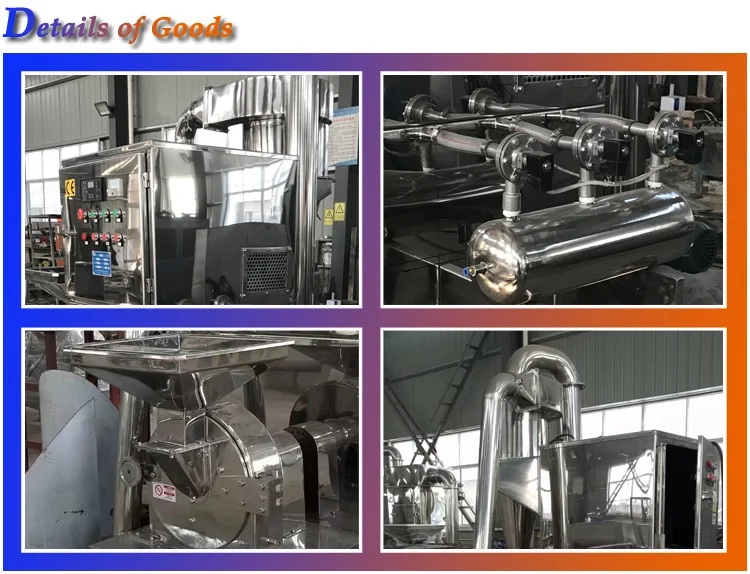

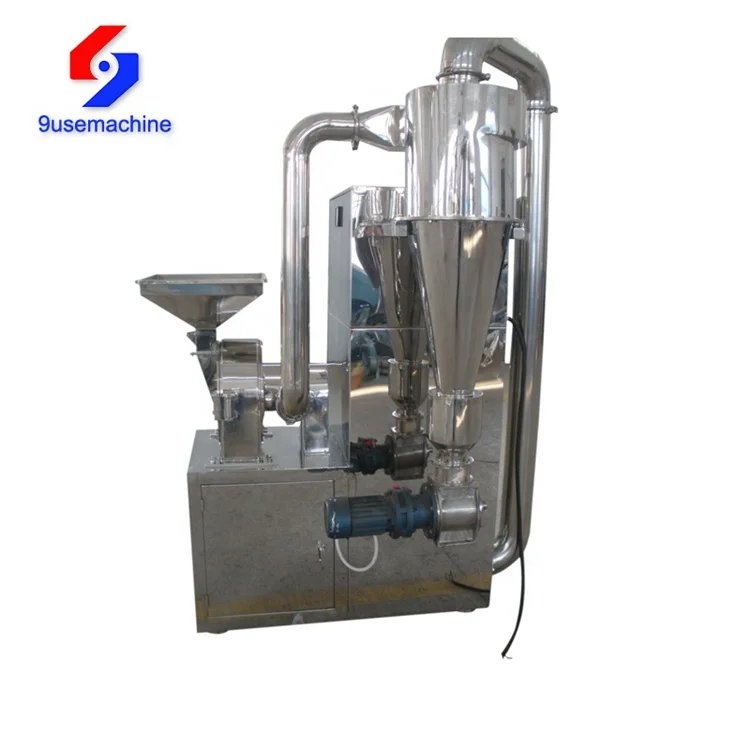

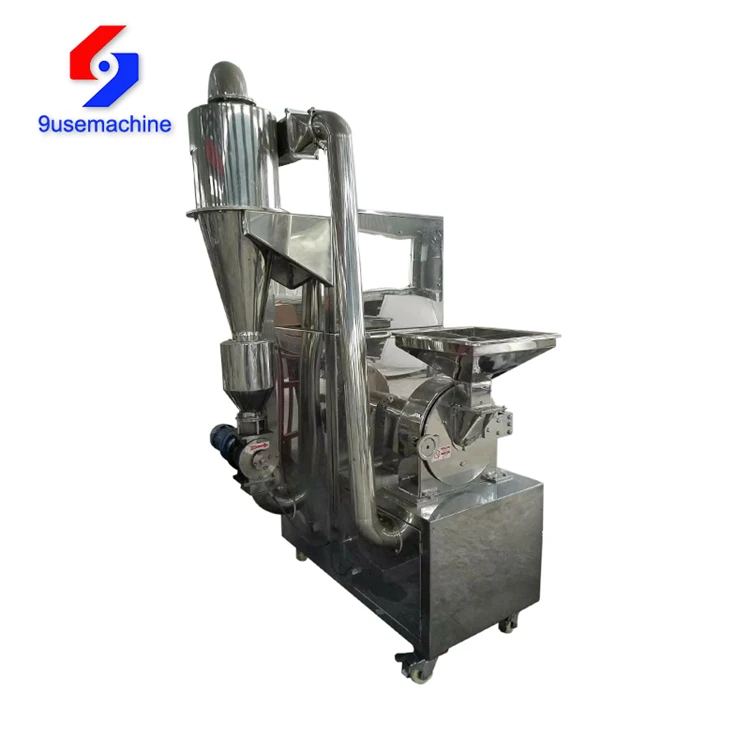

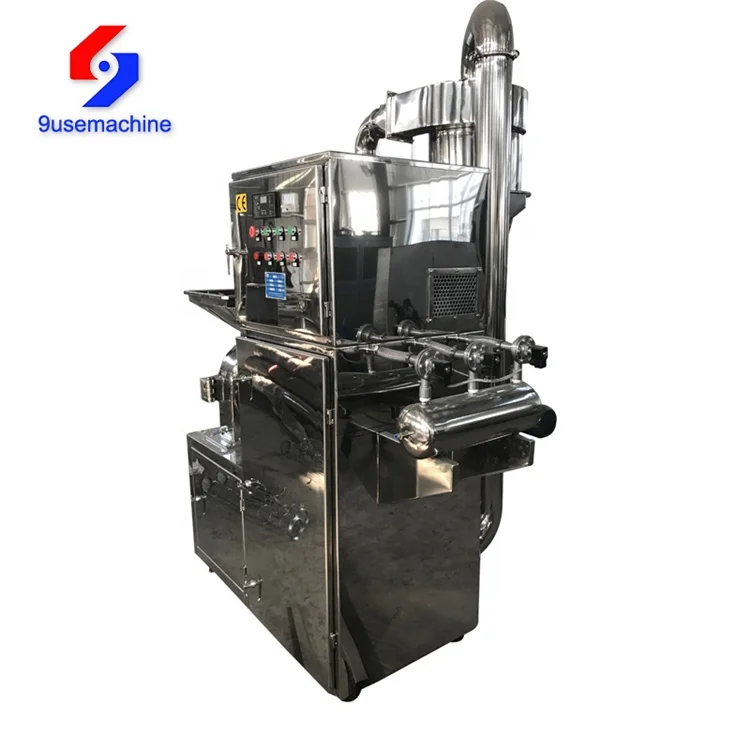

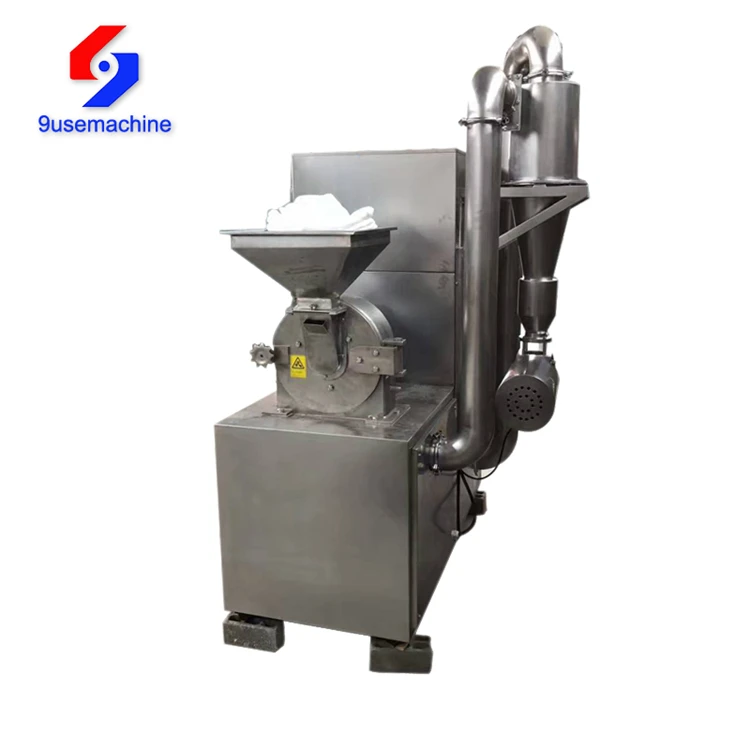

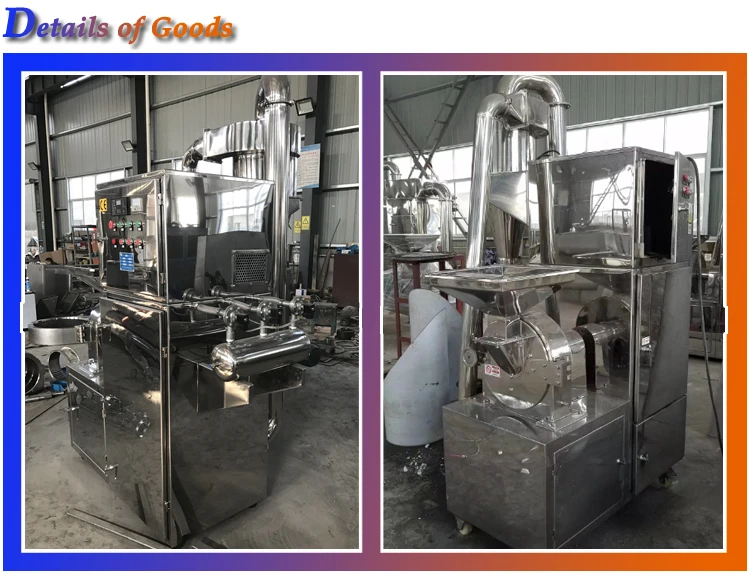

The machine is made up of crushing chamber, cyclone separator, pulse dust removing box and fan.The machine uses the high- speed relative motion of the active fluted disc and the fixed fluted disc to impact and crush the raw material. The different size of granules can be acquired by changing different screen.The whole machine is designed according to GMP standard and is made of stainless steel. The machine has the advantages of simple structure, low energy consumption, easy cleaning and is an ideal crushing equipment.

We have CE ceritificate. Quality assurance.

We can provide you a safty transportation

Our machine has sold all around the world

Our service makes bussiness into relationship.

Question

How long is the product warranty period ?

Answer

The product warranty period is 36 months

Question

If the machine works wrong, how your company resolved ?

Answer

We have professional engineers abroad, after receiving Your request, we will solve your

problems at first time.

Question

How much is MOQ of your machine?

Answer

Our machines MOQ is 1 set and also support the mixed batch.

Question

Are you a factory? Can we visit it?

Answer

Yes, we are the factory, welcome tovisit it.

Question

Where can we buy the machine's parts?

Answer

Our company can provide machines for your any time

We will send a professional and high levels installation

engineer treatment the same time the product properly to

The destination, in order to supply you a full range of

products installation services. For some typical

problems, our rigorous installed engineers also will do

some certain installation debugging training, etc.

Technological support.
