Anlin changes the traditional shutter door motor and leads the whole industry. We invite you to join the "blue ocean plan" for win-win development.
click for details-3
 | ||
 |  |  |

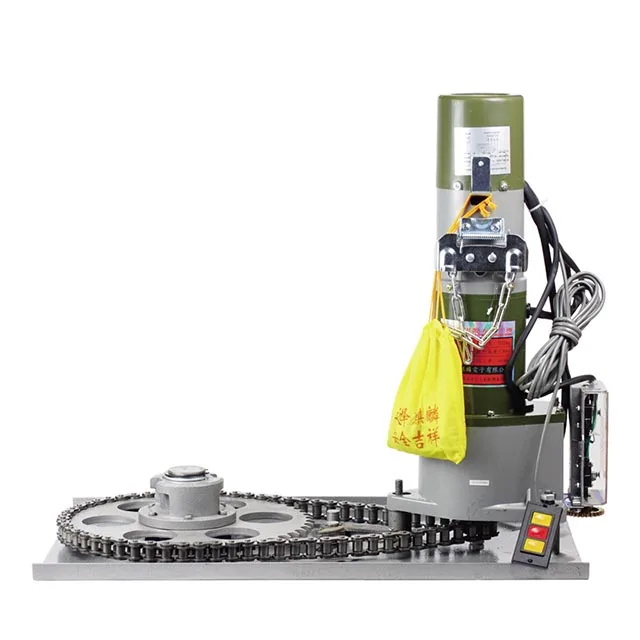

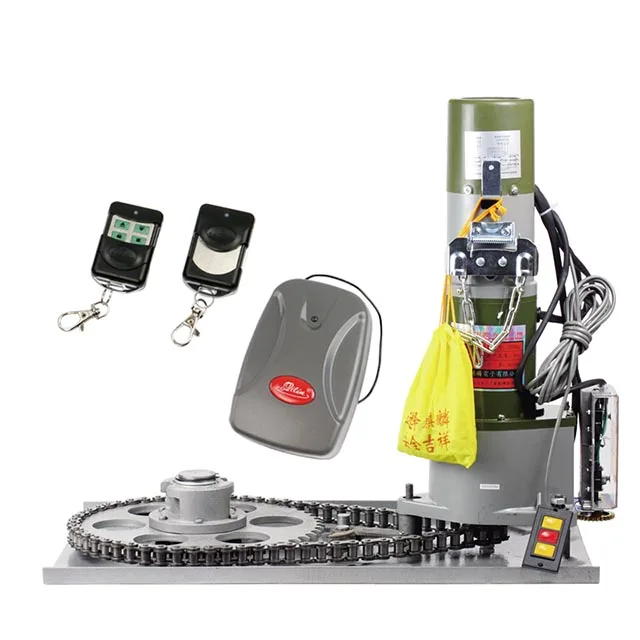

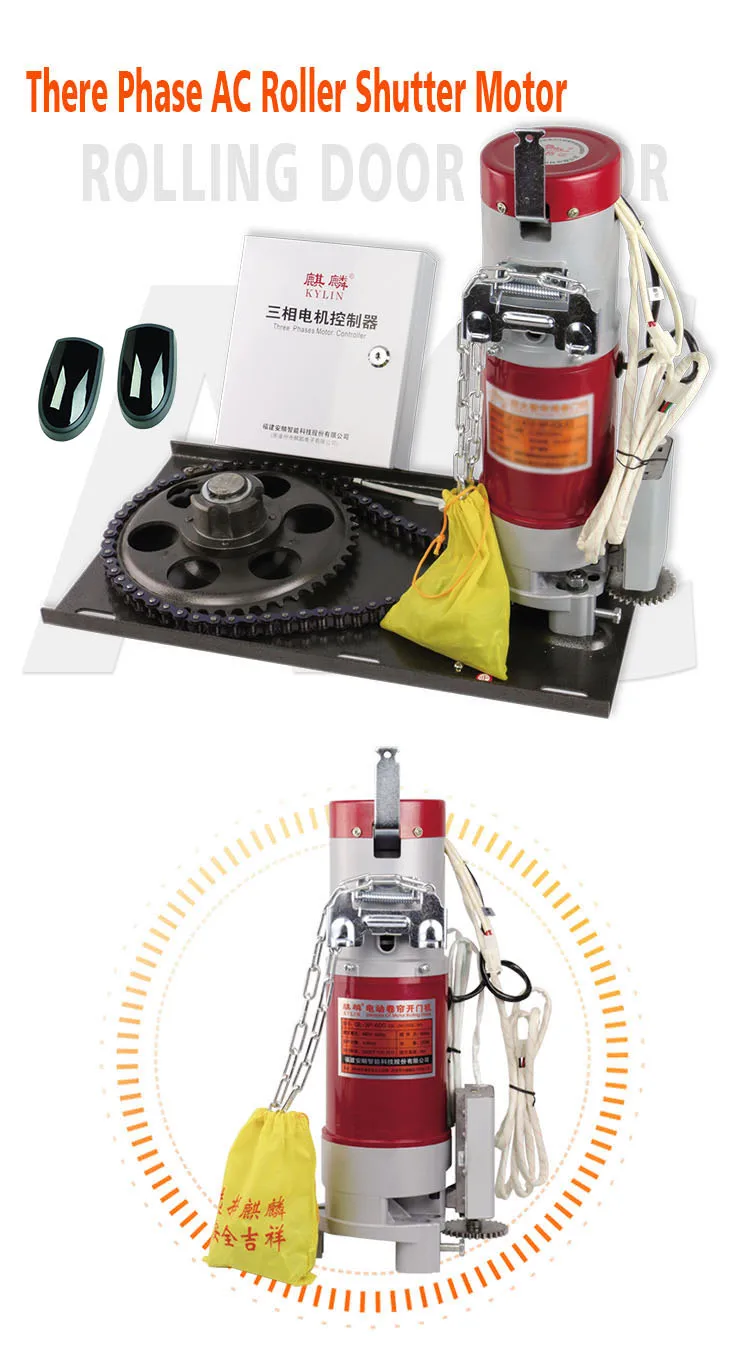

AC 600kg Roller Shutter Door Motor

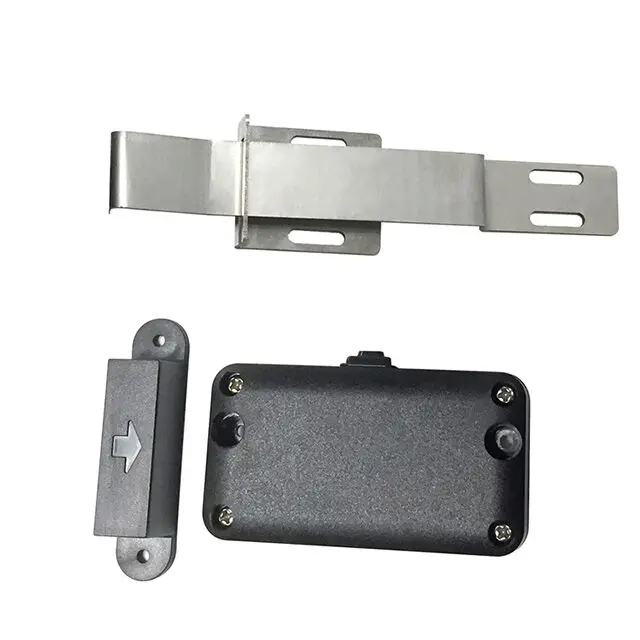

Limit switch unit enables precise adjustment of door in up and down positions

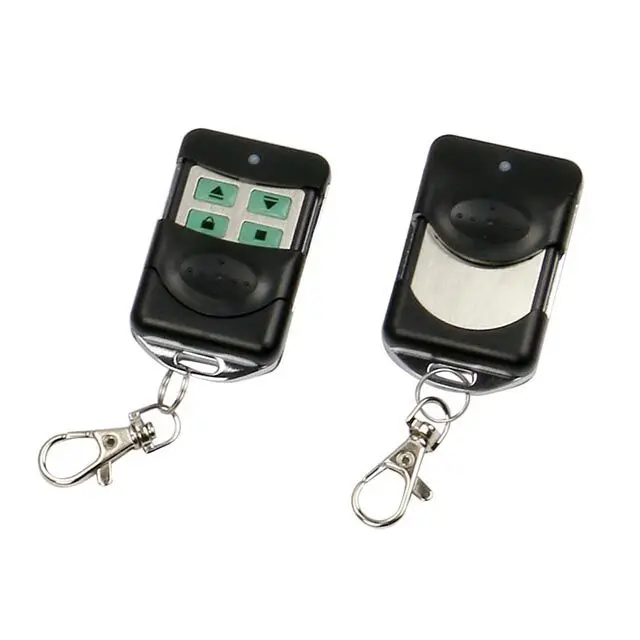

Three phase motor controller box functional characteristics Advantage: remote control distance. The transmitting frequency is not affected by weather, temperature and so on.
Energy saving: remote control when the handle does not automatically power off. Convenient: automatic phase sequence correction, lack of phase warning.
Lighting: external AC 130V lighting equipment (100W) lighting delay 300 seconds. Safety: by parts of infrared, realize stops.

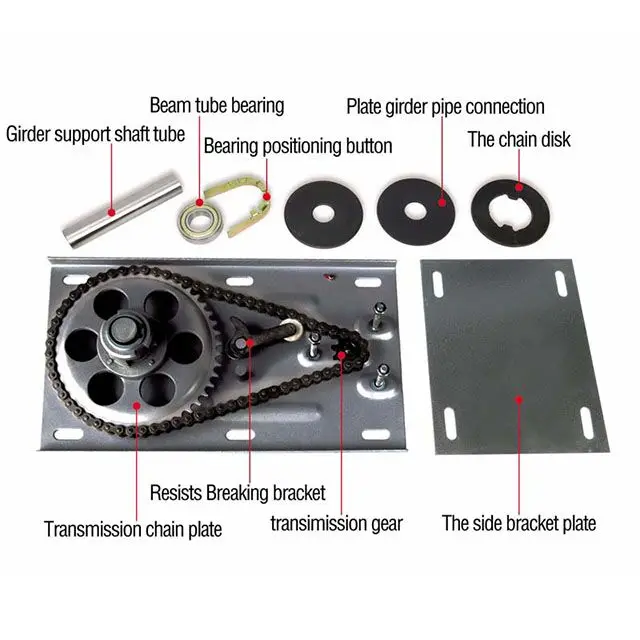

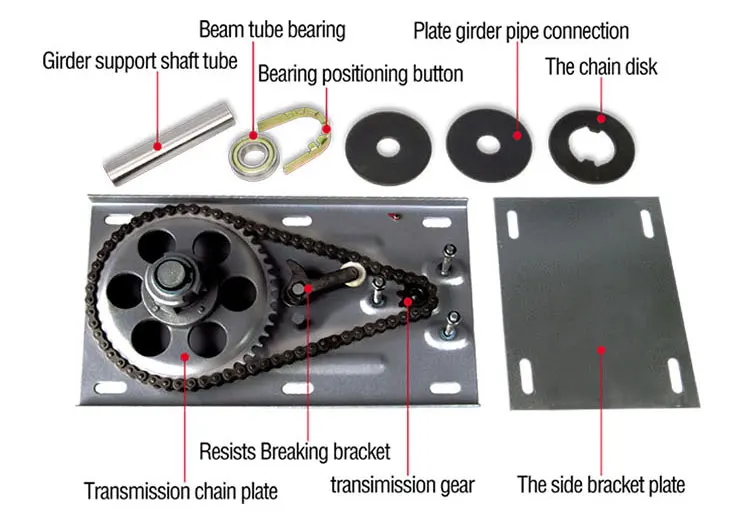

Make dimension of Rolling shutter door pipe diameter(choose 4 inch.5 inch. 6 inch)motor bracket system according to your request.
| Technical Specifications | ||||||||||
| Model | Input voltage | Rated power | Output speed | Output torque | Eleavtion | Rolling tube diameter | Max elevating distance | Short-time rating | Remote control distance | Type of chain |
| W600L-3P | 380V 50Hz | 250W | 5.3r/min | 412N.m | 600Kg | 5" | 6m | <10min | ≥30m | 10A |
| W800T-3P | 380V 50Hz | 320W | 4.0r/min | 647N.m | 800Kg | 6" | 9m | <10min | ≥30m | 10A |
| W1000L-3P | 380V 50Hz | 370W | 4.0r/min | 809N.m | 1000Kg | 6" | 9m | <10min | ≥30m | 10A |
| W1500L-3P | 380V 50Hz | 800W | 4.5r/min | 1617N.m | 1500Kg | 8" | 9m | <10min | ≥30m | 12A |
| W2000L-3P | 380V 50Hz | 1500W | 3.6r/min | 2450N.m | 2000Kg | 8" | 16m | <15min | ≥30m | 16A |
