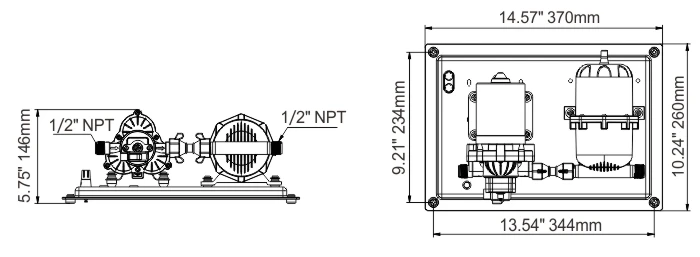

DIMENSIONS

STANDARD PUMP CONFIGURATIONS
| Model | Tank Volume | Voltage | Control Type | Open Flow (GPM/LPM) | Pressure On | Pressure Off | Max Draw | Ports | Wire Connections |
| SFWSK1-030-045-002 | 0.75L | 12V | Switch | 3.0 / 11.4 | 35 / 2.4 | 45 / 3.1 | 8.0A | 1/2"MNPT | 2-Pin/Leads |
| SFWSK2-030-045-002 | 0.75L | 24V | Switch | 3.0 / 11.4 | 35 / 2.4 | 45 / 3.1 | 4.0A | 1/2"MNPT | 2-Pin/Leads |

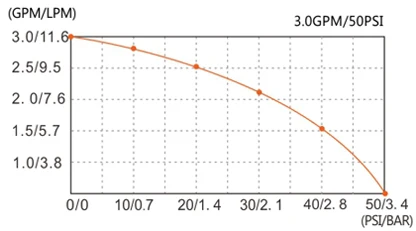

| PERFORMANCE |

| APPLICATION |

Unit Pump Weight | 5.95 lbs(2.70 kg) |
Selling Unit Size (L x W x H) | 14.96"x 10.55 "x 6.89" (38.0 x 26.8 x 17.5 cm) |
Selling Unit Weight | 7.05 lbs(3.20 kg) |
Master Carton Size (L x W x H) | 22.05"x 15.63 "x 15.16" (56.0 x 39.7 x 38.5 cm) |
Master Carton Qty | 4 pcs |
Master Carton Weight | 23.81 lbs (10.8 kg) |




Q: What is your MOQ?
A: 100 pieces in general, but no MOQ requirement for sample testing.
Q: Do you accept OEM/ODM service?
A: Yes. We are also the OEM/ODM supplier for many famous companies, such as Vetus, Reimo, Lilie etc.
Q: How can I pay for my order?
A: Please send order details to us. We will issue a order on Alibaba Trade Assurance, and send you the payment link.
Q: What is your terms of payment?
A: Payment is less than 3000USD, 100% in advance. Payment is more than 3000USD, 30% T/T in advance, balance against the copy of B/L. If you have any another question, pls feel free to contact us.
Q: What is the delivery time?
A: It depends on the order quantity. It usually takes 15-25 days upon receipt of your 30% deposit by T/T. Sample can be delivered within 7 days.
Q: Can I buy different products in one container?
A: Yes, you can mix different models of pumps in one container.
Q: What is your warranty?
A: 2 year, and within 24 hours reply will be provided to solve customers' problems.
Q: What is your port of loading?
A: Xiamen port.
