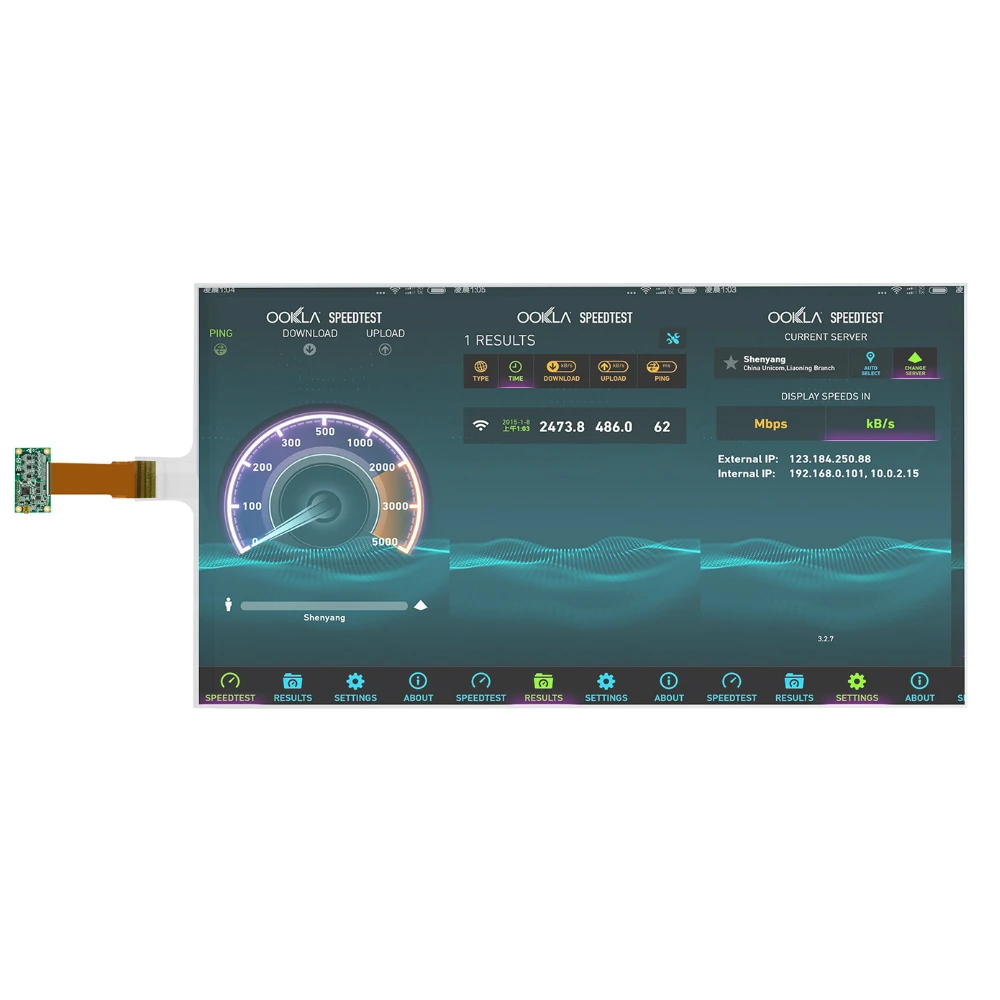

32 Inch Capacitive Touch Film Interactive Multi Touch Foil Through Glass Window

*Light weight, suitable to be laminated to glass, acrylic o r photographic film.

*Transparent, no frame, durable and safe.

*Accurate positioning

*No mechanical or pressure-sensitive elements, durable and stable

*Not sensitive to outer light, the change of light would not affect.

*Premium quality transparent multi-touch foils (up to 50 touch points)

*Multi touch function – glass up to 12mm thick

*High resolution controller

*1 year comprehensive warranty

*Includes full installation kit – software, controller board & cable.

III. Application Of  interactive multi touch foil

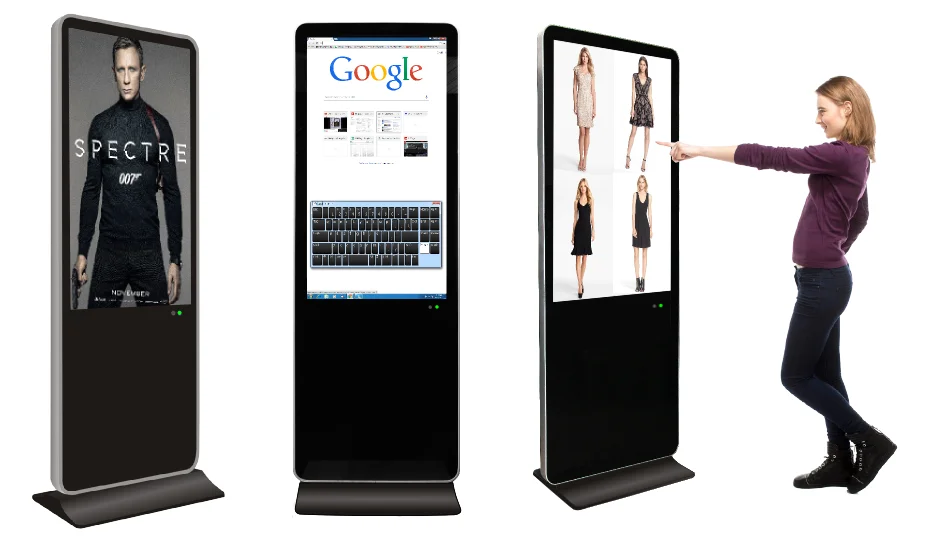

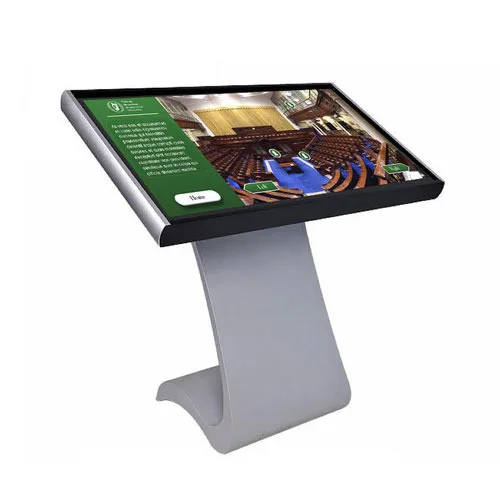

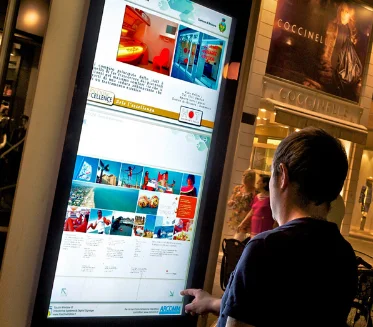

Interactive digital signage
Retail
Entertainment

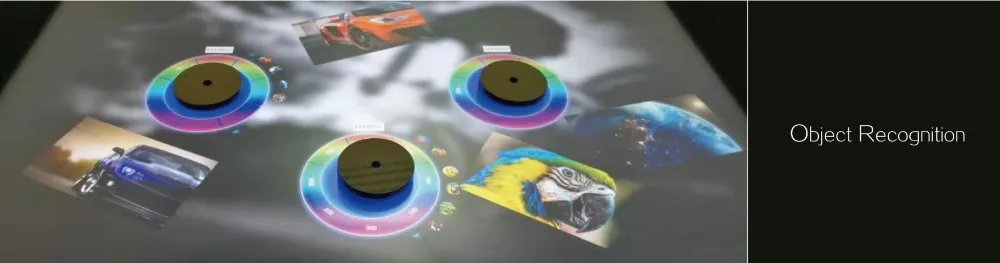

Multitouch tables
Digital out of home advertising
Industrial
Vending

Detailed Images

Specification

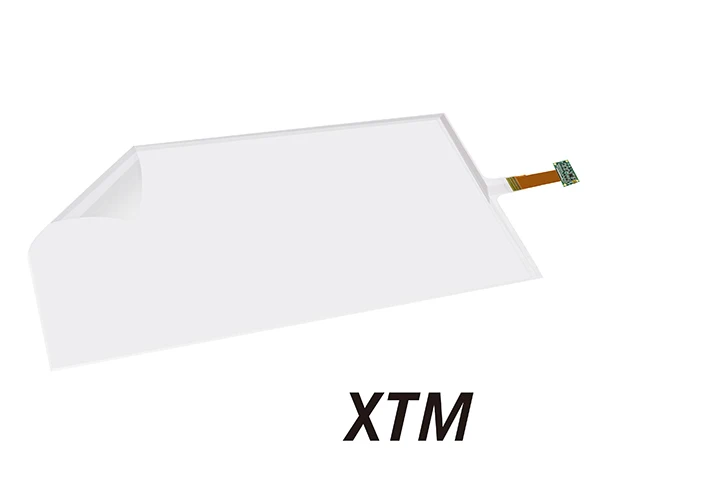

I. The Specification Of 32 inch interactive multi touch foil

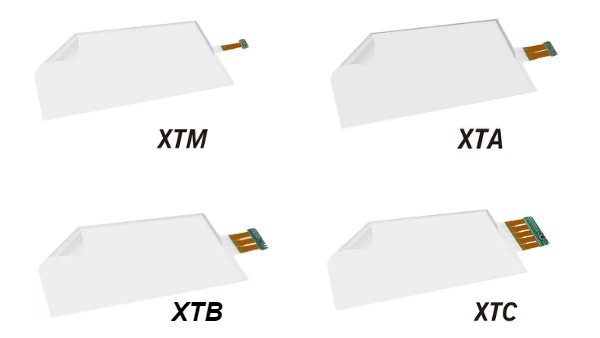

Series	Touch point	Sizes	Deviation	Sensor	FPS	Power           Consum

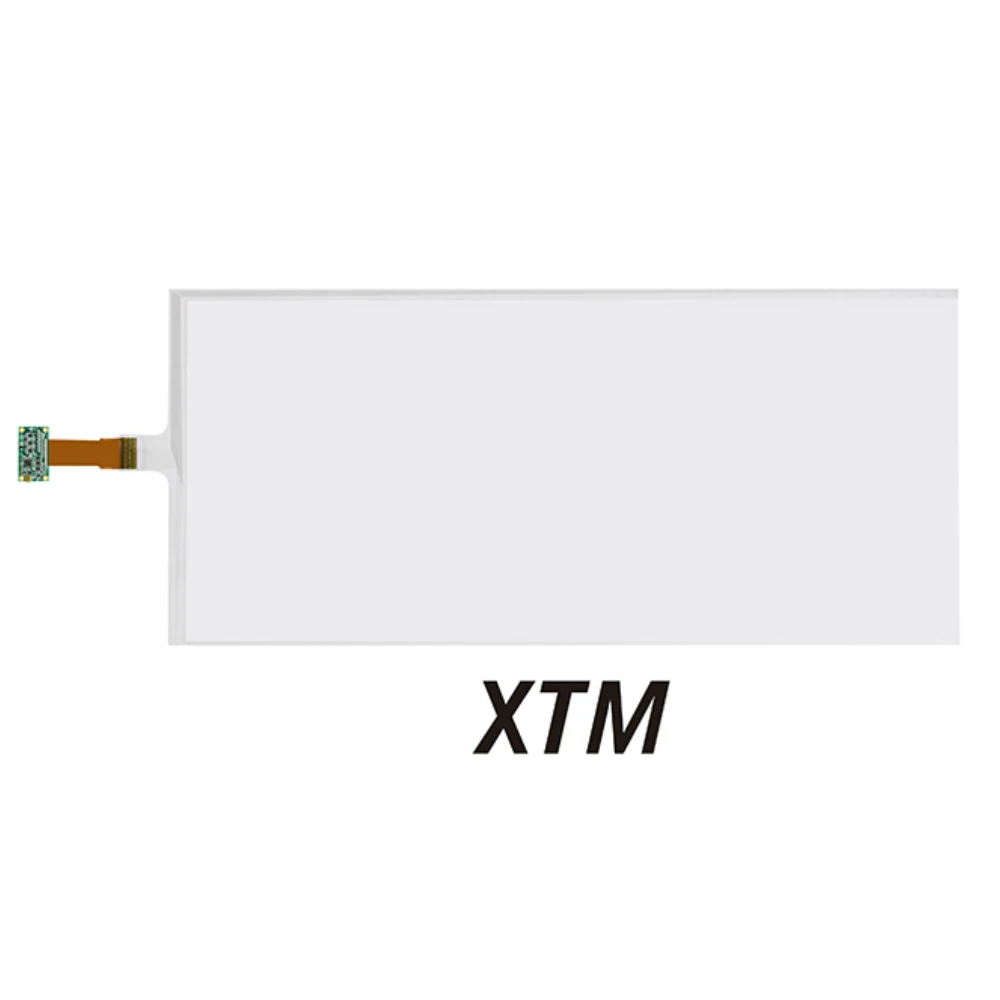

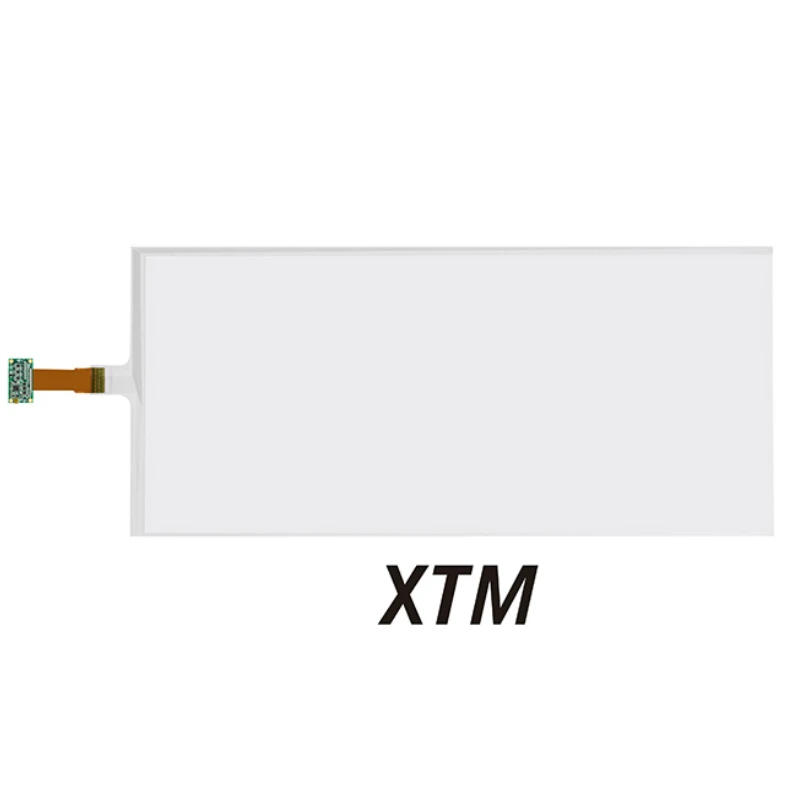

XTM	12	10.1"-32"	≤0.5mm	TX24  RX48	130	1W

II. Supporting Operated Systems Of 32 inch interactive multi touch foil

Driver	No need
Windows	Win7/8/8.1/10
Andriod	Kernel3.10 or higher
Linux	Kernel3.10 or higher
Interface	USB2.0,UART
Power supply	USB(5V+/-5%DC)
Customize	Customizable
Waterproof	YES
Calibration	Software calibration
Certificates	CE,ilac-MRA,CNAS,CAL,CMA,FCC,ROHS,ISO
Packing list	touch foil*1 , controller*1 , USB line*1
Thickness	≤200um
Transmittance	>93%
Voltage	5V
Transmission	USB2.0
Transmit distance	≤50m (Add USB signal amplifier, etc.)
Safe distance	2mm(Distance beteween LCD& foil)
Operating Temperature	-20℃ ~ 70℃
Storage temperature	-20℃ ~ 80℃
Ambient lightness	Full-angle anti-glare illumination
Touch gesture	Click,Drag,Zoom,Rotate
Sensing range	≤10mm

Our Company

Touch Explorer Photoelectric Co., Ltd is Wholly owned subsidiary of SuZhou TouchPlanet Techonology Co.,ltd.

What we do!?
1.Capacitive moultitouch foil.

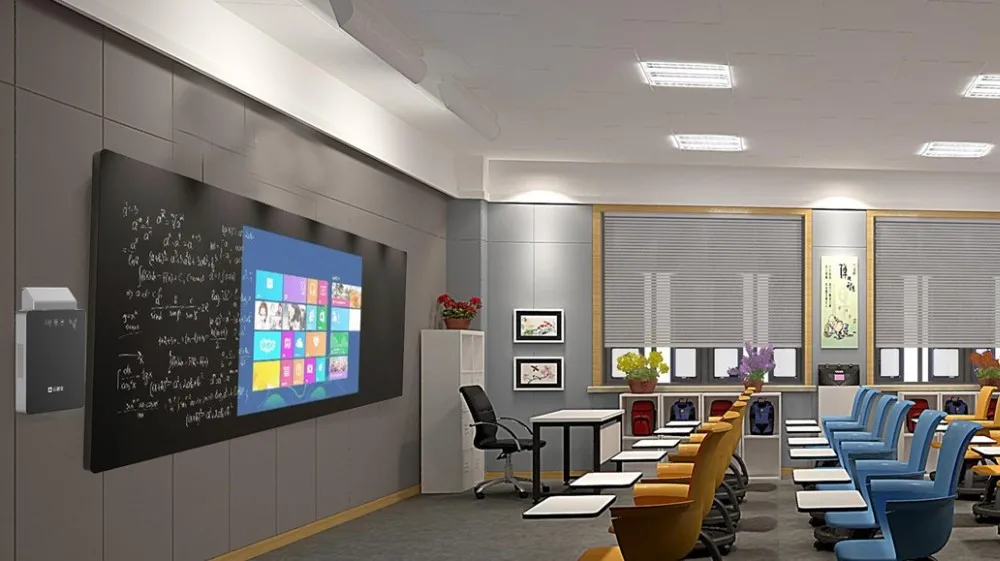

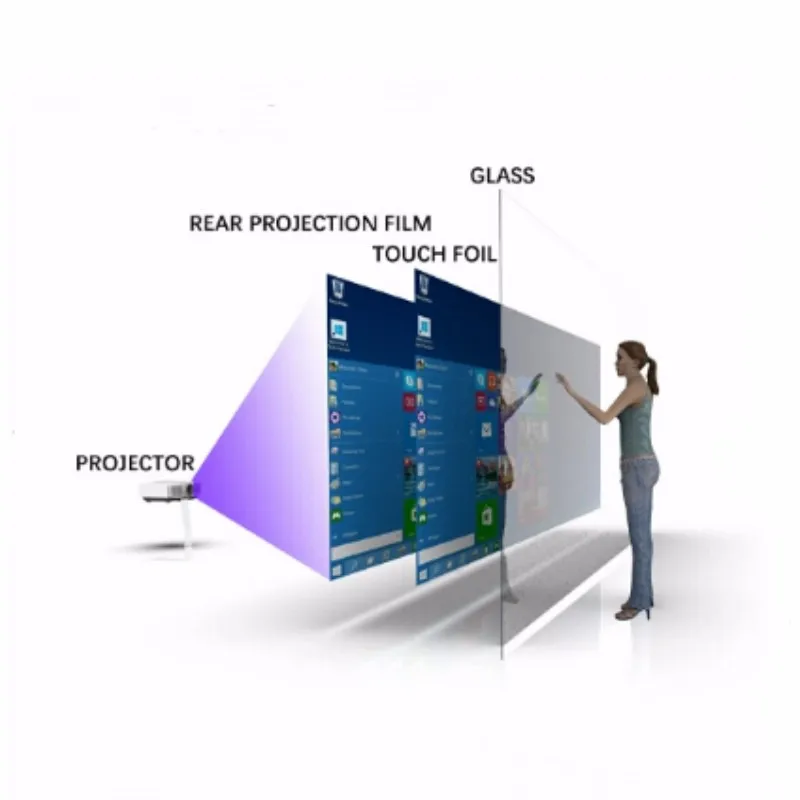

Transforms any glass or store window into an interactive touch screen display. Ideal for integration within the gaming/vending industry, education,entertainment,meeting,digital signage and table top application.
Size:10''-240''.

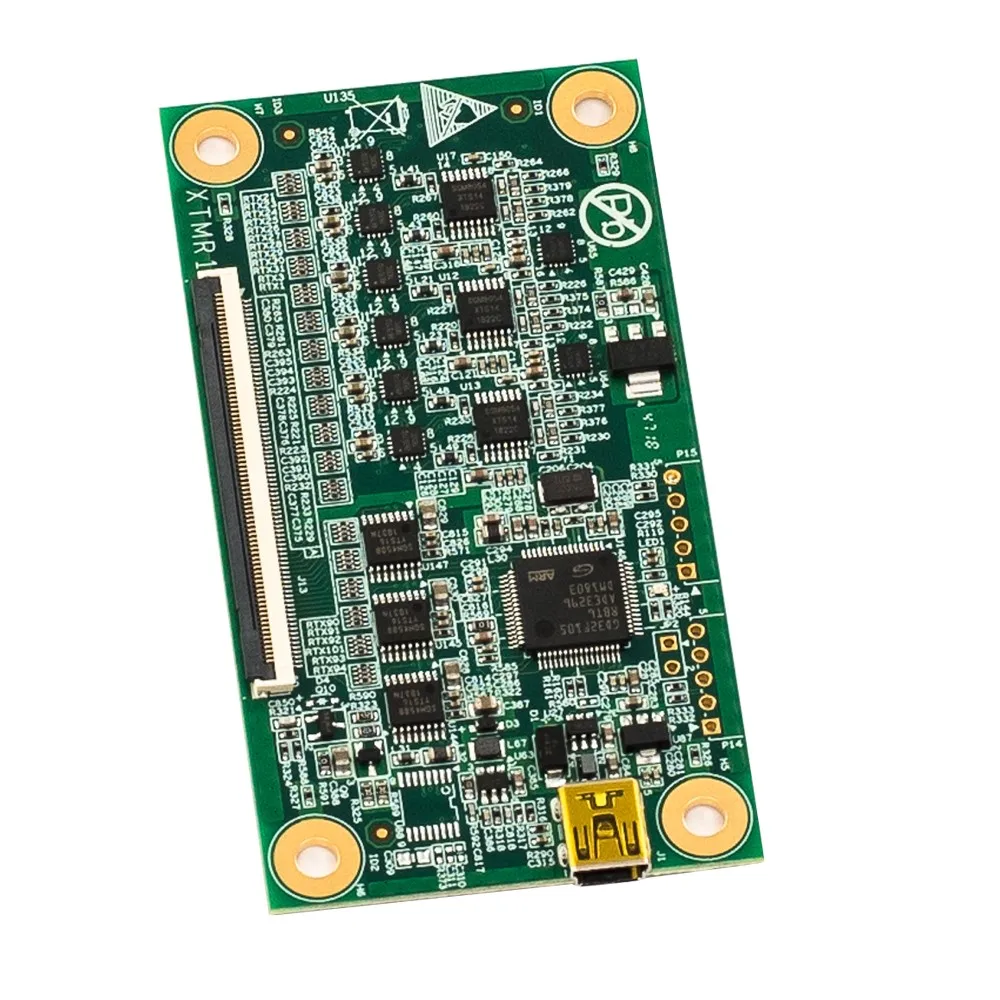

2.Control circuit board.
Our independently developed controller board for all sizes of touch foils.Maximum of touch points can reach 50. With advantage of 30% higher speed than others.

Why choose us!?

We are new member of Alibaba.but we have done quite long and well in touch foil fields.

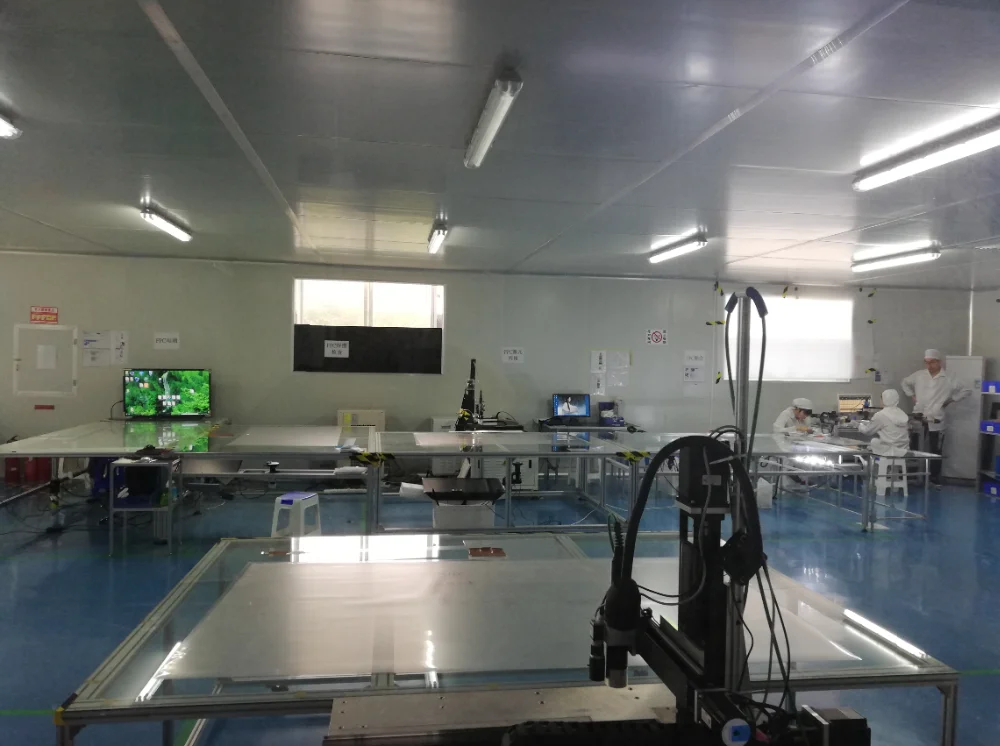

1.Self developed priting machine with high accuracy and low cost.

2.Raw material import from Japan and Germany.

3.Customise any big size as your requirement.

4.Capacity of 400sets per day.(eg.86'')

5.Easy to debug within 1 minute.

6.Multi touch functionality (50 touch points) is supported on laminate or toughened glass up to 12mm thick.
