Металлизированный Полипропиленовый пленочный конденсатор типа DKMJ2 для DC и EV

Product Overview

Description

DKMJ2 Type high quality metallized polypropylene film capacitor for EV & CHEV



Application:

Products are suitable for photovoltaic and wind power inverter;Switching power supply,

UPS uninterruptible power supply,EPS emergency power supply,DC regulated power supply;EV and HEV's smoothing filter.



Characteristics:

It selects the advanced self-healing metalized safety film,resin filling,dry structure.

Product performance is stable,safety and reliable;Low ESR,which can withstand larger

ripple currents;Low ESL,long life.

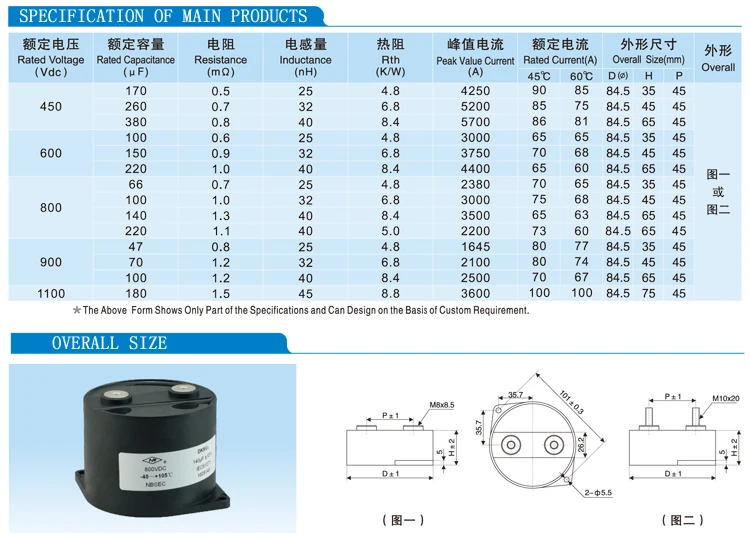

Technical Specification:

Configuration	Plastic shell,Dry,Flame Retardant and Protective Device
Temperature	-40℃~85℃
Capacitance Tolerance	±5% ±10%
Dissipation Factor	≤0.003(at 100Hz 1V)
Testing Voltage	T-T:1.5Un 10s 25℃ T-C:1.5Un+1000VAC 60s 25℃
Equivalent Series Resistance(ESR	0.5~1.5mΩ
Equivalent Series Inductance(Ls)	≤45nH
Expected Service Life	100000hours









The Above Form Shows Only Part of the Specifications and Can Design on the Basis of Custom Requirement.
