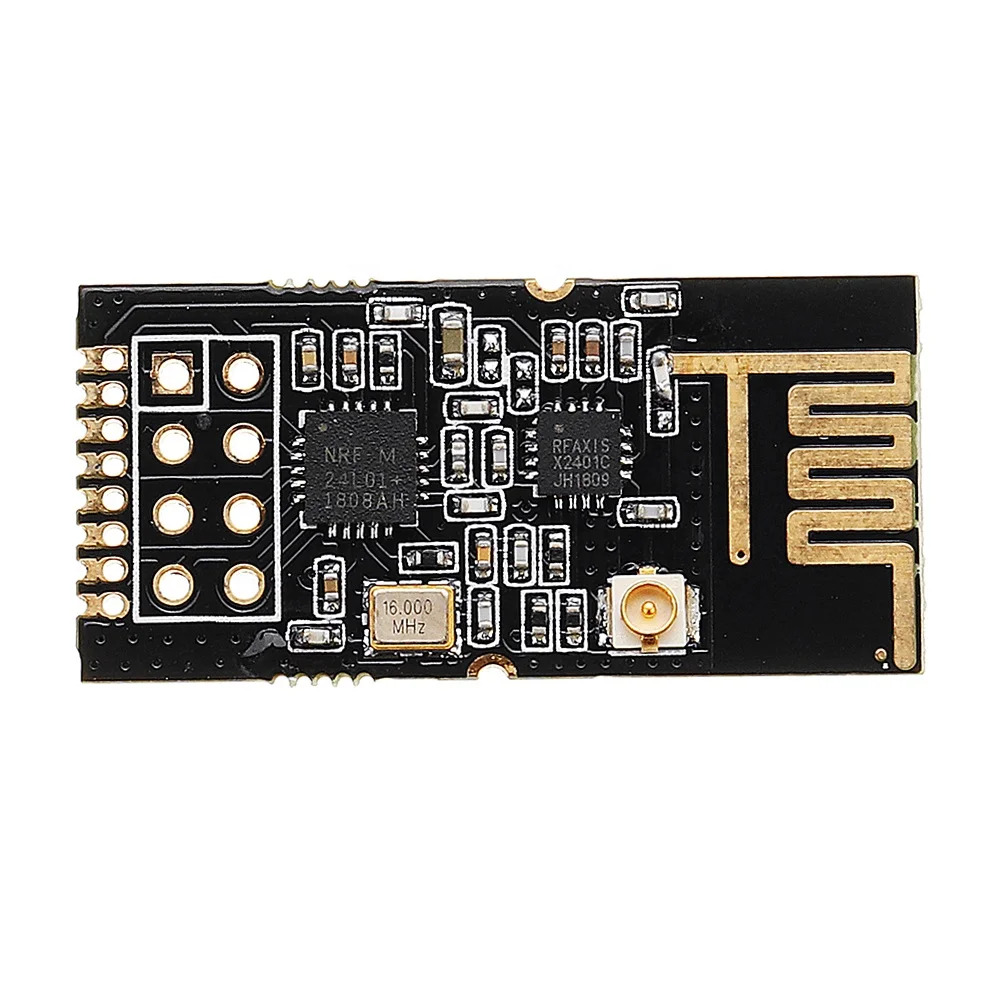

GT 24 2.4G NRF24L01 PA LNA 1100 meters Long Distance Industrial Grade Digital Wireless Module With Non welding Pin

Specification:

Model : GT-24

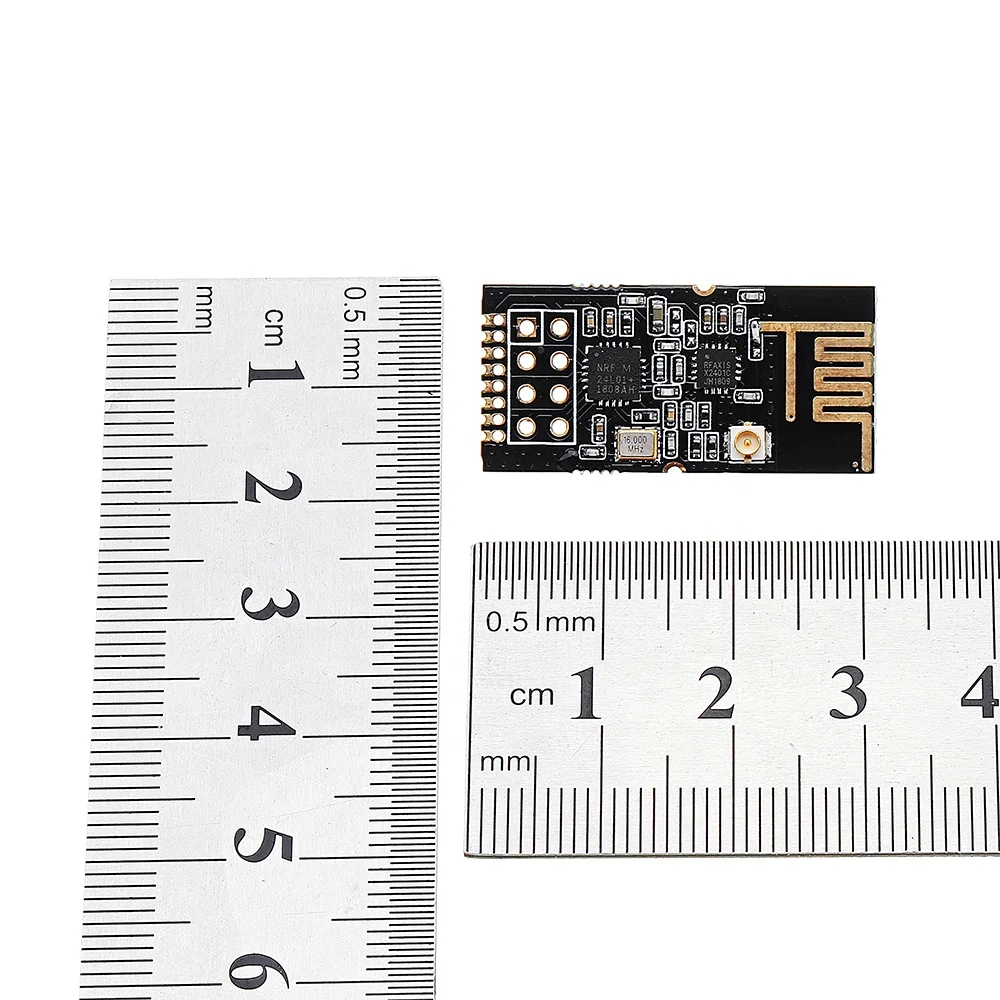

Module size: 30.3 x 14.5mm (including PCB antenna)

Operating frequency b and: 2.4GHz ~ 2.525GHz (adjustable, 1MHz step)

Interface mode: 1*8*1.27mm/2*4*2.54mm (The patch can also be used with the universal board and DuPont line)

Supply voltage: DC 2.0-3.6V (Note: above 3.6V, the module will be permanently damaged)

Communication level : 0.7VCC ~3.3V (VCC refers to the module supply voltage)

Measured distance: 1000m (clear open space, maximum power, height 2m, 250k air speed)

Transmit power: 4 levels adjustable (maximum 20dBm, approx. 100mW at maximum power)

Air speed 250k ~ 2Mbps / 3 levels adjustable (250kbps, 1Mbps, 2Mbps)

Shutdown current: approx. 30uA (test condition: CE=0, power-down mode, VDD=3.0V)

Emission current: about 90mA (power supply capacity must be greater than 250m)

Receive current: about 20mA

Antenna form : PCB antenna / ipex carrier antenna

Communication interface : SPI maximum speed up to 10Mbps

Transmit length: Single packet 1~32 bytes Level 3 FIFO

Receive length : Single packet 1~32 bytes Level 3 FIFO

RSSI support : Not supported (only simple packet loss statistics are supported)

Receive sensitivity: -94dBm@250kbp

Working temperature: -40 ~ +85 °C (industrial grade)

Storage temperature: -40 ~ +125 °C (industrial grade)

Features:

1. The GT-24 module is a 2.4GHz, 100mW, high speed (up to 2Mbps airspeed), high stability, industrial grade wireless transceiver integrated data transmission module.

2. The module comes with a high-performance PCB antenna, precise impedance matching, and the nRF24L01P RF chip, which has higher reliability, more power levels, and longer transmission distance and lower power than the nRF24L01.

3. Also built-in RFX2401 power amplifier chip, built-in LNA, receiving sensitivity increased by 10dBm, working in the ISM b and of 2.4GHz~2.5GHz.

4. The module has sufficient transmit power, good spectral characteristics, small harmonics, small channel crosstalk, and ultra-small size. It is a model of all Murata raw materials and industrial grade standards.

5. It has a standard spacing of 2.54mm in-line interface and 1.27mm patch interface, which is convenient for users to use with various circuits.

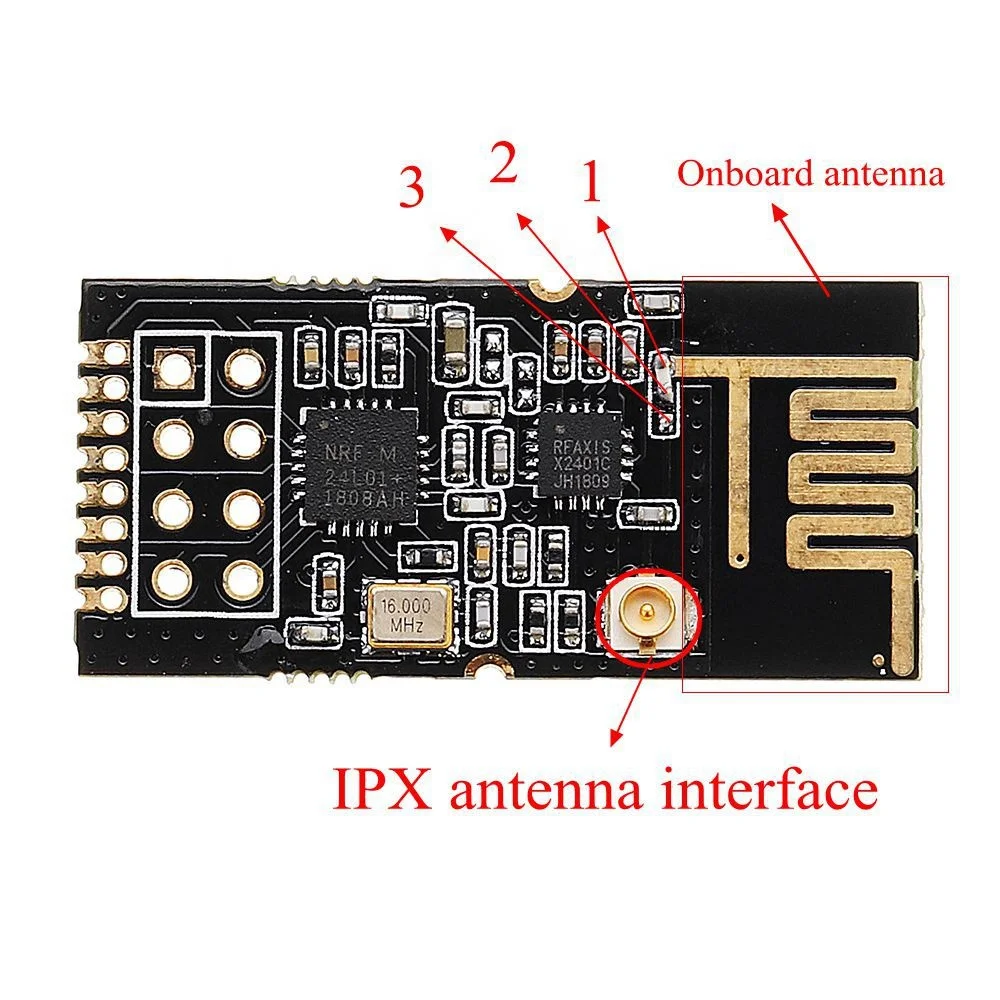

6. The GT--24 module also comes with a built-in PCB antenna and an ipx carrier external antenna, which greatly enhances the module's free characteristics and gives the user the greatest freedom.

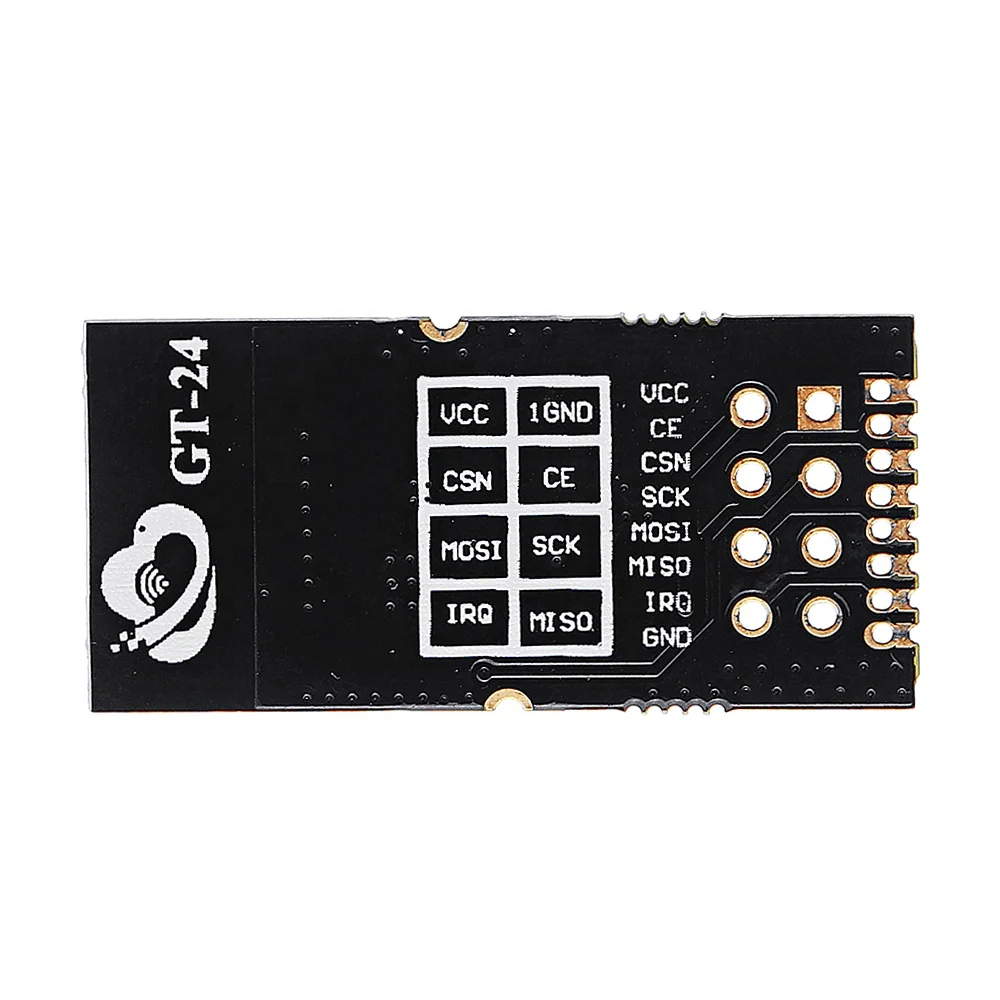

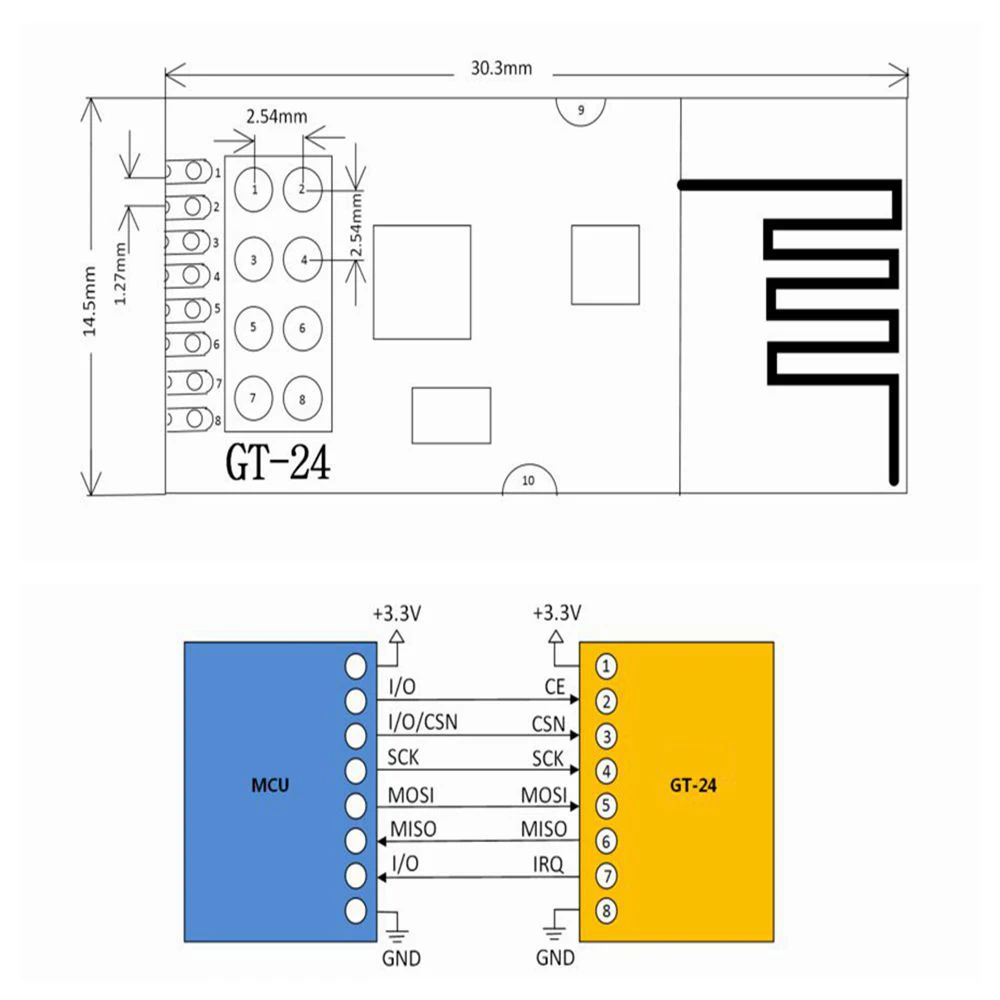

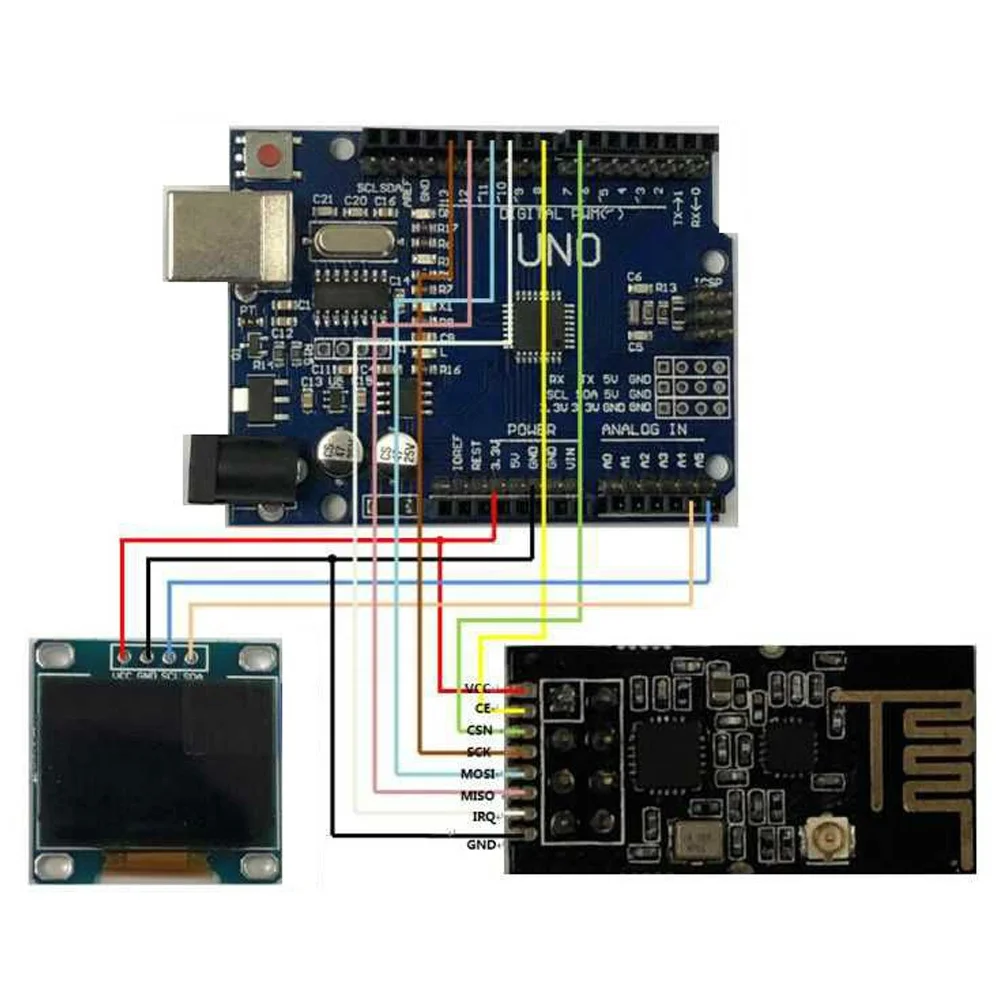

Pin Instruction:

Package Include:

1 x GT-24 Digital Wireless Module

Option model:

With Welding Pin, if you need, please contact our sales manager.

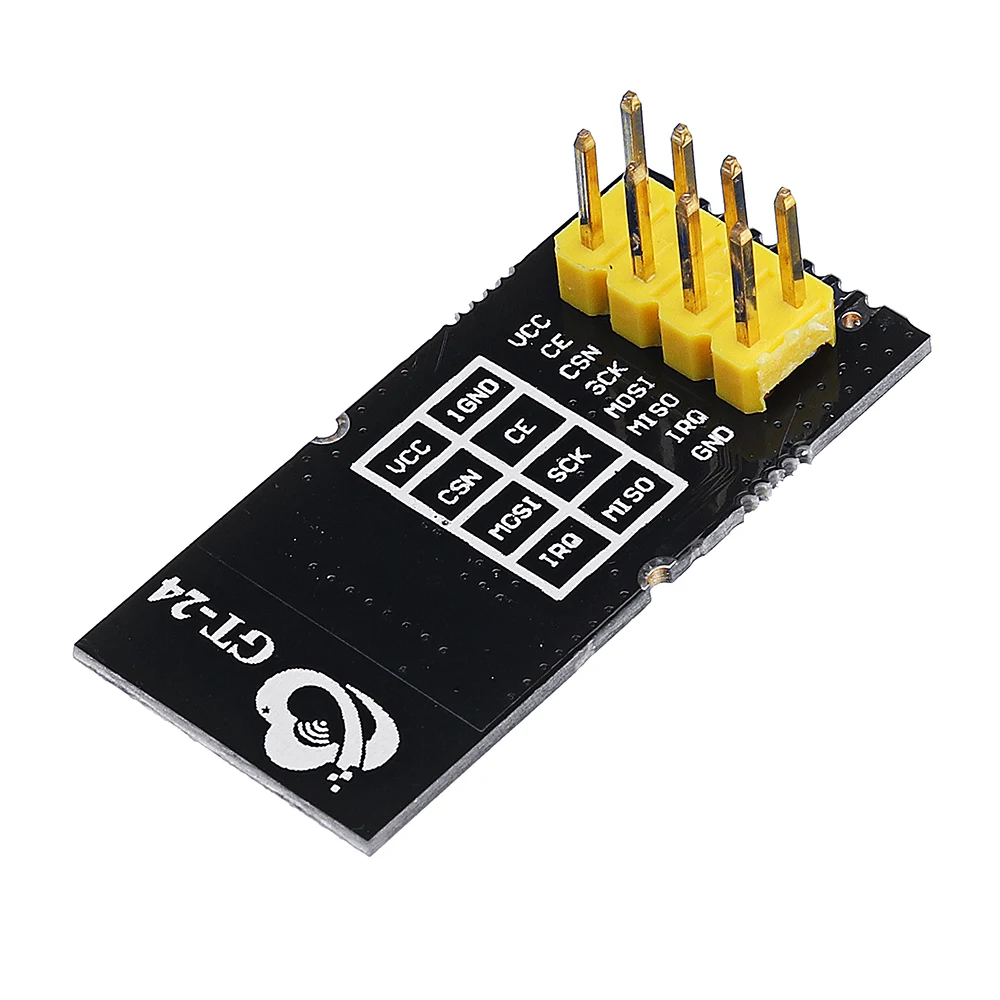

GT-24 2.4G NRF24L01+PA+LNA 1100 meters Long Distance Industrial Grade Digital Wireless Module With Welding Pin

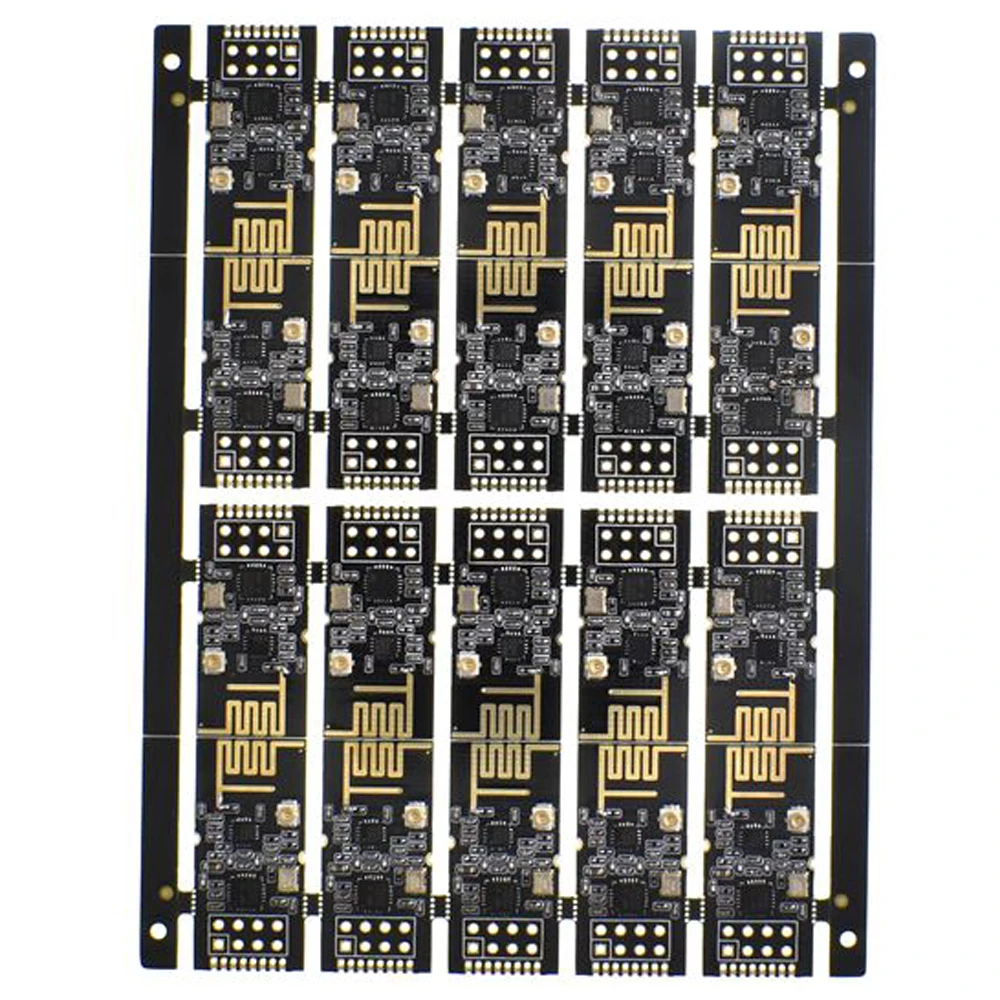

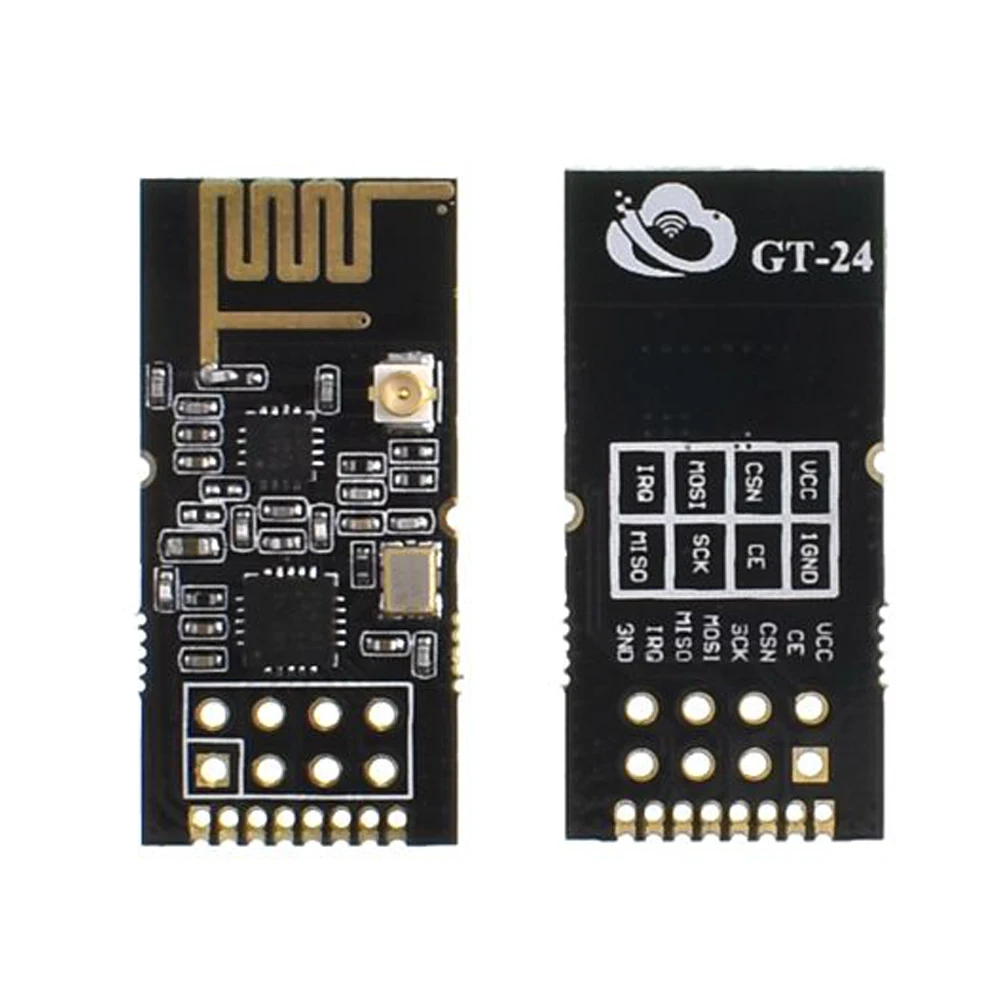

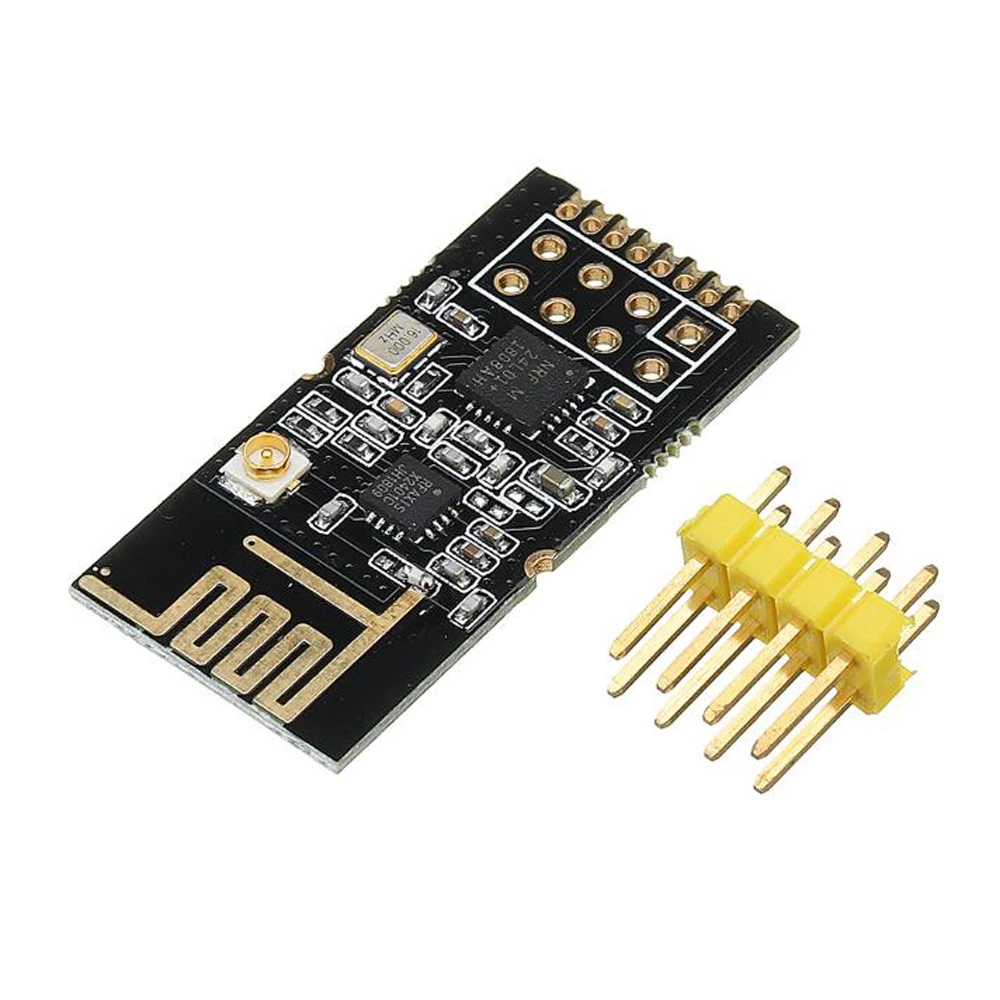

Picture show as below:
