technology 17 touch screen panels 8 inch small tft lcd monitors led display dustproof resistive transparent glass touchscreen
- Category: >>>
- Supplier: Dongguan Cjtouch Electronic Co. Ltd.
Share on (62065747485):
Product Overview
Description
Product Details

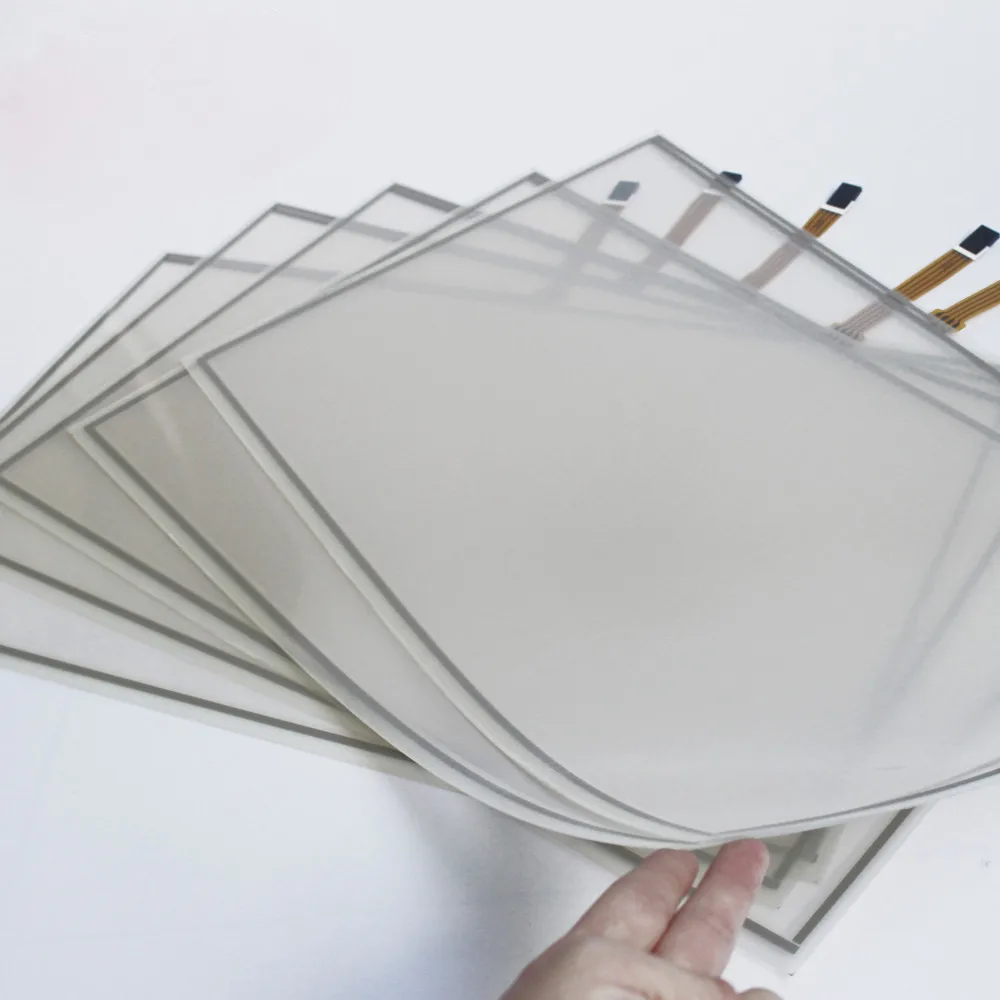

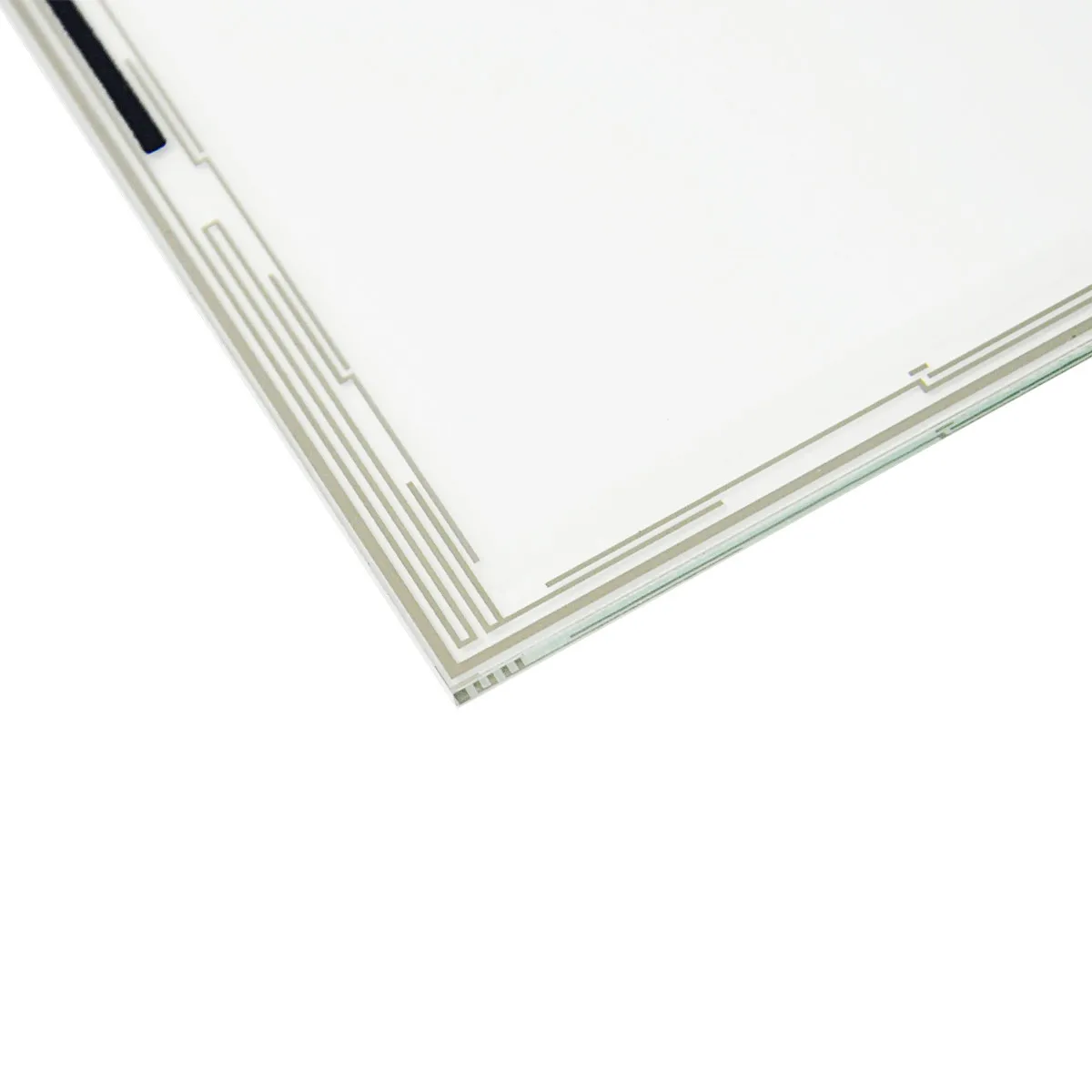

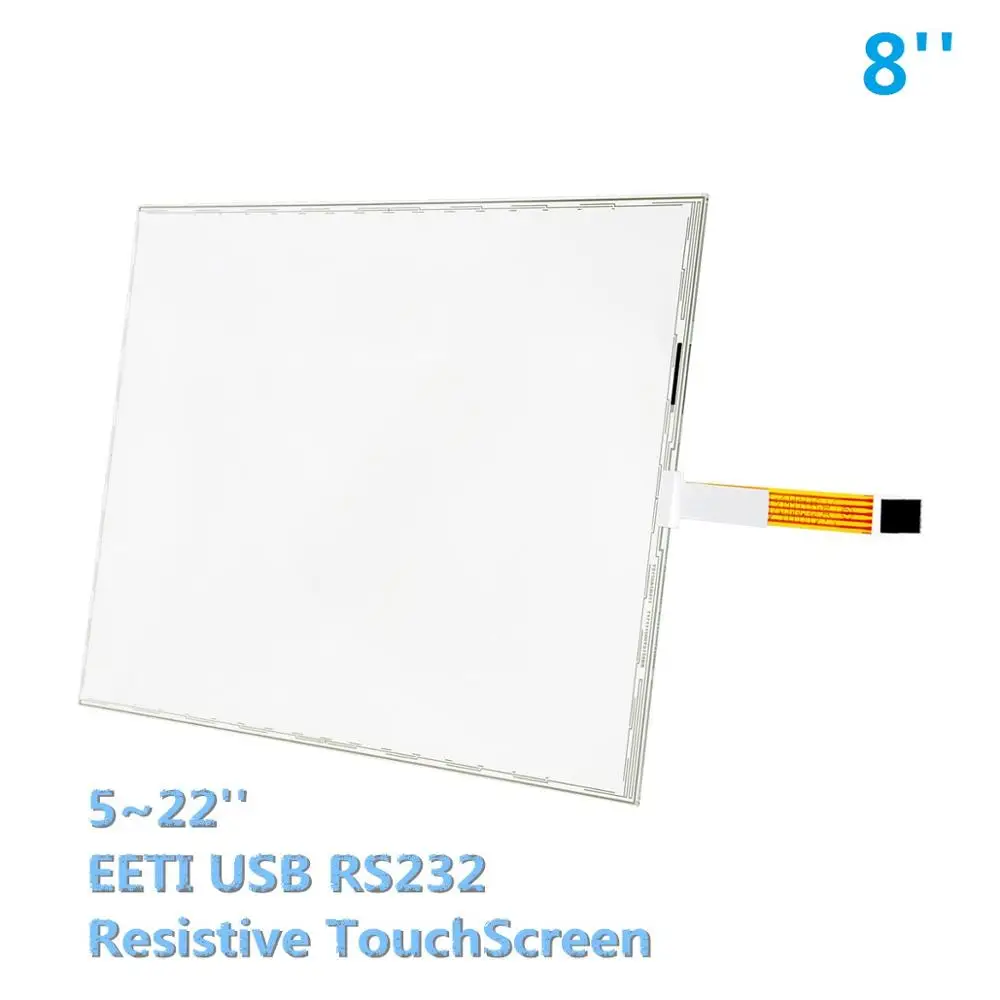

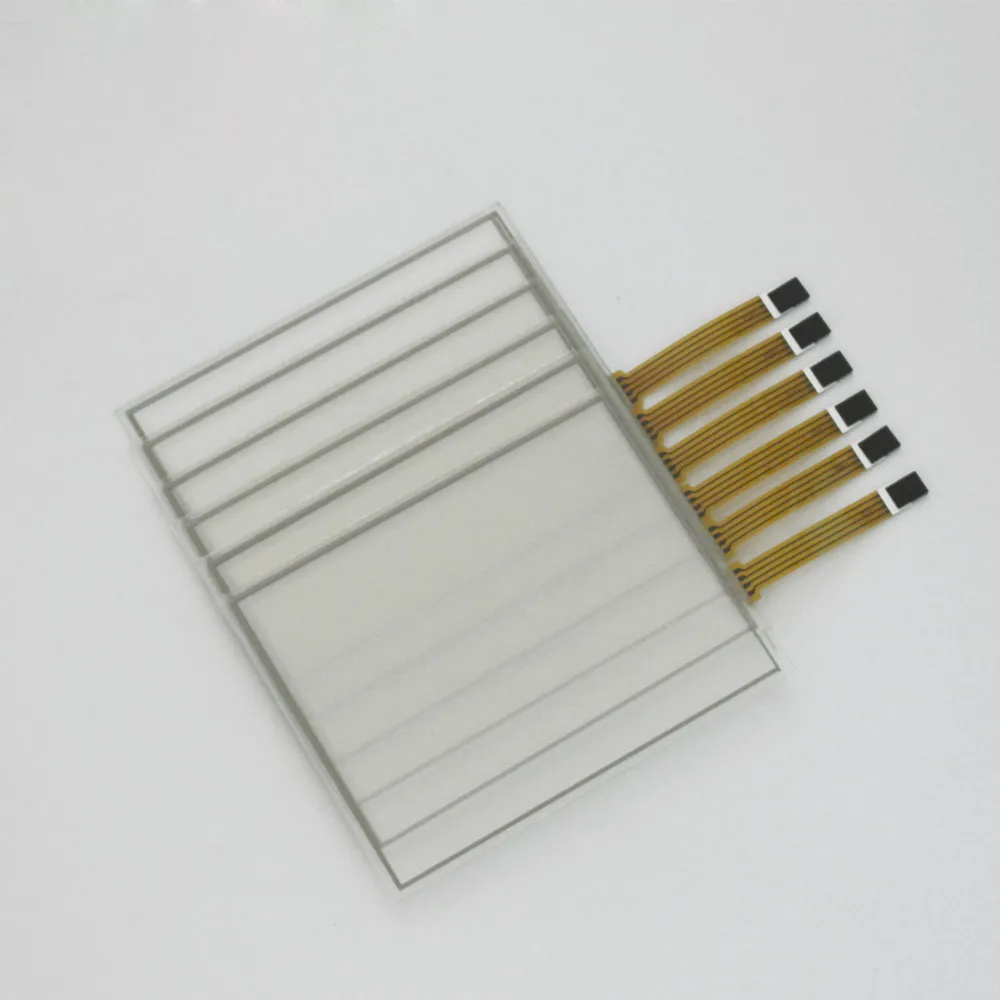

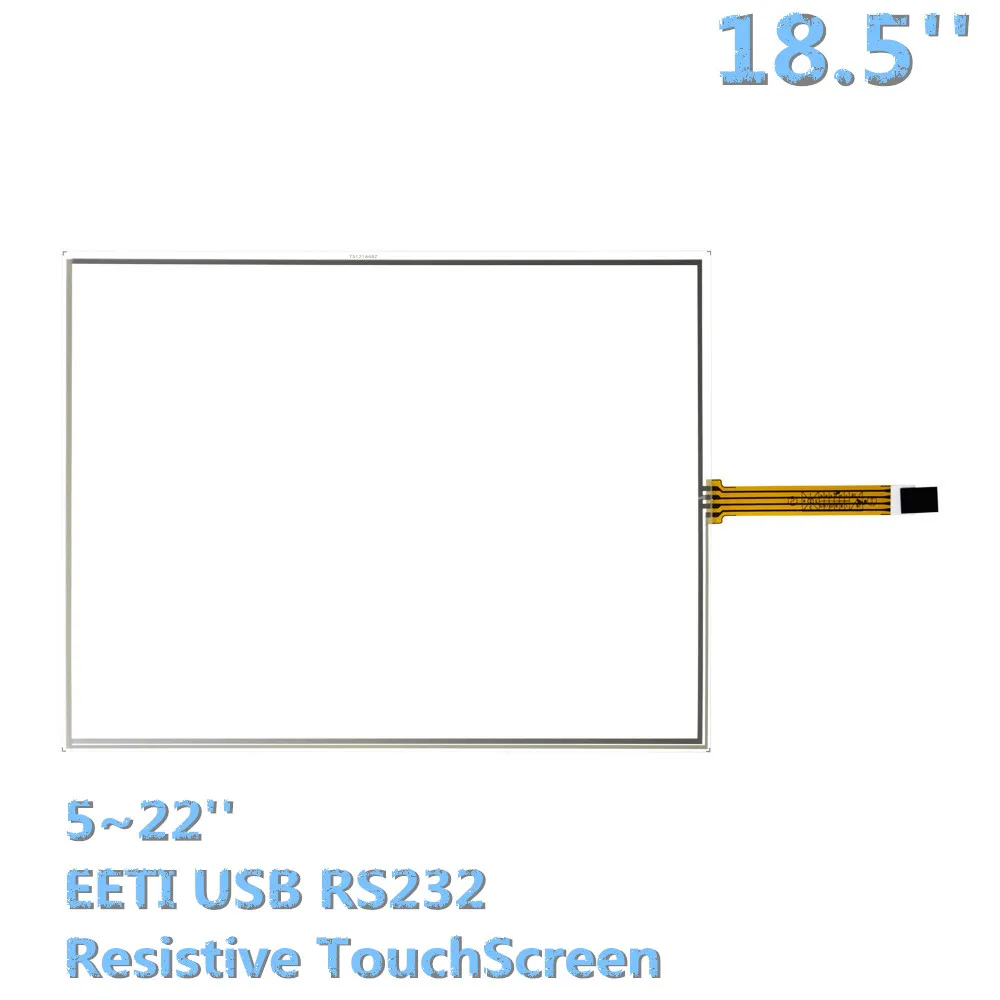

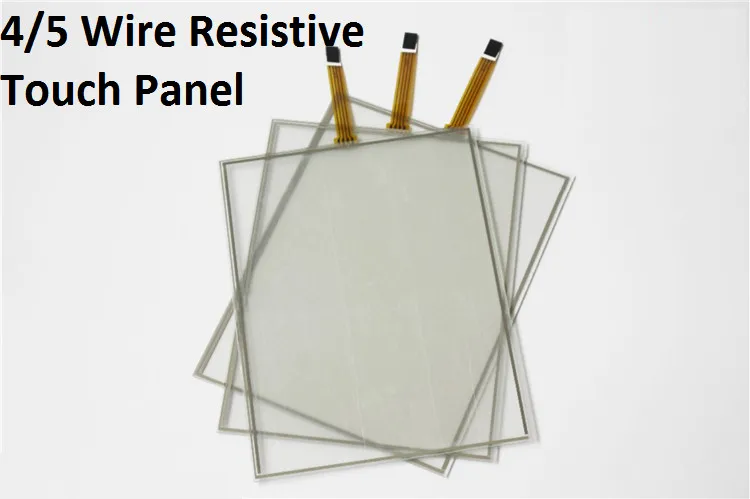

4/5/8 Wire Resistive Touch Screen Touch Panles Overlay kit
Standard Size 5~24 inch Resistive Touchscreen Overlay;
1,2 Multi points 4/5/8 Wire Resistive Touch Glass ;
USB, Serial Interface Touch Screen ;

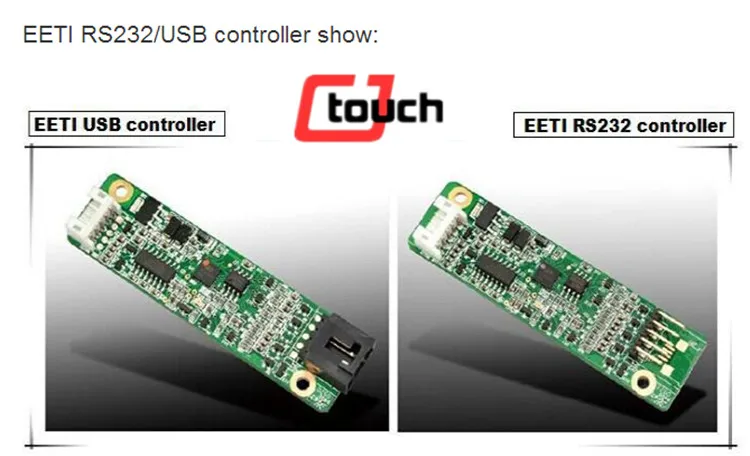

EET-I Compatible Controller Board Driver;
W indows,L inux,A ndroid,I mac,R aspberry pi OS Supported ;
IP 65 Waterproof,Dust proof, Vandal proof ,Shockproof Anti-Glare Touch Panels;
Sensitive Touch,Adjusted Touch Force,Durable Moh's 7 Hardness;
Cheap Touch,Sensitive Touch,Long Life Span , Low Consumption ;
Anti-Interfere,Anti-Dirt,Anti-Electromagnet,Anti-Strong Sunlight;
Fingerprint Resistant ,Less Light Loss,No Influence with Dirt,Drink,Oil ;
Sample supported,Custom made workable,Free for 3 Years Warranty;
CJTOUCH--10 Years Dongguan China Factory
Mechanical | ||
Regular Size | 5 inch To 22 inch | |
Input Method | Finger or gloved hand (rubber ,cloth or leather) | |
Active Force | Stylus or Finger or Similar <45g~110g | |
Ball Impact | ø13.0. Steel Ball/9g, Height=30cm, 1 time, no damage [Impact at center area] | |
Durability | >30,000,000 touches | |
Positional Accuracy | <1.5% | |
Optical | ||
Light Transmission | 82% | |
Clear surface | <3% | |
Anti-glare Surface | <4% | |
Anti-Newton | <10% | |
Gloss | 90±20 gloss units tested on a hard-coated front surface ,Accordance with ASTM D 2457 | |
Electrical | ||
Supply voltage | DC5V | |
Circuit Resistance | X:20~25Ω0, Y:20~250Ω | |
Linearity | X<1.5%, Y<1.5% | |
Response | <15ms | |
Insulation | >20MΩ/25V(DC) | |
Endurance | No acting damage at DC50V/60sec | |
Resolution | 4096 x 4096 | |
Environmental | ||
Temperature | Operation : -10°C ~ +60°C ; Storage : -40°C ~ +80°C | |
Humidity | Operation : 20%RH ~ 85%RH, no condensing ; Storage : 10%RH ~ 90%RH, no condensing | |
Waterproof | Not damaged by running water applied to the active area | |
Reliability | ||
Cycle | Heat Cycle : 70°C /240 hrs ; Cold Cycle : -40°C /240 hrs ; Thermal Cycle : -40°C ~7°0C [60 min./cycle] *10 cycles ; | |
Operation System | Windos/Linx/Androd/Ima | |
Warranty | Free for 1 Years | |
Touch Screen /Touch LCD Monitor / Touch All in one PC Applications
1. Business Institutions: Department Store, Super Market, Exclusive Store, Hotel, Restaurant, Medicine Store`
2. Financial Institutions: Bank, Stock Market, Insurance Company, etc.
3. Public Services: Hospital, School, Telecom Hall, Post Office, etc.
4. Public Places: Subway, Airport, Bookstore, Park, Exhibition Center, Stadium, Museum, Ticket Agency, etc.
5. Real Eatates: Apartment, Villa, Business Building, HR Market, Lottery Center,etc.
6. Entertainment Places: Cinema, Gym, Holiday Inn, Nightclub, Massage Parlor, Internet Cafe, Golf, etc
Related Products
Click Below Pictures to get More Products Details ( Skype : phenix8023 )
IP 66 Outdoor Waterproof
800/1000/1500 High Brightness
P-cap Waterproof Monitor
10~65 inch
43'' Large Size IR LCD Monitor
32''43''55''65''75''98''
Cheap SAW Touch Panel
7~32 inch
IP66 Outdoor Waterproof
1/2/4 Points IR Touchscreen
140'' Infrared Touch Frame
10~300 inch
7'' Cheap Resistive Monitor
7~32 inch
Desktop all-in-one computer
18.5~32 inch
Touch All in one PC
8~65 inch
E-LO Compatible Monitor
15''17''18.5''19''21.5''
P-cap Nano Touch Foil Film
10~120 inch
Capacitive Touch Screen
5~65 inch
Company & Packing
Dongguan CJTOUCH Electronic Co., Ltd are 10 Years of a Professional OEM Manufacturer and Supplier ;
Main Product : Touch Screen, Touch Foil, LCD/LED Monitor, Touch PC and Accessories etc.
Our Main Factory is located near Shenzhen,China.
Resistive TouchScreen Panel Package & Delivery
Packing:
1-2 Pcs Sample Box:56*41*8cm(Size Under 19inch)
1-2 Pcs Sample Box:63*41*8cm(Size 19inch-23.6inch)
10 Pcs Order Box:57*49*36cm(Standard Touch Screen Size 15-19 inch Box)
Contact us for other touch screen box size.
Delivery time:
Standard Dustproof Sample order 1-2 Days,Vandal proof/Anti-Glare type 2-4 Days.
100 Pcs 7 Days, 500 Pcs 20 Days,More than 500 Pcs Order,Contact us for detail delivery time.
