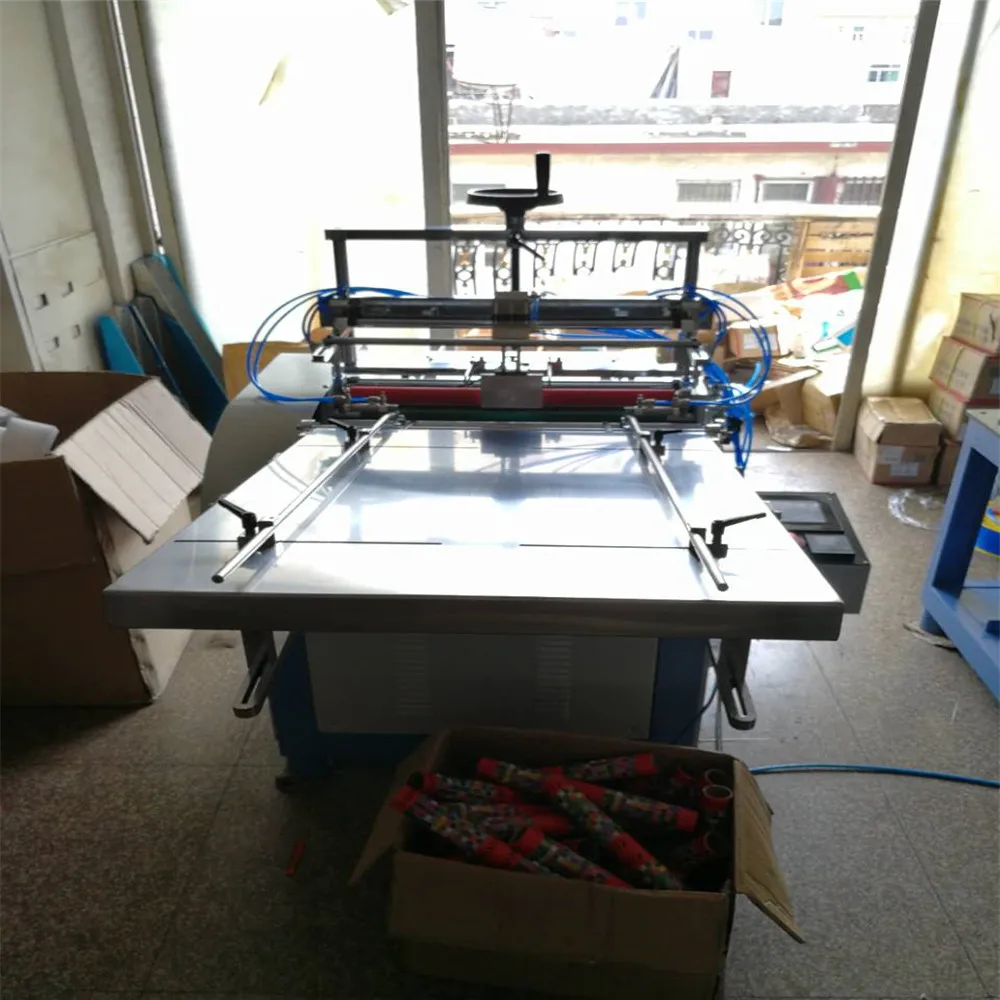

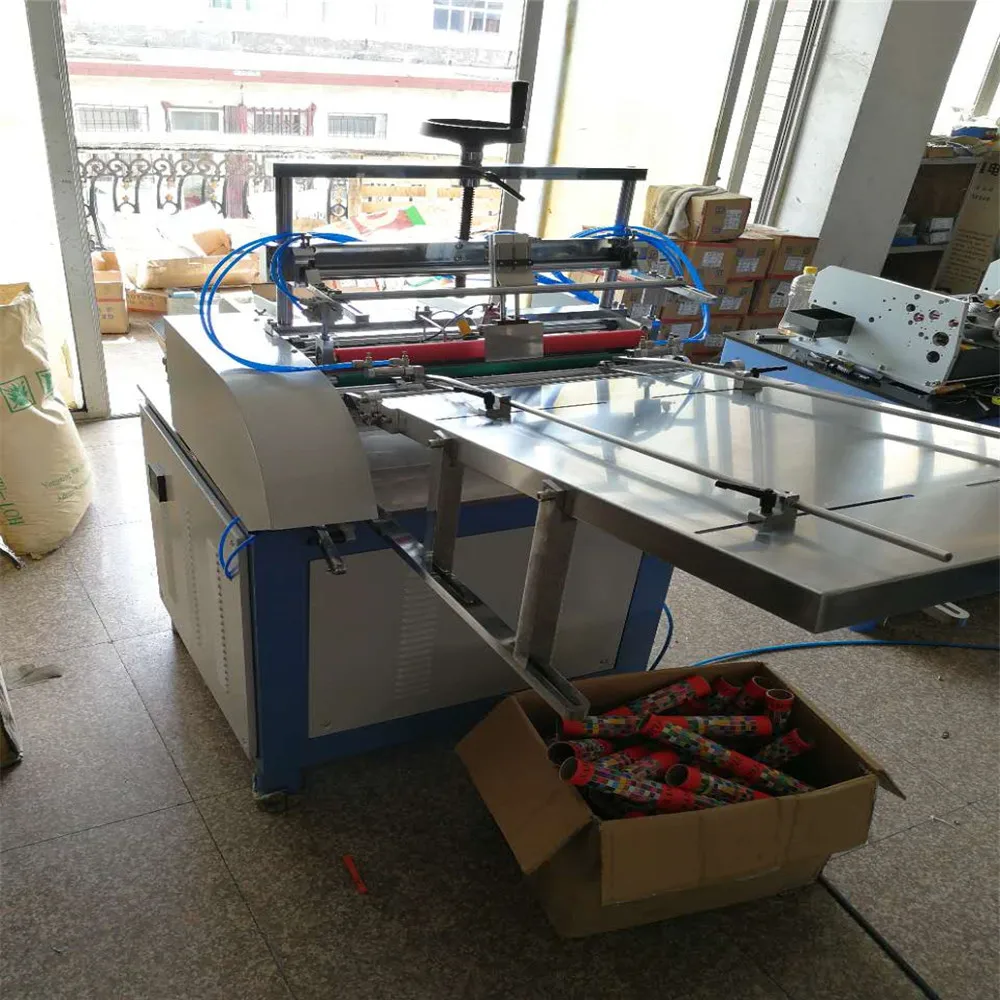

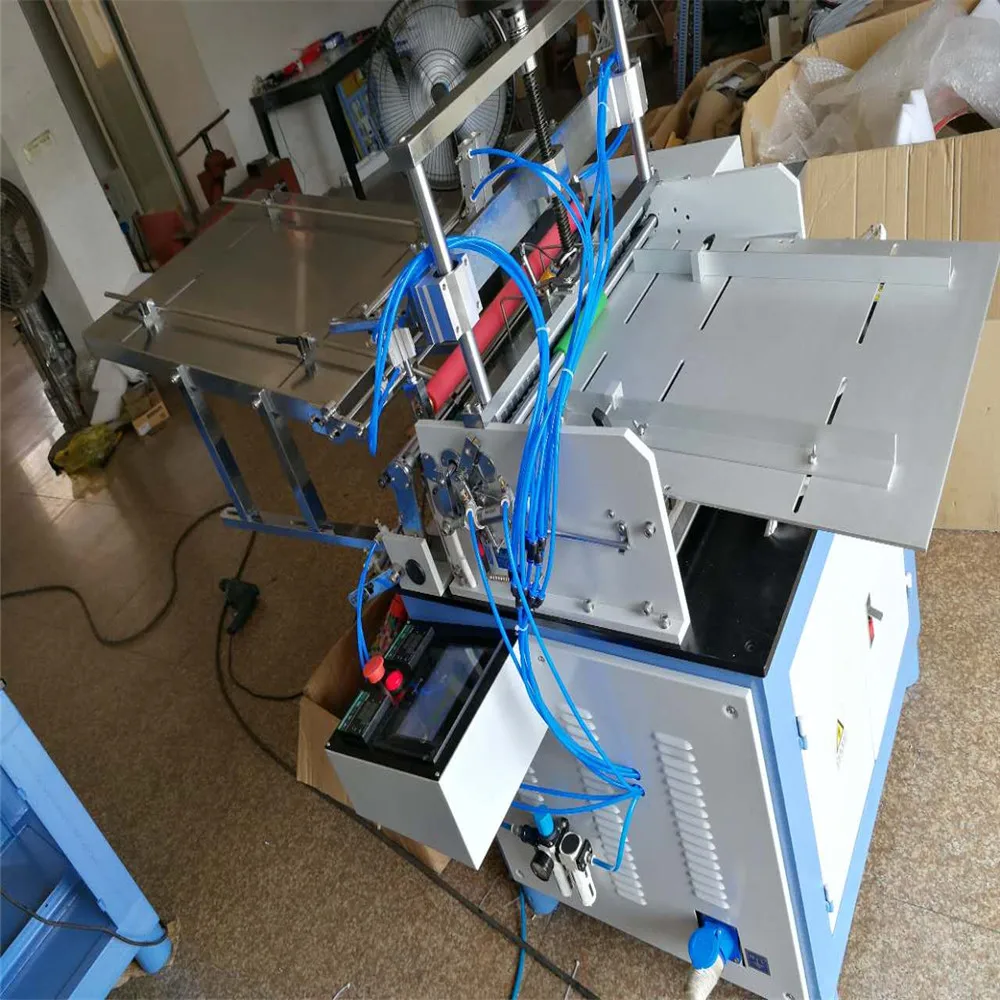

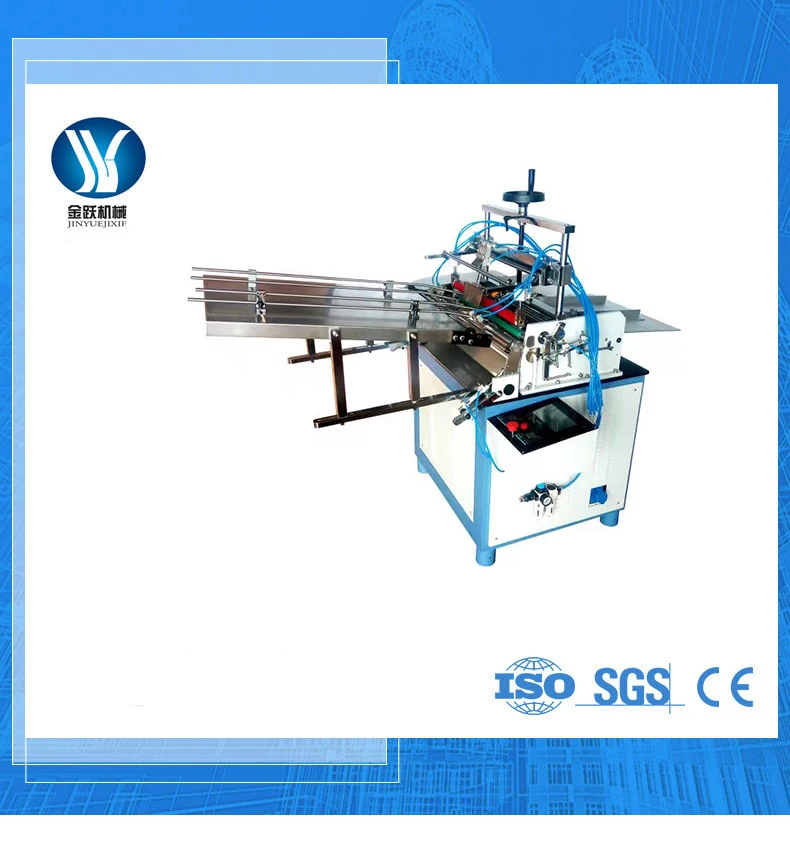

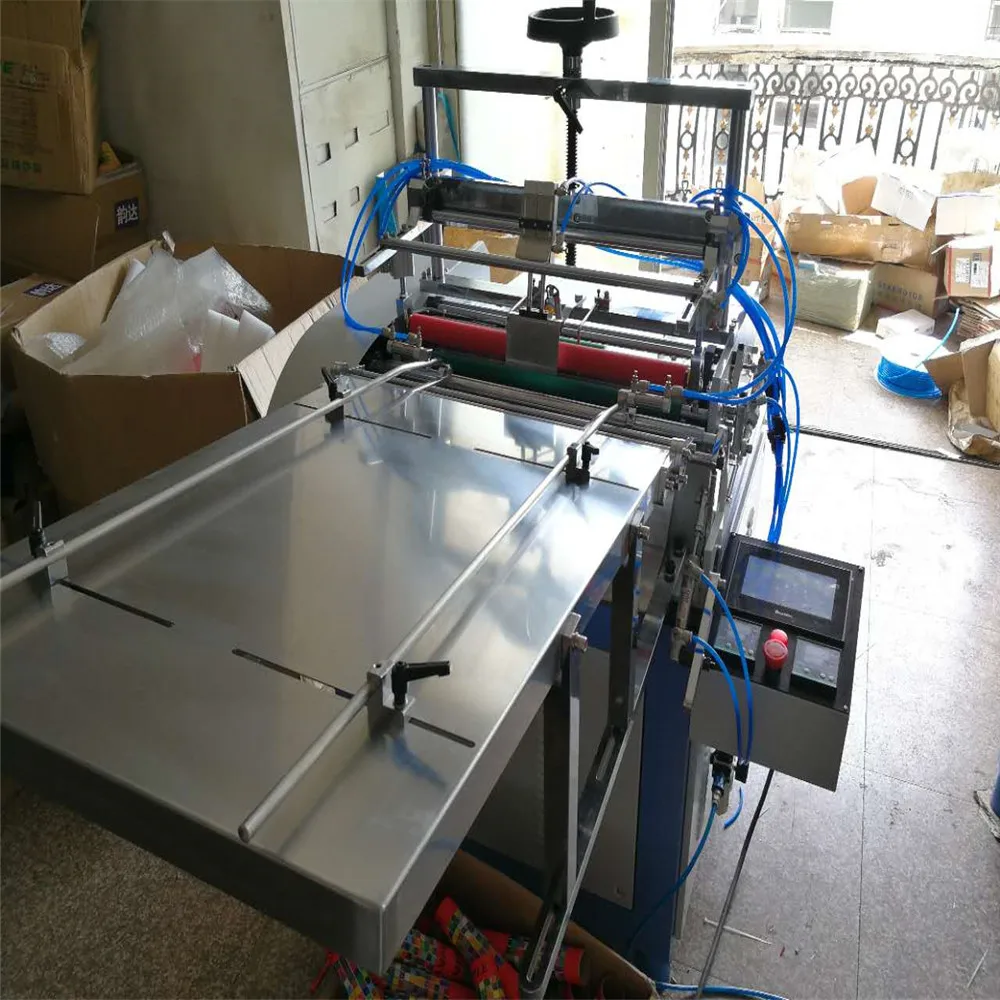

China automatic flat surface composite paper tube labeling machine

Share on (62065882014):


Price:RUB 612,081.60

Quantity:


Product Overview

Description

high speed paper straw making machine for sale

Product Description




_03



1. T-500B Paper tube labeling machine is applicable to chemical industry, pesticide industry, food industry, paper cans industry, etc

2. The machine is suitable for small batch and multispecies production, sticker label on the cylindrical container, half, or all label.

3. One machine can be used for variety of paper tube, change the label size or paper tube don't need to replace any parts, it only takes a few minutes to adjust to work

4. Operator simply puts labels into the storage, then machine will do automatic photoelectric detection, picking label, applying glue and labeling paper tube in 1 second.

5. The machine is hot melt glue labeling machine, labeling effect is good, with water or in wet high temperature environment does not fall off.

6. Equipped with automatic control temperature heater and protection device: the glue does not dissolve, the motor not starts.

MAIN SPECIFICATION

Tube diameter

30-150 mm

Operate mode

Automatically

Tube wall-thickness

1-5 mm

Label thickness

100-157g

Tube length

50-500  mm

Label accuracy

±0.5MM

Working air pressure

0.6 MPA

Label paper feed way

Automatic

Main motor

3 KW

Operator

1

Touch screen

XinJe  OP330-S

Mainframe size

1300*700*1500 mm

PLC controller

Delta DVP12SC

Weight

400 KG

Product speed

10-40 / min

One instruction manual
