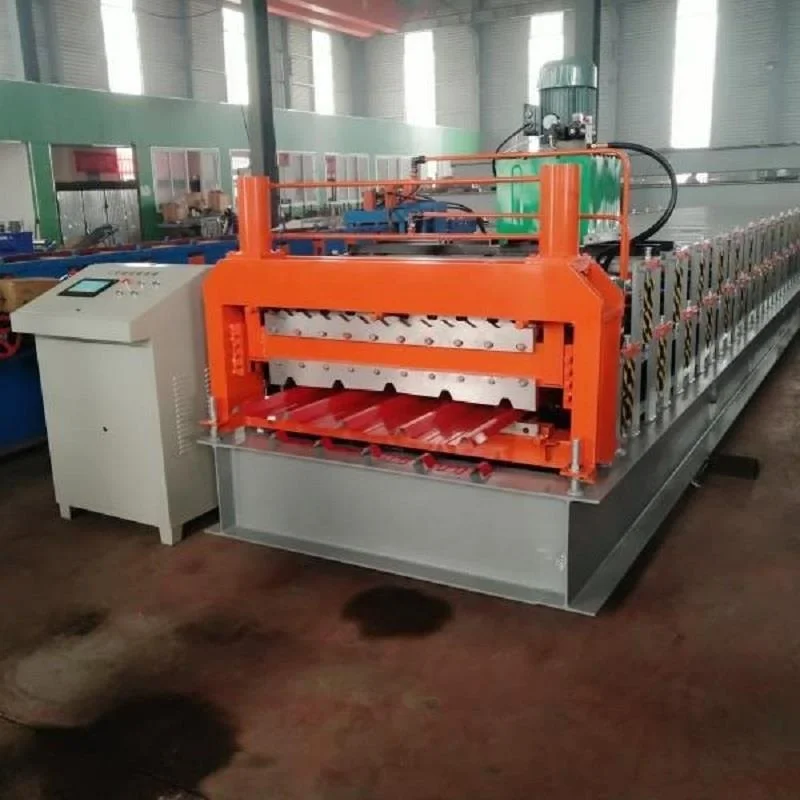

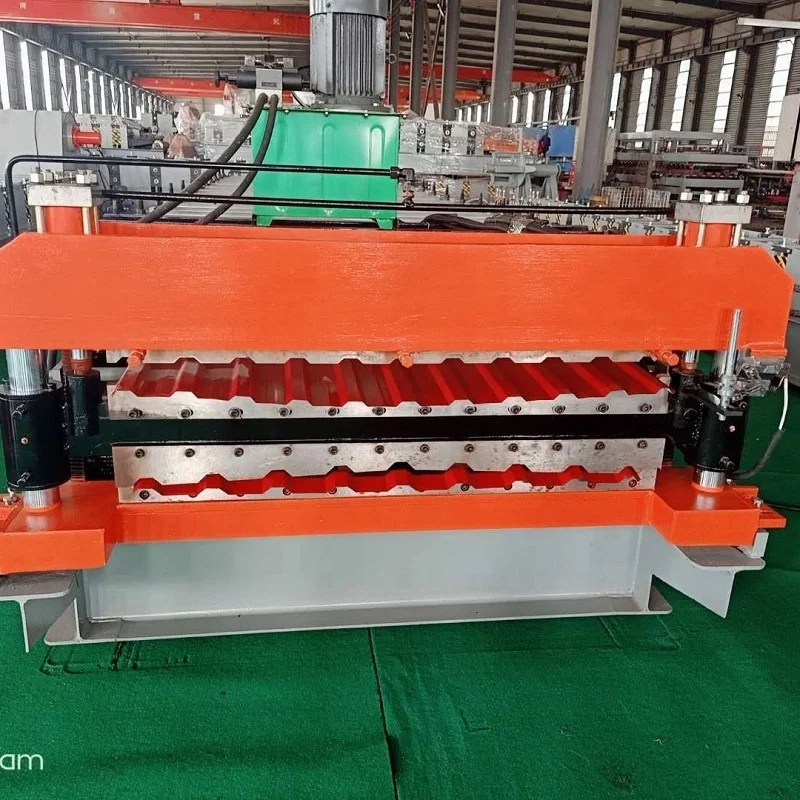

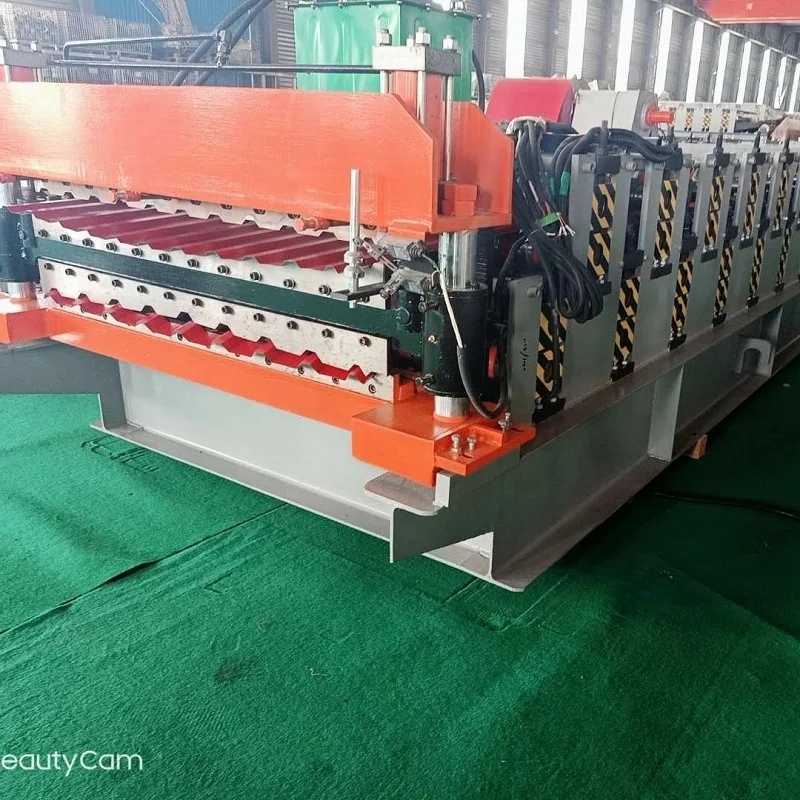

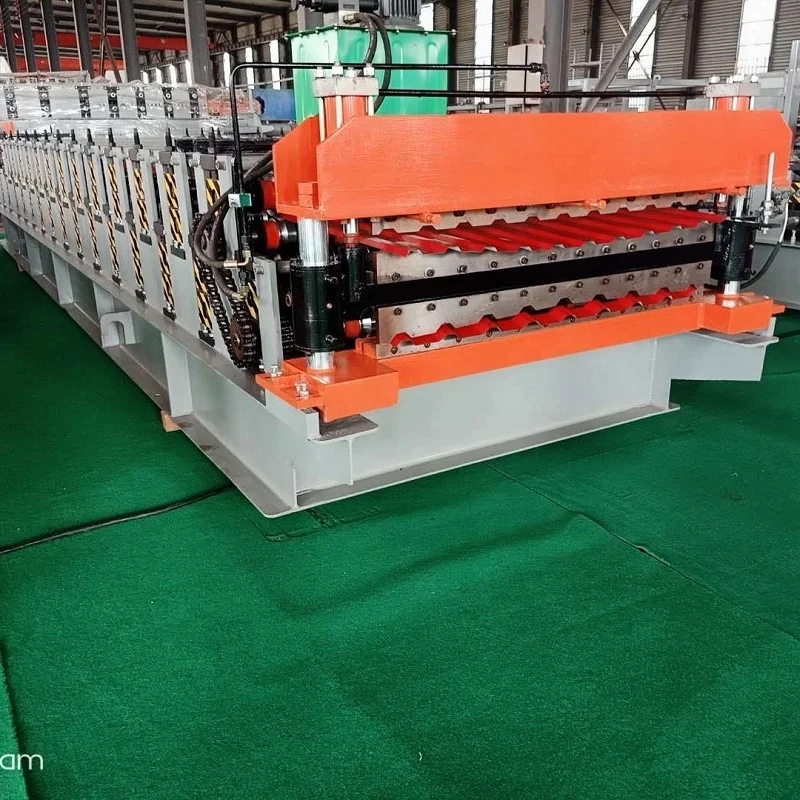

Double deck corrugated and IBR roofing panel roll forming machine

Share on (62065939489):


Price:

Quantity:


Product Overview

Description


Double Layer color steel roof panel roll forming machine






Product Description





We are proffestional manufaturer,we can design the machine as customer requirement.


Equipment components:


Man-made uncoiler, Roll forming machine, computer control  system, hydraulic control system, cutting.


Our products are widely used in various industrial factory, civilian building, warehouse and easy steel building manufacturing, and have features such as nice appearance and durable.






TECHNICAL PARAMETER:








Units including: manual decoiler ,main machine for roll forming ,post cut, hydraulic system ,PLC ontrol ,stacking








1.control system: automatic PLC frequency control ,text screen.








2.roller steps:14+16 rows








3.main power:5.5kw








4.pump power:4kw








5.Diameter of roller: Φ80mm








6.max speed:12m/min








7.feeding width:1000mm








8.the effective width:840mm,tolerance ±1/100








9.thickness of the plate:0.35-0.6mm








10.the dimension of main roll former: 5000mm×1300mm×1450mm





11.roller material:45#steel,CNC-machined ,heat treatment, buffing, surface for electroplating chromium 0.05mm

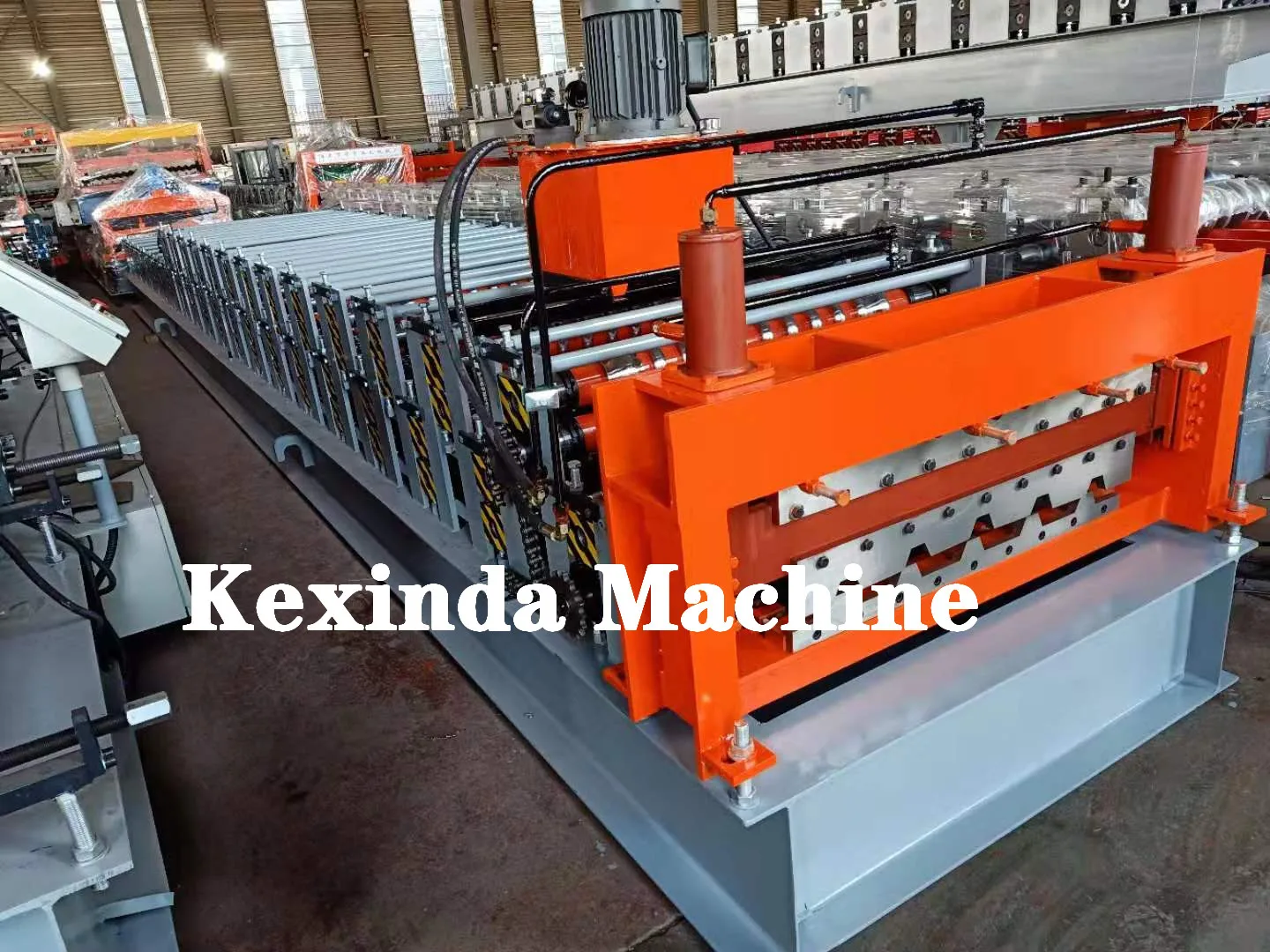

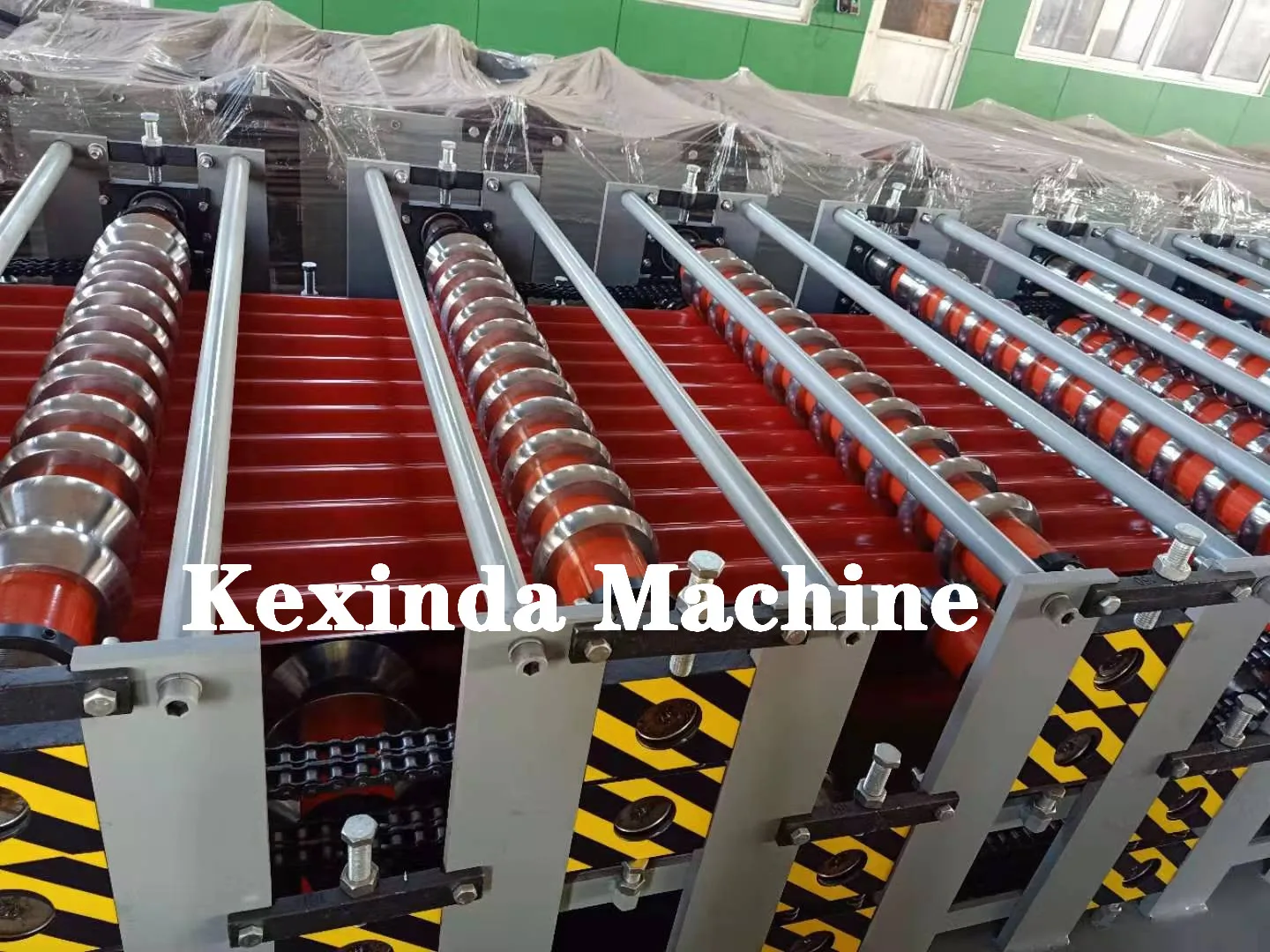

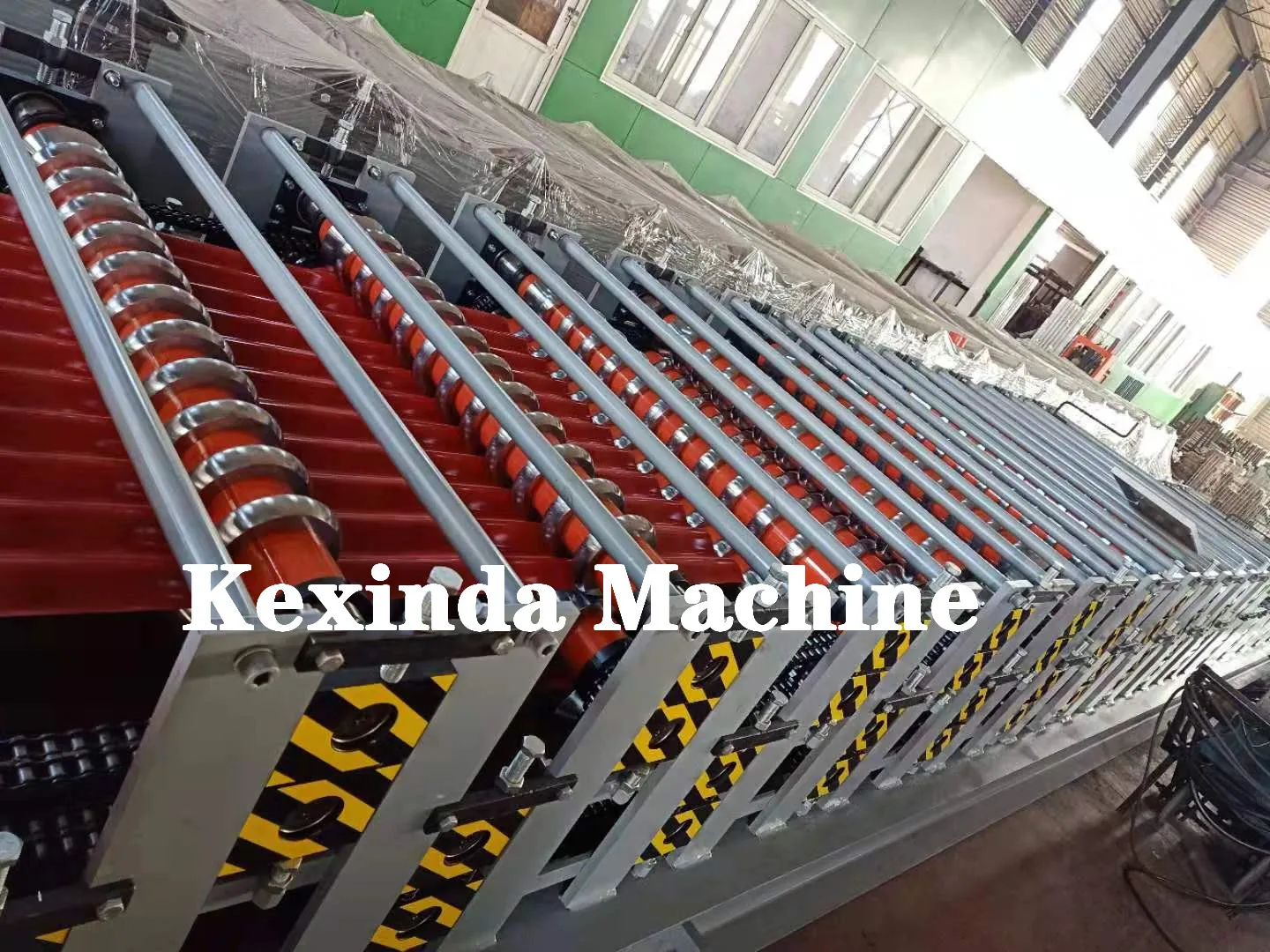

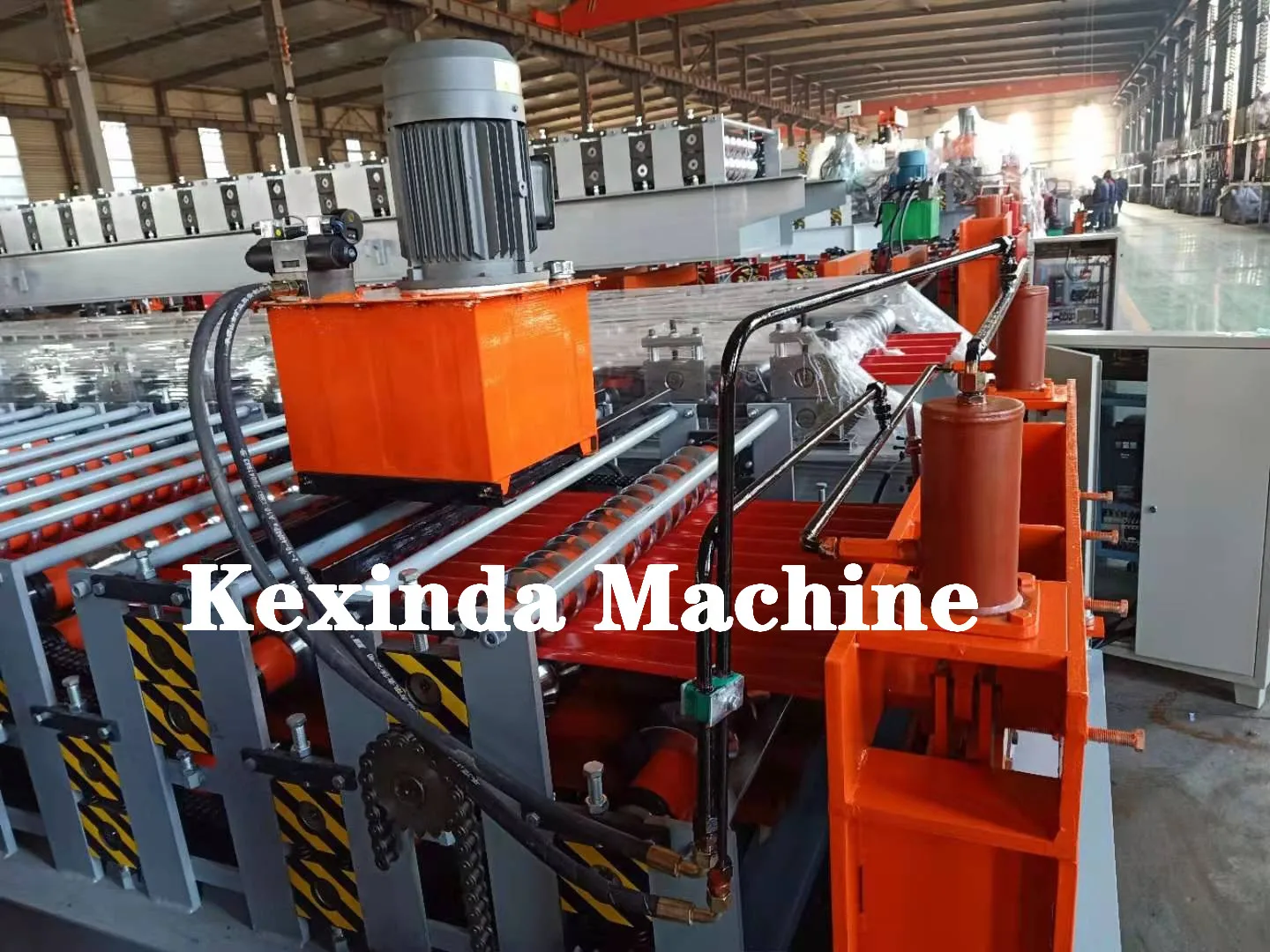

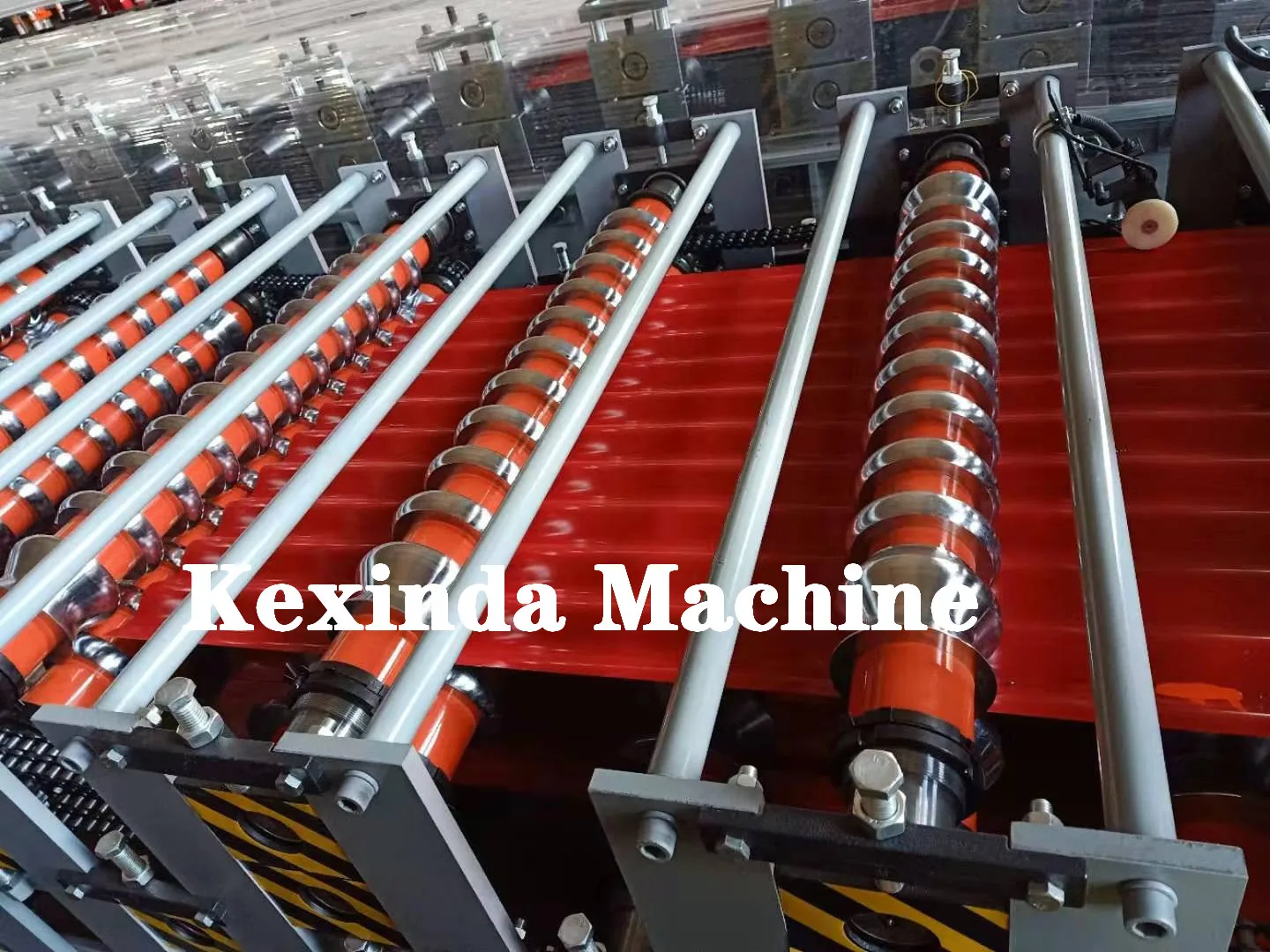

 _20200106133559.jpg_20200106133603.jpg_20200106133606.jpg_20200106133615.jpg_20200106133618.jpg

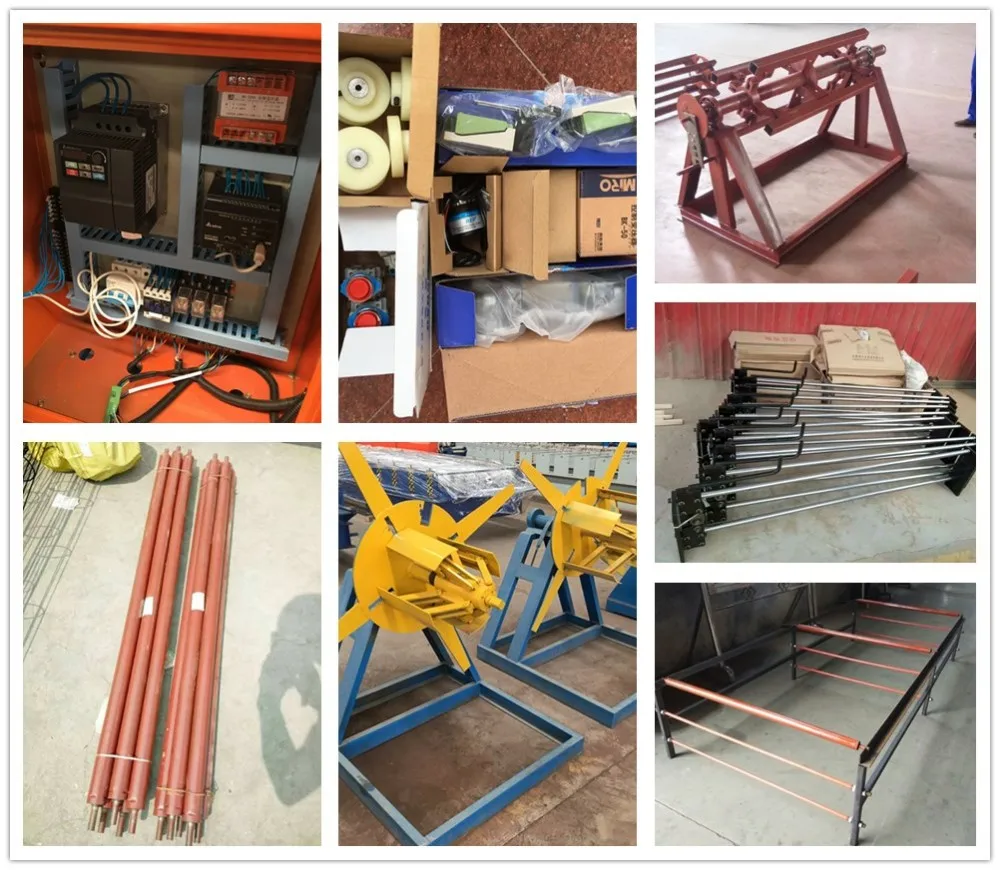

Spare parts

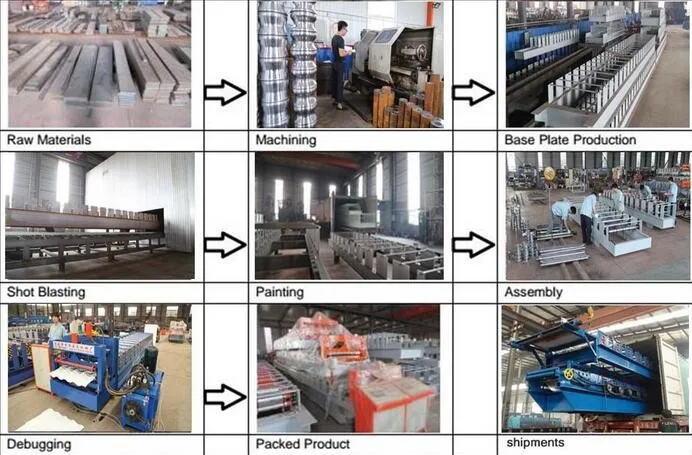

Production Flow

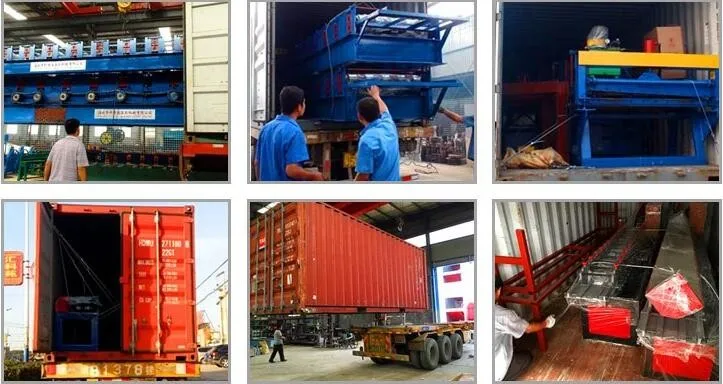

Packaging & Shipping







Our Services


♦ GUARANTEE:


12 MONTHS GUARANTEE. IF SOME PART OF THE MACHINE IS BROKEN.WE WILL SUPPLY THE BEST PART, BUT IF THE DAMAGED PARTS DUE TO OPERATE ERROR, BUYER WILL PAY FOR THE SHIPPING FEE.





♦ AFTER-SALE SERVICE:


WE SENT TECHNICIAN TO YOUR COUNTRY TO FIX THE MACHINE.THE BUYER SHOULD BEAR ALL THE COST INCLUDING:VISA,ROUNDTRIP TICKET AND SUITABLE ACCOMMODATION,ALSO BUYER SHOULD PAY THE SALARY 100USD/DAY.








Company Information


Hebei Kexinda Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.

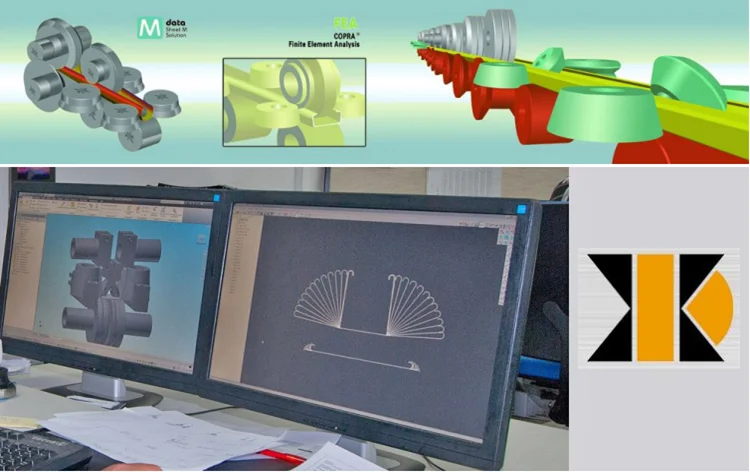

     Strong technical resources are the most stable guarantee for our products' quality. We adopt computer software for design drawing, production drawing and installation drawing for steel construction equipment. We adopt advanced computer digital inspection and produce high quality light steel structure equipment. Our technical is updating day by day!


     Our company has matured after-sale service network, we could provide efficient and satisfactory service for you throughout the period of our cooperation.If necessary, we can supply you with local technical support and send technicians to for installation and operation training.







FAQ


1:How to make an order you?
Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK
2:How to go to our company?
Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
Fly to Tianjin Airport: then we can pick up you.
If the quality is good?
We have beening making and exporting the machines since from the year of 1998,not small factory or trading also with good after service.
