Product Overview

Description



Product Description



Features:

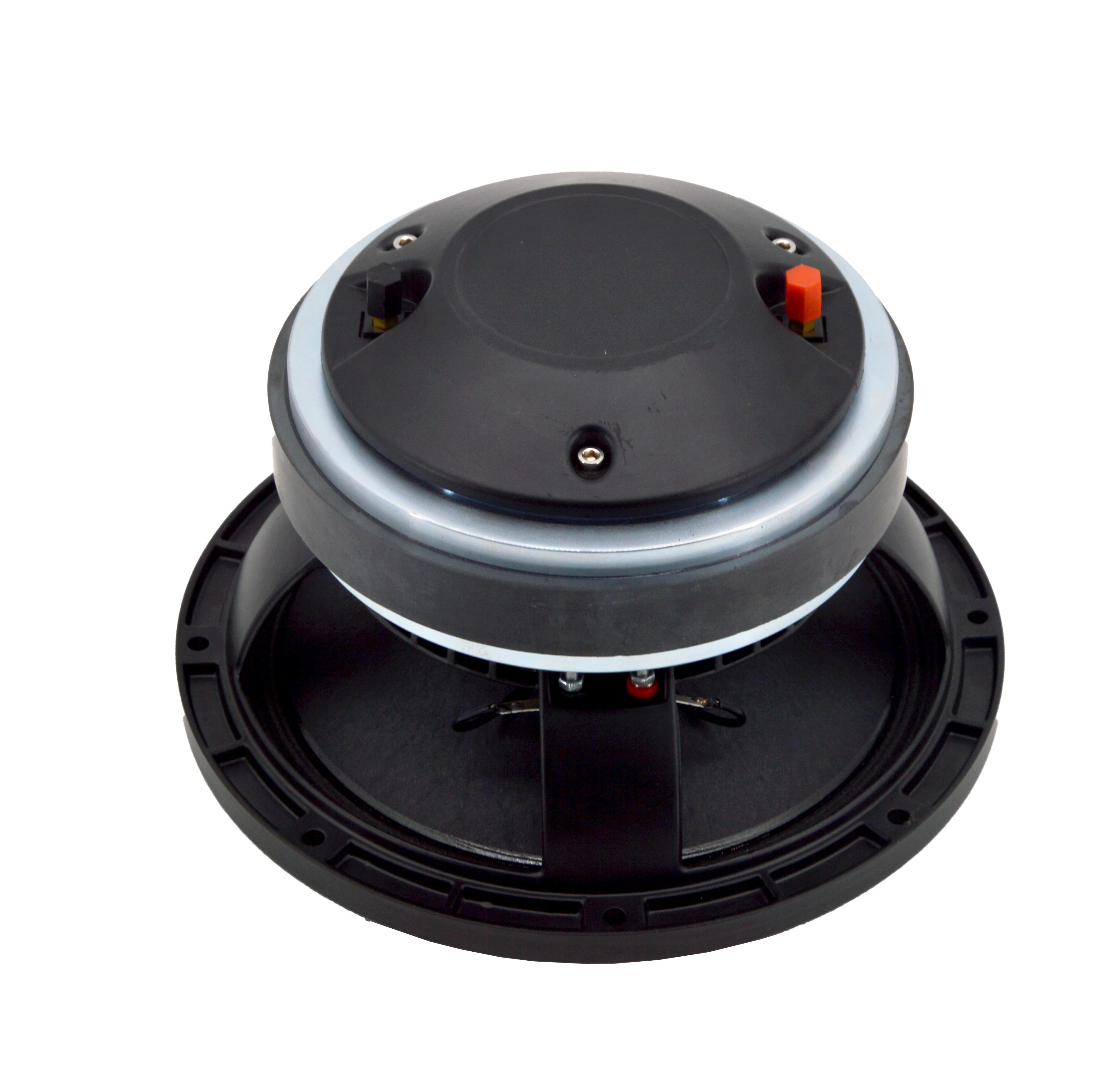

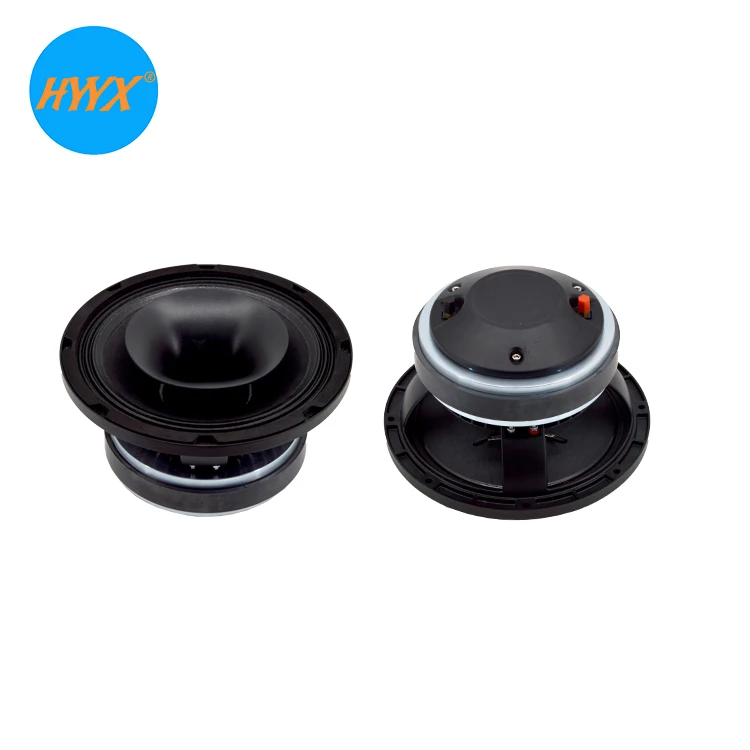

  • 10“ Coaxial speaker with big horn for high sensitivity design
  • 350Wrms power handling, 700W max power
  • 55hz- 20kHz frequency response
  • 97dB sensitivity
  • Single ferrite magnet assembly
  • Inside/Outside copper voice coil



Specification
Nominal diameter
260/10
mm/inch
Nominal impedance
8
ohm
Min impedance LF
5.2
ohm
Min impedance HF
6
ohm

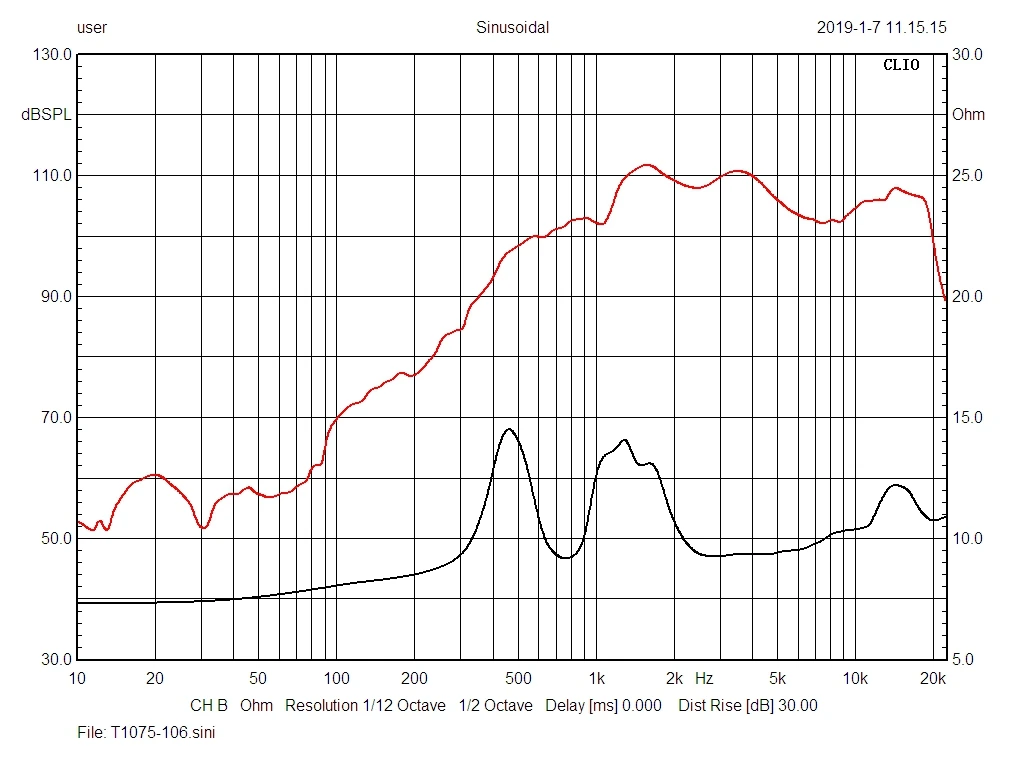

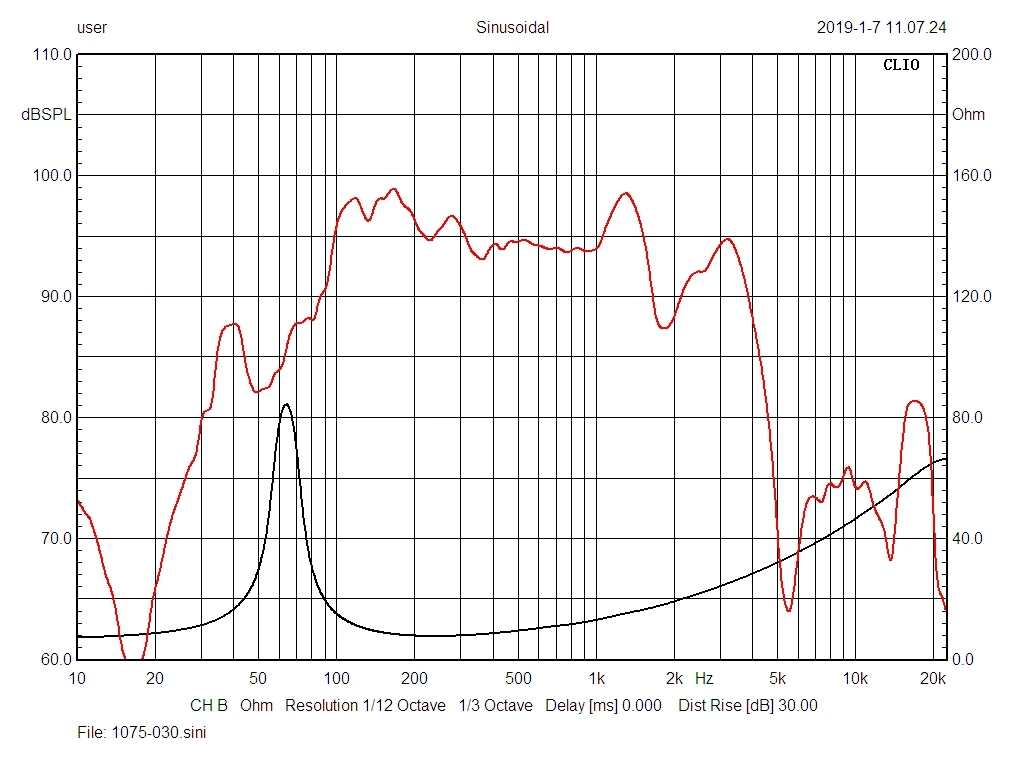

Frequency response
55-20k
Hz
  RMS Power
350

Magnet material
   Ferrite
Specification LF
Sensitivity (1w/1m)
   97
dB
Nominal power handling
350
Watts
Continuous power handling
700
Watts
Voice coil diameter
75/3
mm/ inch
Winding material
Copper

Cone material
Paper

Surround material
Cloth

Specification HF
Sensitivity (1w/1m)
110
dB
Nominal power handling
100
Watts
Continuous power handling
200
Watts
Voice coil diameter
75/3
mm/inch
Diaphragm
Titanium

T/S Parameter
Fs
64
Hz
Re
5.2

Qes
0.33
Qts
0.30
Qms
5.35
Vas
37.9
L
Rms
2.28
kg/s
Cms
0.21
mm/N
Mms
32.5
gr
BL
13.94
N/A
Mounting information
Overall diameter
261/10.3
mm/inch
Bolt Circle diameter
245/9.6
mm/inch
Baffle Cutout diameter
234/9.2
mm/inch
Total Depth
125/4.9
mm/inch
Shipping information
Net weight
8.5
KG
Shipping weight
9.0
KG
Shipping box
280x280x130
mm
