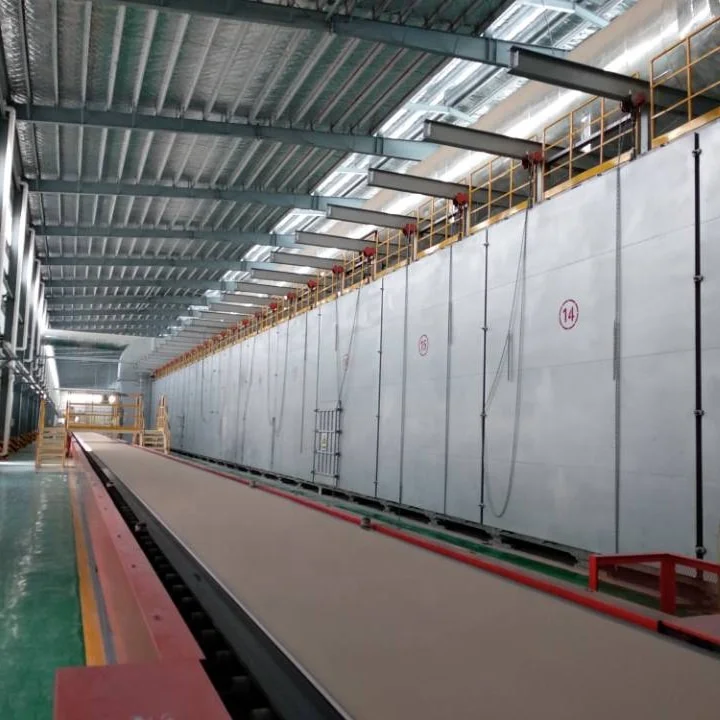

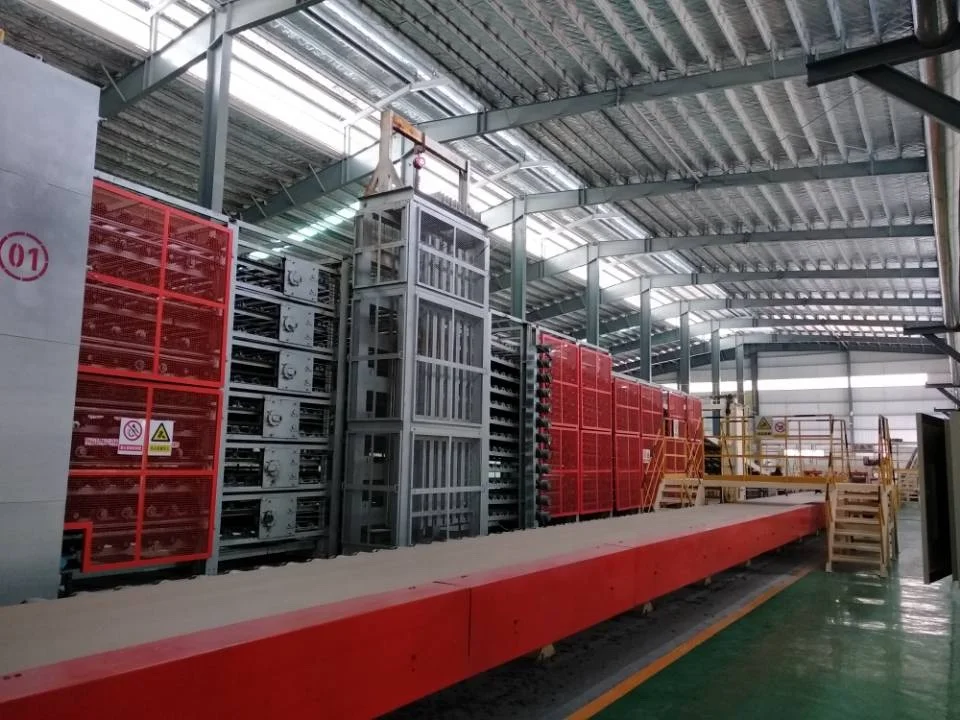

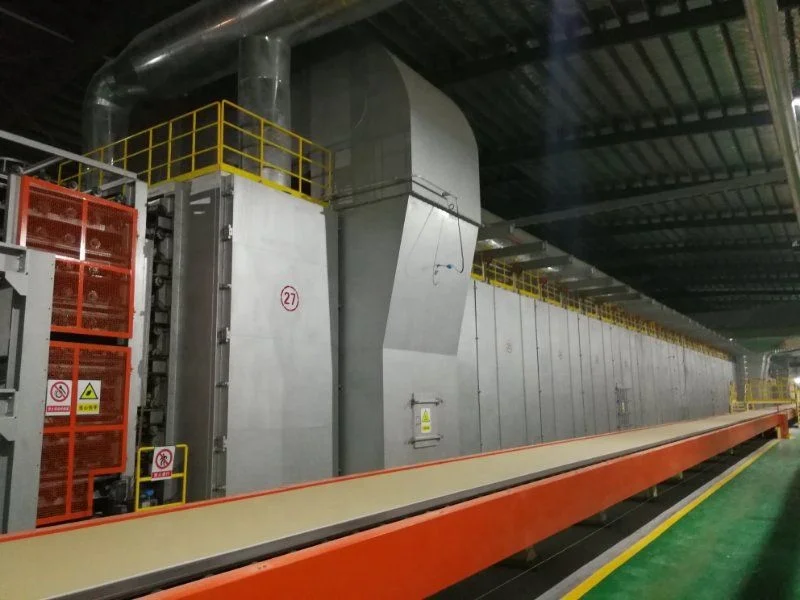

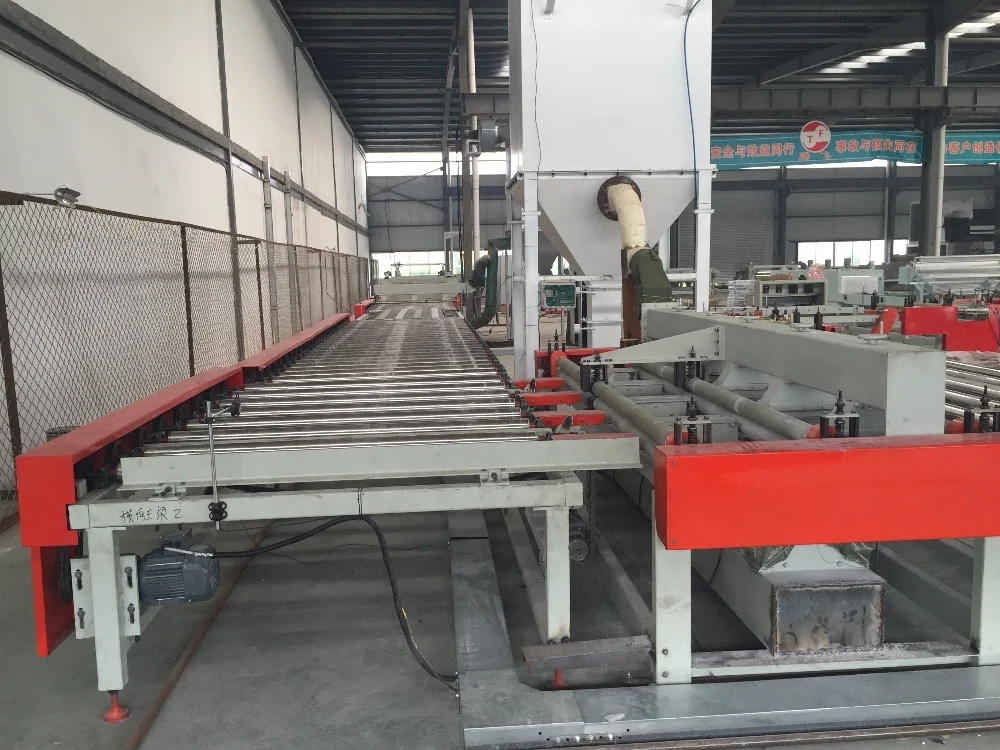

gypsum wallboard production line

Gypsum wallboard production line is applied the field of gypsum board making. The gypsum wallboard production line can be used to make regular gypsum board, water-proof gypsum board, fire-proof gypsum board, and etc.The main process of the gypsum wallboard production line includes raw material preparation system, mixer, forming machine, wet board line, wet transfer, dryer, dryer transfer, trimming machine and stacker.

Capacity	Sheets Per Day (1200x2400x9mm)	Dryer Decks	Control Mode
2 million sqm/year	2300 sheets per day	4 decks	PLC
4 million sqm/year	4600 sheets per day	6 decks	PLC
6 million sqm/year	6900 sheets per day	8 decks	PLC
10  million sqm/year	11500 sheets per day	10 decks	DCS
20 million sqm/year	23000 sheets per day	12 decks	DCS
30 million sqm/year	34500 sheets per day	12 decks	DCS

Main Features

1) fully automatic control.

2) Accurate measuring in temperature, volume, pressure and weight .

3) Can make customized board for customers.

4) Running in a high automatization and intellectualization, no pollution

5) High quality board yield .

Certifications

Detailed Images

Machine Parts

Name: Loss In Weight System

Brand: HBT

Original: China

Accurate measuring to the additives used in the gypsum board raw material preparation

Machine Parts

Name: Wet Additive Mixers
Brand: EFFUL
Original: China
Stainless steel tank and mixer impeller, German brand motor, accurate pumping and measuring system

Machine Parts

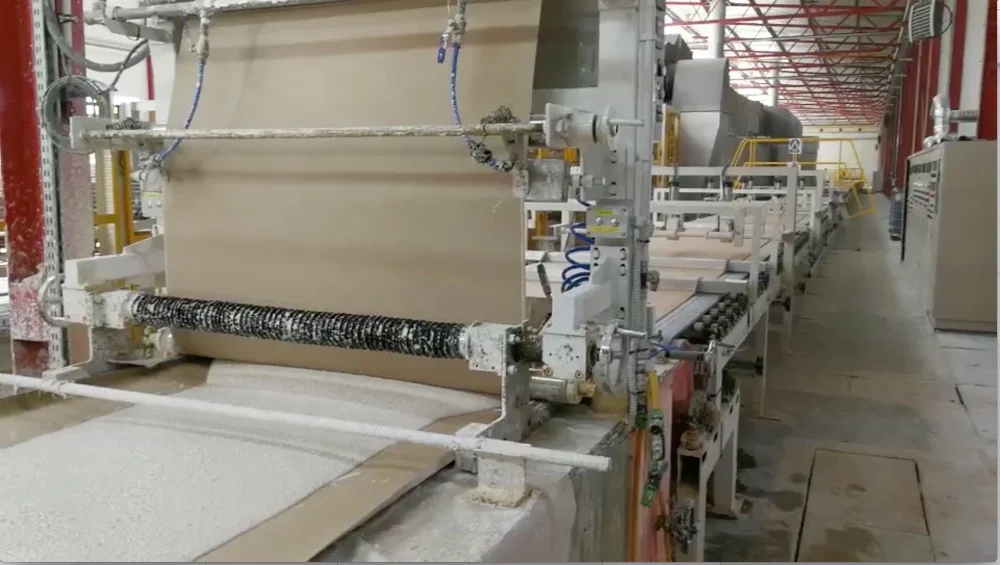

Name: Automatic Paper Handling System
Brand: Quanlin
Original: Taiwan, China
Automatic paper change, paper connecting, and appropriate tensioning system

Machine Parts

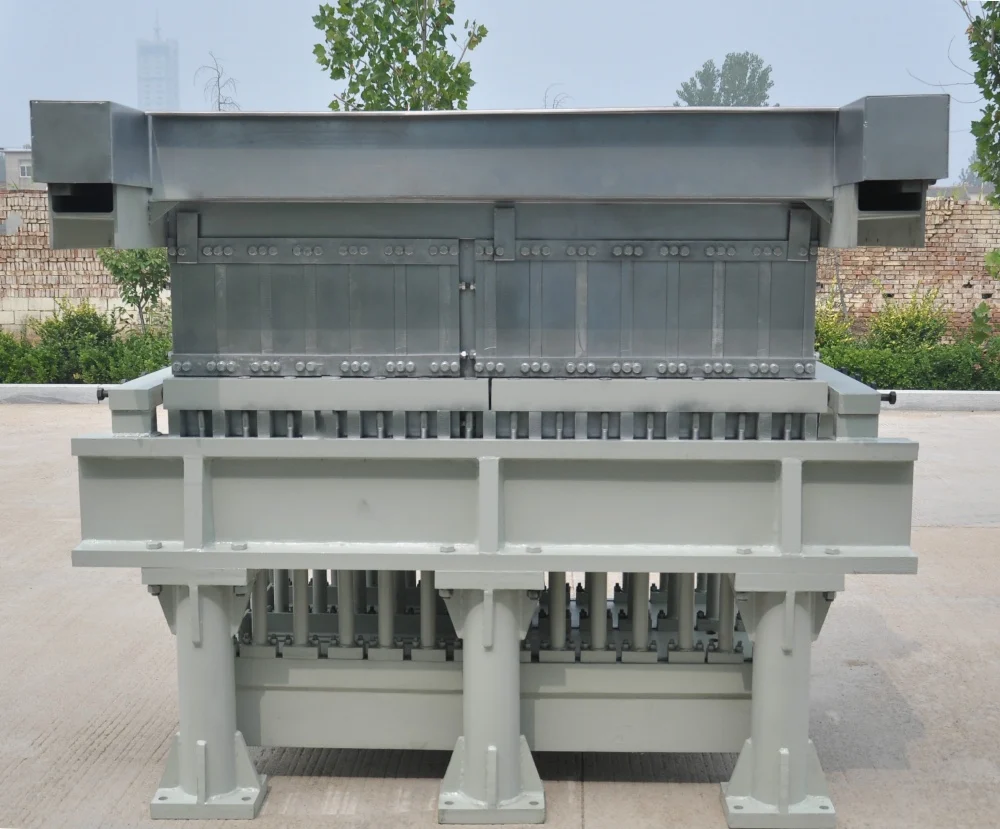

Name: Forming Machine
Brand: EFFULE
Original: China
Automatic adjusting to the board thickness, detecting the slurry thickness, glue spreading

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	varies with the machine
Weight	varies with the machine
Packaging Details	Nude packing, wooden box packing, bubble film packing, and crates packing, as the machines are applicable .

Packaging
Size	11.6 (L) * 2.3 (W) * 2.6 (H)
Weight	26 T
Packaging Details	nude packing but fixed inside the container, to avoid any moving inside the container.
