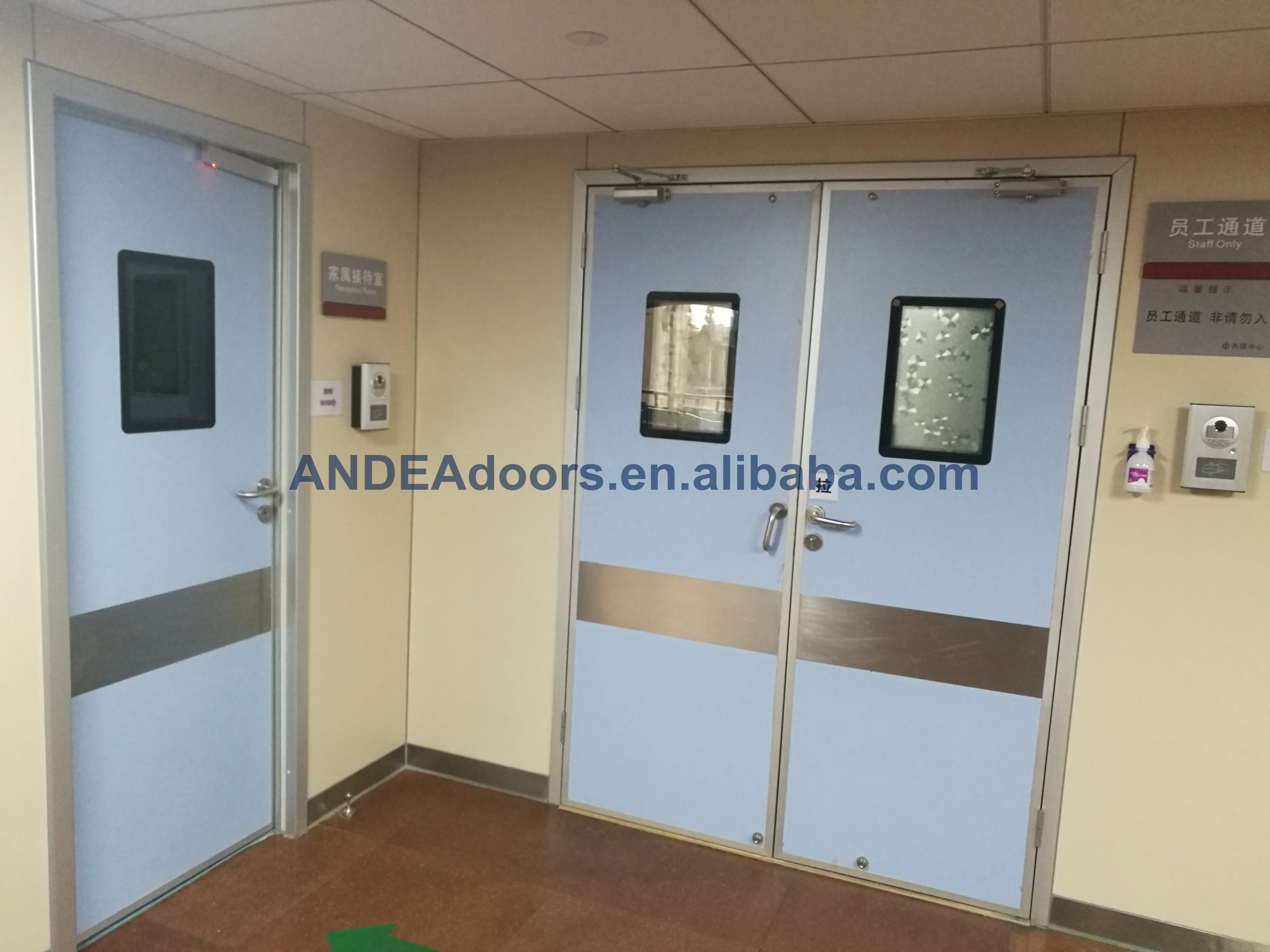

Guangzhou hospital laminated HPL flush doors airtight

Product Overview

Description

–  WELCOME TO ANDEA CUSTOM DOOR  –  Hello, we are door and door opener factory in Guangdong, China. Our products include hospital operation room door, clean room door, x-ray proof door/window, steel fire proof door, fire proof roller shutter door/window, automatic/manual roller shutter door (aluminum/steel/pvc), sectional garage door (steel/aluminum+glass), and entrance guard systems (opener, motor, etc). Welcome to contact us if any need.













Main Function:  airtight/water proof/antibiosis/fire rated

  It is equipped with rubber seal. Special purpose seal stripe are used to seal around the door to make sure that the door will joint tightly with the wall frame for air tightness when closed.

It can joint the wall frame when close down and ensuring the air tightness of door. At both sides and the center joint, there are the sealing strips installed, which conforms to the sanitary requirement for use in hospital, research institute, recording studio or any other places need for dust proof, gas proof, water proof, etc.

Flush design makes the door easy cleaning and better on antibiosis.



 Door Material:

 1, Door Surface:

    a, Color coated cold roll steel with decorated 304# stainless steel panel. With 1.0mm thickness stainless steel            framed.                                             Color: usually blue, white, white gray, beige, light green, etc.

  b, Stainless steel - SUS304.                 Color: original stainless steel color

  c, HPL board.                                        Color: blue, pink, green, white, wood-like, black, etc.

  d, Aluminum panel.                               Color: original, white, blue, green, etc.

 2, Door panel Infilling:

    a, steel structure + MDF/plywood board                      Advantage: strong

    b, high density PU board                                             Advantage: light and insulation

    c, 120mins fire rated cotton/fire rated perlite board     Advantage: fire rated

    d, paper honeycomb/aluminum honeycomb                Advantage: light & strong

 3, Handle & hinge: stainless steel/aluminum

 4, View window glass: thickness= tempered glass/60mins fire rated glass/lead glass. Thickness = 5mm to 26mm

 5, Driven system: automatic sliding/swing door opening system. With brushless motor, feet/hand sensor                       switch, microcomputer control system, etc. All With CE Certificate

 6, Door airtight seal material: silicone rubber

 7, Door frame/wall frame material:

1.2mm stainless steel (for heavy & light door)

1.2mm color painted steel (for heavy & light door)

1.0mm aluminum (for light door only)

Opening Method: sliding or swing, electronic or manually.



Visual window size for door panel (for swing door)

Size: 400X400mm,400X600mm,200X600mm

Glass material: a, 8mm single tempered glass with metal frame

                         b, 4mm+4mm double glass without  window frame



 Hospital door specifications

Door skin material		Color painted steel, stainless steel (SUS), aluminum, PVC, fireproof board, etc.
Door frame material		Stainless steel, aluminum
Knock blade material		Stainless steel
Seal material		Silica gel, rubber
Door lock & door hinge material		Stainless steel
Door skin color		Original SUS color, original aluminum color, light blue, white, grey, beige, etc.
Door size	swing door	Single door width: 700mm - 1000mm Mother & son door width: 1200mm - 1400mm Double door width: 1400mm - 1800mm Door height: 1900mm - 3000mm
	sliding door	Single door width: 1000mm - 2200mm Double door width: 1500mm - 3000mm Door height: 1900mm - 3100mm
Automatic door system		Opening door by hand sensor switch, feet sensor switch or press switch
Door advantage		Airtight, easy clean and antibiosis



∗ Please kindly note that this product is customized, and the price is only for your reference. If need exact price,           please contact us before starting order. After confirming the size and your requirements, we will offer the exact         quotation.



    Yes, we are door factory with 10+ years experience in designing and producing door products which include

    1) Door and window

      A. door for hospital: operating room door, swing hermetic door, X-ray proof door, MRI door, HPL door;

      B. door for clean room: swing clean room door, sliding clean room door, PVC fast rolling door, PVC                          door/window, aluminum door/window, steel door/window (60min fire rated);

      C. door for factory: roller shutter, PVC fast rolling door, industrial sectional door, fire rated door, steel gate;

      D. door for commercial building & house: automatic sliding glass door, manual glass door&window, security             window grill, aluminum roller shutter, grill/PVC roller shutter, sectional garage door, glass garage door;

     2) Automatic door opener

     A. sliding glass door opener, swing room door opener;

     B. sliding metal gate motor, swing metal gate motor;

     C. rolling shutter door opener, sectional garage door opener, tubular motor;

     3) Others:

     A. automatic door system: ID card, ID card reader, finger print reader, magnetic lock, power supply box,                   wireless switch;

     B. raw material for x-ray proof door: lead sheet, copper sheet, BaSo4 sand, lead glass;

     C. medical instrument cabinet and medical cart.

2. Do you customize door/window?

Yes, we do. Send us details such as size, technical drawing etc. E-catalogue and pricelist will be supplied.

3. What is your lead time?

 5-7 days for door opener, 7-12 days for most of our door/window, 15-20 days for X-ray protection door, 25-30

 days for mass production after receipt of deposit.

4. What is the shipping port? Huangpu seaport in Guangzhou, Yantian and Shekou seaports in Shenzhen.

5. What is your MOQ? Door opener: 1 set; Door: 1 set.

6. What is your terms of payment? We accept 50% T/T in advance, 50% T/T before shipment.





Key Words

airproof door, clean room door, hospital door, automatic medical door, custom door, factory direct sale,

Guangzhou hospital laminated HPL flush door



Made in Guangzhou, China
