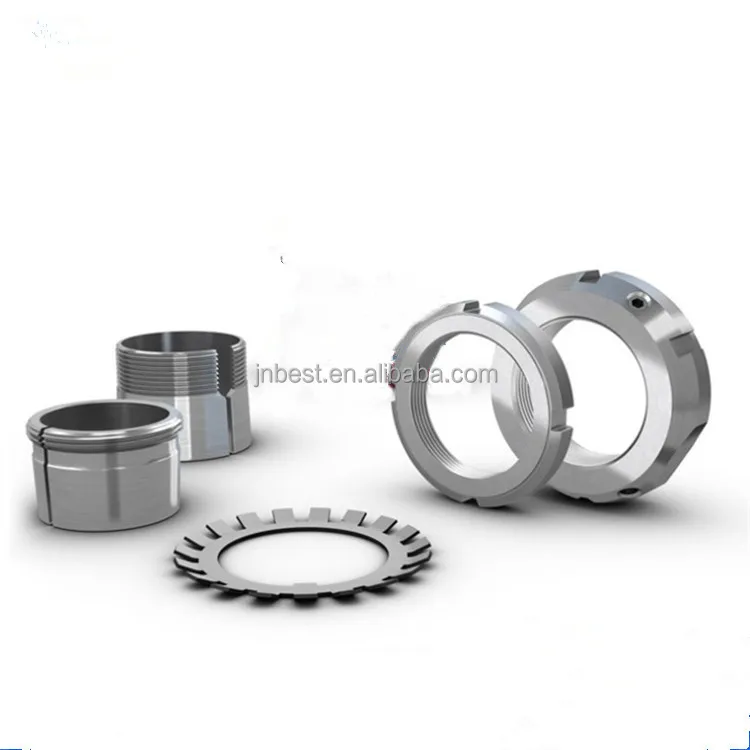

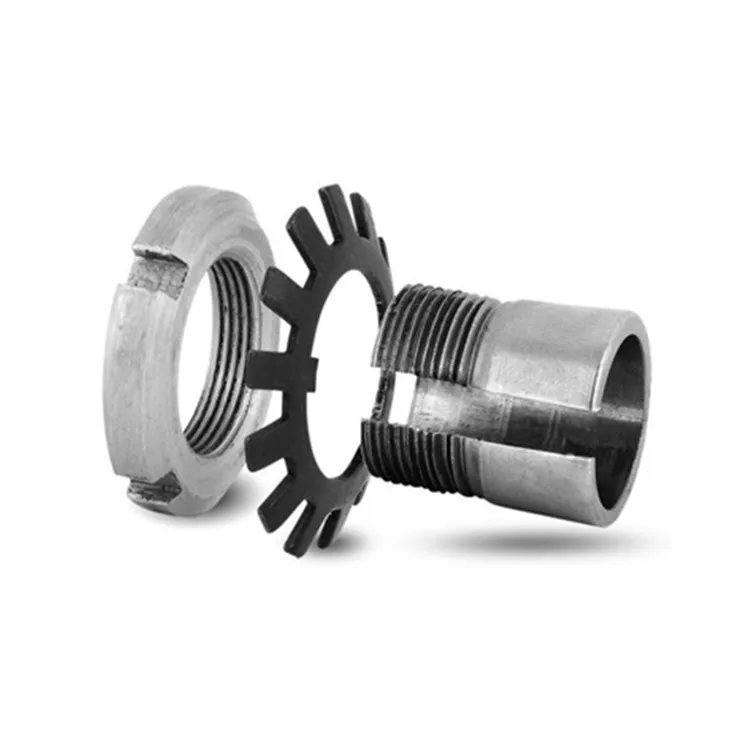

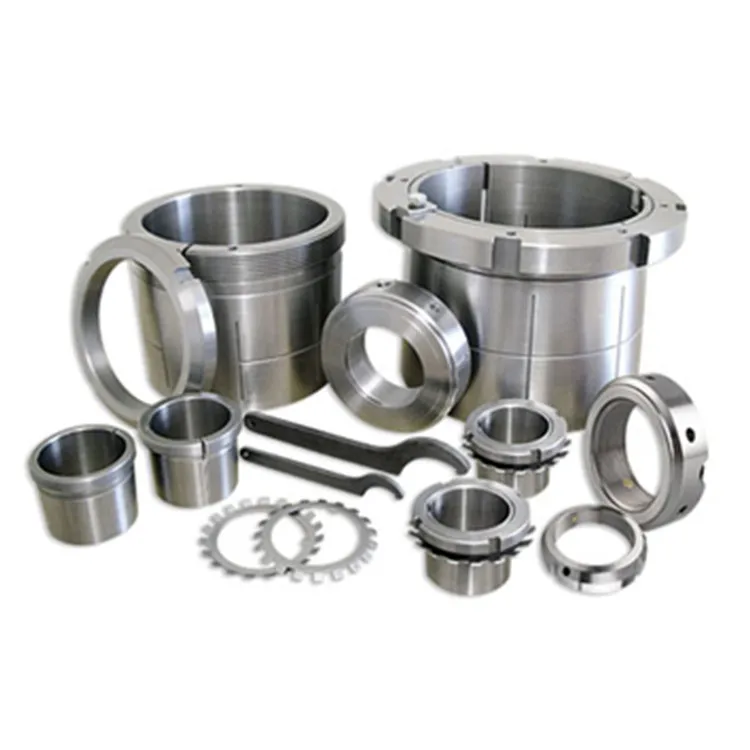

OH3148 adapter sleeves

Adapter sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seat as they can be used on smooth or stepped shafts . They are easy to mount and require no additional location on the shaft.
When adapter sleeves are used on smooth shafts, the bearing can be located at any position on the shaft. When used on stepped shafts, together with an abutment ring, bearings can be accurately positioned axially and bearing dismounting is also facilitated.
The dimensions of the adapter sleeves conform to:
ISO 2982-1: 1995 for metric sleeves
ANSI/ABMA std. 8:2 for inch sleeves
