10L 20L 30L 50L Double Layer Jacketed Glass Chemical Reactor with Stainless Steel Reactor Vessel

Product Overview

Description

10L 20L 30L 50L Double Layer Jacketed Glass Chemical Reactor with Stainless Steel Reactor Vessel



Product Description

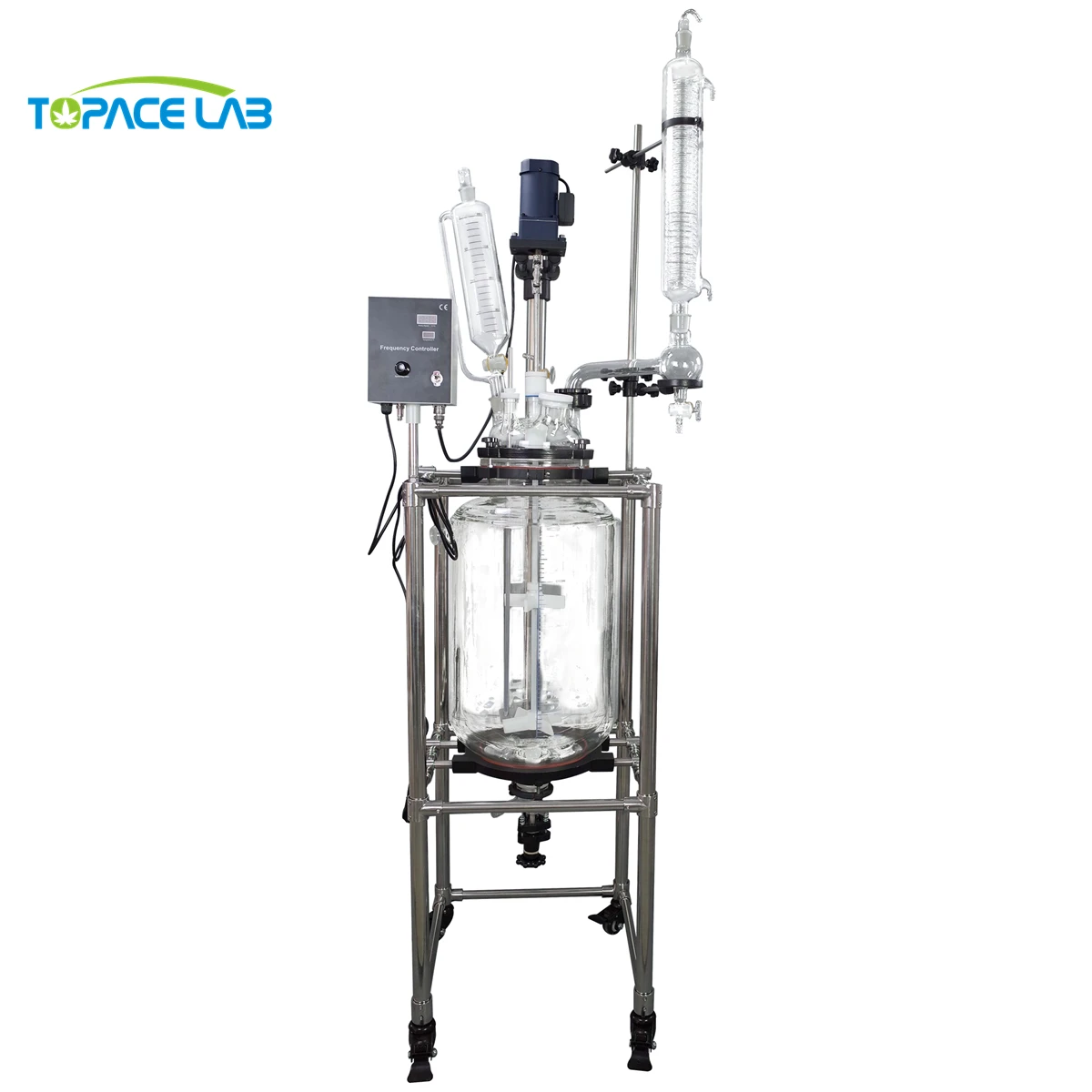

 Brief Introduction of Jacketed Glass Reactor

This S212 Series glass reactor can be designed to be double glass reactor or three layers ofglass reactor. The inner layer adding the reactant to stirrer, jacketed layer can through theheating oil or coolant to do the distillation/cooled reaction. It takes reaction under Normal pressure or negative pressure and constant stirring.

It is mainly used for the process of combination, reaction, separation, concentration, etc. It is an ideal equipment for chemistry, fine-chemical, bio-pharmaceuticals, and the synthesis, testand production of new materials
The reactor can be a system with circulating water vacuum pump, diaphragm vacuum pump,chiller /low temperature circulator, heating and heating and cooling circulating device



 Main Specifications of Jacketed Glass Reactor



Model	S212-10L	S212-20L	S212-30L	S212-50L
Reaction Flask	10L	20L	30L	50L
Jacketed Volume	3L	6L	10L	16L

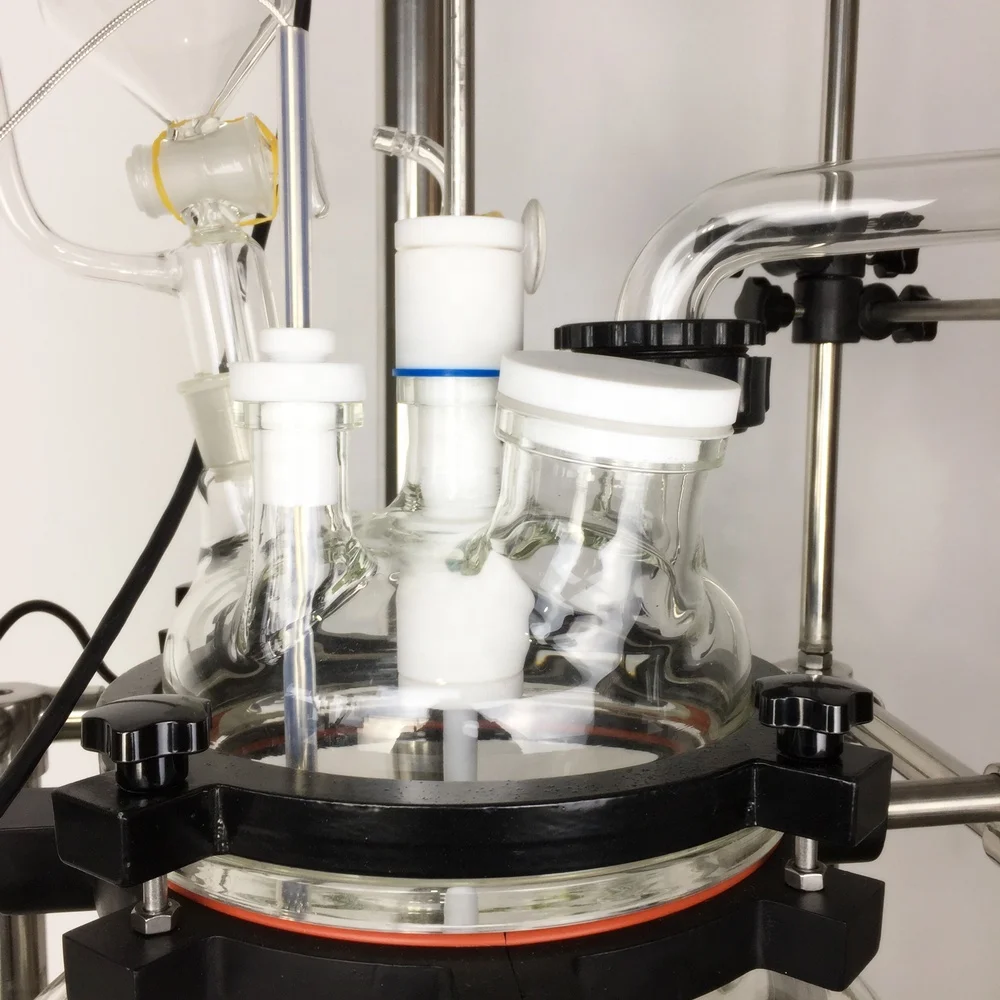

Neck No.of on Cap	5+1	5+1	5+1	5+1
Moter Power	120W
Retation Speed	0~600rpm

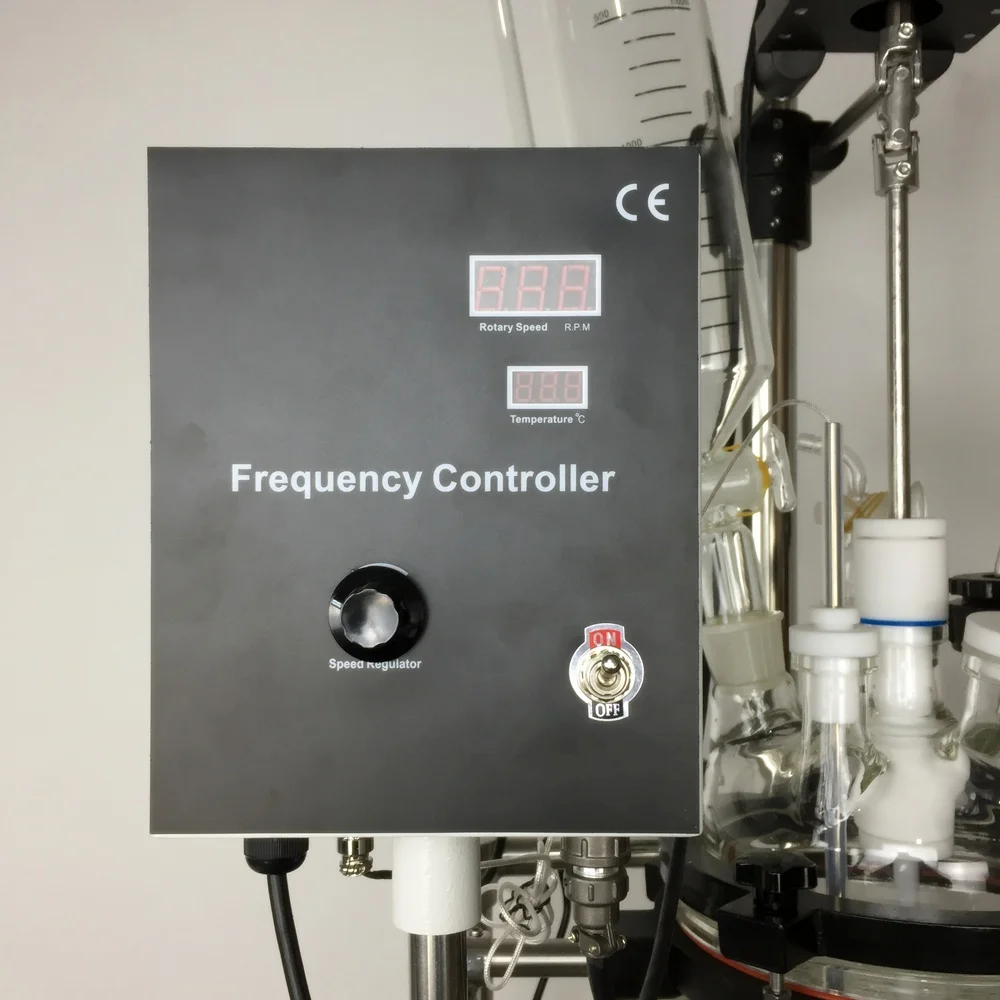

Controller	Frequency Conversation Speed,LED,Temperature,Speed digital display
PTFE Seal Assembly	Equipped 1 set and spare 1 set
Rotation Speed Display	3LED Digital Display
Temperature Display	Equipped
Temperature Range	Water Bath:RT-99℃   Oil Bath:RT~200℃/300℃
Charging Valve	40#	40#	40#	40#
Thermometer Tube	400mm	530mm	600mm	650mm

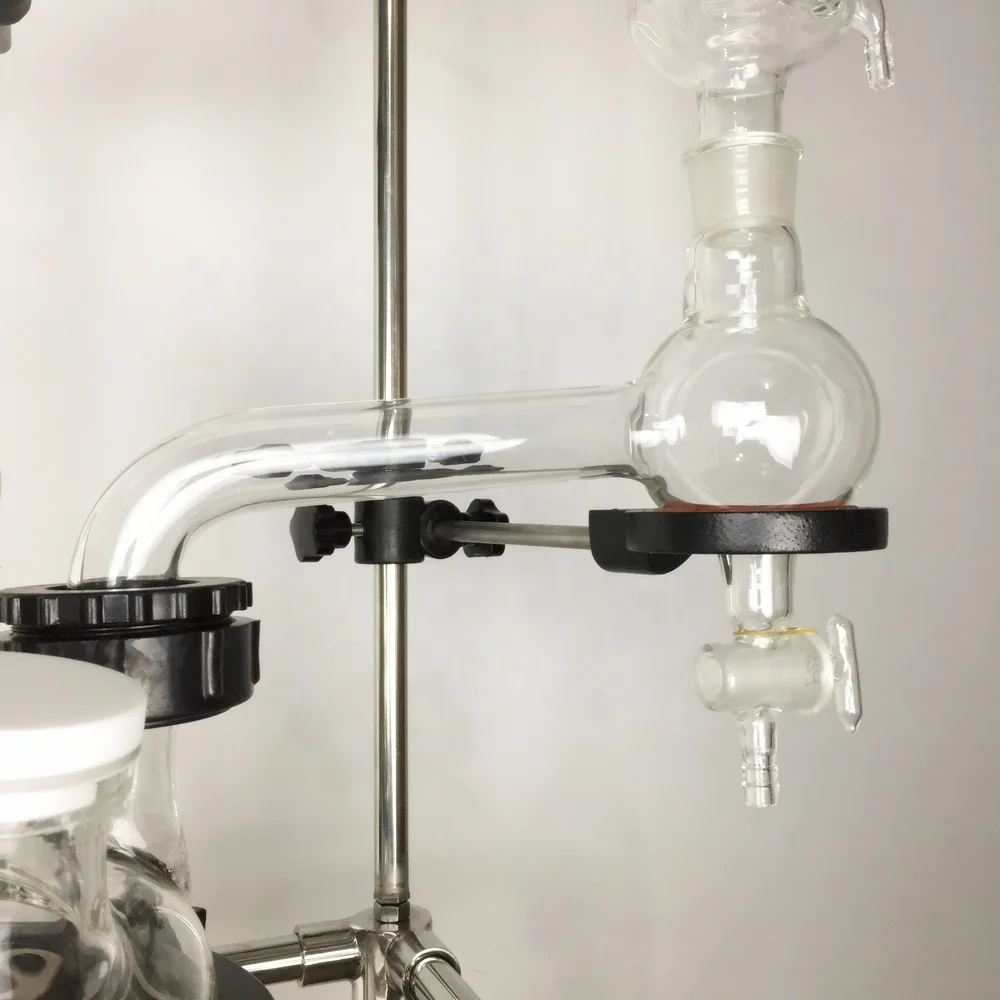

Distillation Reflux System	Equipped

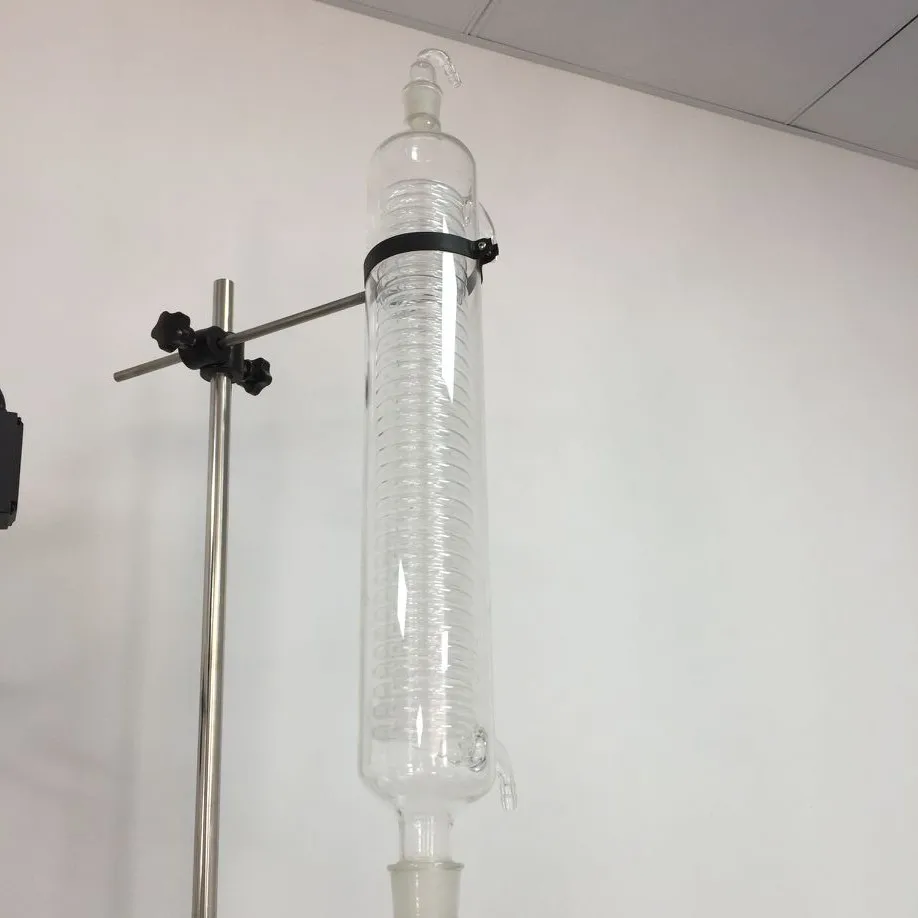

Condenser	Verticcal Serpentiform Condenser

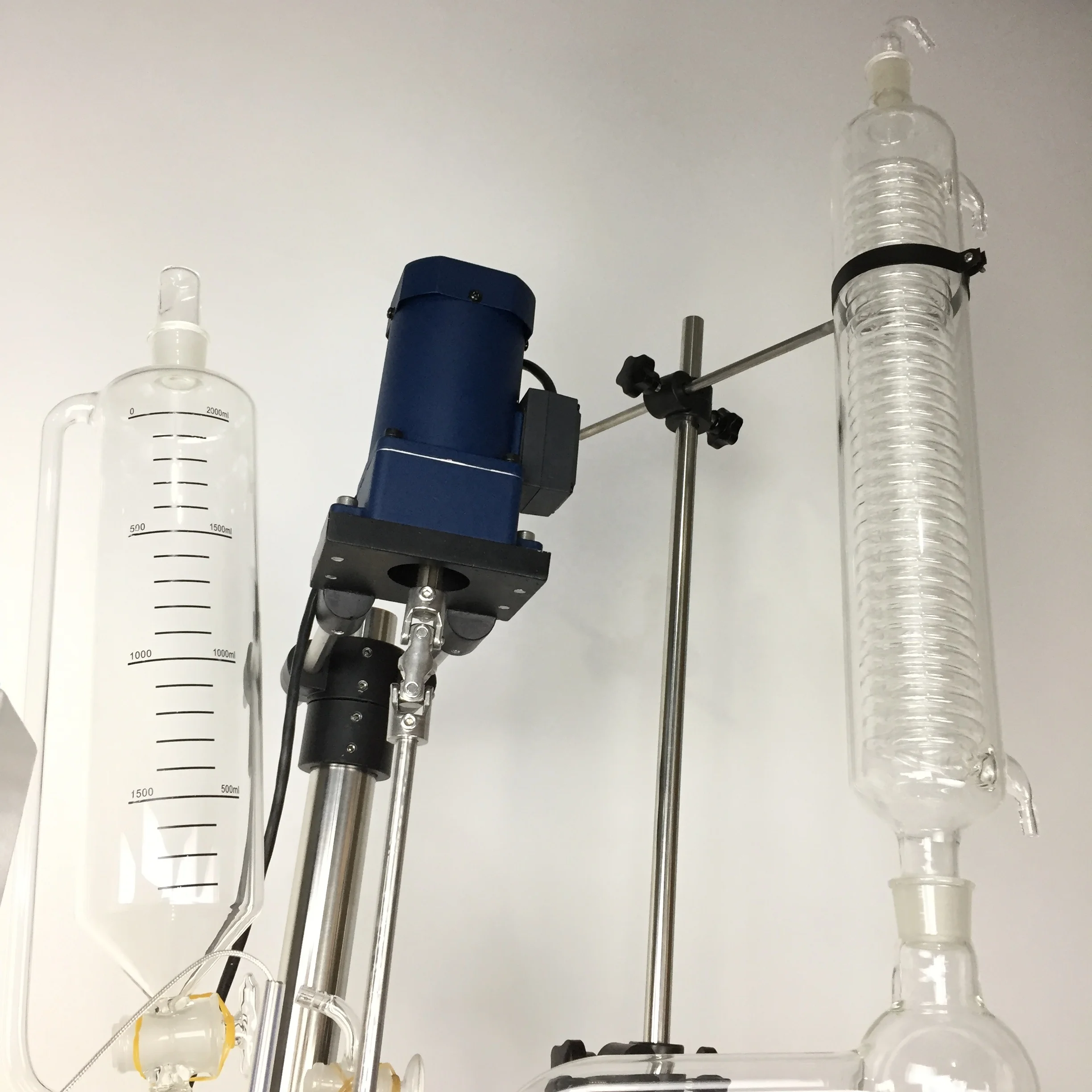

Constant Pressure Drop Funnel	1000ml	1000ml	2000ml	2000ml
High of Discharge Valve	400-500mm,also can custom
Frame Material	304 staliness steel,216SSis optional
External Dimension(mm)	700*600*2100	700*600*2300	700*600*2400	700*600*2400
Power Supply	220V 50Hv,1-phase



Product Details











Product Features



1. High quality borosilicate glass 3.3 has good chemical-physical attribute.

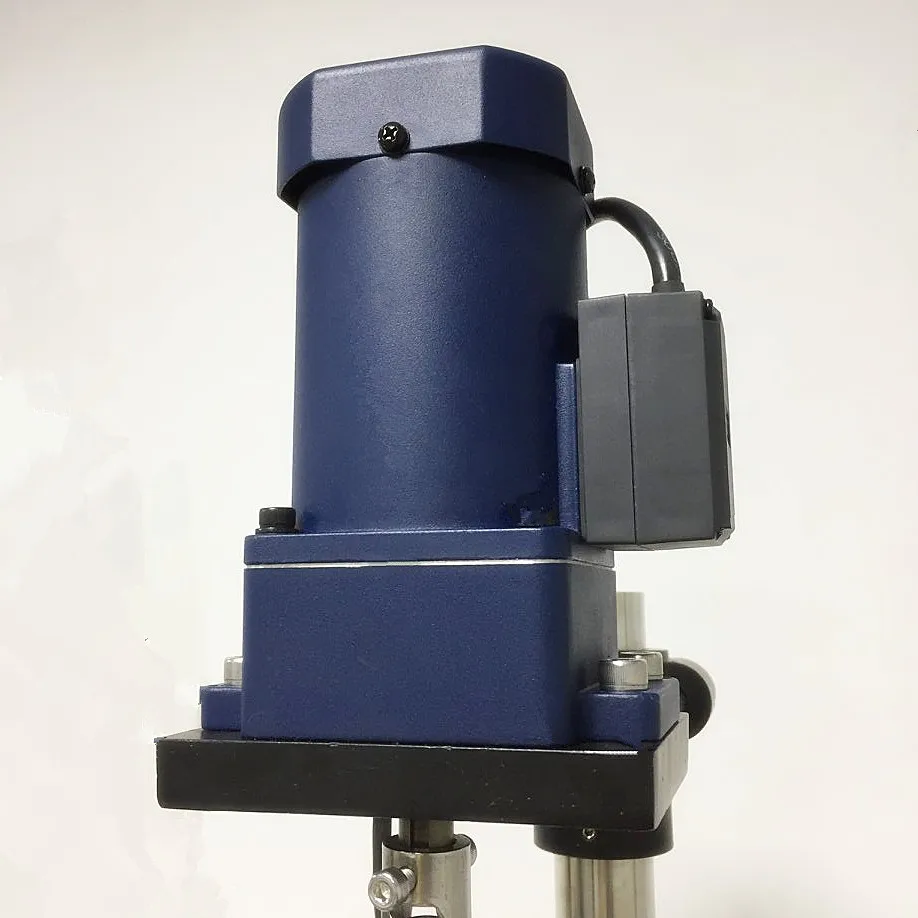

2. Low speed booster motor; High torque; no spark; frequency control, smooth operation.

3. PTFE rotary seal assembly; Patented product; High vacuum degree and long useful life.

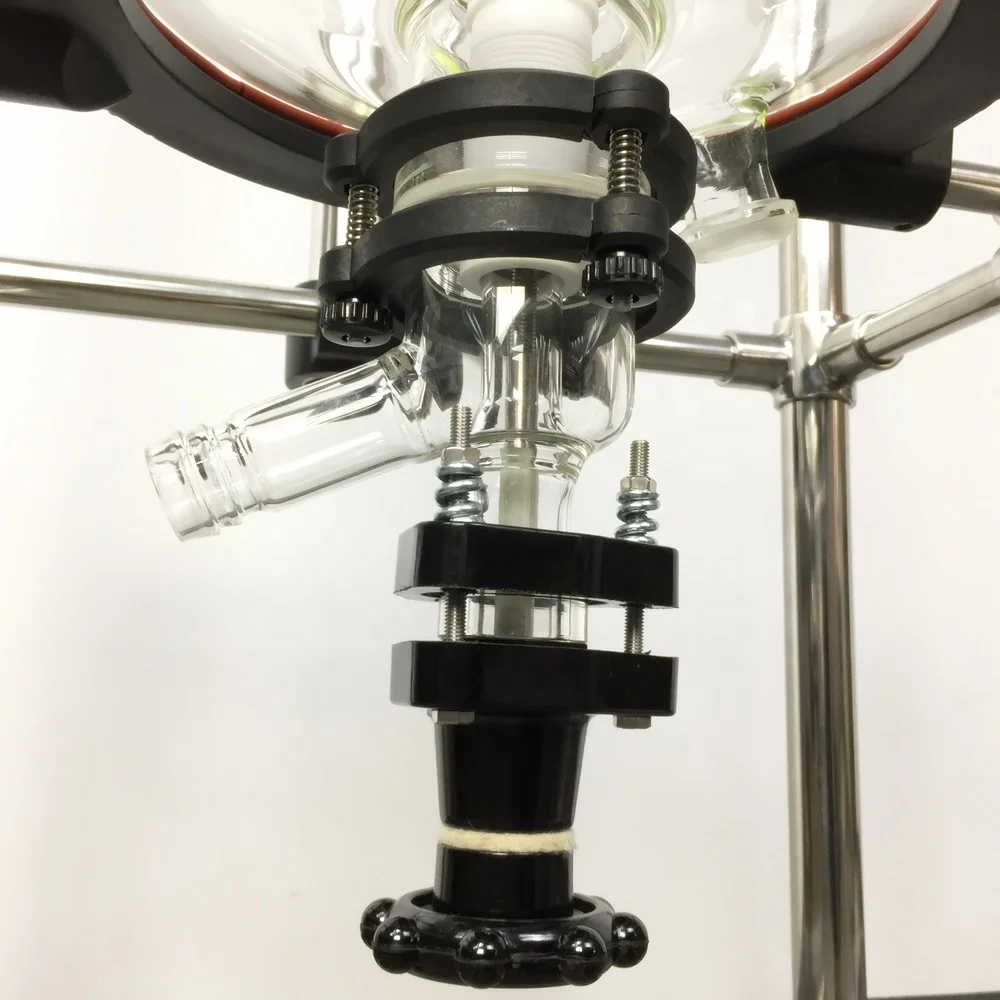

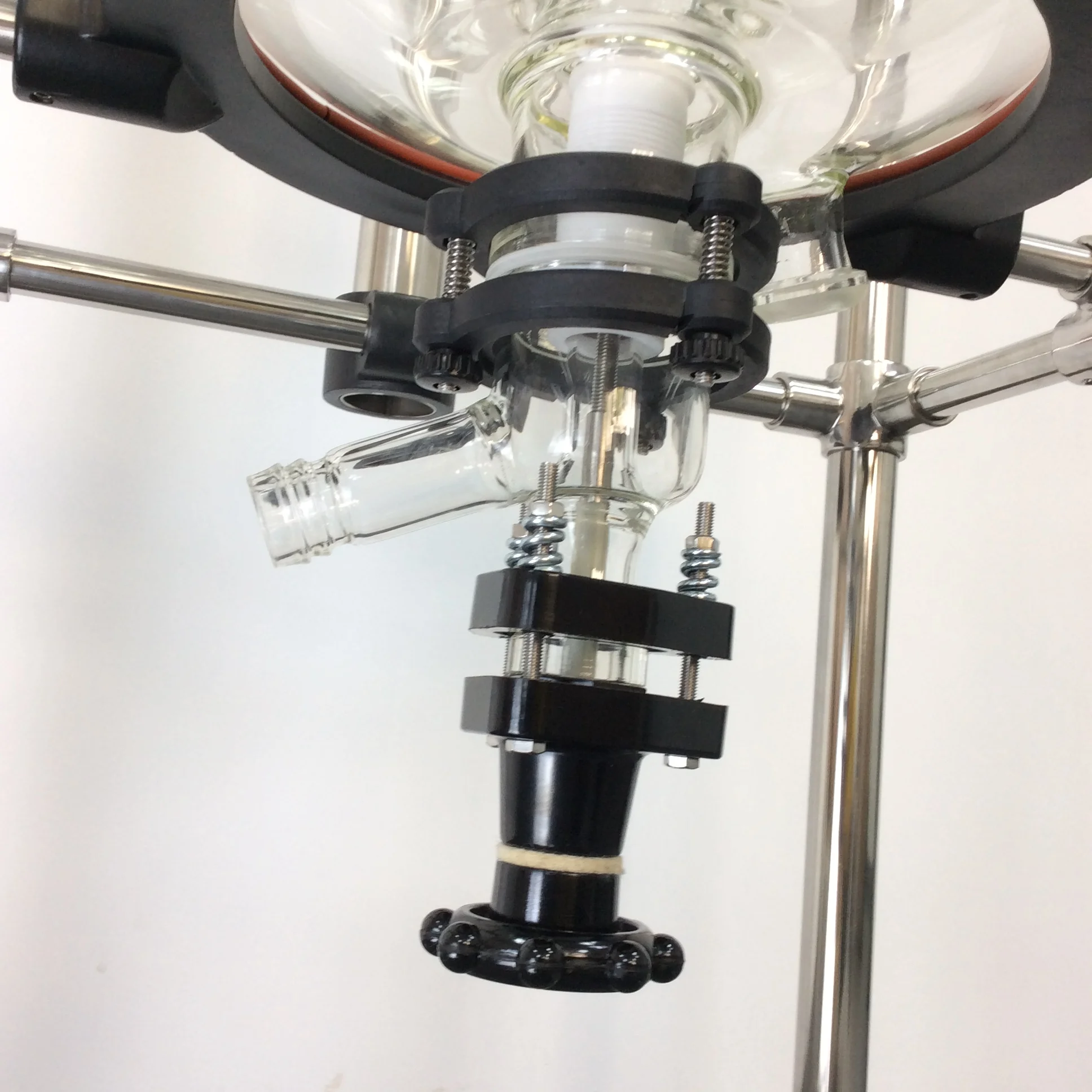

4. PTFE discharge valve, discharge completely and quickly, no leak/pollution to the solvent.

5. PTFE stirring paddle, suitable for low and high viscosity liquid stirring and mixing.

6. Selection of our company's heating and cooling circulating device, we match standard

connector and the suitable connection pipe.



How to Use and Maintenance

How to use

1. Checking the power supply voltage, and make sure it is consistent with your country.

2. Plug in, open the power switch on the frequency converter, to adjust speed.

3. If the flow of material and the motor speed resonance, can change the motor speed to avoid it

4. Pay attention to the stirrer bar whether normal rotation.

5. When circulating the hot oil, firstly should open the circulating switch, after open the heating switch.

6. If sealing performance has reduce, pls check the sealing part that inside of the bearing.

7. When low temperature reaction, the valve maybe frost, need to thaw before discharge.



Maintenance

1. Serious stain glass pieces available dilute sulfuric acid cleaning.
2. Checking the degree of wear of the sealing ring(corrosion), and replacement of wearing part in time, to ensure the vacuum degree of the equipment.
3. Cleaning PTFE discharge valve frequently. To avoid blinding and pollution to the material
4. All the PTFE valve and connect joint neednt too tight and after test, remember to loose, prevent deformation.

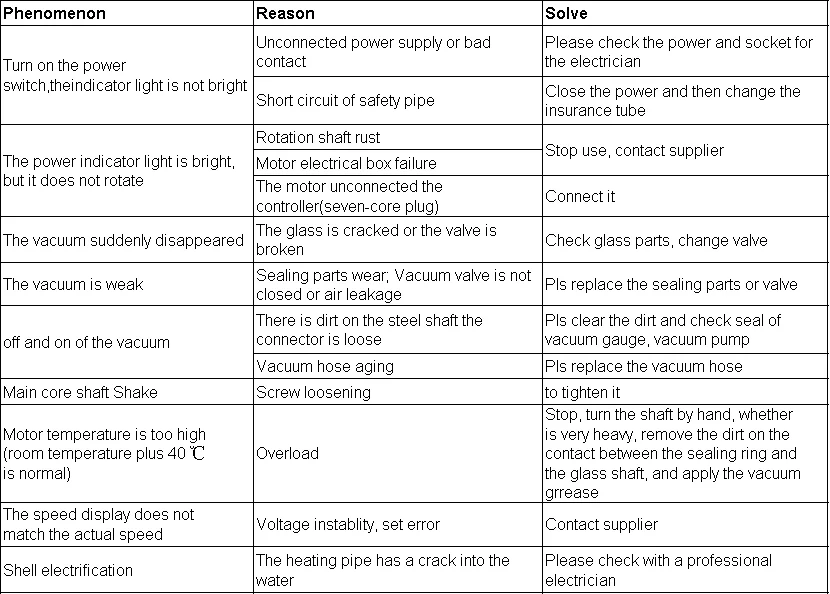

Simple Trouble Shooting





Packing List



Packing&Delivery

 Packing
 1.The rotary evaporator/ vacuum rotary evaporator glass parts will be wrapped with foam, then put into the carton, the mainbody portion will be packed in wooden cases;
 2.Both neutral and customized packaging can be available.
 Shipping
 3.We can ship the goods to you by International Express such as DHL, UPS, TNT, EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides, you can choose to use   your own shipping agent.
