981K Model Industrial Cast Iron Inverted Bucket Steam Trap With Bypass Valve

Product Overview

Description



DSC981k Cast iron inverted bucket steam trap



Features:

1. Be famous for high efficiency, energy saving and low cost , high versatility,long work life, Suitable for low pressure main steam pipe and various heat exchanger

2. Equipped with DSC patent resist water hammer and prevent broken watermain non-return valve

3. Inspection hole on top, After open made known  trap is normal or not

4. Drip discharge under low load,medium load in the intermittent discharge,full load with continuous emissions

5. There are different orifice to choose from , maintain a certain displacement under different pressure

6. When operating the entire discharge condensate gas, Back pressure resistance is strong, suitable for recycling system

7. Can be equipped with fittings in accordance with the customer demand and supply of parts

8. Chrome parts adopt stainless steel and hardened seating, wear-resisting corrosion resistanc

9. Big size, not resistant to cold

10.The device must be upright, not skewed

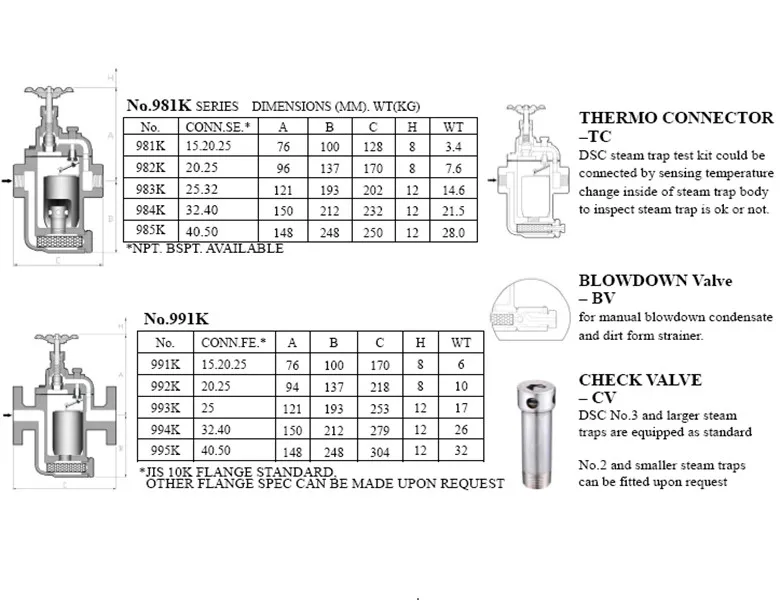

No.981k~985k  unit of size:mm

Model	Port size	A	B	C	H	Weight(kg)
981k	15.20.25	76	100	128	8	3.4
982k	20.25	96	137	170	8	7.6
983k	25.32	121	193	202	12	14.6
984k	32.40	150	212	232	12	21.5
985k	40.50	148	248	250	12	28.0

*NPT BSPT available



Parts

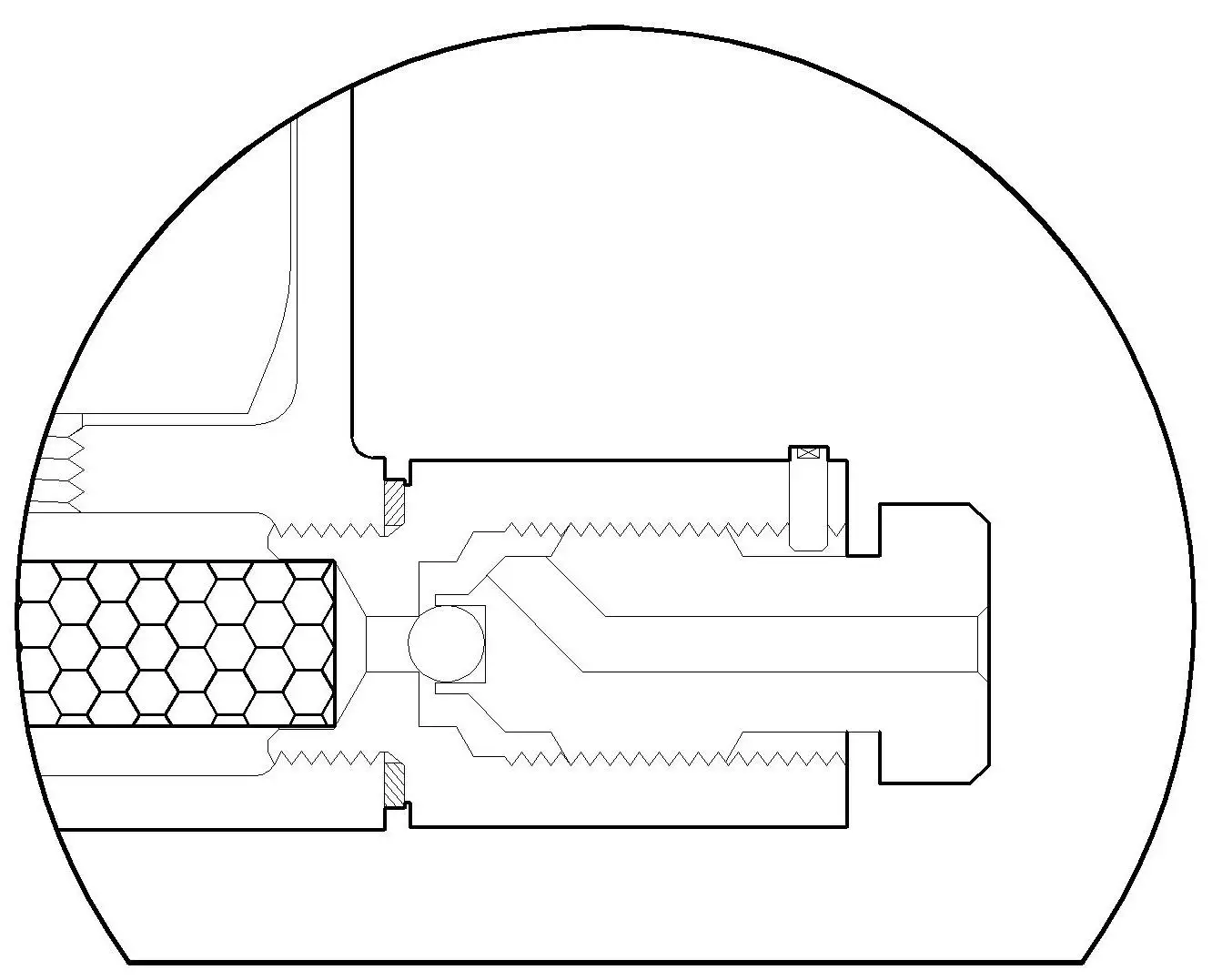

BLOWDOWN Valve – BV

for manual blowdown condensate and dirt form strainer.

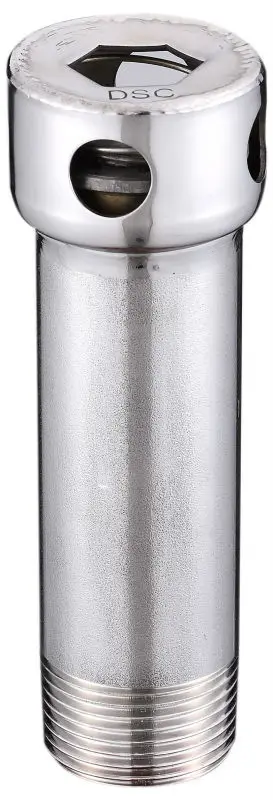

CHECK VALVE – CV

DSC No.3 and larger steam traps are equipped as standard



No.2 and smaller steam traps can be fitted upon reques
