- Protection: Over current protection, Over voltage protection, Short Circuit Protection, Reverse Connection Protection
- Safety: ETL, CE, RoHS
- Approval standard: EN60335 EN55014 EN61000
24V Ebike Battery Charger 12A Wheelchair Battery Charger for electric bicycle scooter 29.4V 7S Li ion Battery Charger
- Category: >>>
- Supplier: Dongguan Changbao Electronics Technology Co. Ltd.
Share on (62066702537):
Product Overview
Description
29.4V 12A Battery Charger
1). for 24V (7 cells) Lead Acid LiFePO4 / Li-ion Battery Pack
2). for Electric Car, Wheelchair, Sightseeing Car, E-bike, Electric Golf Cart, E-Motocycle, E-Patrol Car, E-forklift, E-boat, E-Cleaner, E-sooter, E-torist Coach, Robot and more
3). Hot Sales: 48V@5A Lead acid battery charger for golf cart For Ez Go Club Car DS EZGO TXT with RXV Plug
4). Hot Sales: 48v@6A Golf Cart Battery Charger 6 Amp YAMAHA* CLUB CAR, Yamaha G19-G22, 2 Pin Plug
Dimension: L180xW90xH63 mm
Net weight: 1.2kg
Color: Black, White
Case material: Aluminium Alloy
360W Electric Vehicle Battery Charger
Series Units: 12V / 24V / 36V / 48V @ 20.0A max. 360W Power
No. | Output | Constant Voltage (CV) | Constant Current (CC) | Transition / Cut-off Current | Hot Sales | ||||
Lead Acid | Li-MnO2 | LiFePO4 | Lead Acid (A) | Li(A) | |||||
1 | 12V | 14.7V | 16.8V | 14.6V | 20A | 4 | 1 | 48V@5A Lead acid battery charger for golf cart For Ez Go Club Car DS EZGO TXT with RXV Plug | 48v@6A Golf Cart Battery Charger 6 Amp YAMAHA* CLUB CAR, Yamaha G19-G22, 2 Pin Plug |
2 | 24V | 29.4V | 29.4V | 29.2V | 12A | 2.4 | 0.6 | ||
3 | 36V | 44.1V | 42.0V | 43.8V | 8A | 1.6 | 0.4 | ||
4 | 48V | 58.8V | 54.6V | 58.4V | 6A | 1.2 | 0.3 | ||
5 | 60V | 73.5V | 75.6V | 73.0V | 5A | 1 | 0.25 | ||
6 | 72V | 88.2V | 84.0V | 87.6V | 4A | 0.8 | 0.2 | ||
Note: Cut-off point for Li battery is 5% of CC, and it can be setted between 3-10%. |
| ||||||||
General Spec:
Compatiable Batteries: Li-ion, Lifepo4, Lead Acid, Lithium Titanate , Ni-mh Titanate
Compatible Battery | Lead Acid/LiFePo4/Li-ion/Li-MnO2 | ||
Input | 90 to 240 VAC 50/60Hz | ||
Output | 29.4V 12A | ||
Charge voltage | 29.4V | Float Voltage | 27.6V |
LiFePo4/3.65V Charge voltage | 29.2V | ||
Lithium ion/4.2V | 29.4V | ||
LED Indicator | Solid Red LED = Charging (0-99%) | ||
Dimension(LxWxH) | L180xW90xH63 mm | ||
Weight | 1.2Kg | ||
Charging Mode | CC/CV, Float/cut-off | ||
Certification | UL/cUL / ETL / CE / FCC / RoHS, EN61558 / ETL1310 Approval Standard. Recognized or tested by TUV lab, for more information, please contact us. | ||
Charging Time | Cut-off point for Li battery is 8% of CC and it can be set between 3-10%.(charging time:4-5 hours) | ||
Transition for Lead acid charger is 25% of CC.(charging time:6-8 hours) | |||

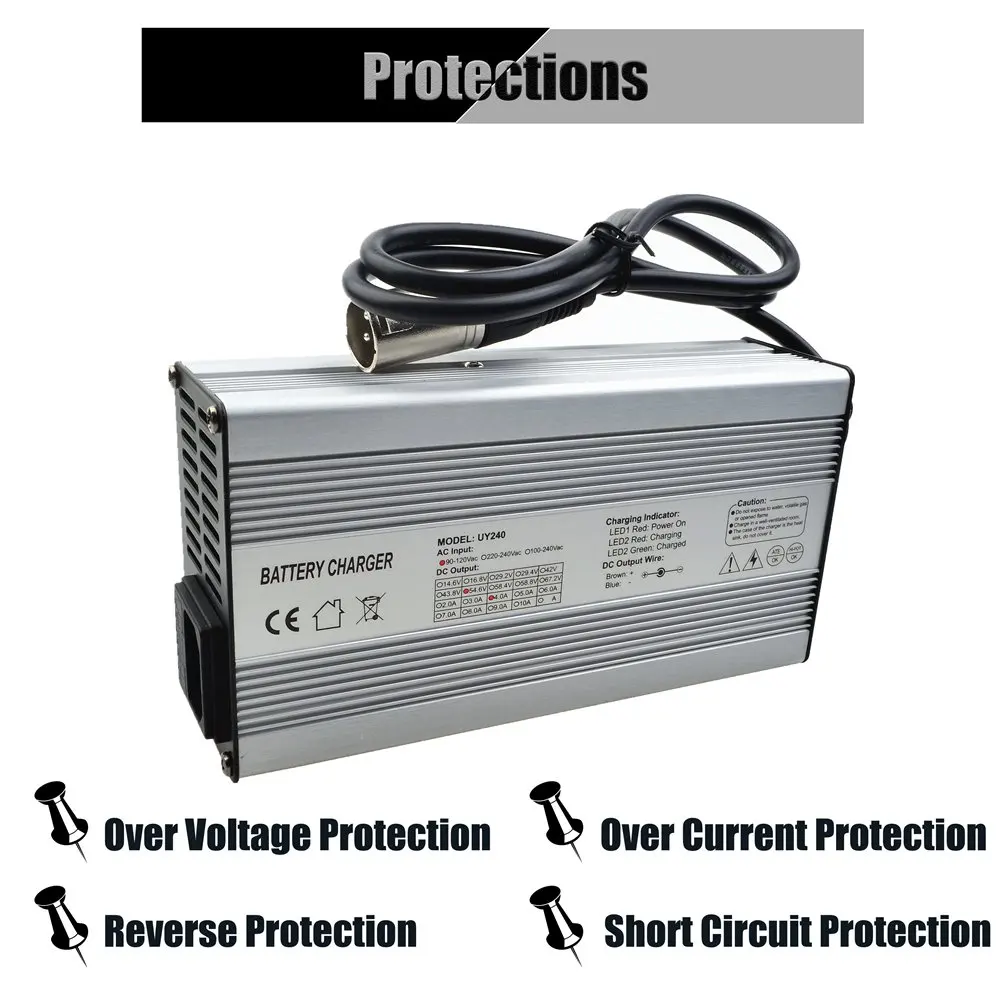

Protection | Over Current, Over Voltage, Over temperature, Short Circuit, Reverse Polarity, shut off or trickle and anti-reverse charge. | ||
Advantage | 1). Intelligent cooling fun, controlled by temperatureQuasi-resonant pulse width modulation(PWM),full automatic transition of CC,CV and Float/Cut-off, meet the demands for different Curve. | ||
Charging Curve
1). Intelligent cooling fun, controlled by temperatureQuasi-resonant pulse width modulation(PWM),full automatic transition of CC,CV and Float/Cut-off, meet the demands for different Curve.

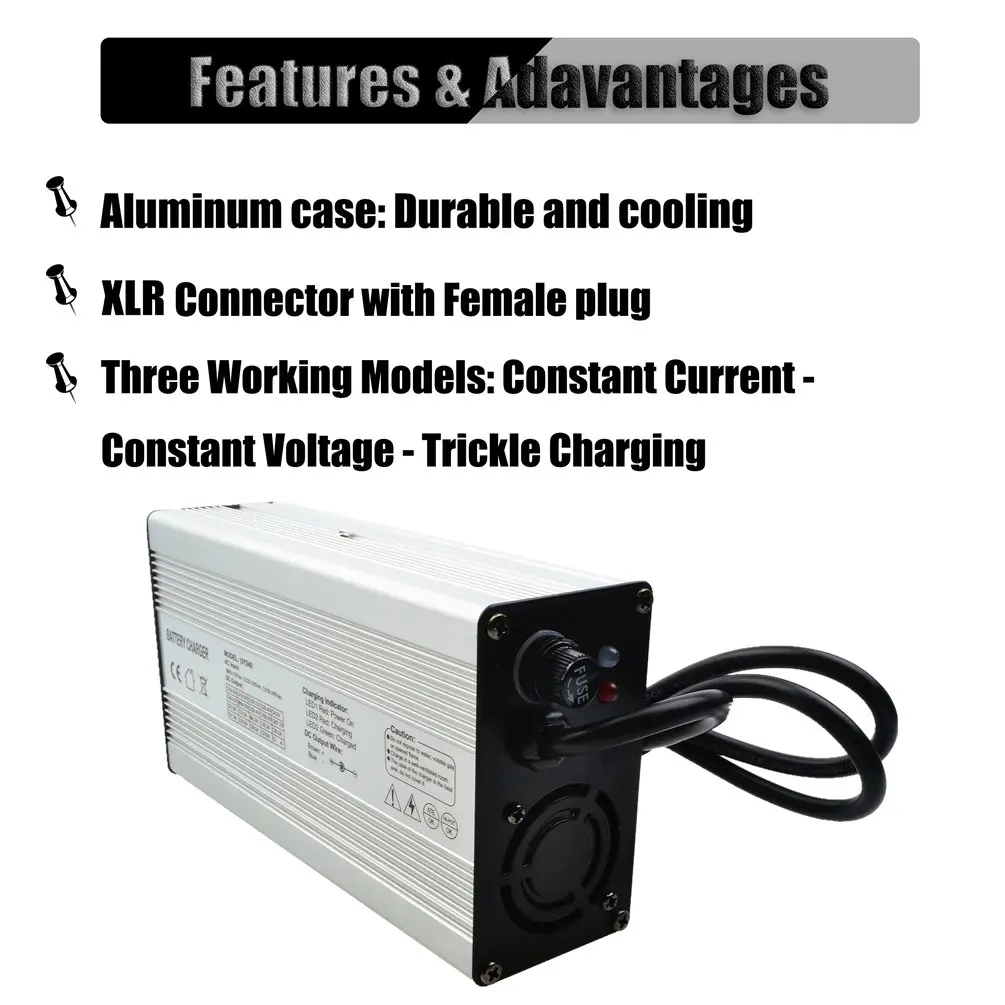

2). Aluminum case, Robust, Elegant and Reliable.
Perfert Protection and Safety:
Why choose this
(1) Famous Original Components & Stable Circuit Board
(2) 40 x 0.15mm 100% Copper Power Cord
(3) Low fever & No Noise at Full Wattage Working
(4) Overload Cut-off Automatically (Avoid Fire)
(5) Short Circuit Protection

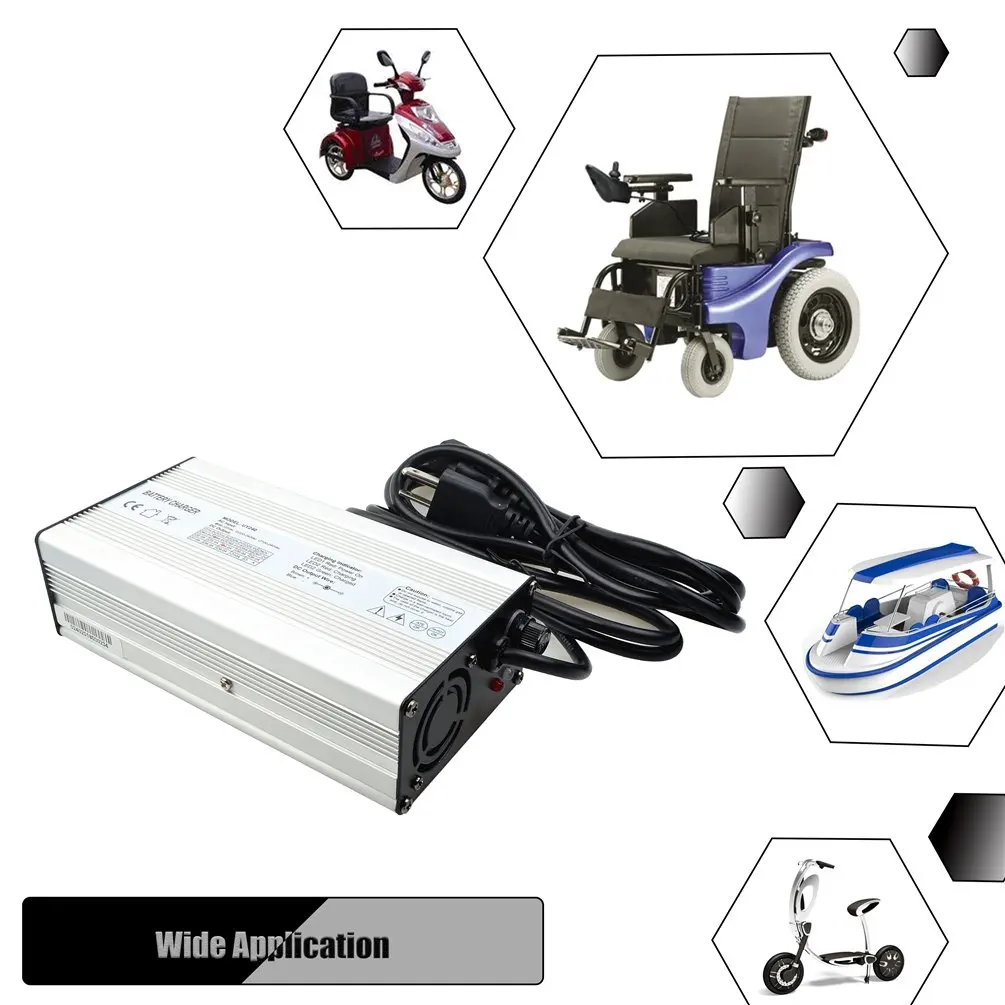

Wide Application:
Electric Car, Sightseeing Car, Electric wheelchair, E-bike, Electric Golf Cart, E-Motocycle, E-Patrol Car, E-forklift, E-boat, E-Cleaner, E-sooter, E-torist Coach, Robot, DC Power Supply, Smart&Intelligent Home, and more
Perfect and Universal Complibility:
(1) Robot, Sweep Cleaner, Water Purifier, humidifier, Atomizer Sweeper,Printer
(2) Speaker system, Soundbar, POE injectors, CCTV Camera, LCD Monitor, LED light
(3) lamps, radios, motor-driven tools and appliances, geyser, water pumps, toys, barbecue machines
FAQ:
1. The LED turns off while charging.
-This charger has a build-in thermal protection function. Battery charging is shut off when the temperature of charger increases beyond set limit, and LED turns off (no color). Once the charger temperature drops to acceptable limit, the charging process is resumed and the LED turns on (Green/Red color).
2. LED color changes to Yellow
-This indicates that battery is not being charged correctly. Remove the battery pack from Charger and re-insert into charger. If this occurs repeatedly, either battery is dead or charger is not working.
3. Battery is inserted in the charger, but the LED does not change to RED.
-This indicates that battery is not being charged correctly. Remove the battery from charger and re-insert into charger. If this occurs repeatedly, either battery is dead or charger is not working.
4. LED changes to Green, but the capacity is too low.
-This indicates that battery is not being charged correctly. Remove the battery from charger, clean the contacts with a soft clean cloth, re-insert into charger. If this occurs repeatedly, either battery is dead or charger is not working.
