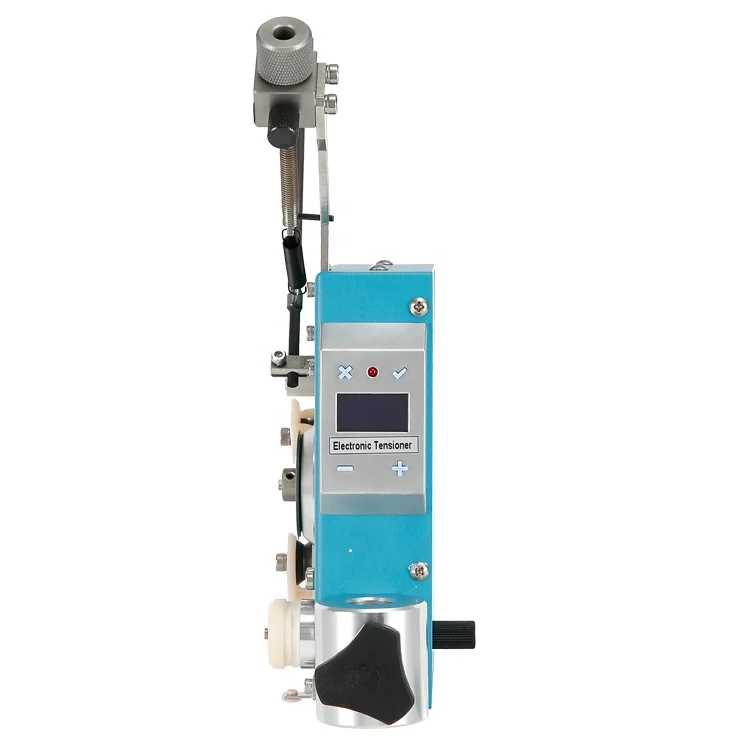

ETA 300 R Электрический Натяжной станок для обмотки проволочной катушки

Product Overview

Description

Profuct name	Electric Tensioner
Model	ETA-300-R
Power	DC24V
Electric Current	1.2A
Usage	Wire coil machine
Wire speeding	5m/s
Tension test condition	Wire speeding 5m/s refer roundness Bobbin
Delivery Time	3 to 5 working days
Product Packing	140mm*140mm*45mm
	2.5KG
	Carton With Foam



KIMCHEN ETA-300-R Wire Winding Tensioner(coil w

inding machine wire tensioner)





 Products Features:

1, through the excitation current tension control, automatic control accuracy of up to + 2%, tension stability,

can adapt to high speed winding, and with tension closed-loop control function;

2, a variety of tension setting function, can change with the input signal so that the output tension changes

rapidly (its output value is equal to the corresponding set value), to achieve the purpose of intelligent control;

3, remote data acquisition, control function, through the RS485 communication, to achieve real-time monitoring

of tension curves and data.

Model	Tension Range (g)	Applied wire diamiter(mm)
ETA-100R/L-R	10-100	φ0.04-φ0.12
ETA-200R/L-R	15-200	φ0.06-φ0.16
ETA-300R/L--R	30-350	φ0.08-φ0.25

(For more relative Tensioner,pls kindly send the inquiry to us to got it)

Different Tensioner for customers reference .

Pls kindly send your request to us so that we are able to recommend the suitable models to you.









KIM CHEN INDUSTRY INTL LIMITED was founded in 2001, the factory is located in Dongguan city. Guangdong province.

We specialized in the manufacture and RD of the component which is used in coil of wire and tension systems. textile machinery and electrical industry precision ceramics. Such as: coil winding nozzle, coil winding tensioner, tension meter, ceramic eyelets, ceramic coating pulley. etc.

We produce high quality coil winding nozzle which include tungsten carbide nozzle, ruby nozzle and ceramic nozzle. We adopt the excellent raw material and technology to ensure best quality which exceed our customer's expection. Our main customer Mitsubishi, ABB, SVM, YKK. etc, We expect long term relationship with you!



Our Factory Advantages:

1. Competitive prices

2. Good after-sale services

3. Fast delivery

4. High quality control

5. Customized size, design

We also provide other relative precision parts

For more product, pls see the photos as follow, if you need, pls contact us.
