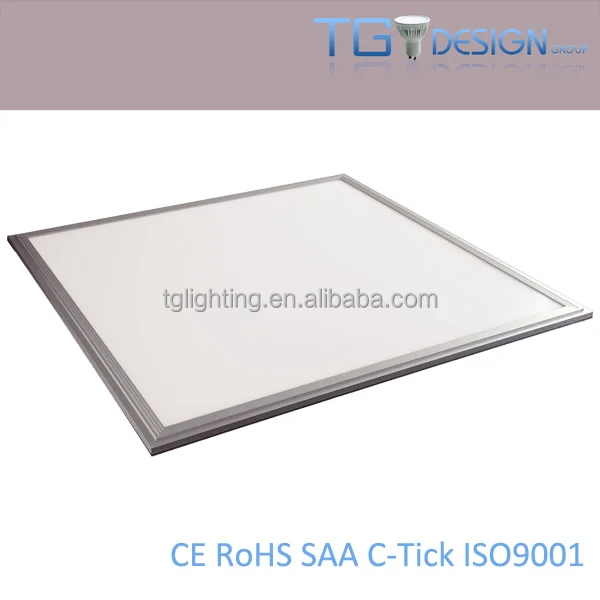

Ra88 ultra thin Edge lit LED flat panel lamps with 5 years warranty

Product Overview

Description

600*600mm Edge-lit LED flat panel lamps 4050lm

1. no flickering;
2. 595*595*9mm,48W 4050lm ;
3. Samsung smd 5630 G2;
4. 5 years warranty;

5. THD<15

6. CRI>88



Ordering code: PS606048W





Ra88 ultra thin Edge-lit LED flat panel lamps with 5 years warranty data:



Code	Specification
	Size (MM)	Total Power	Input Voltage	LED Quantity	Color Temperature	Luminous flux	CRI	THD	Current	Power Driver Brand
PS603024W	595X295X9 (600X300)	24W	AC100~240V 50~60Hz	72PCS 5630 G2	3000k-3500k 4000k-4500k 6000k-6500k	1900-2100lm	>88	<15	580MA	Ledfriend/ Meanwell
PS606036W	595X595X9 (600X600)	36W	AC100~240V 50~60Hz	120PCS 5630 G2	3000k-3500k 4000k-4500k 6000k-6500k	2800-3000lm	>88	<15	930MA	Ledfriend/ Meanwell
PS606048W	595X595X9 (600X600)	48W	AC100~240V 50~60Hz	144PCS 5630 G2	3000k-3500k 4000k-4500k 6000k-6500k	3800-4000lm	>88	<15	1300MA	Ledfriend/ Meanwell
PS1203048W	1195X295X9 (1200X300)	48W	AC100~240V 50~60Hz	144PCS 5630 G2	3000k-3500k 4000k-4500k 6000k-6500k	3800-4000lm	>88	<15	1300MA	Ledfriend/ Meanwell
PS1206072W	1195X595X9 (1200X600)	72W	AC100~240V 50~60Hz	288PCS 5630 G2	3000k-3500k 4000k-4500k 6000k-6500k	5800-6000lm	>88	<15	1750MA	Ledfriend/ Meanwell

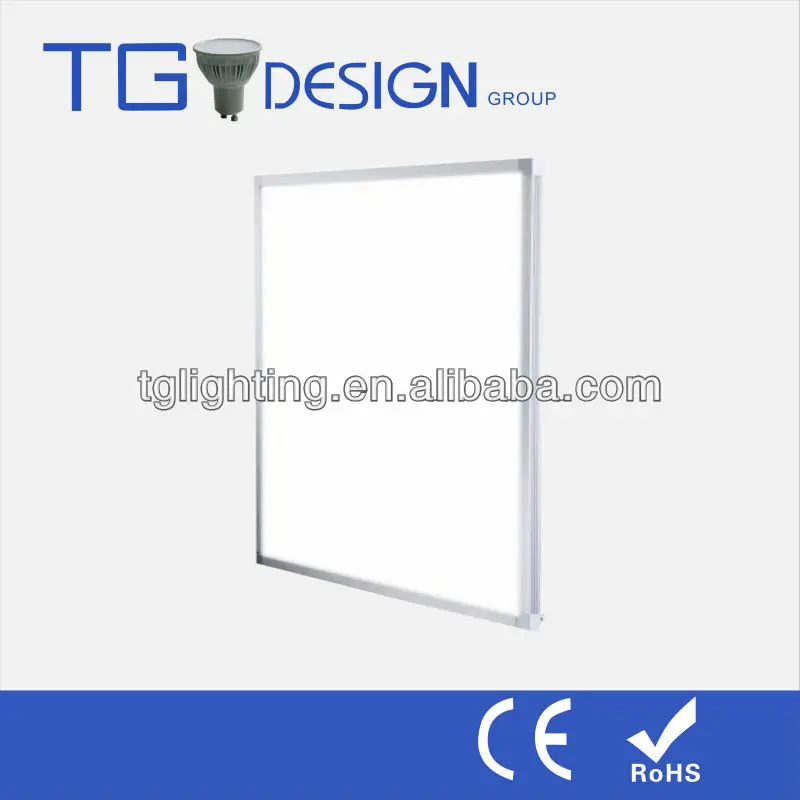

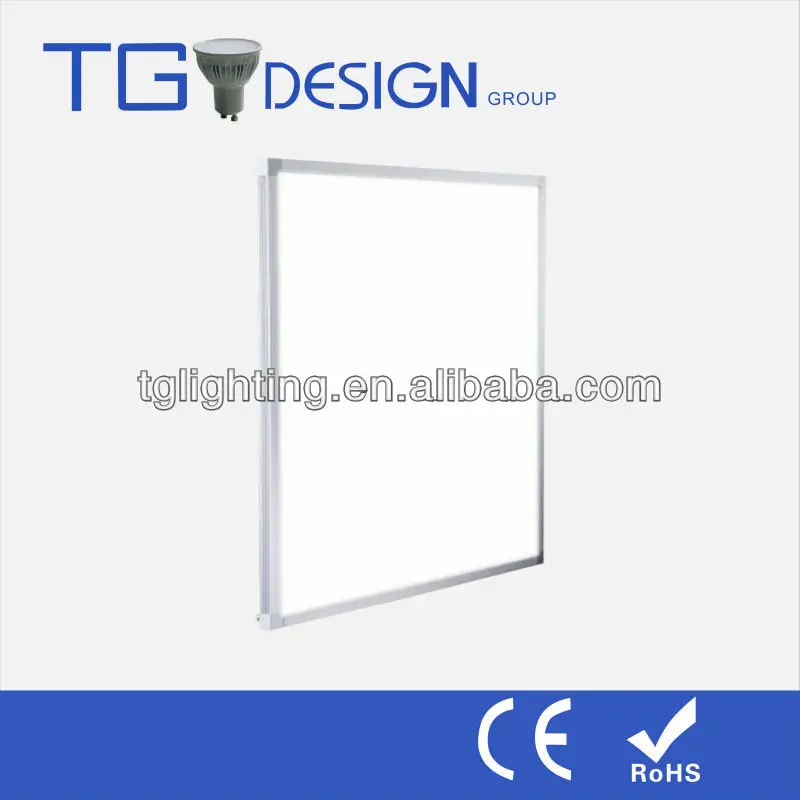

 TG-designgroup 600*600mm Edge-lit LED flat panel lamps led shows:

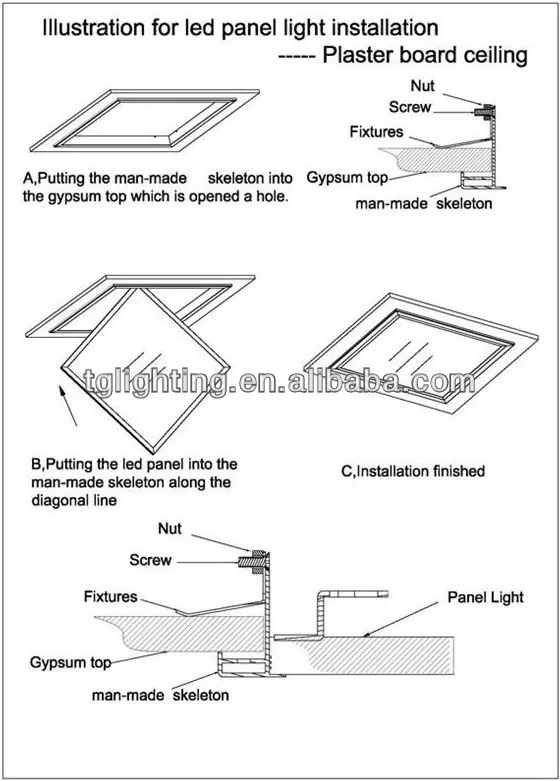

  Edge-lit LED flat panel lamps installation:

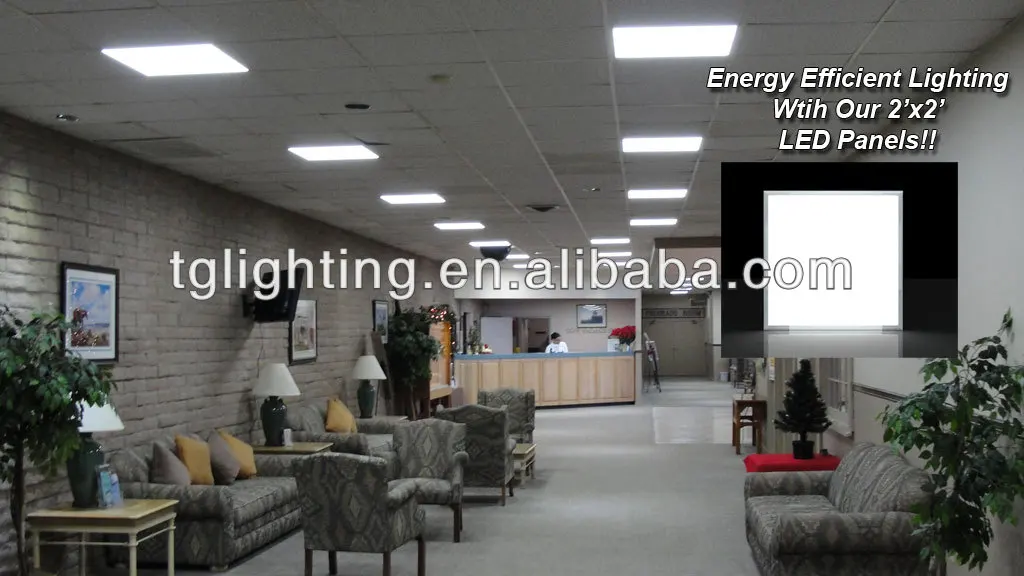

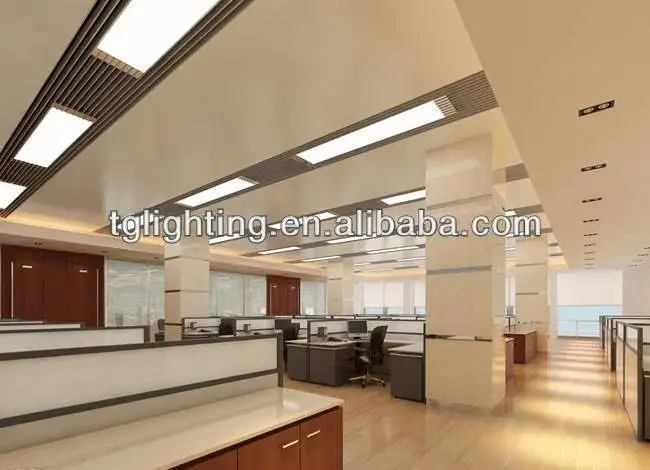

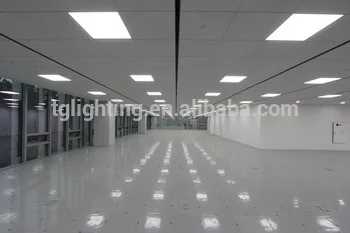

Edge-lit LED flat panel lamps application:
