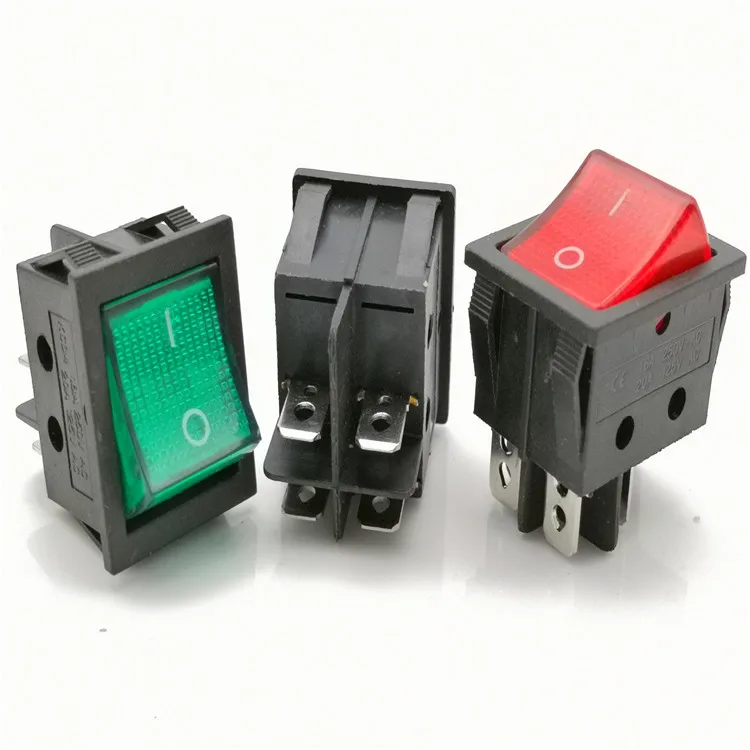

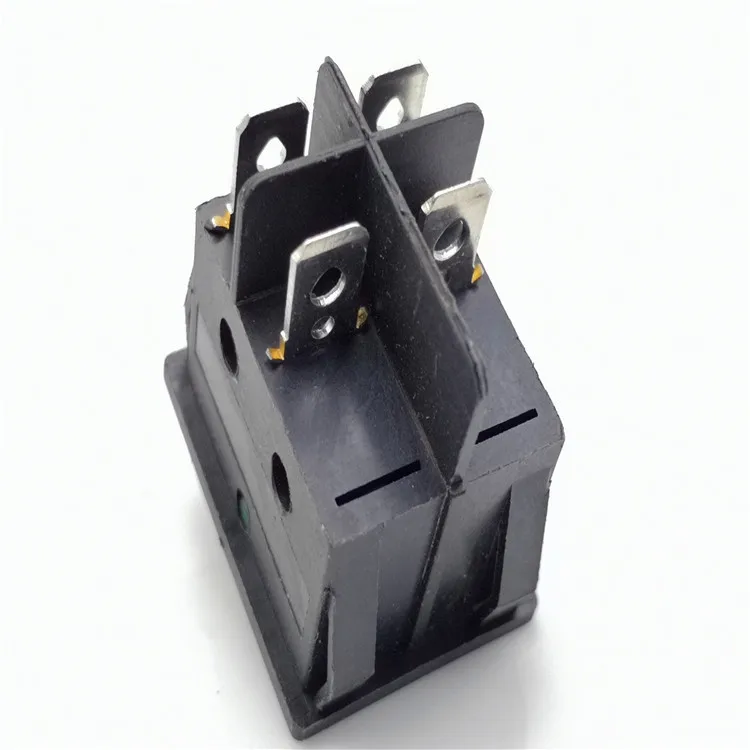

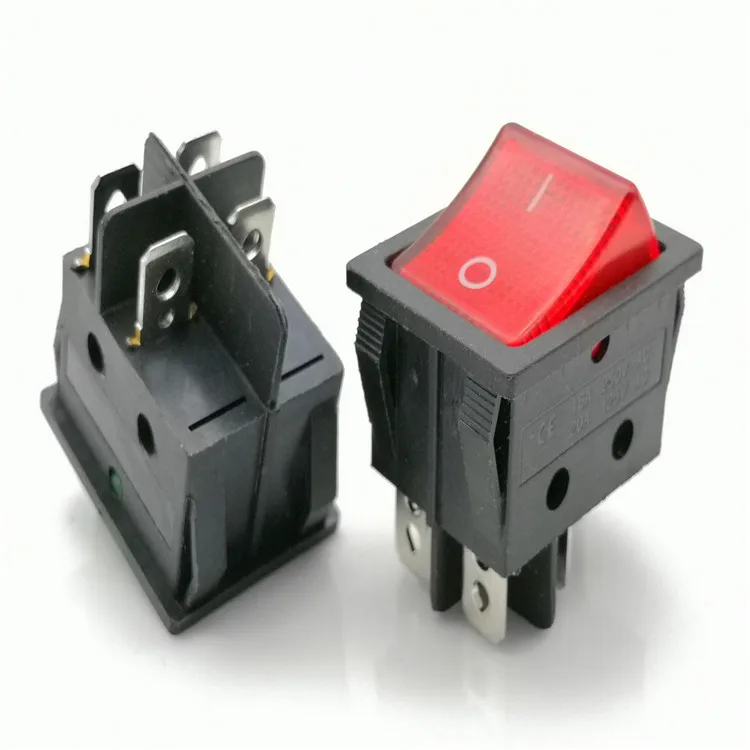

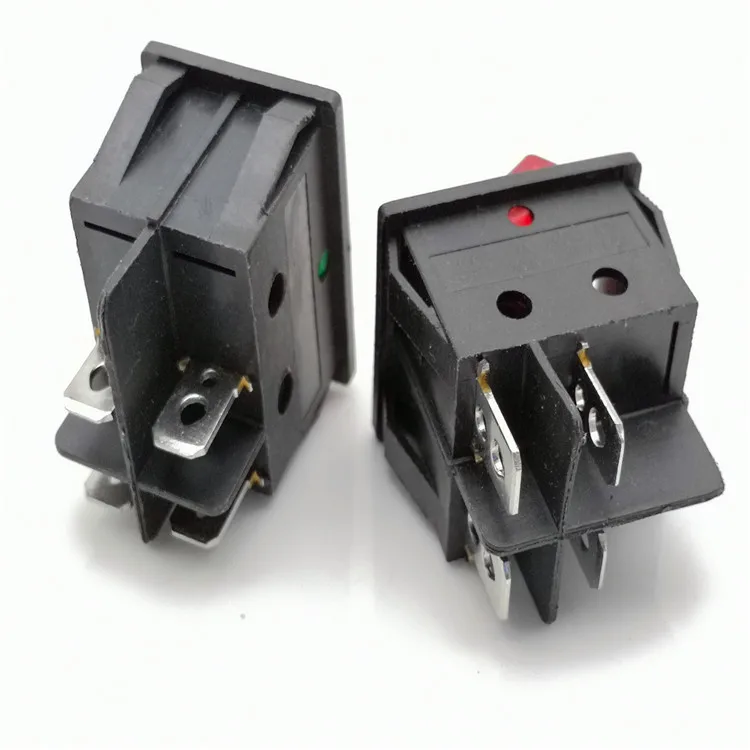

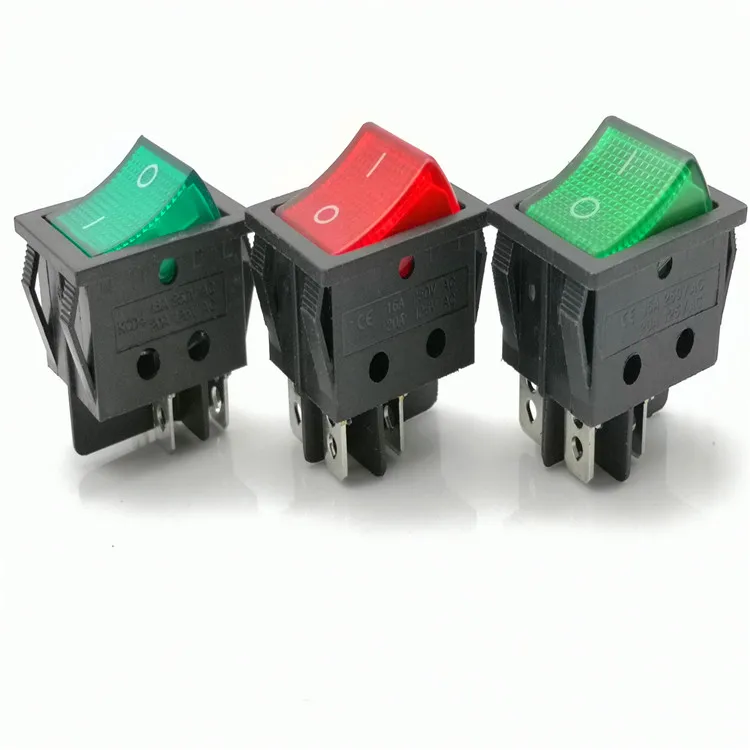

KCD4 16A ON OFF Double Pole 4 PIN Rocker Switch With 12V Light

Share on (62066921494):


Price:

Quantity:


Product Overview

Description


KCD4 ON-OFF

rocker switch offer a high switching current in a compact design.
It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.
They have high quality for long life at heavy loads and industry-standard mounting dimensions.
This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.

-_01

Product Information

lItem
16A ON OFF Double Pole 4 PIN Rocker Switch With 12V Light
Switch Function
ON OFF 4 pin rocker switch
Rating
16A 250VAC; 20A 125VAC
Contact Resistance
< 35MΩ
Insulation Resistance
500VDC 1000MΩ Minute
Dielectric Strength
1500VAC, 1 Minute
Operating Temperature
-25°C~+85°C
Electrical life
10000 CYCLES

Product Details

-_03 QQ20190404210016.pngQQ20190405213149.pngQQ20190405214943.pngQQ20190405221748.png





Product classificati

-_05-_06-_07

-_08-_09
