2019 New design 150L Sunfull solar water heater for sloping roof

2019 New design 150L Sunfull solar water heater for sloping roof

Category: >>>
Supplier: Haining Sunfull Technology Co. Ltd.

Price:

Quantity:

Product Overview

Description

Product Introduction

Product Details

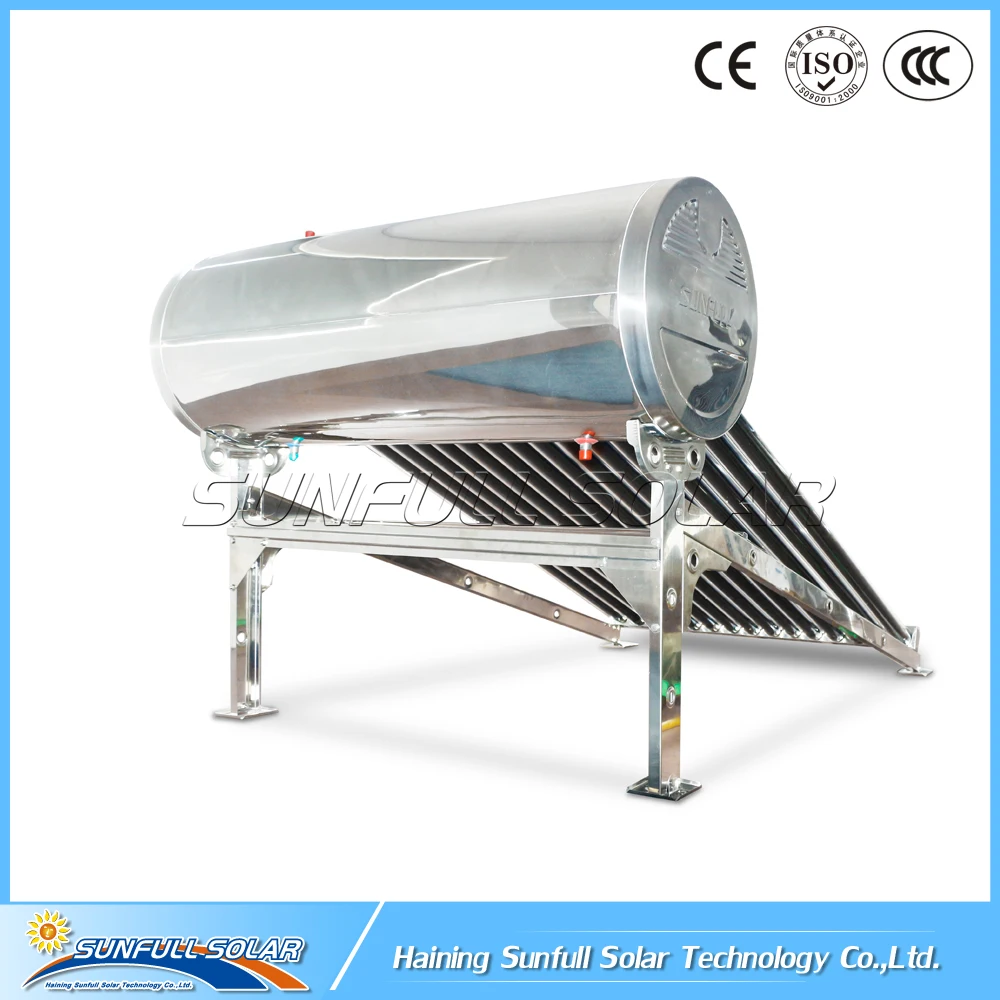

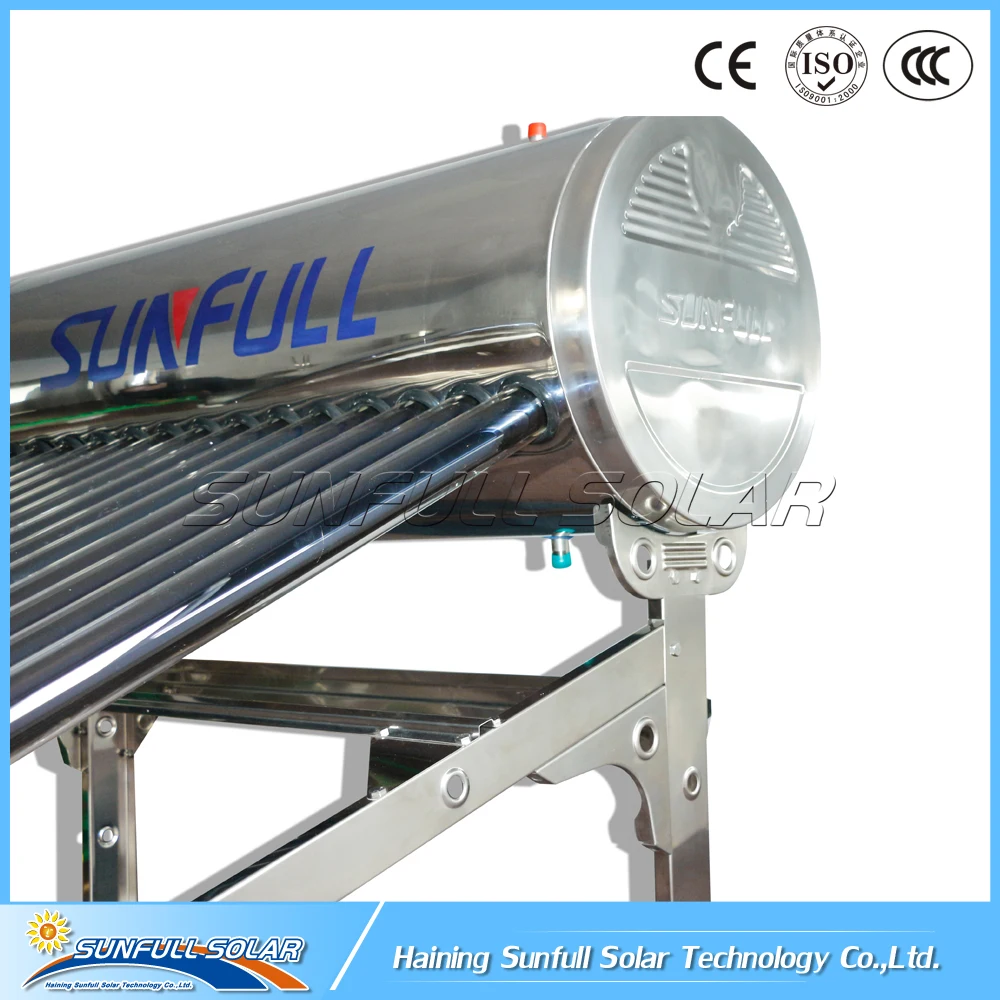

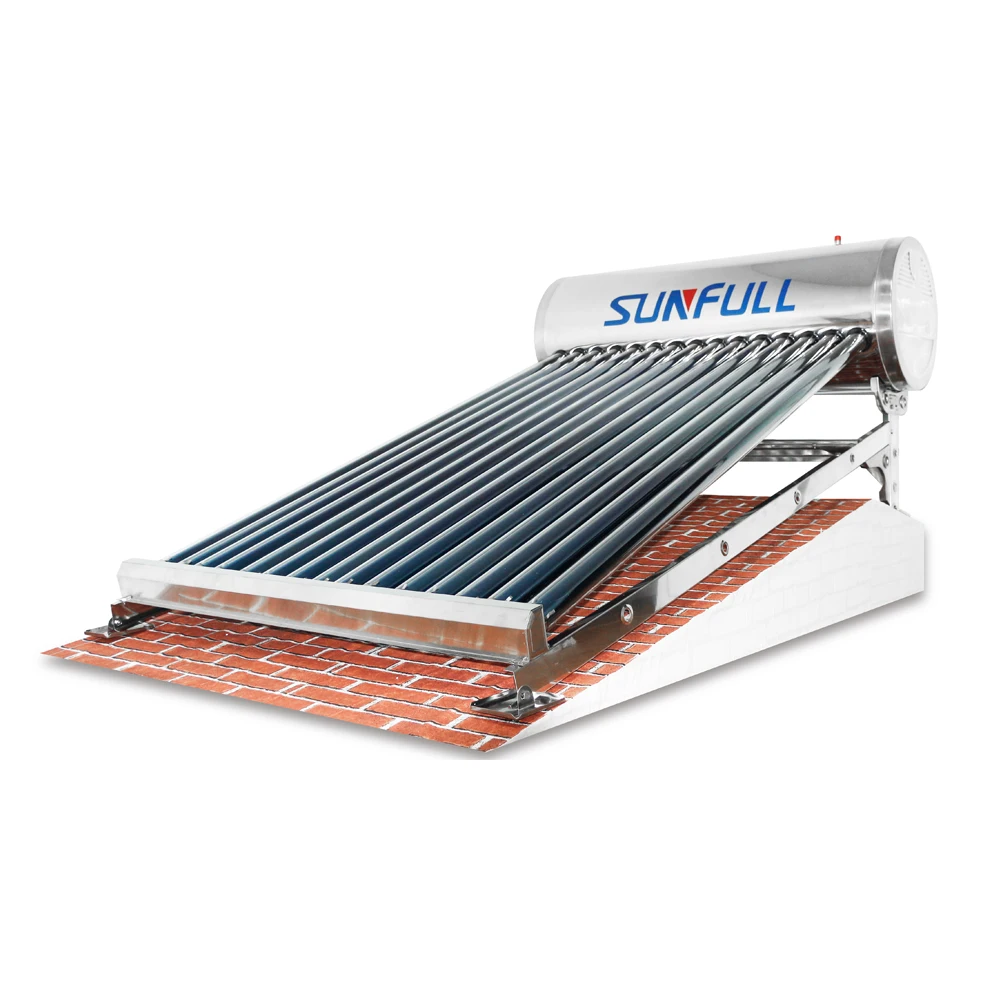

2019 New design Non-pressurized stainless steel solar water heater

Inner tank material: Stainless steel SUS304-2B (SUS316 is available)

Outer tank material: Stainless steel 201( SUS304-2B, Galvanized steel is available)

Tank insulation: High density polyurethane foaming, 50,55,60mm thickness

Inner tank diameter:360mm, Outer tank diameter:460mm.

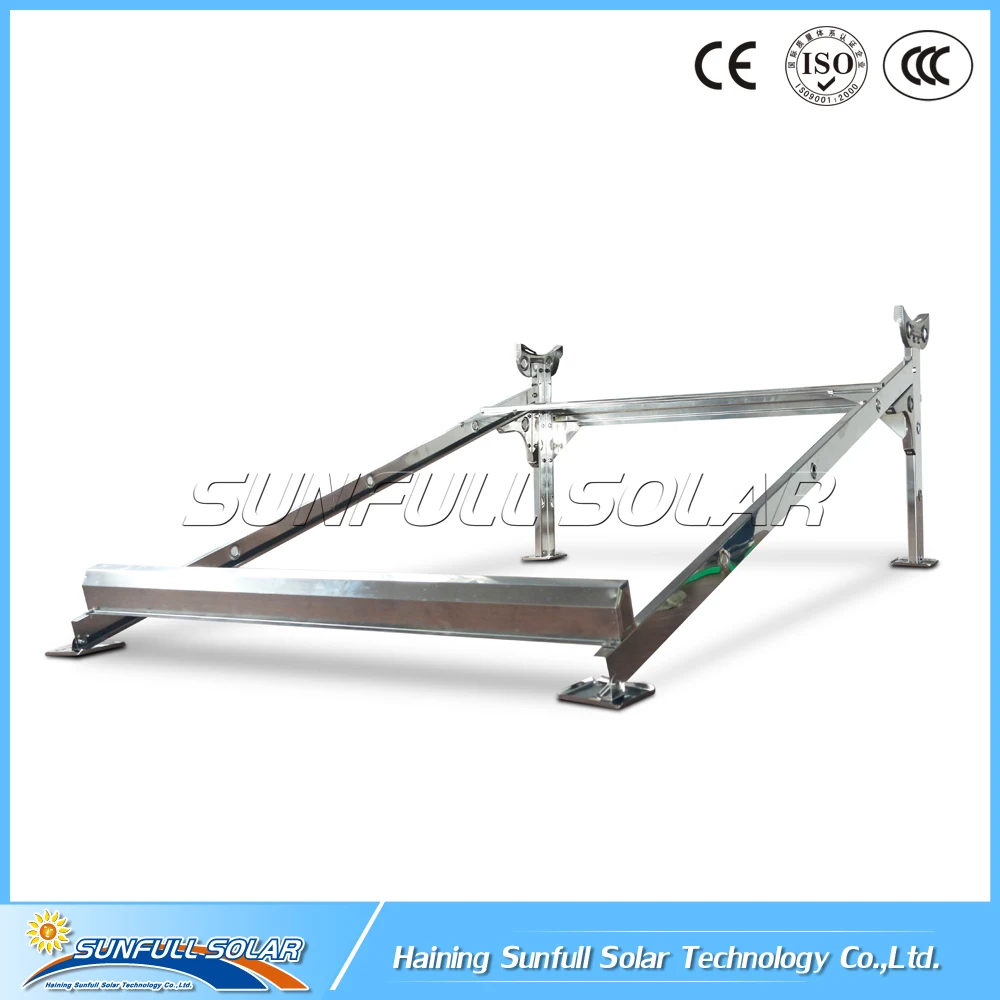

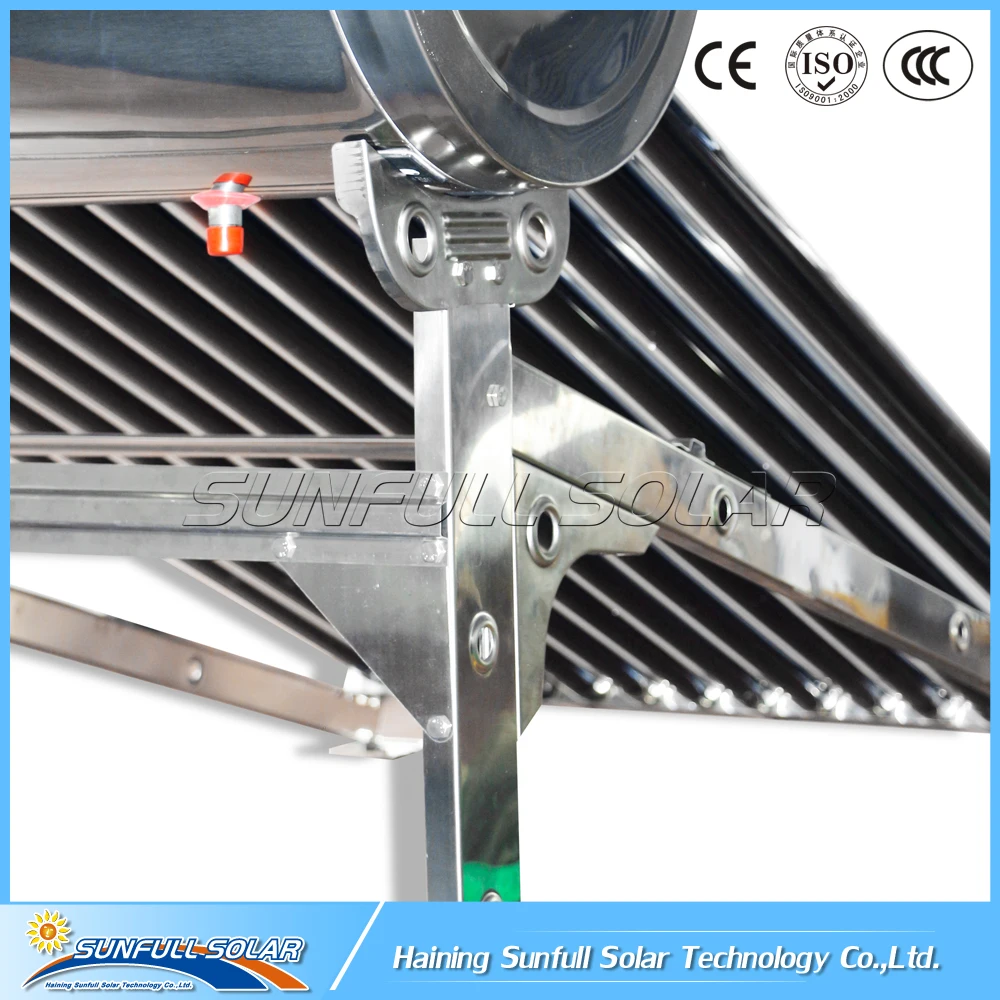

Bracket: Stainless steel 201, have several types for choose( Aluminum alloy, galvanized steel is available)

Bracket angle: 15°,20°,25°,27°,30°,35°,38°,45° all available.

Vacuum tube: 58*1800mm three target,(47*1500mm available)

Straight seam welding for inner tank, Argon arc welding for connector

Heat preservation: 72-80h
Absorption rate:≥93%,Heat radiation rate:≤6%(100°C)
We can design and produce according customers request(Have our own designer and research & development center)
MOQ: a 20'GP container
Delivery period: 7-15 days

Product Parameters

\t Model	\t Hot Water Capacity	\t Vacuum tube	\t CBM
\t SF-NPS58-8	\t 80L	\t 58-1800mm	\t 0.32m³
\t SF-NPS58-10	\t 100L	\t 58-1800mm	\t 0.39m³
\t SF-NPS58-12	\t 120L	\t 58-1800mm	\t 0.44m³
\t SF-NPS58-15	\t 150L	\t 58-1800mm	\t 0.53m³
\t SF-NPS58-18	\t 180L	\t 58-1800mm	\t 0.63m³
\t SF-NPS58-20	\t 200L	\t 58-1800mm	\t 0.69m³
\t SF-NPS58-24	\t 240L	\t 58-1800mm	\t 0.8m³
\t SF-NPS58-30	\t 300L	\t 58-1800mm	\t 0.99m³
\t SF-NPS58-36	\t 360L	\t 58-1800mm	\t 1.18m³
