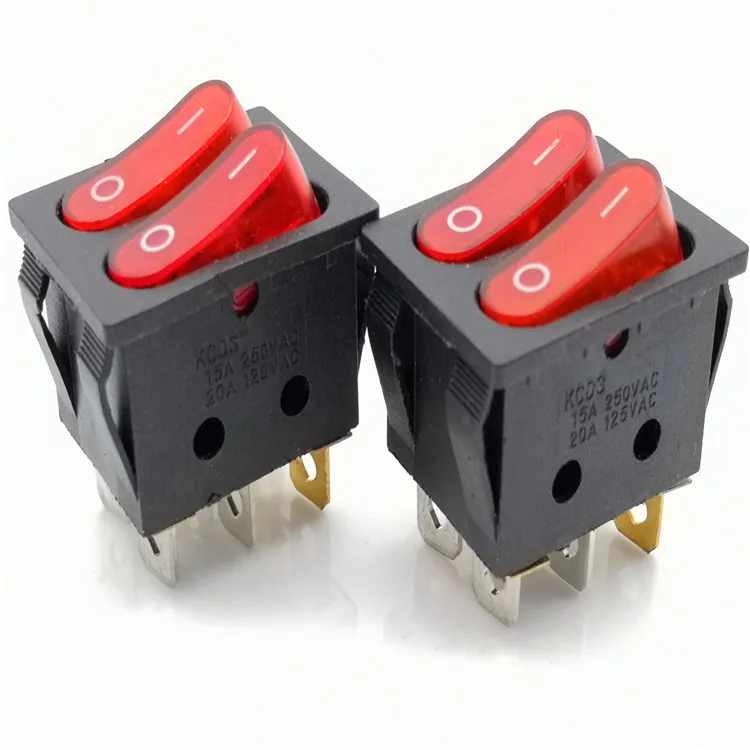

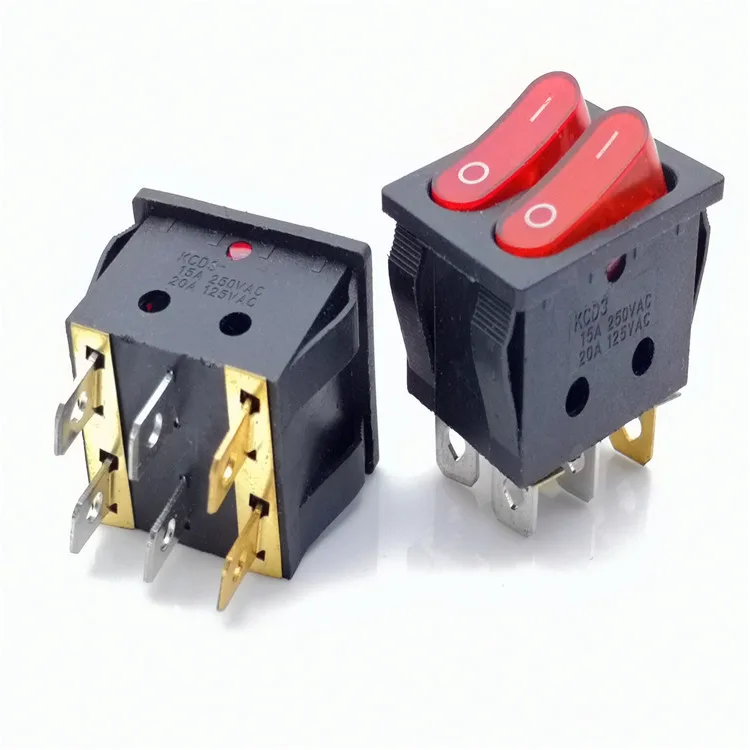

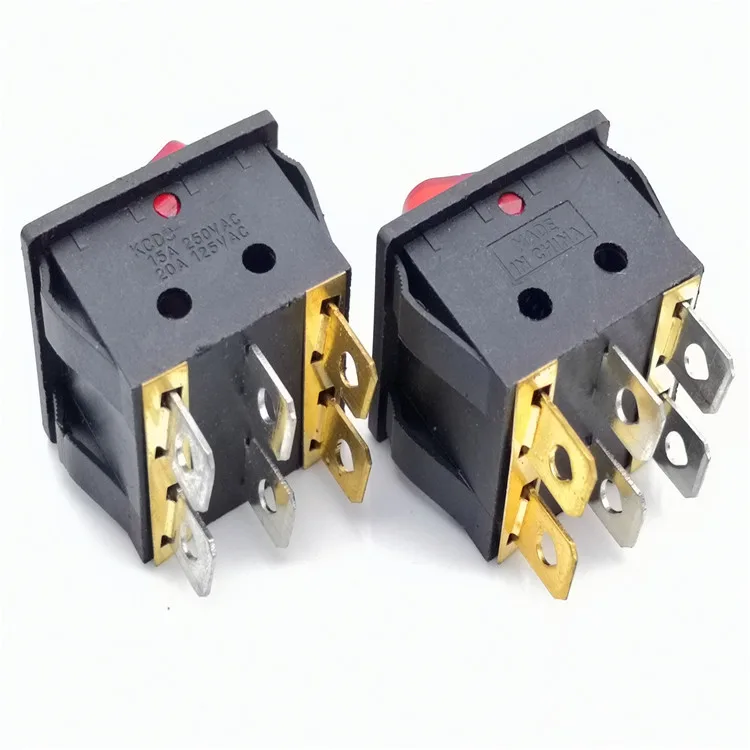

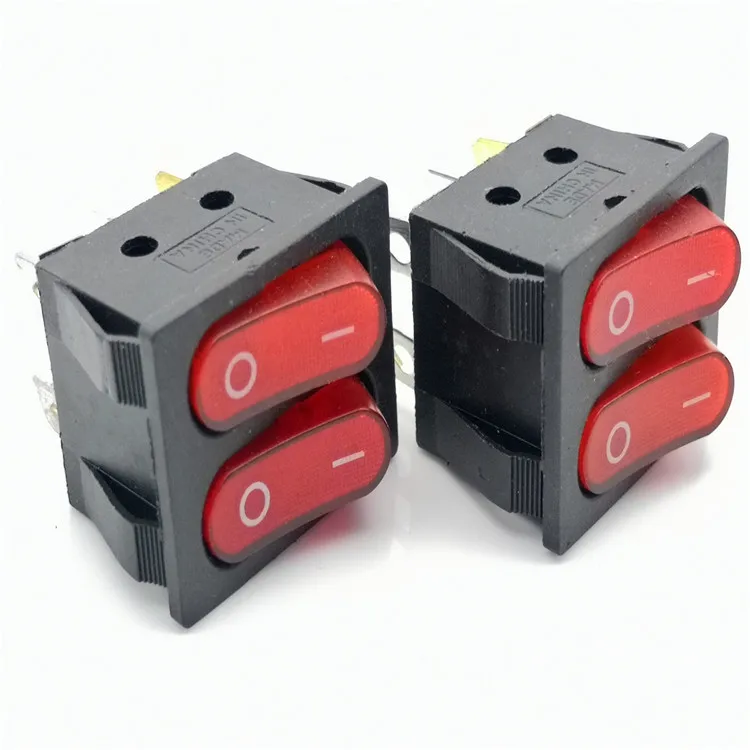

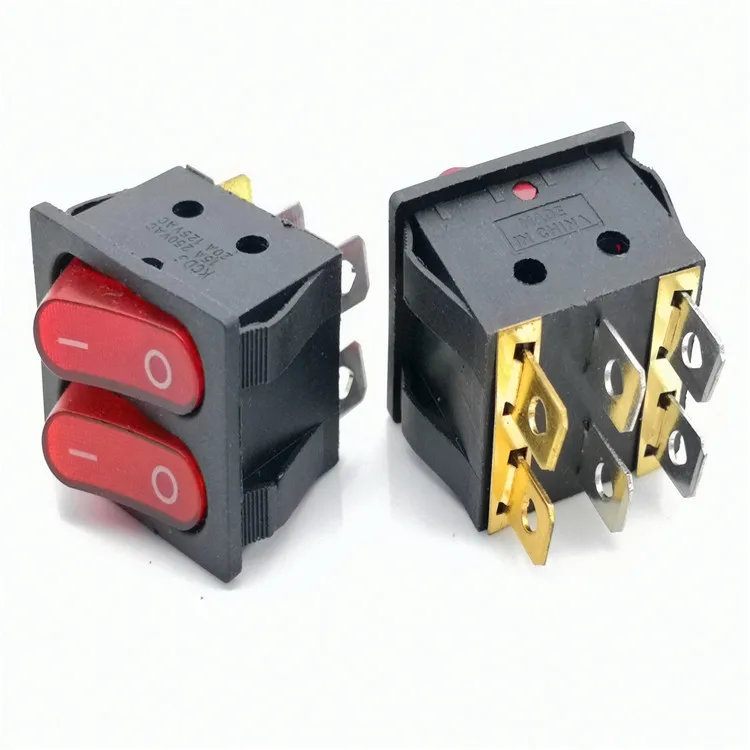

KCD4 rocker switch panel mounting
- Category: >>>
- Supplier: Yueqing Yarong Electronics Co. Ltd.
Share on (62067394296):
Product Overview
Description
KCD4 Rocker Switch:
They are widely used in household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc.
Product Information
RATING: | 15A 250VAC;20A 125VAC;35A 12VDC |
MECHANICAL LIFE: | >50000 CYCLES |
ELECTRICAL LIFE | >10000 CYCLES |
CONTACT RESISTANCE | < 50MΩ |
INSULATION RESISTANCE | >1000MΩ |
WITHSTAND VOLTAGE | >1500V/MINUTE |
AMBIENT TEMPERATURE | -10°C~+85°C |
STORAGE TEMPERATURE | -25°C~+85°C |
