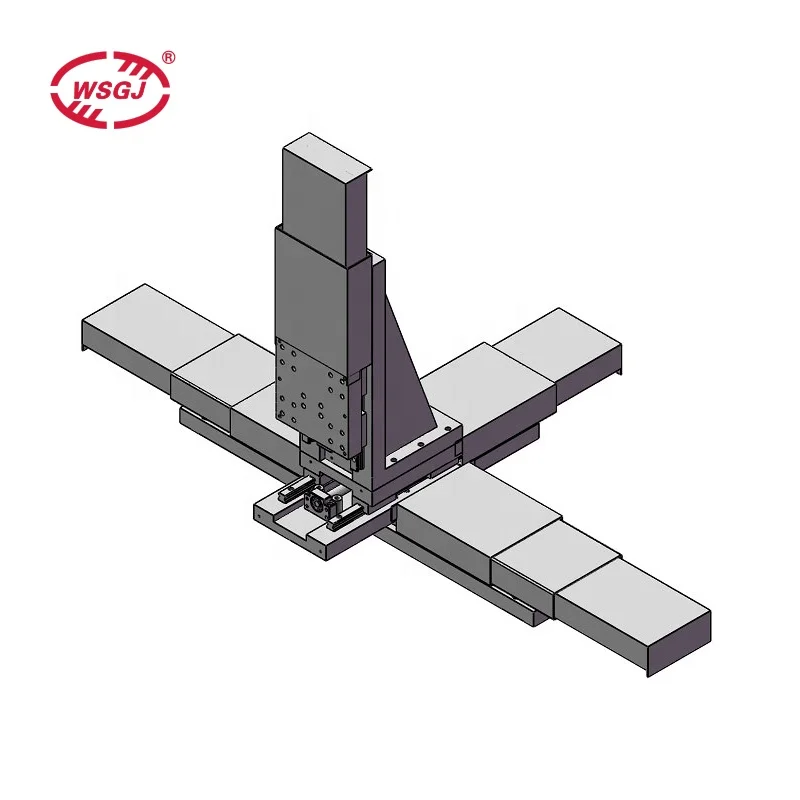

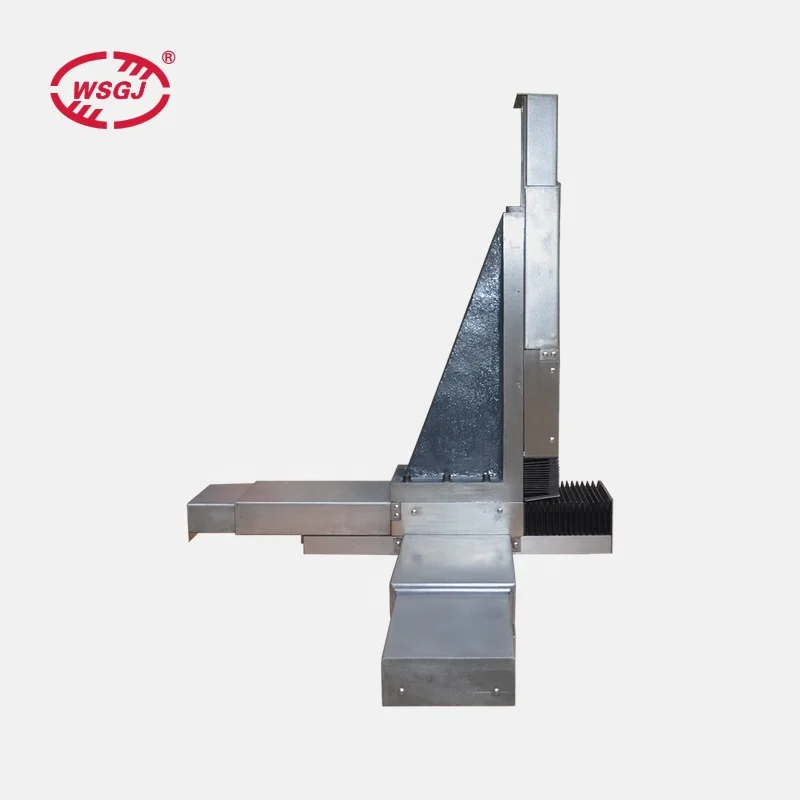

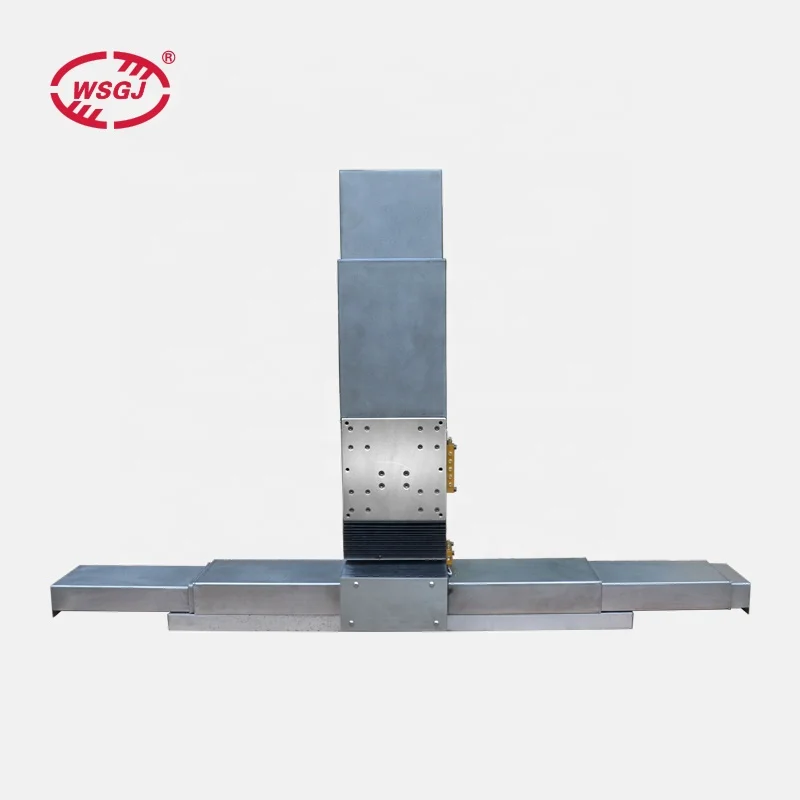

Чугунный прецизионный трехосевой линейный стол xyz cnc с шаговым серводвигателем для станка с ЧПУ
- Category: Table >>>
- Supplier: Lishui Juyou Automation Manufacture Co. Ltd.
Share on (62067396135):
Product Overview
Description
Product Description
PARAMETER
Model | WS200C-202020 | WS200C-402020 | WS200C-602020 |
Accuracy | ±0.005 mm / 100 mm | ||
Perpendicularity | 0.03 mm / 100 mm | ||
X-axis Travel | 200 mm | 400 mm | 600 mm |
Y-axis Travel | 200 mm | 200 mm | 200 mm |
Z-axis Travel | 200 mm | 200 mm | 200 mm |
A | 580 mm | 780 mm | 980 mm |
B | 590 mm | 590 mm | 590 mm |
C | 708 mm | 708 mm | 708 mm |
Table Top Mounting Hole | 6-M8 | ||
Base Mounting Hole | 6-M10 | ||
Linear Guide Specification | HGH20CA | ||
Ball Screw Specification | SFUR2005 | ||
Net Weight |
|
|
|
Material | Cast Iron | ||
Drive Type | Servo Motor / Stepper Motor | ||
Motor Mounting Base | Matching Motor Specification | ||
Electrical System | Exclusive | ||
Accessory | Protective Cover & Lubricant Passage Way | ||

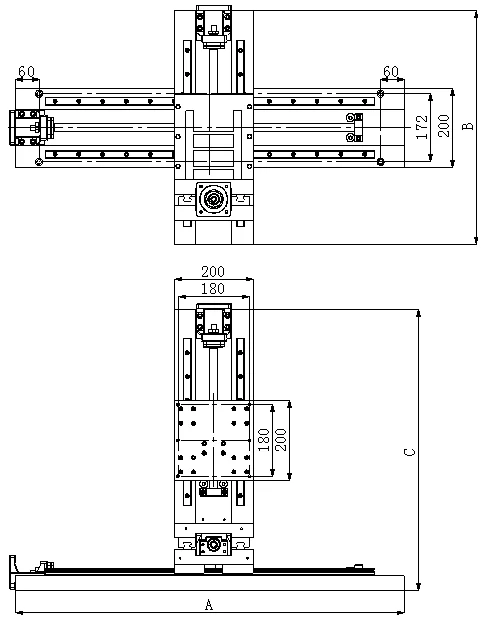

DRAWING
About Us
FAQ
Is your company a manufacturer or trading company?
We are the professional automation manufacturer founded in 2005. Welcome to visit us.
Can you provide the customization service?
Yes, we are good at customizing the products for you. We can also design the products without pay.
How to choose the suitable model of the product?
Please provide your requirements, we will recommend you the suitable product for you as soon as possible.
Can I order one set / piece?
Yes, one set / piece is ok.
what services can you provide?
Accepted Delivery Terms: FOB, CFR, CIF, CIP, DDP.
Accepted Payment Currency: USD, CNY.
Accepted Payment Type: T/T, L/C, D/P, D/A.
How to receive the quotation?
Please send us the inquiry via Alibaba or send us an email, we will provide the quotation within 24 hours.
