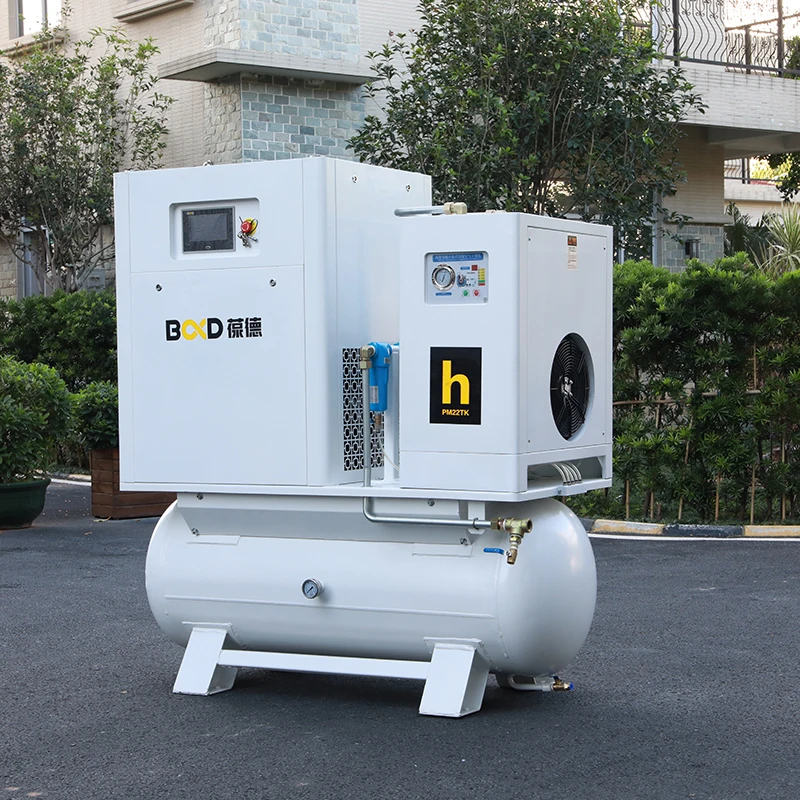

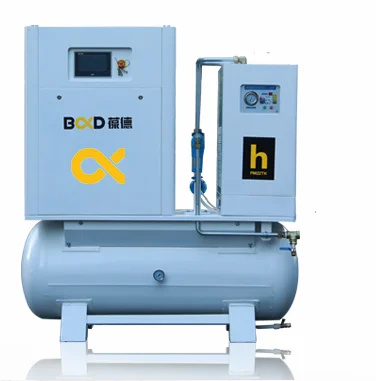

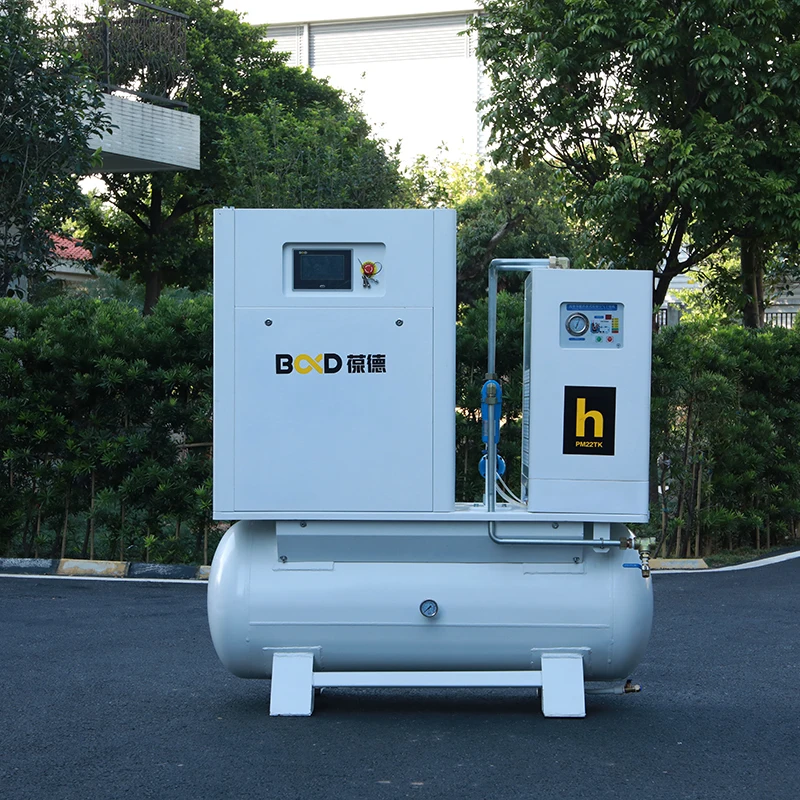

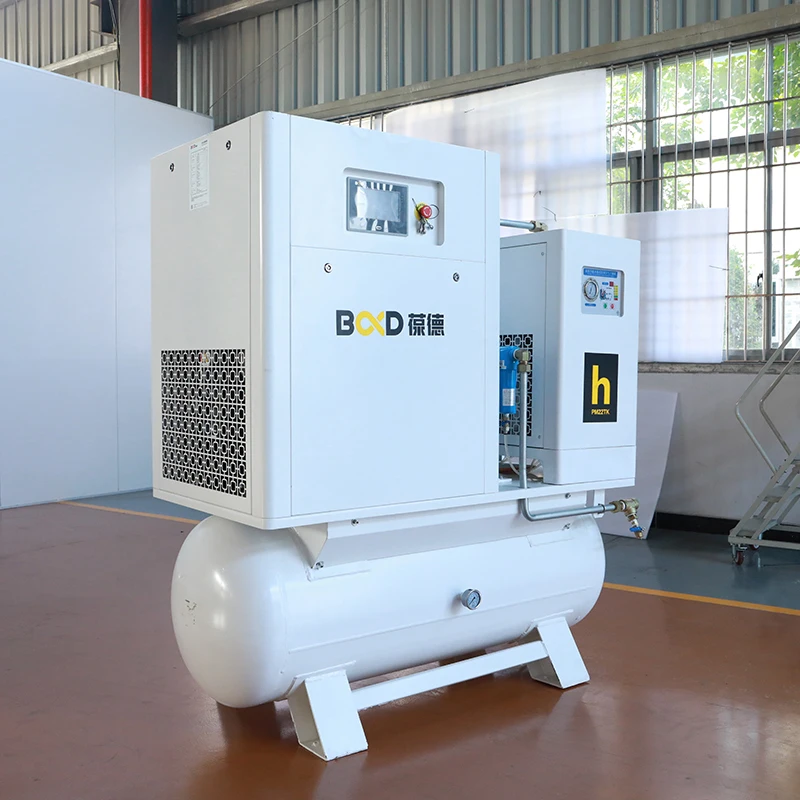

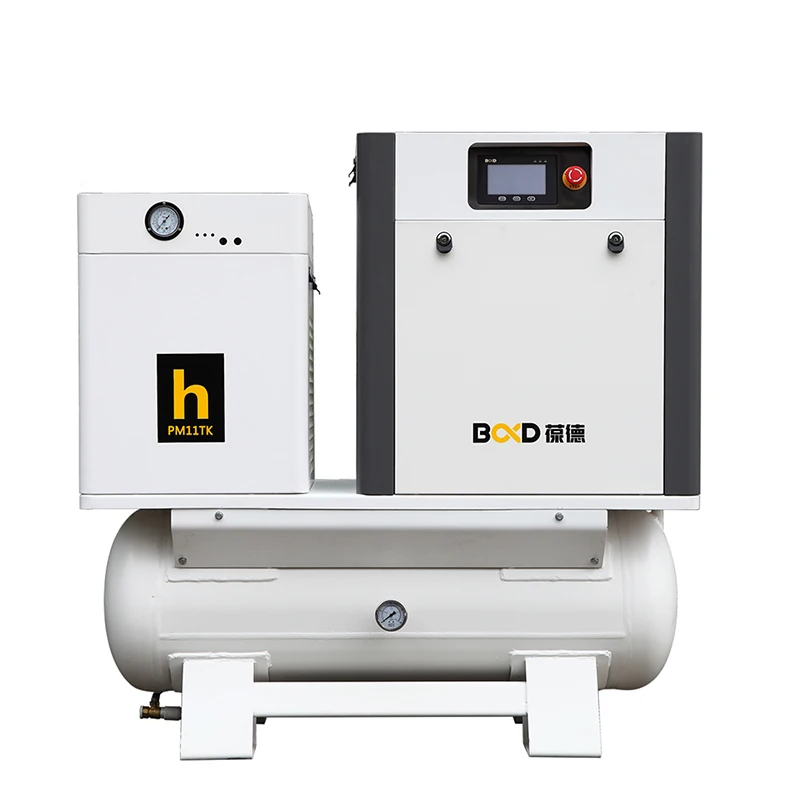

11KW 15HP PM combined type rotary screw air compressor with air dryer, fine filters and air tank for laser machine
- Category: Industrial Compressors & Parts >>>
- Supplier: Guangdong Baldor-Tech Co. Ltd.
Share on (62067398510):
Product Overview
Description
Product Name:
BALDOR 15HP/11KW Integrated Screw Air Compressor
Working Pressure:8bar ( 116psi)
Air Delivery: 1.27m3/min
Motor Power: 11kw/15hp
Type of Driving: Itegrated Driven
Type of Cooling:
Air Cooling/Water Cooling
Dimension:1592*750*1586 mm
Weight: 550kg
Output pipe Diameter: ZG1"
| Model | Working Pressure | Air Delivery | Motor Power | Type of Driving | Type of Cooling | Dimension(mm) | Weight(kg) | Output pipe Diameter | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Mpa | m3/min | kw/hp | L | W | H | |||||
| BD-11TK | 1.6 | 0.97 | 22 | Integrated Driven | Air cooling | 1592 | 747 | 1586 | 420 | ZG1" |
| BD-15TK | 1.6 | 1.27 | 15 | 1592 | 747 | 1586 | 500 | ZG1" | ||
| BD-18TK | 1.6 | 1.80 | 18.5 | 1712 | 800 | 1860 | 580 | ZG1" | ||
| BD-22TK | 1.6 | 2.30 | 22 | 1712 | 800 | 1860 | 592 | ZG11/4" | ||
Motor Efficiency Class:IE3/IE2 as per your required 415V/3PH/50HZ/60HZ, 230V/3PH/50HZ/60HZ | ||||||||||

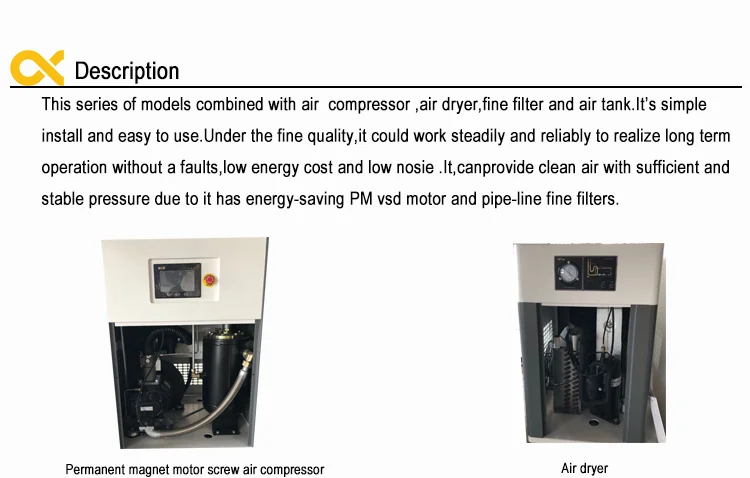

1.Integration of air compressor, air receiver, refrigerated dryer and micro-filters, easy to install
2.Avoid the trouble from equipping air receiver tank, air dryer and filters for customers
3.Avoid the trouble from the installation of pipelines
4.Avoid the trouble from the hassle of requiring multiple vendors to provide services
5.PM VSD screw compressor ensures that the working pressure is always stable.

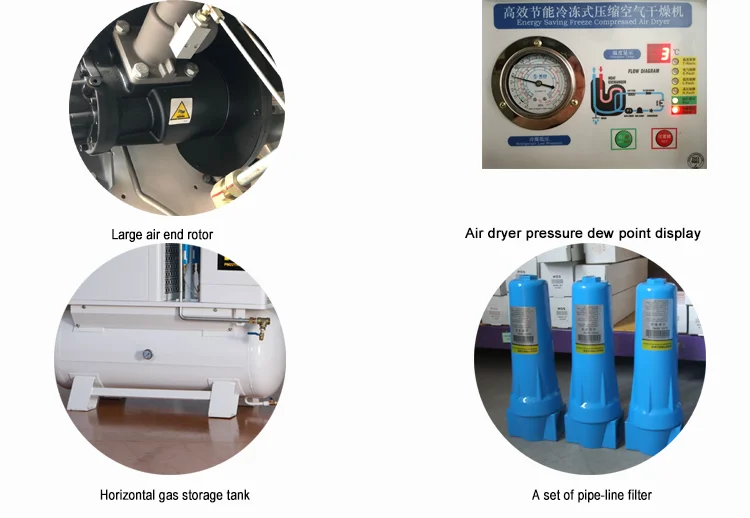

6.Efficient refrigerated dryer and 4-stage high-efficiency precision filters ensure clean compressed air with a pressure dew point as low as 2-8°C.
7.After-treatment with stainless steel pipe to avoid secondary pollution
8.The vibration-damping design with the flexible pipeline to effectively reduce vibration and noise, and the running noise is <70dB(A).
9.The start and stop of the cooling fan can be set according to the season to better control the oil temperature and avoid milk of oil.
10.Post-treatment with centralized drainage, which helps keep clean on site.
