1Ton 700KW induction melting furnace for steel iron foundry casting factory

Share on (62067456449):


Price:

Quantity:


Product Overview

Description


Product Description

Induction melting furnace for melting aluminum, copper, steel, iron,gold,silver, alloy

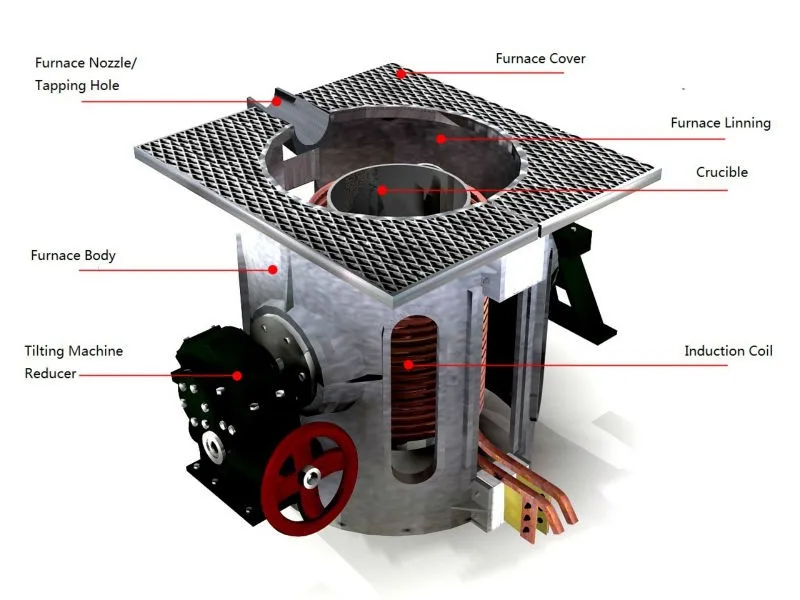

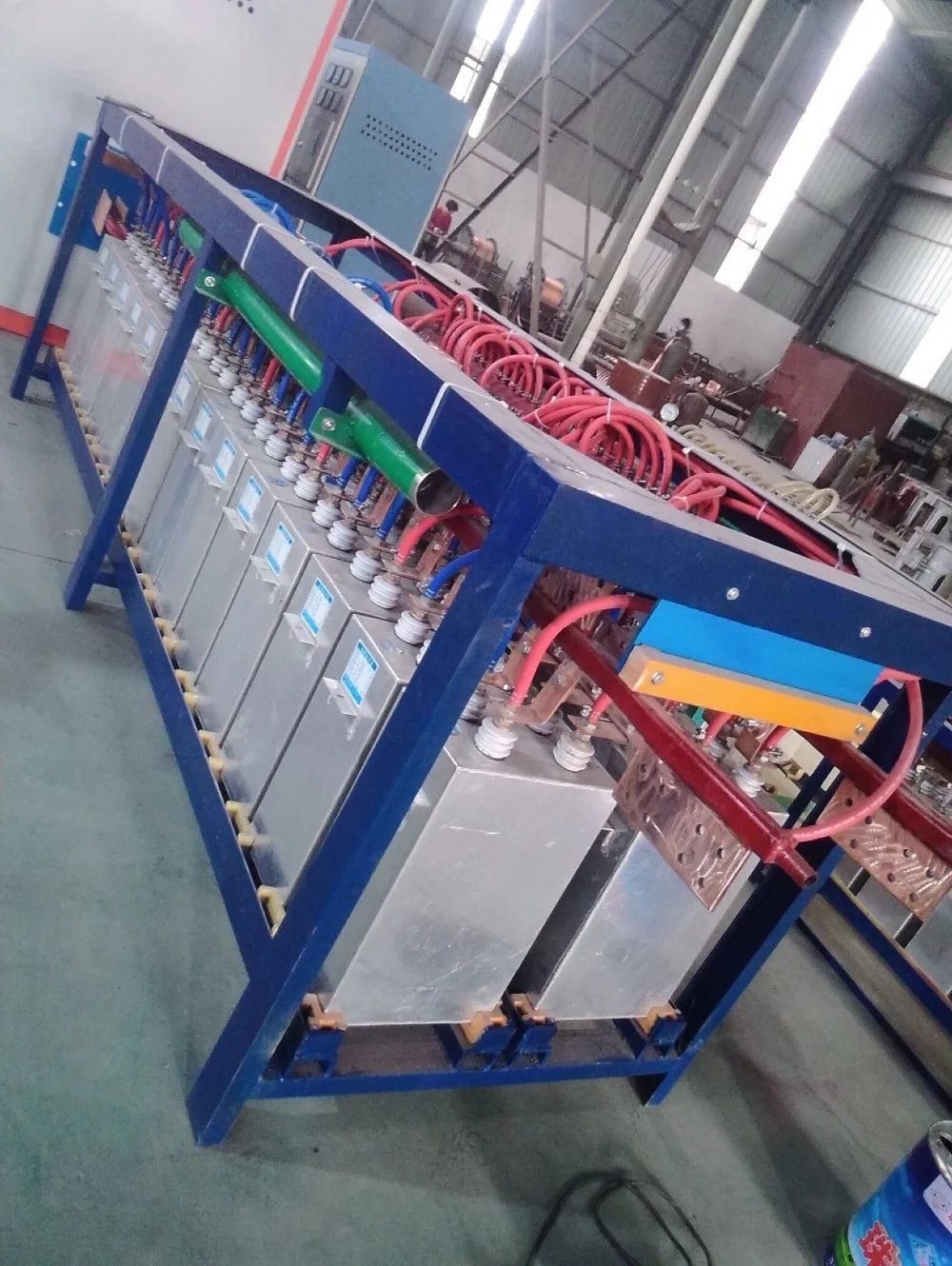

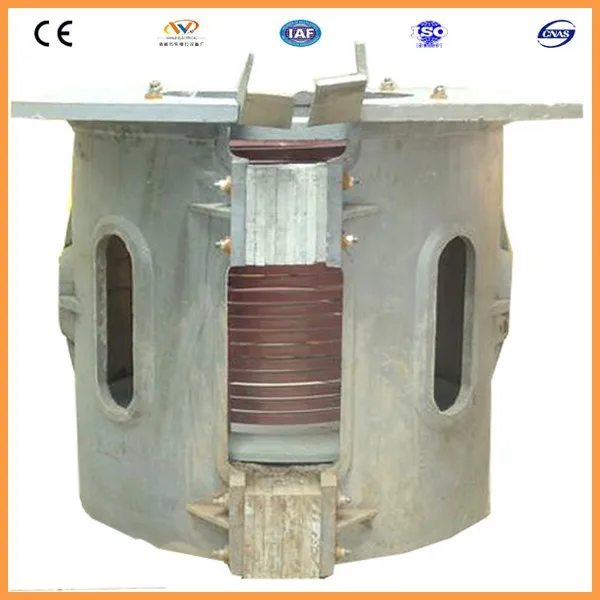

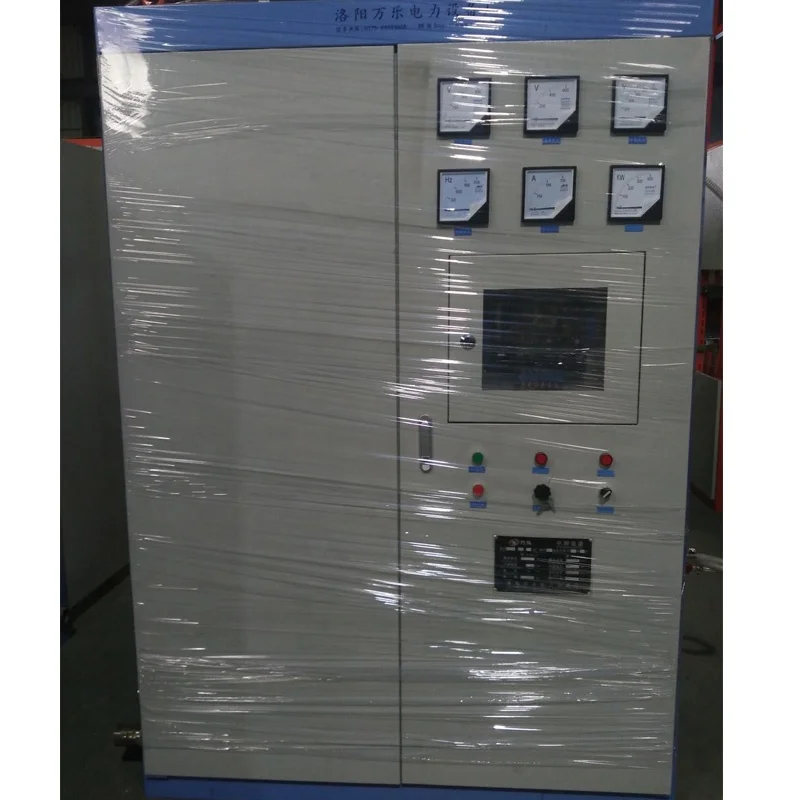

IF aluminum shell melting furnace consists of IF frequency power supply cabinet, compensation capacitor bank, reduction box, bracket, induction loop and so on. It is mainly used for smelting cast iron, stainless steel, alloy steel, non-ferrous metals, including heavy metals (such as copper, lead) and precious metals (such as gold, silver) and so on. It is used in metallurgy industry, foundry industry, nonmetal smelting and other industries.
1.Melting capacity range from 0.1ton to 50 tons
2.The best melting equipment with professional team,.
3.Superior technology, energy saving, high efficiency and safe operation.
Industrial steel/copper and other metral scrap melting furnace for 0.1t 1t 2t 5t 10t 20t 50t


We provide customized service and technical support for you, leave an inquiry now!
WeChat/Whatsapp:+86 18736289710 Emma

Advantages:

1) Constant power output, speedy melting, good electricity saving efficiency.
2) Zero-voltage sweep-frequency style start, adapts to requirement of frequently start.
3) Comprehensive protection functions, such as overcurrency protection, overvoltage protection, current-limiting protection, voltage-limiting, water-break protection, and default protection, equipment runs reliably under premise of melting speed guarantee.
4) Easy to operate, suitable for all casting process.
5) Aluminum Shell, lower in purchase cost.

Technical Specs

Technical Specifications of steel melting furnace

\t
Capacity
\t
Power  (KW)
\t
Frequency
      (HZ)
\t
Transformer

\t
Voltage

\t
Rectifier Pulse
\t
Inductor Voltage
\t
Melt Rate
\t
Power Consumption
(KWh/t)
\t
100KG
\t
160KW
\t
1200HZ
\t
160KVA
\t
3φ380V
\t
3phase 6pulses
\t
750V
\t
0.13T
\t
750kwh/T
\t
250KG
\t
200KW
\t
1000HZ
\t
200KVA
\t
3φ380V
\t
3phase 6pulses
\t
750V
\t
0.28T
\t
750kwh/T
\t
350KG
\t
250KW
\t
1000HZ
\t
250KVA
\t
3φ380V
\t
3phase 6pulses
\t
750V
\t
0.4T
\t
750kwh/T
\t
500KG
\t
300KW
\t
1000HZ
\t
315KVA
\t
3φ380V
\t
3phase 6pulses
\t
1600V
\t
0.6T
\t
750kwh/T
\t
750KG
\t
500KW
\t
800HZ
\t
630KVA
\t
3φ380V
\t
3phase 6pulses
\t
1900V
\t
0.9T
\t
630kwh/T
\t
1T
\t
700KW
\t
1000HZ
\t
800KVA
\t
6φ660V
\t
6phase 12pulse
\t
1700V
\t
1.1T
\t
680kwh/T
\t
1.5T
\t
1000
  KW
\t
700HZ
\t
1250KVA
\t
6φ660V
\t
6phase 12pulse
\t
2800V
\t
1.7T
\t
680kwh/T
\t
2T
\t
1500
 KW
\t
500HZ
\t
2500KVA
\t
6φ800V
\t
6phase 12pulse
\t
2600V
\t
2.3T
\t
630kwh/T
\t
3T
\t
2000
 KW
\t
500HZ
\t
2500KVA
\t
6φ950V
\t
6phase 12pulse
\t
3200V
\t
3.5T
\t
630kwh/T
\t
5T
\t
2500
 KW
\t
450HZ
\t
3150KVA
\t
6φ1250V
\t
6phase 12pulse
\t
3400V
\t
5.3T
\t
620kwh/T
\t
8T
\t
5000
 KW
\t
350HZ
\t
6300KVA
\t
6φ1250V
\t
6phase 12pulse
\t
3600V
\t
8T
\t
530kwh/T
\t
10T
\t
6000
 KW
\t
400HZ
\t
8000KVA
\t
6φ1250V
\t
6phase 12pulse
\t
3600V
\t
10T
\t
550kwh/T
\t
15T
\t
10000
 KW
\t
300HZ
\t
2*5500KVA
\t
6φ1250V
\t
12phase 24pulse
\t
3600V
\t
15T
\t
500kwh/T
\t
20T
\t
11000
 KW
\t
200HZ
\t
2*6300KVA
\t
2*
6φ1250V
\t
12phase 24pulse
\t
4000V
\t
20T
\t
500kwh/T
Supply Scope

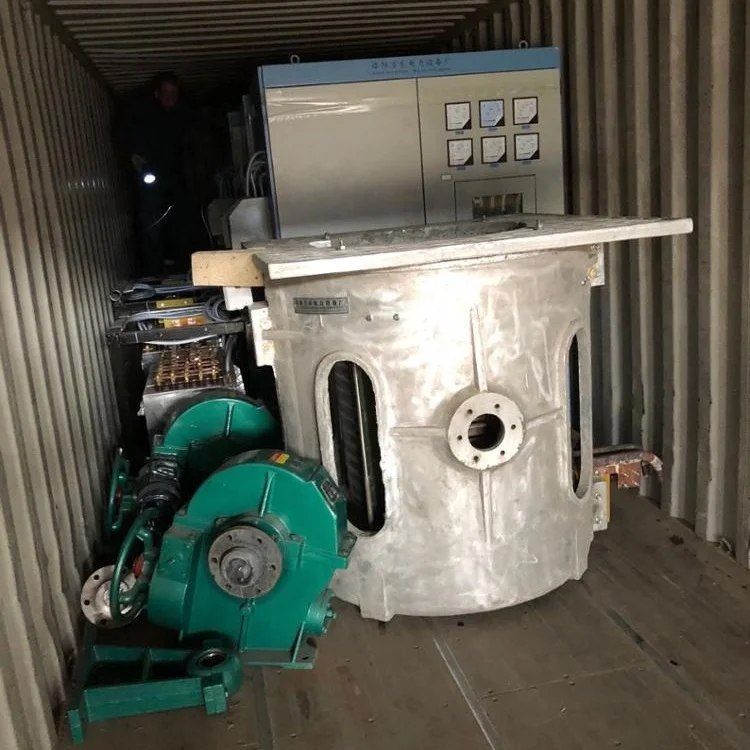

Packing & Delivery
FAQ

1 How can i choose the suitable one?
Just tell us the detailed requirements online or by mail/qq / wechat, then we will recommend you the suitable product .
2 Can you customize the product?
Yes, with our own professional designers, we can customize any products to meet any of your requirements
3 What is the advantage to choose your product?
We are a professional melting furnace manufacturer in mainland with more than 20 years' experience. We offer customers with pretty competitive price but absolutely top quality.
4 Are you a manufacturer or a trading company?
We are a manufacturer of melting furnace products,we have been in this line for more than 20 years.
5 What kind of industry can your induction melting furnace/machine meet?
The involved industries could be the metal melting process for casting, including steel,copper, aluminum, gold, silver, lead, tin,all kinds of alloys and so on. The heat treatment process including metal brazing, metal rods or bars through heating for forging, metal bending, metal quenching, etc.
6 Our works are not professional on the MF induction melting furnace, how can we solve that?
Don't worry, our engineers will go and assist in installation and training until your works can operate on their own.
7 What should we do if our machine breaks down, how could you help us?
During the warranty period under all normal usage, once the breakdown occurs, we will provide the free parts to users (including shipping). After the warranty period, we offer the free preventive maintenance within two years(excluding materials). Preventive maintenance includes: twice per year, one day's device follow-up per time, the routine examination of equipment, the training at the customer's site; The time and the specific content of preventive maintenance work will be agreed by both parties; engineers can be dispatched to debug on the site as your requirement.
8 What term of payment will you accept ?
TT L/C or others as your requirement.
9 How to deliver?
By Express by Sea or other ways as your requirement.
