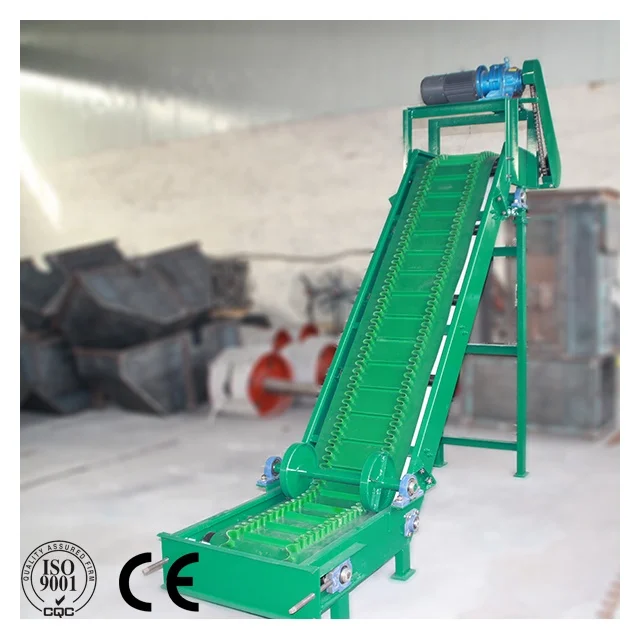

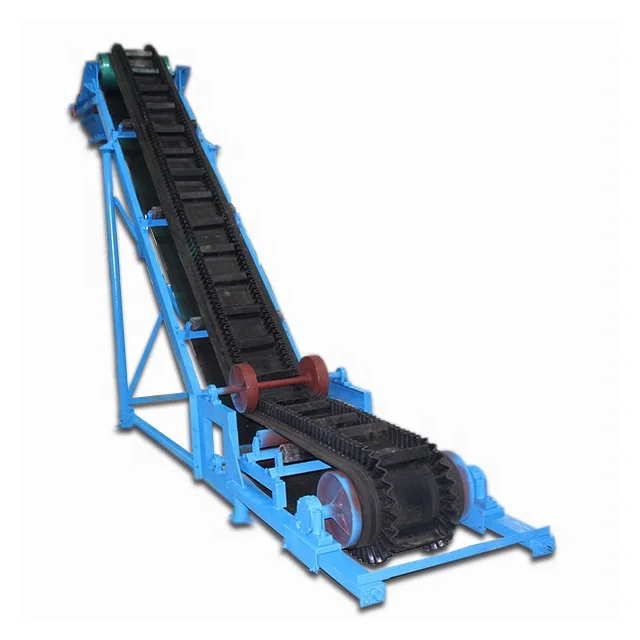

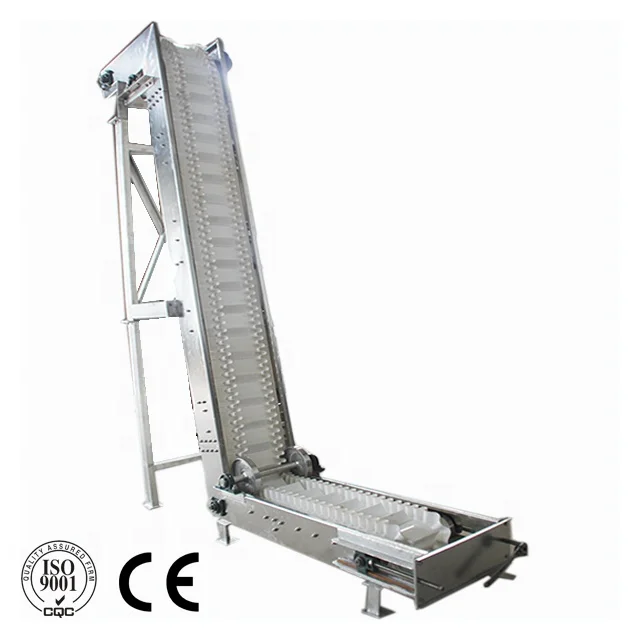

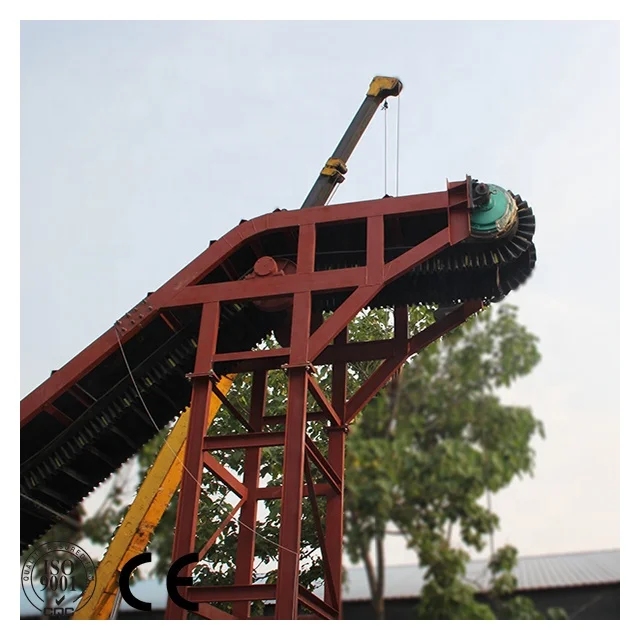

Professional Factory Customized Inclined Sidewall Rubber Belt Conveyor for Coal Conveying
- Category: >>>
- Supplier: Henan Green Eco-Equipment Co. Ltd.
Share on (62067471133):
Product Overview
Description

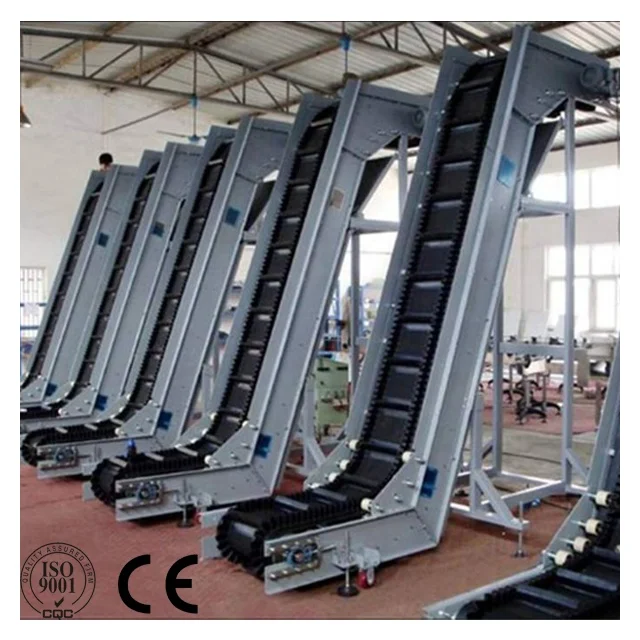

Professional Factory Customized Inclined Sidewall Rubber Belt Conveyor for Coal Conveying
Product Description
Inclined sidewall rubber belt conveyor (also called large dip corrugated belt conveyor) with a large inclination (90 degrees vertical) transport. So that it is ideal equipment for achieving large angle conveying. Widely adopted in underground mining projects, open pit mining, large dump trucks and other parties.

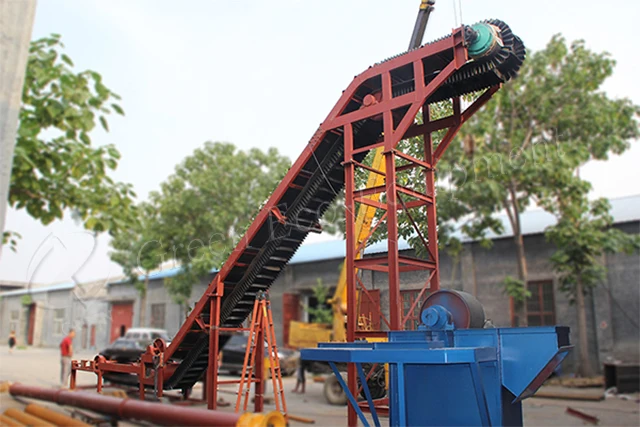

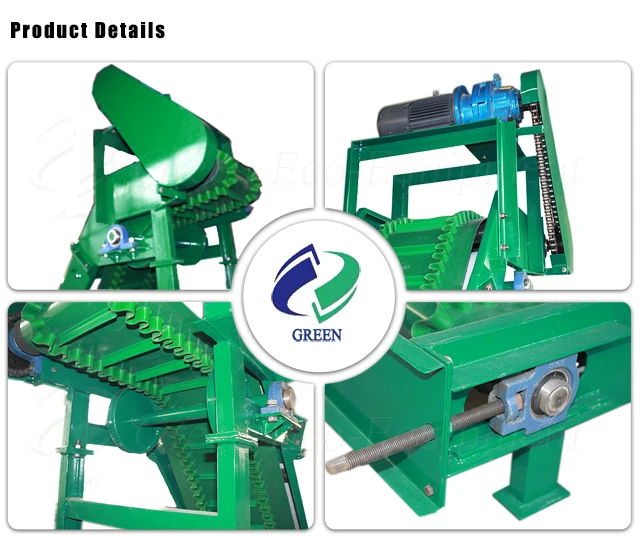

Details Show
Technical Parameter
Belt width | Flange high | Baffle spacing | Angle of inclination | ||||||||||
30° | 40° | 50° | 60° | 70° | 90° | ||||||||
mm | mm | mm | Delivery value(m3/h) speed of belt=1m/s | ||||||||||
500
| 80 | 126 | 39 | 31 | 25 | 20 | 17 | 10 | |||||
120 | 252 | 52 | 40 | 32 | 26 | 21 | - | ||||||
160 | 378 | 65 | 52 | 42 | 34 | 28 | 17 | ||||||
800 | 120 | 129 | 99 | 76 | 60 | 49 | 40 | - | |||||
160 | 252 | 136 | 110 | 88 | 72 | 58 | 36 | ||||||
200 | 378 | 148 | 114 | 91 | 74 | 61 | 37 | ||||||
1200 | 160 | 252 | 223 | 180 | 144 | 117 | 96 | 59 | |||||
200 | 378 | 250 | 193 | 154 | 126 | 103 | 63 | ||||||
240 | 378 | 342 | 280 | 224 | 183 | 149 | 91 | ||||||
300 | 504 | 410 | 352 | 290 | 237 | 198 | 118 | ||||||
1400 | 200 | 252 | 299 | 231 | 185 | 151 | 123 | 75 | |||||
240 | 378 | 422 | 345 | 276 | 225 | 184 | 113 | ||||||
300 | 348 | 512 | 440 | 363 | 296 | 241 | 148 | ||||||
400 | 504 | 780 | 709 | 634 | 549 | 451 | 277 | ||||||
Company Information
Henan Green Eco-Equipment Co., Ltd. is located in Economic Development Zone, Xinxiang, registered capital of 10 million RMB. We have a group of professional research, engineering, production, sales and after-sales service team serve all around the world clients.Green Eco-Equipment offers a full range of screening, crushing and conveying equipment, which involves vibrating screen, belt conveyor, bucket elevator, screw conveyor, scraper conveyor and related spare parts. What's more, Green Eco-Equipment is always cooperating with the world-class suppliers to ensure the product's high quality, including ABB, SEW, SIEMENS, etc.
Certifications
FAQ
1. Are you factory or trading company?
We are 15+ years manufacturing experience conveyor factory.
2. Do you provide design for us?
Yes, we will provide engineer design service before order.
3. What's the delivery time?
15-25 days.
4. Do you provide installation service?
Yes, we will send our engineer go to your working site to guide installation and commissioning.
5. Payment terms?
TT, LC etc.
