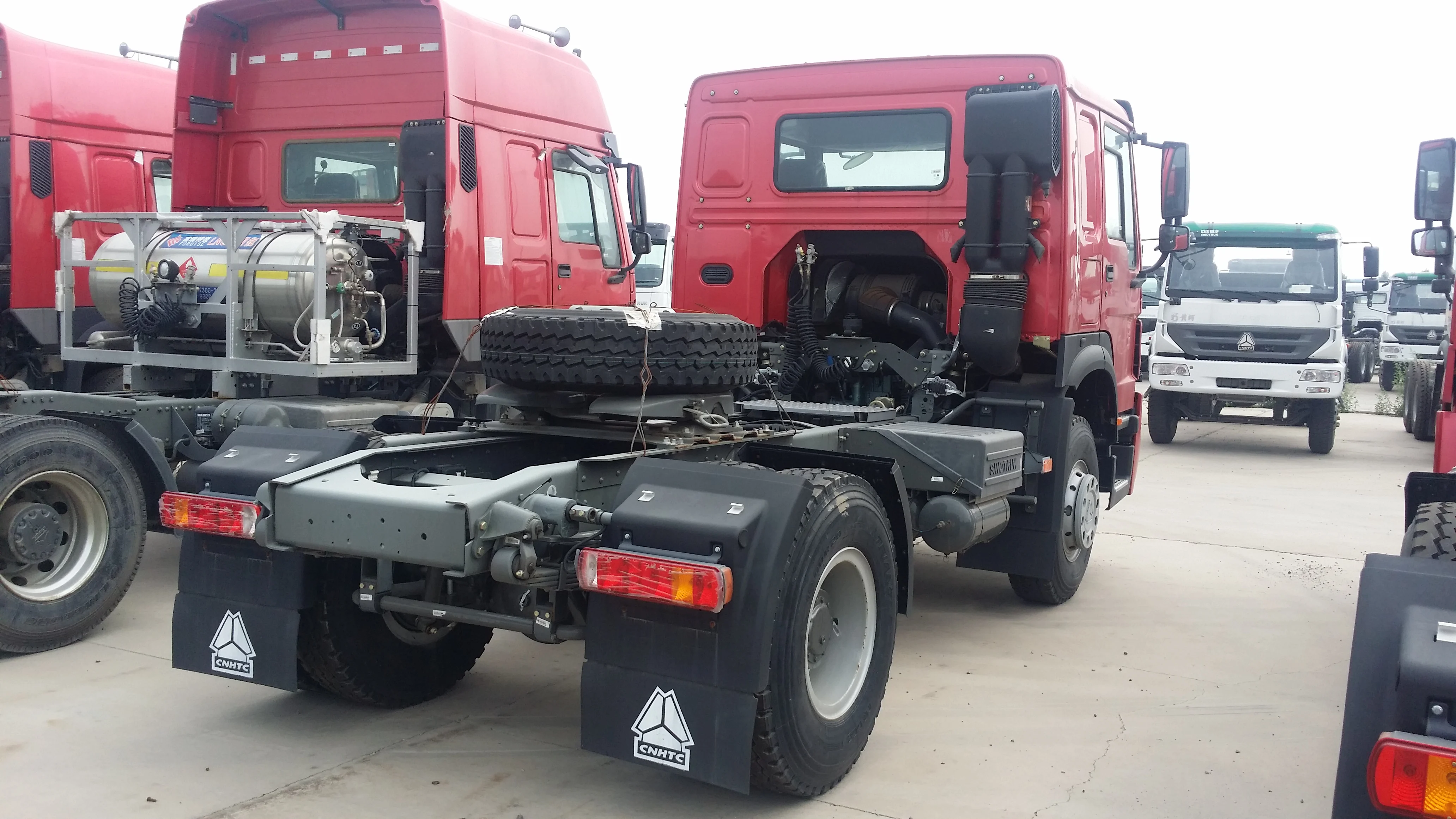

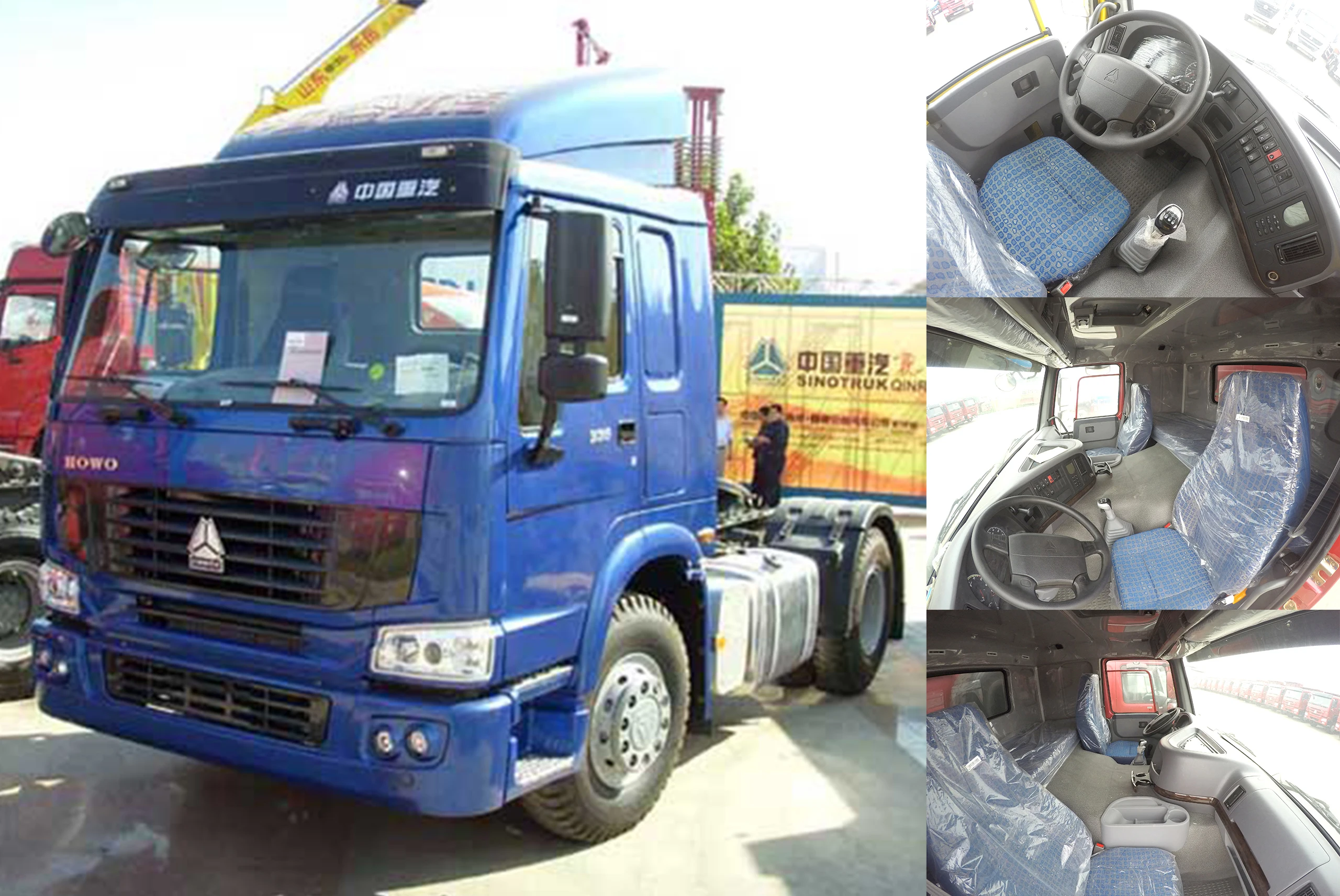

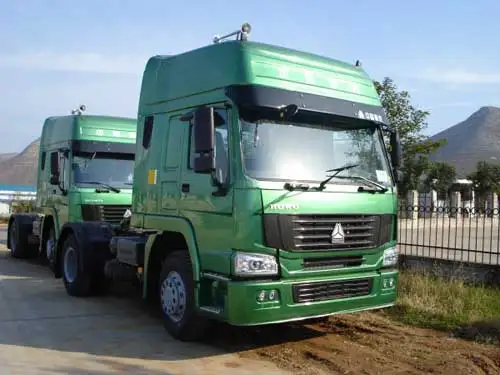

China Manufacturer Sinotruk HOWO 420 tractor truck

SPECIFICATION

Dimension(Lx W xH)(unloaded)(mm)

6125×2496×3730

Approaching angle/Departure angle(°)

14/42

Overhang(front/rear) (mm)

1500/1000

Wheel base (mm)

3600

Max speed(km/h)

102

Curb weight(kg)

6800

Engine(Steyr technology, made in China)

Model

WD615.96,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection

Fuel type

Diesel

Power, max(kw/rpm)

336HP

Emission

EUROII

Fuel tanker capacity(L)

400L aluminum oil tank

Transmission

Model

HW19712, 12 speeds forward and 2 reverse

Brake system

Service brake

Dual circuit compressed air brake

Parking brake

spring energy, compressed air operating on rear wheels

Steering system

Model

ZF8198

Front axle

HF7

Rear axle

ST16

Tire

295/80R22.5

Electrical system

Battery

2X12V/165Ah

Alternator

28V-1500kw

Starter

7.5Kw/24V

Cab

HOWO 76 New face cab(one bed,with air conditioner), all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers.
