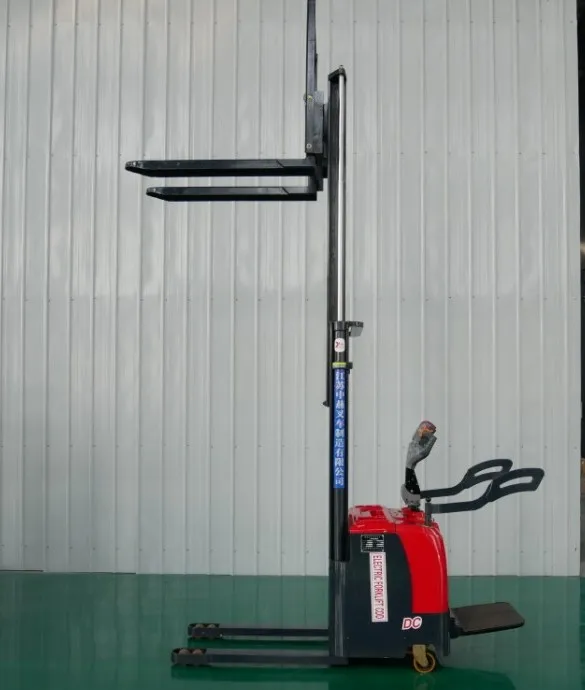

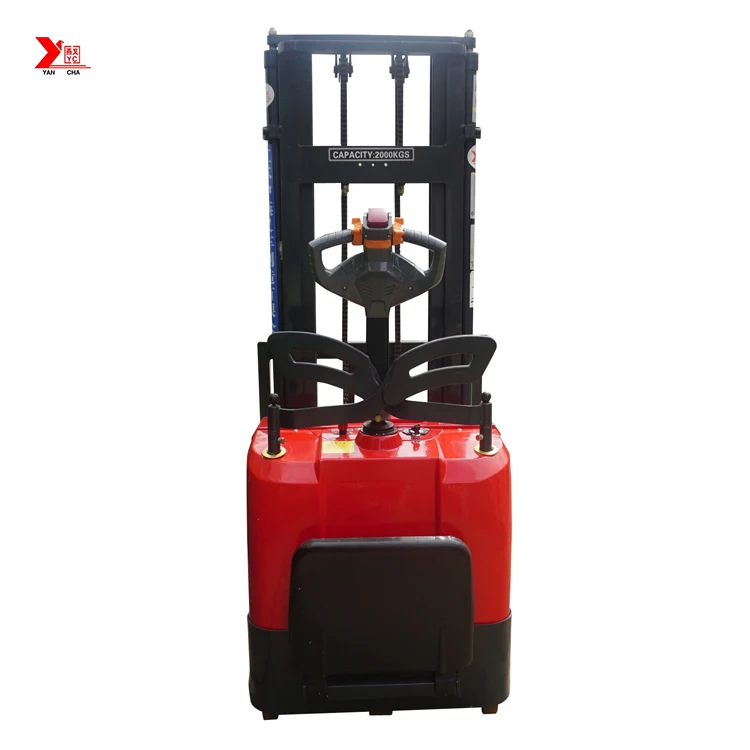

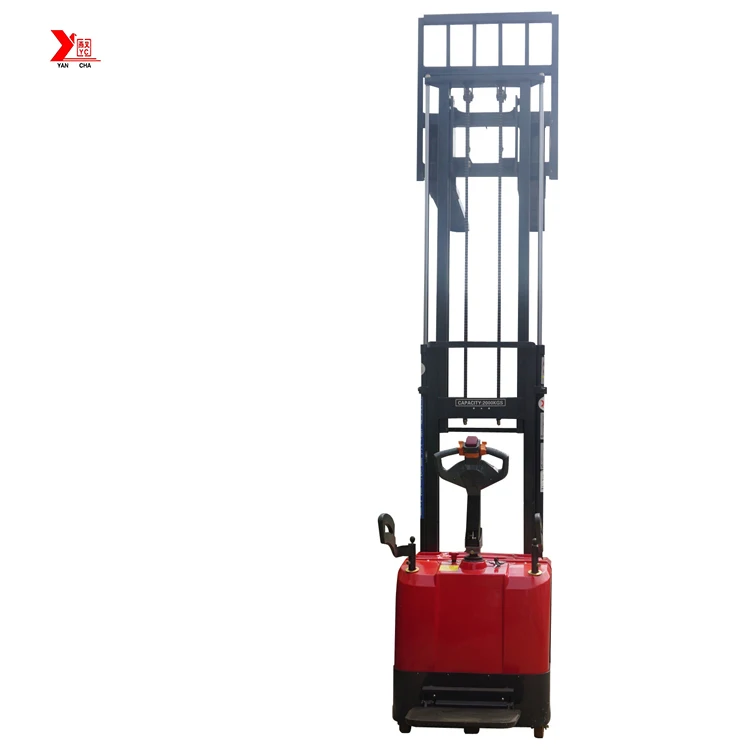

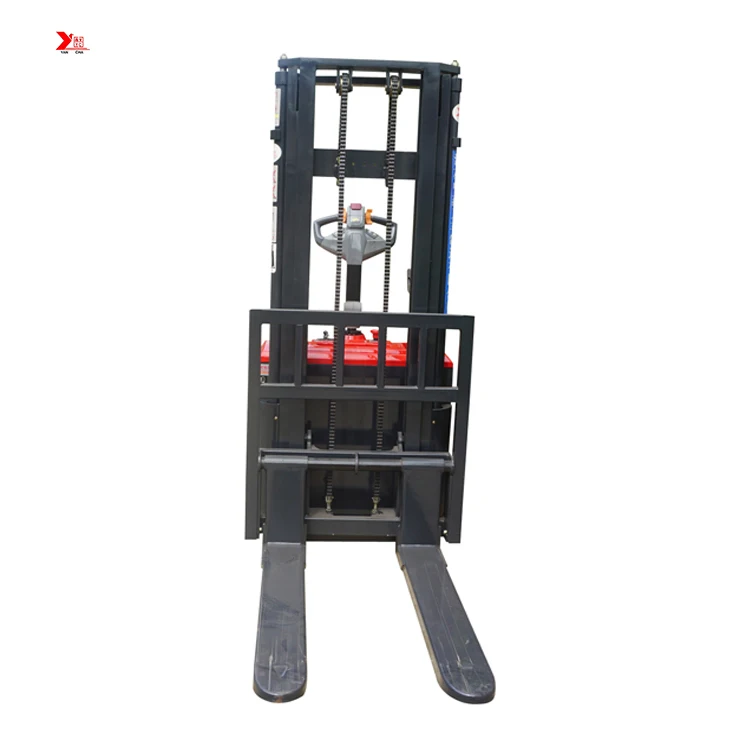

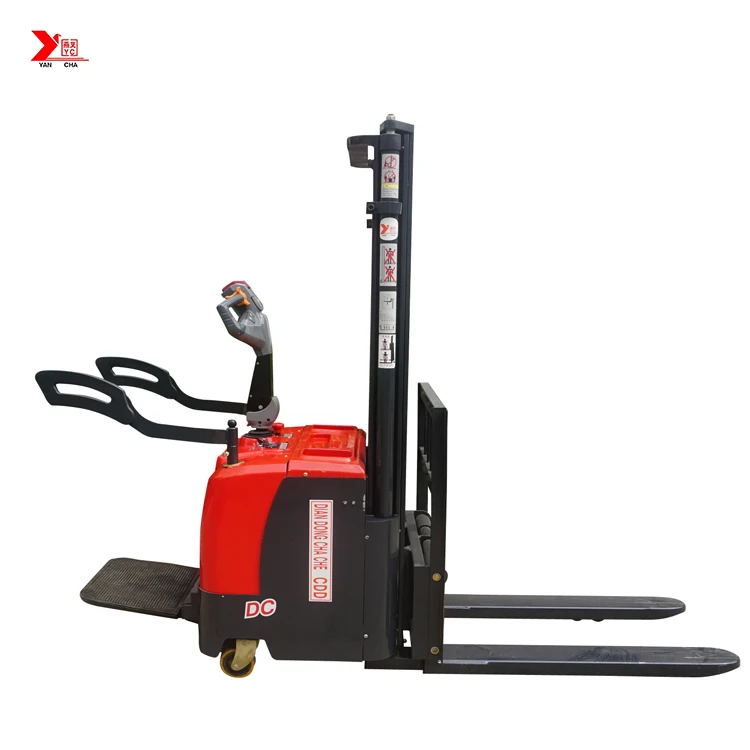

1.5 ton full electric stacker forlift with powerful battery

Product Overview

Description

1.5 ton full electric stacker forlift with powerful battery



 1.5 ton full electric stacker forlift with powerful battery



Model Parameter	CDD1030	CDD1530	CDD2030
Load Capacity(Kg)	1000	1500	2000
Lift Height(m)	3000	3000	3000
Load Center (mm)	500	500	500
Fork Length (mm)	1070	1070	1070
Lowest height(mm)	25	25	25
Manipulation Way	Handle	Handle	Handle
Tyres	Nylon/PU	Nylon/PU	Nylon/PU
Dimension of Driving Wheel	250*80	250*80	250*80
Speed at Full Load km/h	5	5	5
Lifting Speed at full Load mm/sec	90	85	80
Speed Control Way	Stepless Speed Regulator	Stepless Speed Regulator	Stepless Speed Regulator
Door Frame Tilt Angle °	/	/	/
Gradient at full Load °	10	8	8
Battery V/Ah	24/180	24/180	24/180
Working Time(for reference) (h)	8	7	7
Driving Motor (kw)	1.2	1.2	1.5
Lifting Motor (kw)	2.2	2.2	3
The Min. Turning Inner Radius (mm)	1250	1250	1250
L X W X H Dimension (mm)	2000*860*2080	2000*860*2080	2000*860*2080
weight(kg)	680	700	750
lifting Height at each weight (mm)	1600/2000/2500/3000/3500
Height of Door Frame (mm)	2080/1600/1850/2080/2350

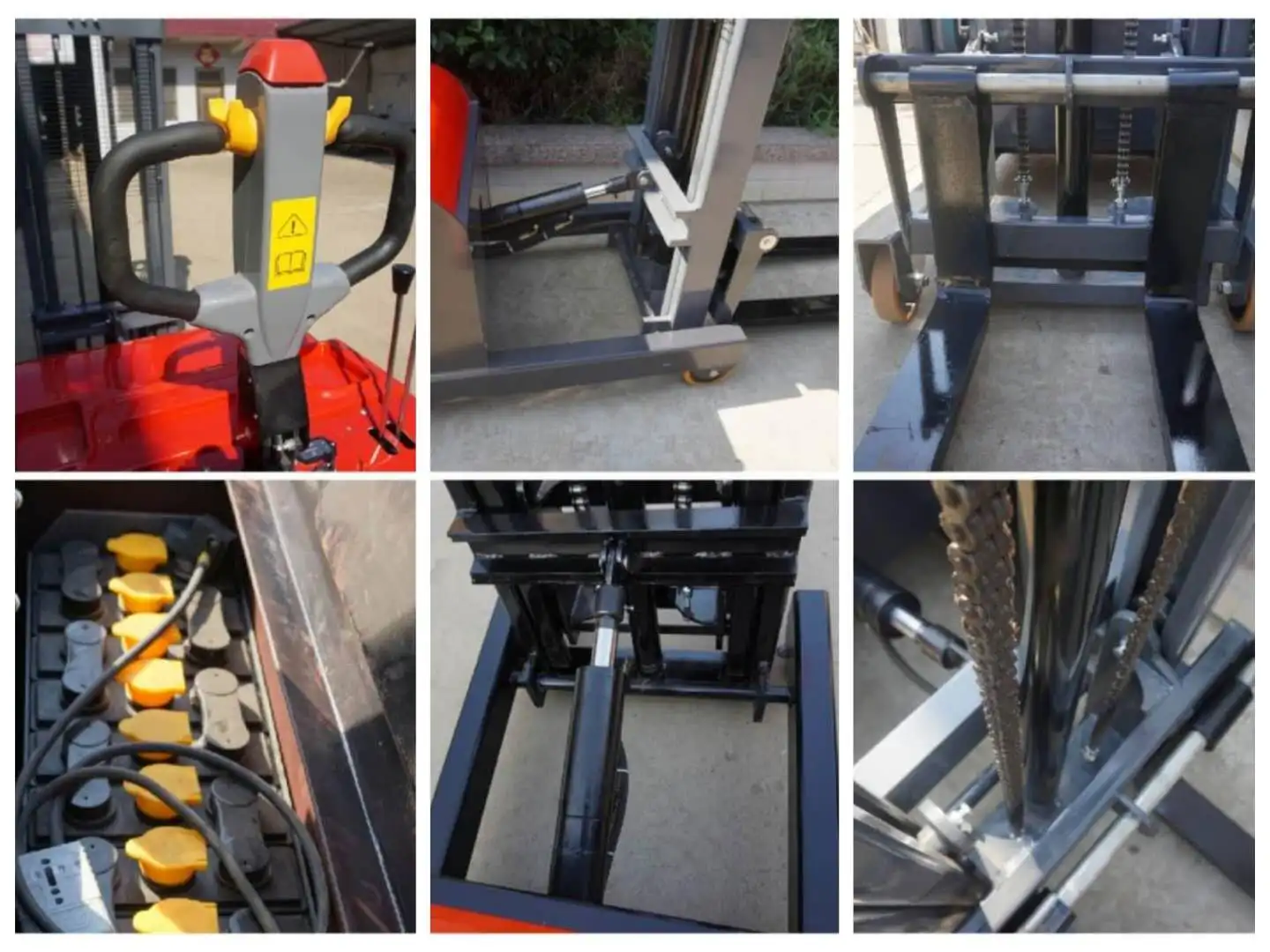

Product Show

1.     Adopt imported motor to output strong traction and power so that it can still walk steadily on rough road and slope.

2.     Adopt powerful hydraulic motor to supply more torque so as to make the truck lift and drop steadily.

3.     More safe and confortable braking system.

4.     Equipped with combined idler wheel with high strength and low deformation degree.

5.     Equipped oil cylinder on the back to make a broaden sight.

6.     Flow-limiting valve can adjust drop speed of portal frame. It can prevent portal frame from dropping fast even though the oil pipe explodes, and guarantee the safety of operator.

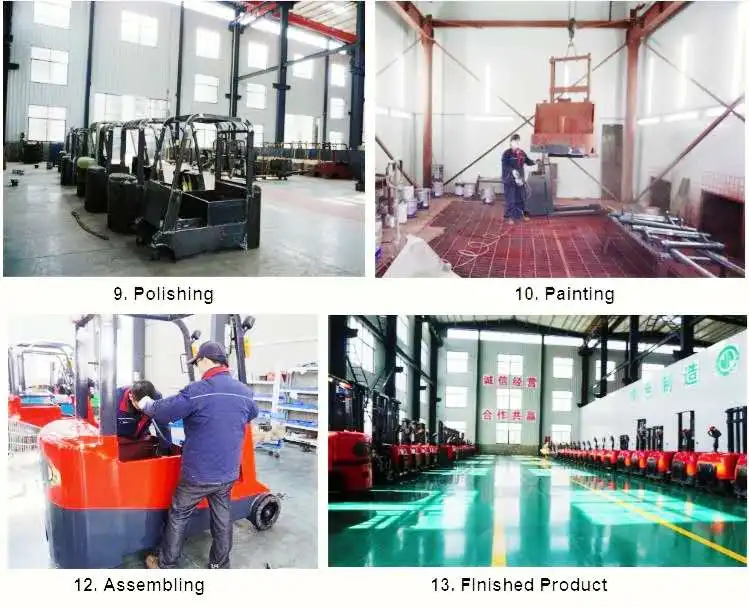

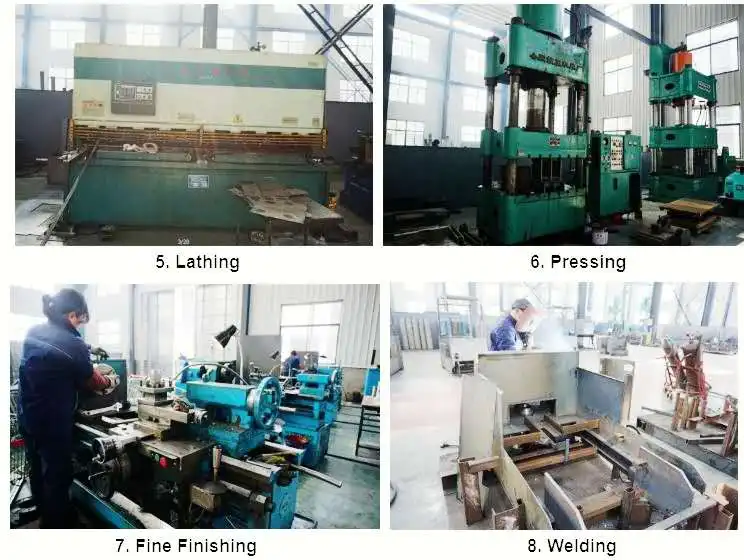

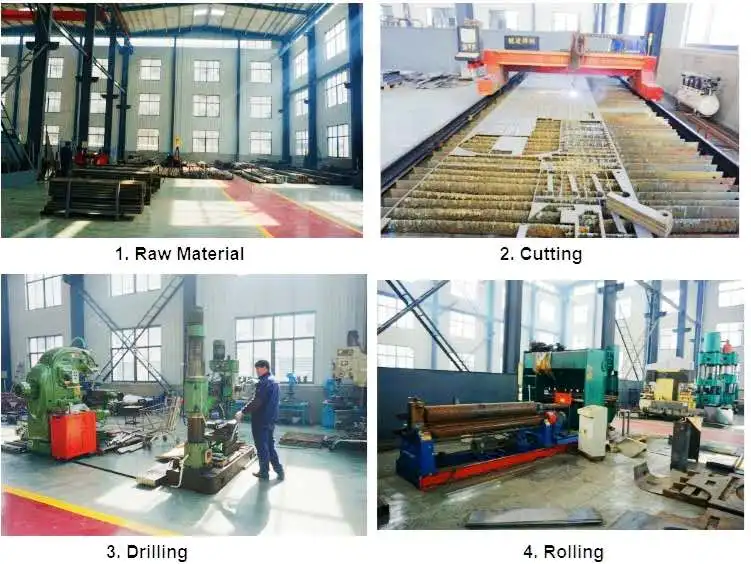

                                Production Process



1. Located in Taixing Jiangsu province, with a 10+ years' professional experiences in forklift field
2. covering an area of 21,800 centiare.
3. Supply standard & customized design and manufacture for electric forklift, semi-electric forklift, reach forklift, manual forklift, electric stacker, hand pallet truck etc.
4. A complete set of quality control measures before delivery
5. Great after-sale services



Presale Service: We provide professional suggestions for different type of cargos and different apllication places;

After-sale services: We supply technical support via video and free accessories damaged during delivery.

Warranty Time: 1 YEAR, SIX Months for battery.
