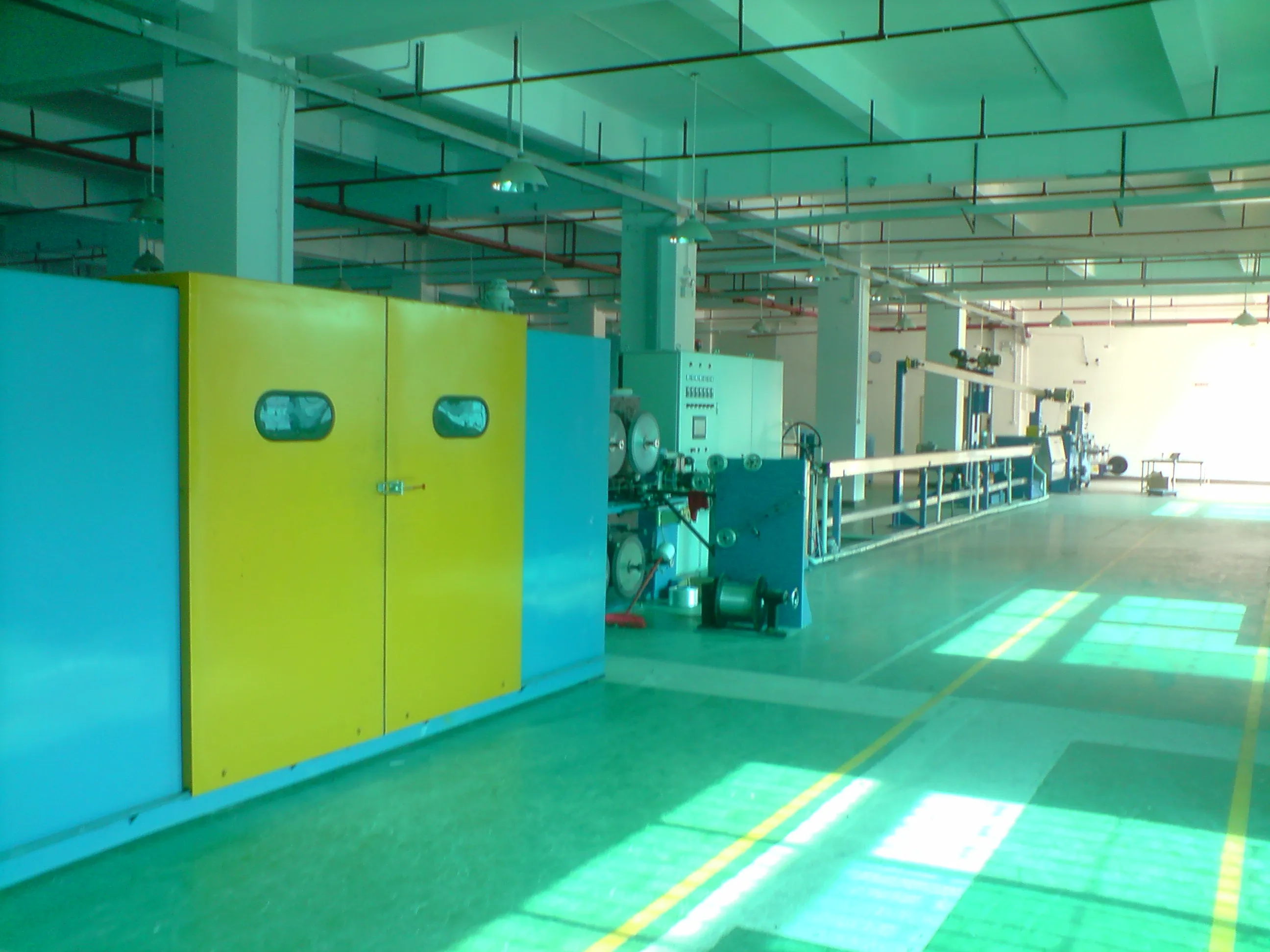

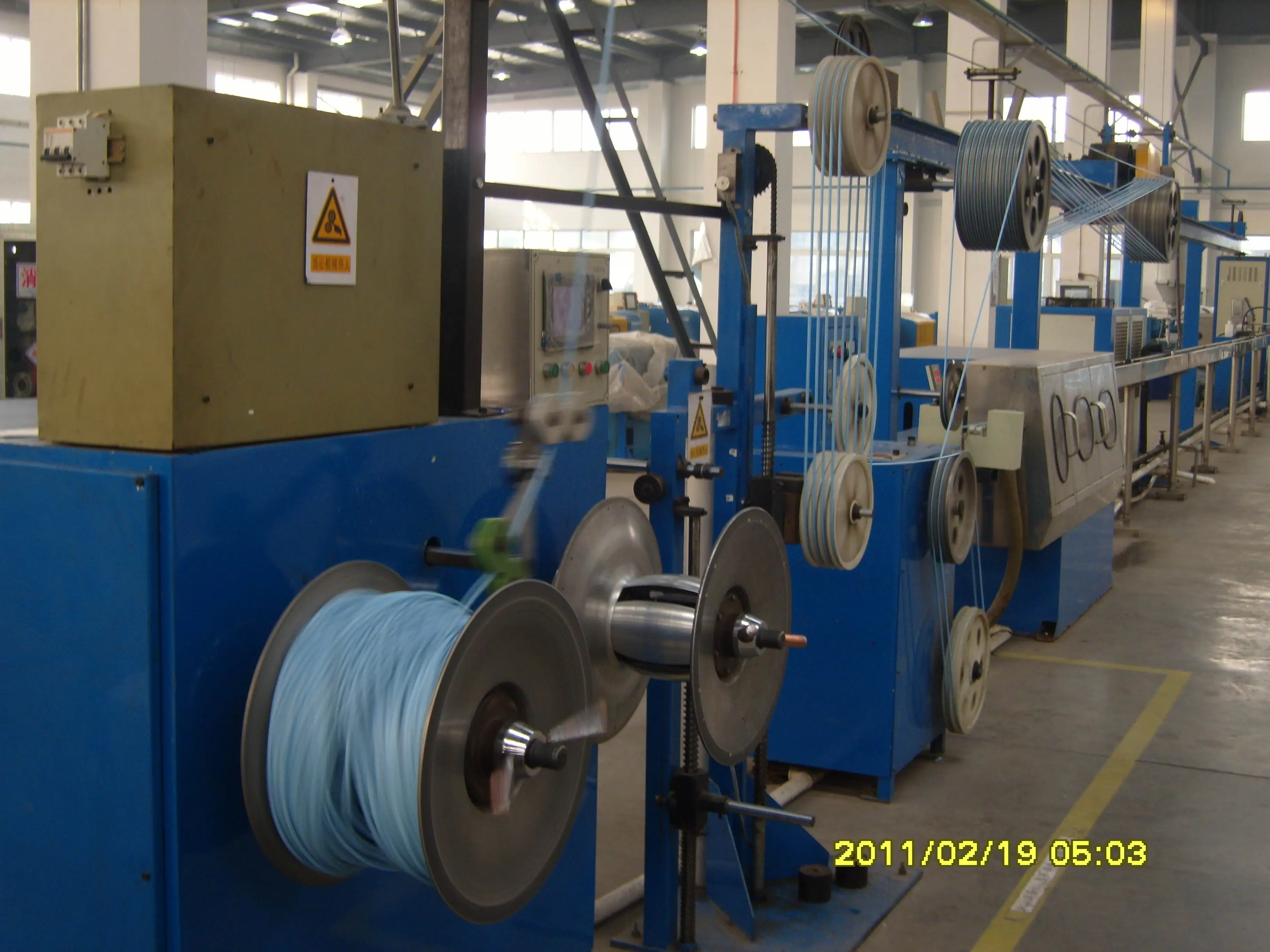

Physical Foaming Coaxial Cable Data Cable Extrusion Production Machine

I. Instructions of Use

This production line is used for 4 high quality data cables in series, which are integrated with sheathing and loop forming. It is especially suitable for unshielded 4p, 5E/6/7 cables, and 4 pairs of FTP5e and 6 pairs of cable sheathing and loop forming production lines. It saves manpower, materials and energy, and reduces the transfer links. To a large extent, it improves the production efficiency.

II. Composition of Production Line Equipment

Number, Name, Number (Set)

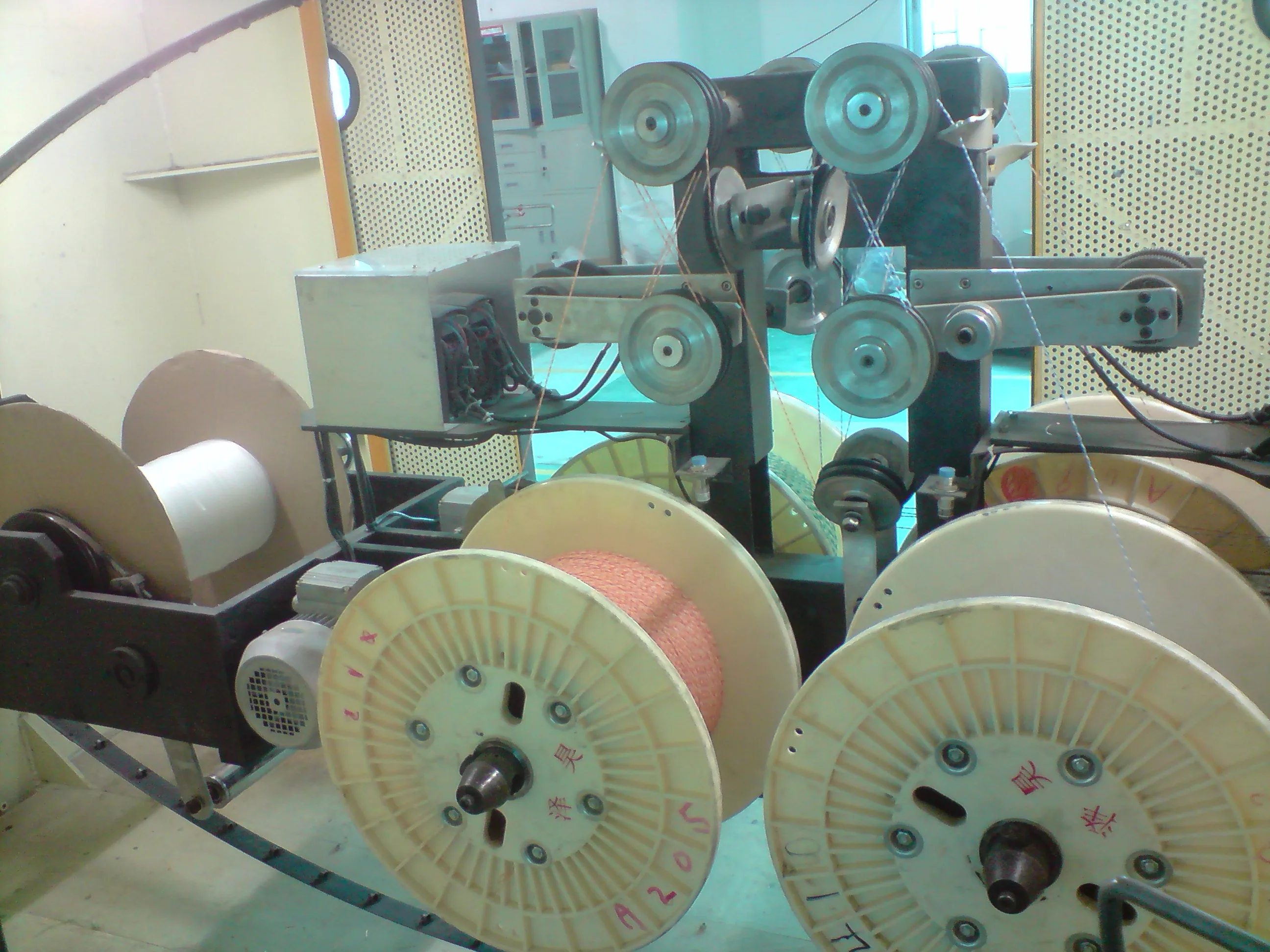

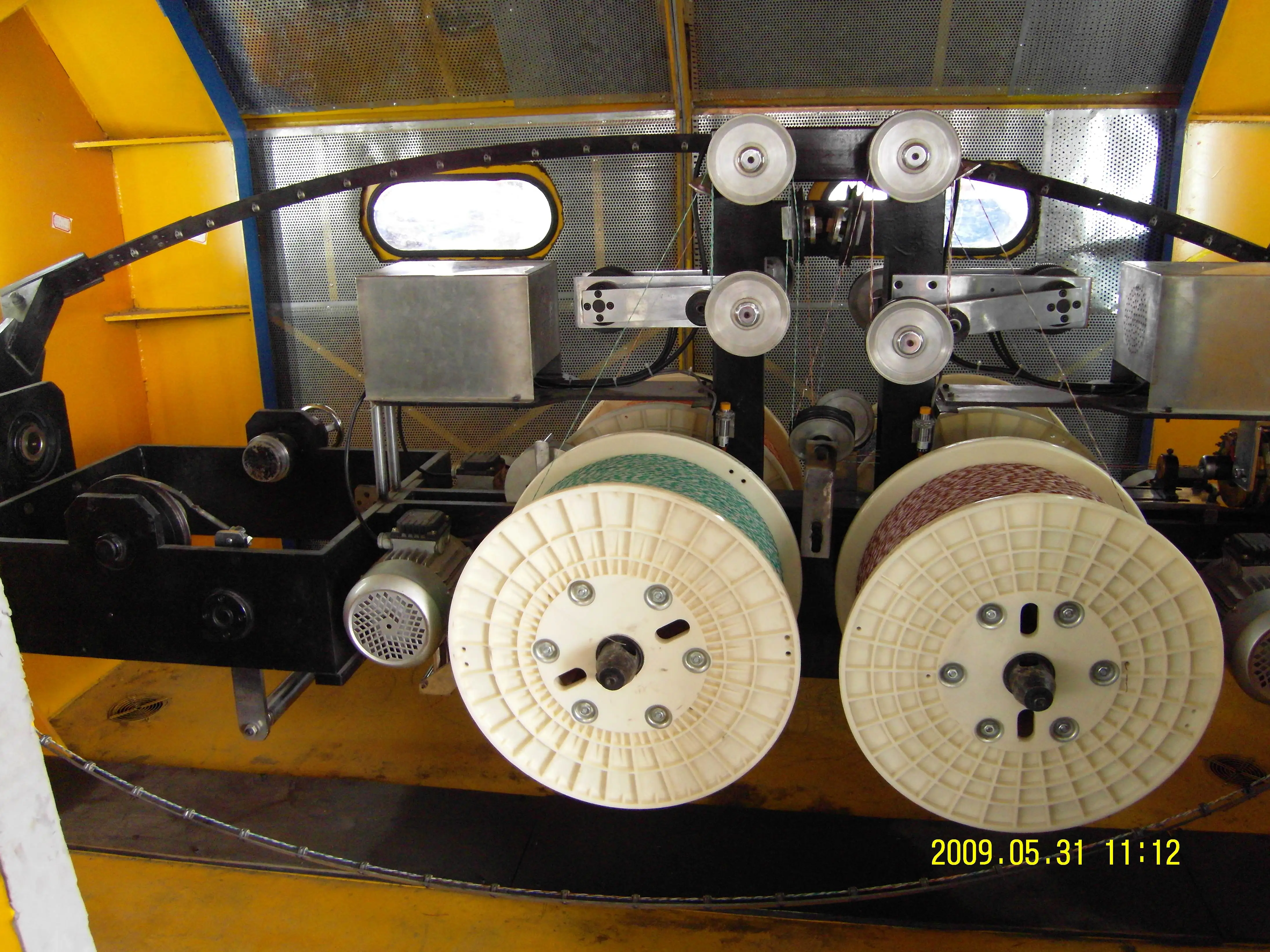

1. Active internal wiring cable maker (including cross frame release device)1

2. Longitudinal Pack Platform 1

3. Plastic extruder 1

4. Dryer and automatic feeding system 1

5. Movable hot water tank and water tank 1

6. Blowing dryer 1

7. Cooling flume 1

8. Twin-wheel tractor 1

9. Wire storage device 1

10. Tension and active wiring 1

11. Automatic hole-forming double-disc coiling machine 1

12. Full set of electrical control system 1

Main technical parameters

1. Sheath Outer Diameter 4-12_

2. Maximum outside diameter of stranding 10_

3. Pitch range 20-250_

4. The maximum speed of the hanging bow is 800rpm.

5. Design speed (max) 150 m/min

6. Suggested production rate is 0-100m/min

7. The height of the production line center is 1000 feet.

8. The total installed capacity is about 90 kw.

1.  How is your product?

    We guarantee a new authentic

2.  How long will your goods arrive?

     In addition to the spot, the other goods are generally 4-6 weeks

3.  What time do you ship?

     Our company provides payment to delivery

4.  What payment method do you support?

     Bank card. Please consult if there are special circumstances.
