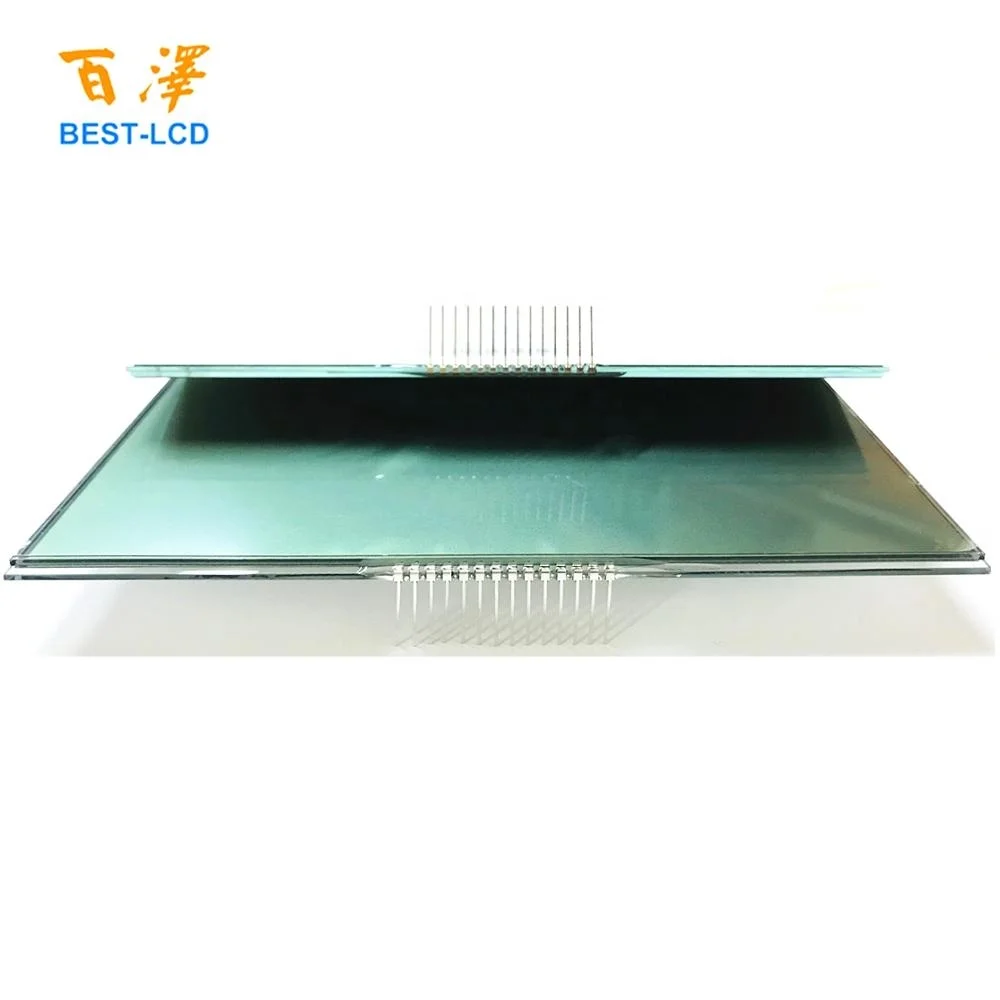

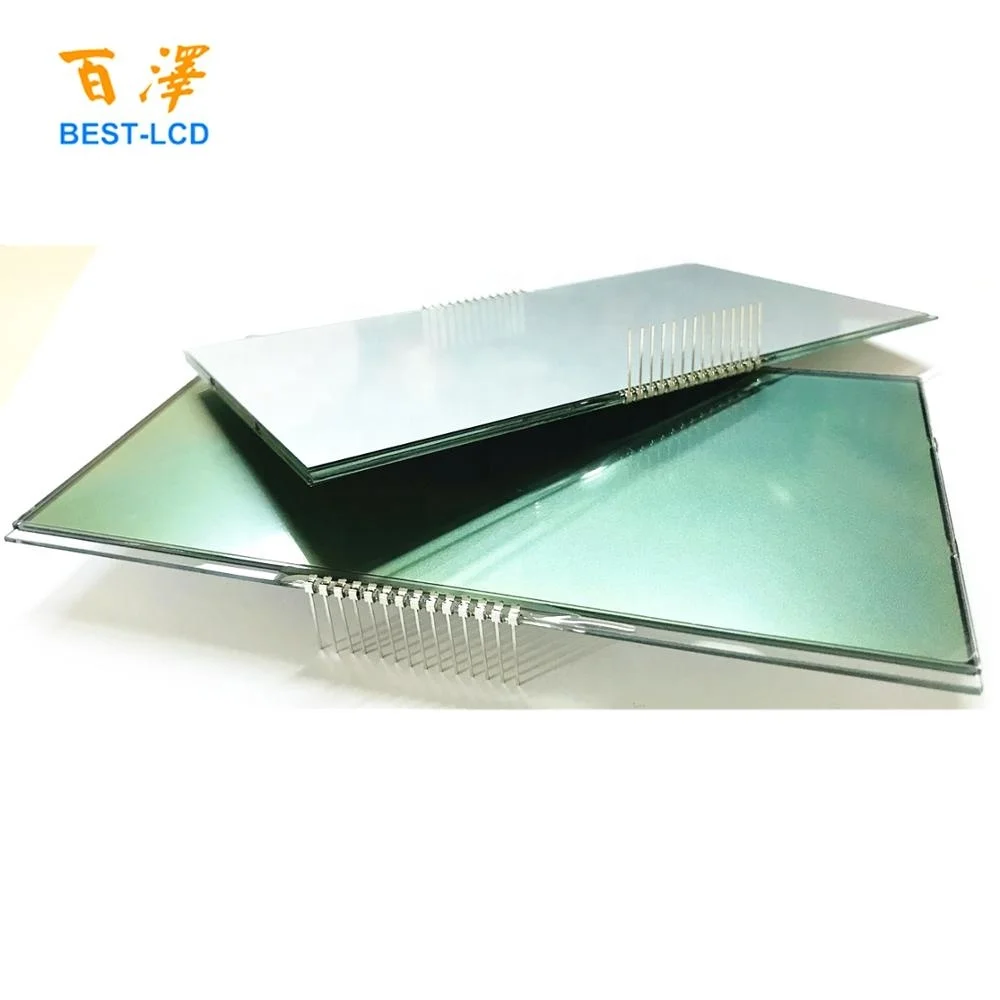

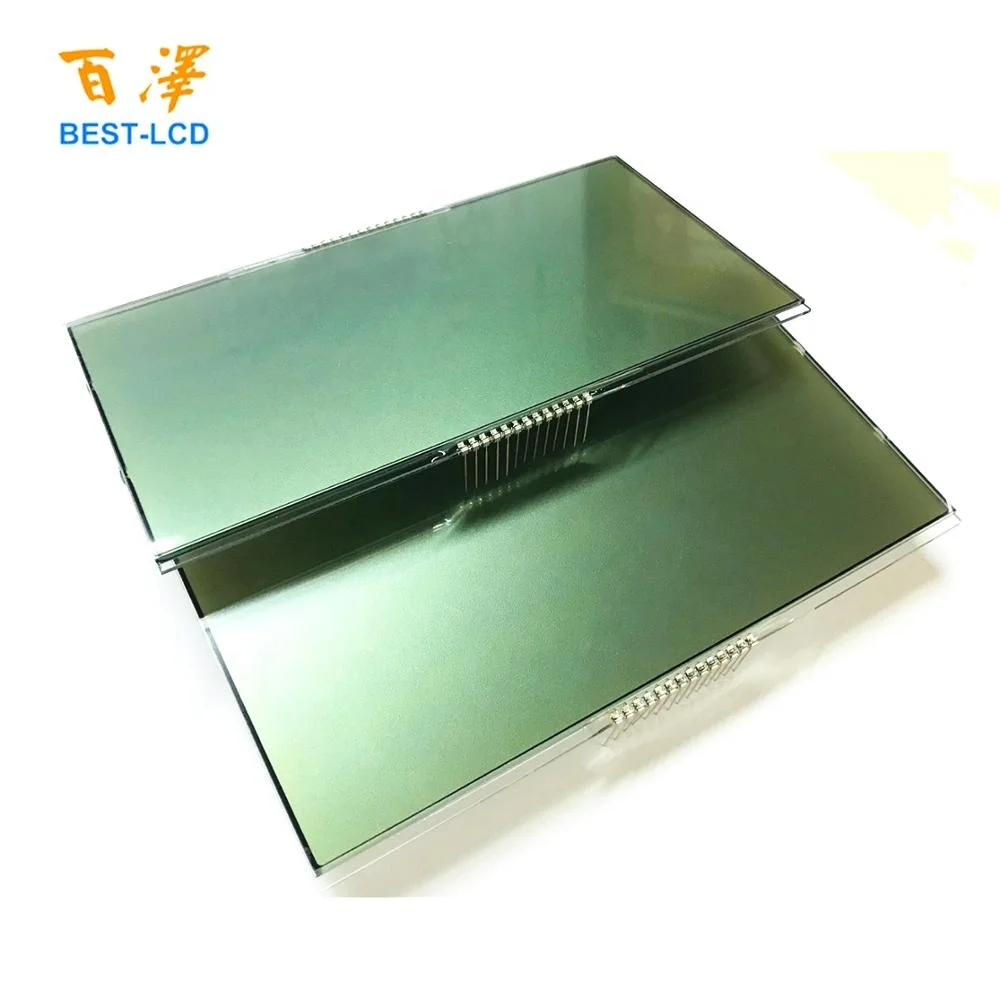

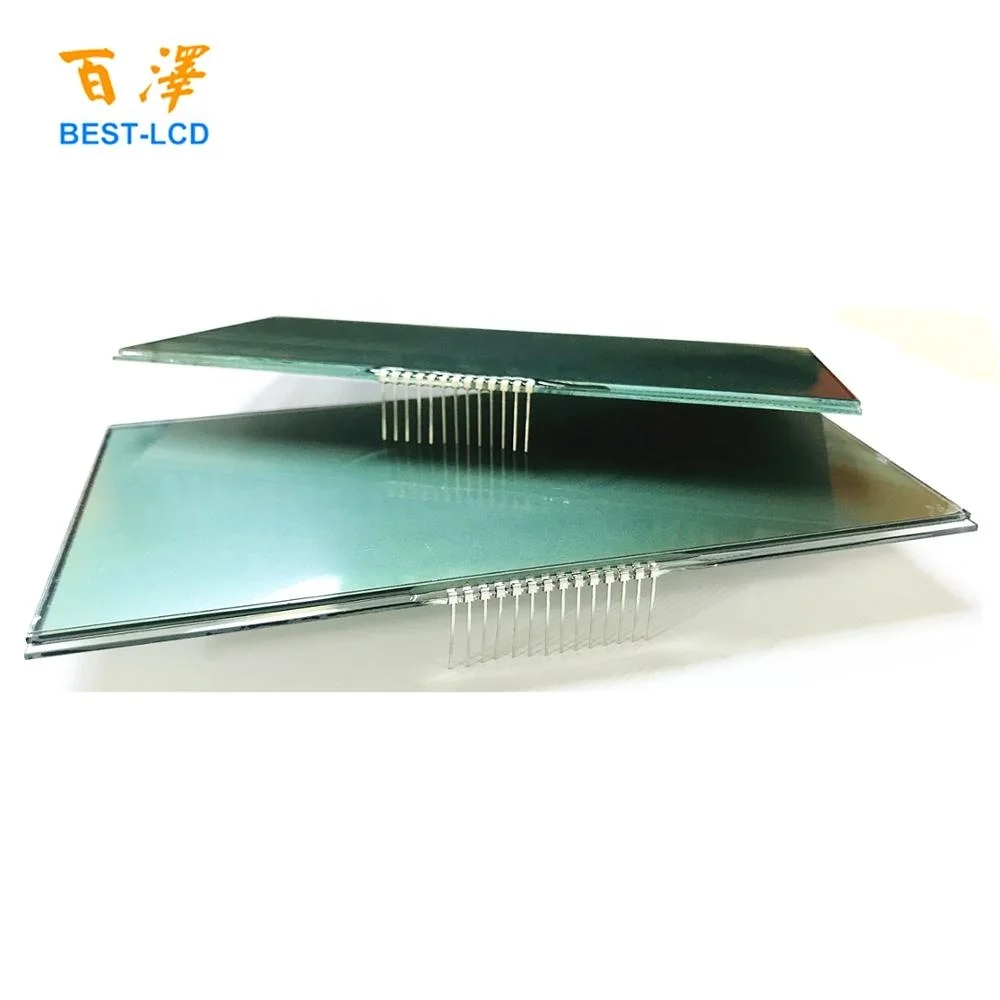

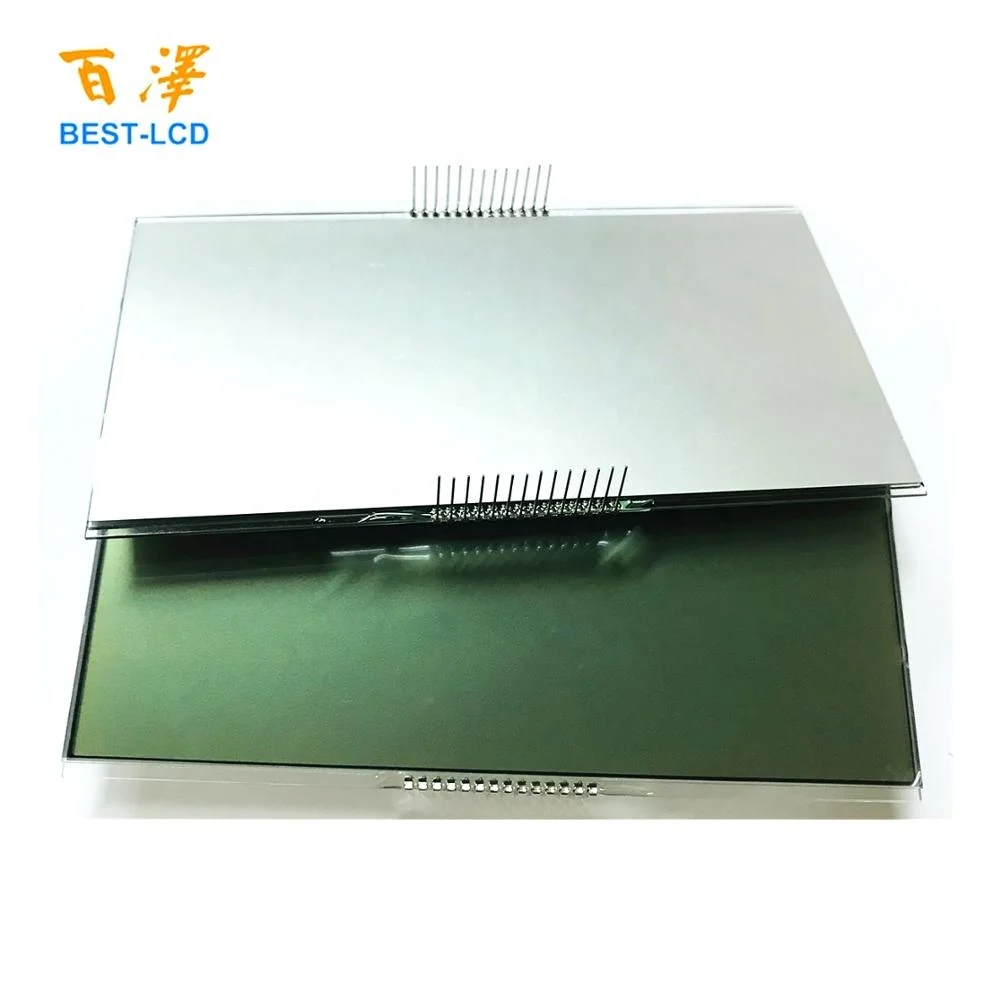

Custom 3.0V 27 Pin Transflective 6 digits 7 segment LCD Display For Weighing Electronic Scale/Loadometer/Platform Balance

Product Overview

Description

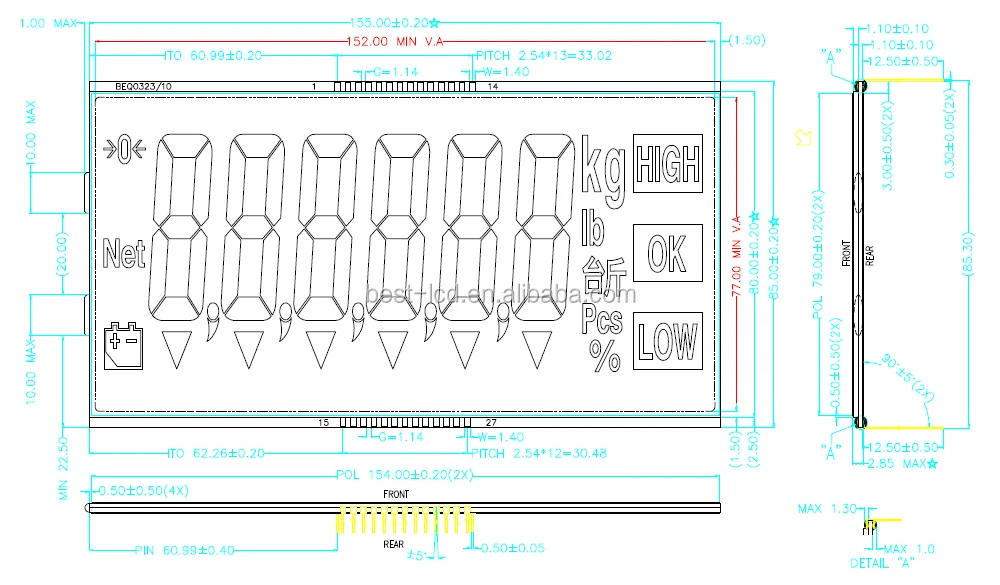

1. Professional Mechanical Drawing:









2. Precisely Technical&Mechanical Parameters FYI:



Application	Electronic Scales / Loadometer / Platform Balance / Weigh-scale etc.
Display Type	HTN/Positive
Polarizer Type	Transflective
Outline Dimension	155.0*80.0/85.0*1.1mm
Viewing Angle	12 O'clock
Connector Type	Metal Pin (27)
Driver Method	1/4Duty, 1/3Bias
Pitch	2.54mm
Operate Temp.	-20~70degree
Storage Temp.	-30~80degree
Operative Vol.	3.0V

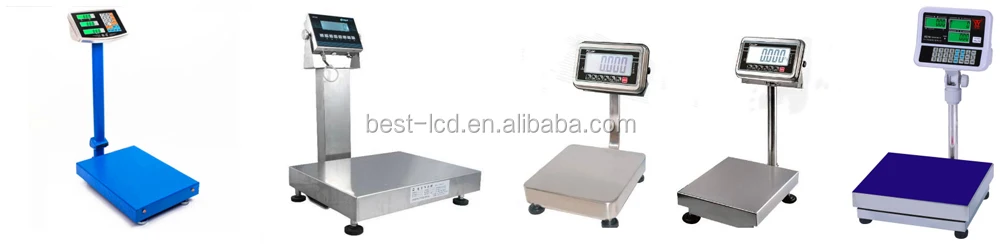

3. Appropriate Application: Custom 3.0V 12 O'clock Transflective 6 digits 7 segment Weighing Electronic Scale / Platform Balance / Loadometer LCD display.















4. Qualified Packaging:













5. Trusted Shipping:











6. Outstanding Capabilities&Services:

Customizing & designing segment, character, graphic LCD Display and LCD Module(Including LED Backlight, IC) with different sizes, shapes, display icons for clients.



Product Type:

1. LCD Type:  TN, HTN, STN, FSTN, VA, COB, COG etc.....

2.  Any digitals, Icons, graphic can be customized and designed according to customers' requirements.

3. Polarizer type: Transmissive, Transflective, Reflective

4. Connector Type: Metal Pins, Zebra, Heat-seal, FPC...

5. ITO Glass thickness: 1.1mm, 0.7mm, 0.55mm

6. The range of operating Temperature: -40~90°C





Our products are widely and well accepted in North America such as USA,Canada; European countries such as UK, Germany, France, Netherlands, Greece, Russia, Sweden, Ireland, Swiss, Austria, Luxembourg, Belgium, Italy, Spain, etc. ; Asia countries such India, Singapore, Malaysia etc..









7. Workshop View:





8. Contact us:

If it arouses your interests or if you want to learn more details and get the latest updates, pls add my trademanager/Skype or send inquiry to me, I'll be glad to answer!



Trademanager: cnbestlcd

Skype: helenwang7708

QQ: 627807171
