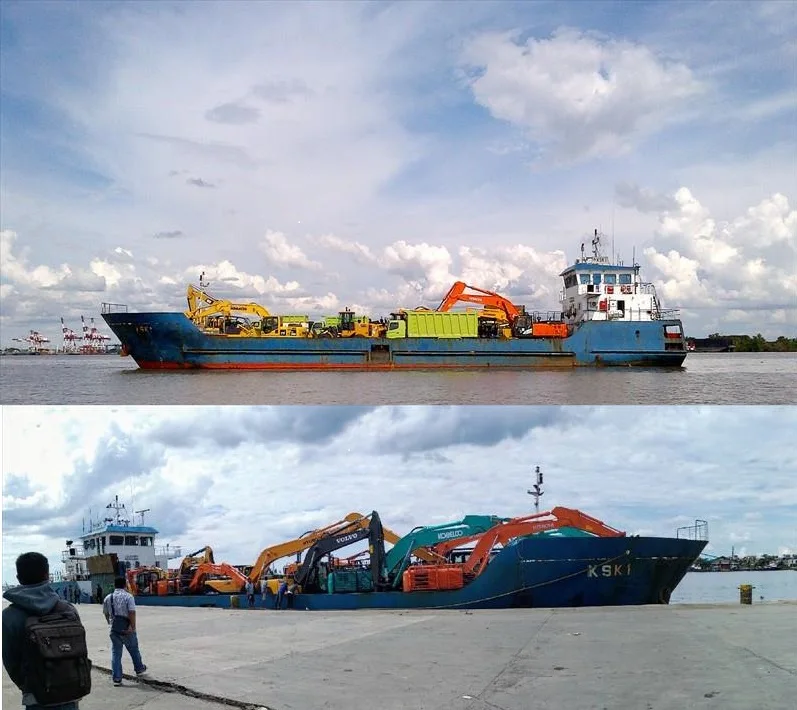

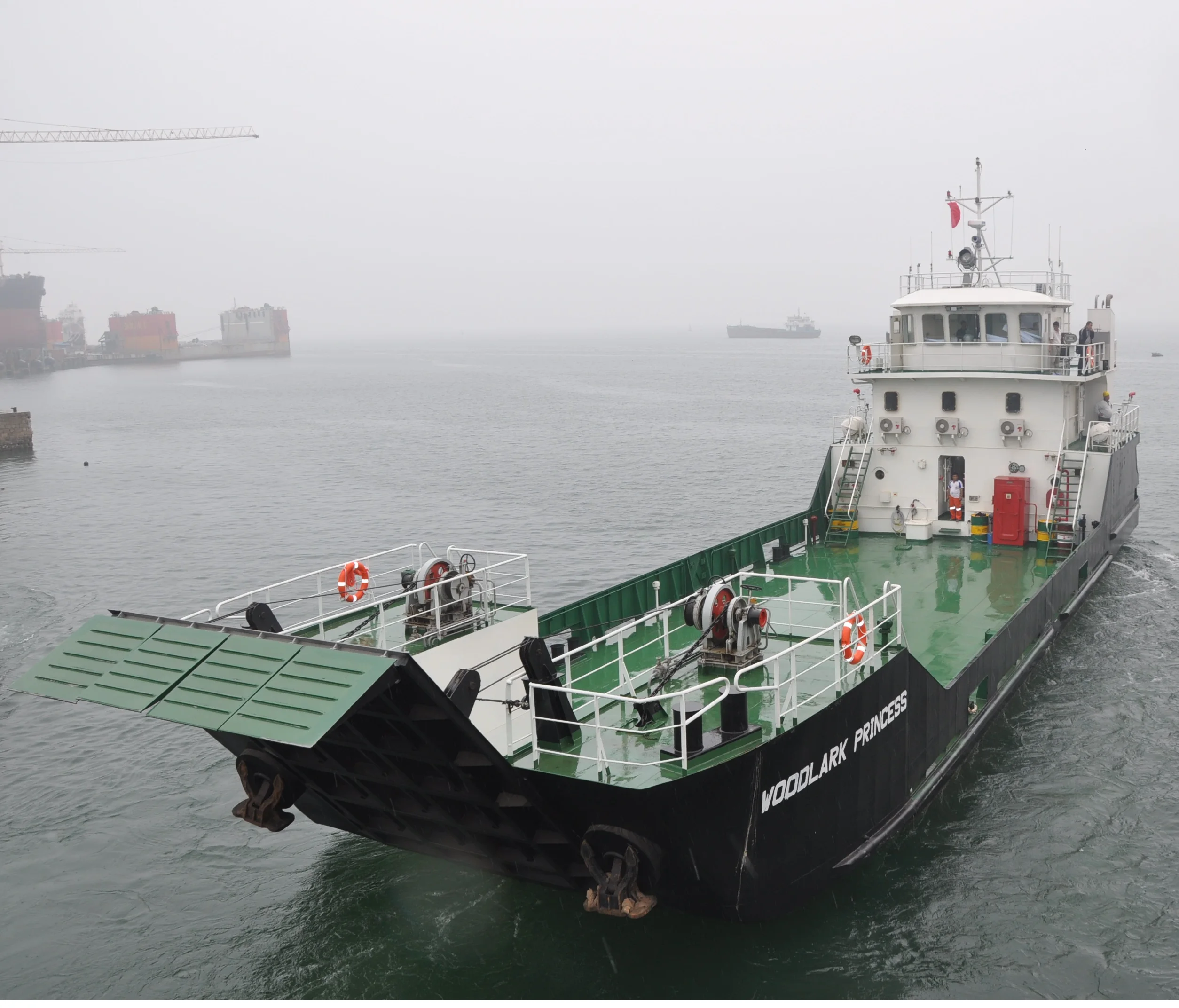

30m LCT self propelled ferry barge

Product Overview

Description

DS-LCT Series
Series	LCT30	LCT40	LCT50	LCT60	LCT70	LCT80	LCT90
Principal Dimension
Lengthoa	37.2m	45.2m	56.8m	65.8m	77.0 m	88.0 m	99.0 m
Lengthbp	31.8m	40.6m	52.2m	61.6m	72.9 m	83.5 m	91.5 m
Breadth	9.6m	11.0m	14.0m	14.0m	16.0 m	18.0 m	22.8 m
Depth	2.7m	3.2m	3.5m	3.5m	4.0 m	4.6 m	5.80m
Draft	2.1m	2.5m	2.5m	2.8m	3.25 m	3.5m	4.20m
Dead Weight	300t	500t	1000t	1500t	2600t	3500t	5000t
Deck Load	8t/m2	8t/m2	8t/m2	8t/m2	10t/m2	10t/m2	10t/m2
Crew	10P	10P	10P	10P	10P	12P	14P
Performance
Design Speed	10kn	10kn	8kn	9kn	10.0kn	9.6kn	13kn
Economical Speed(M/E@80%rpm)	9kn	9kn	7kn	8kn	9.0kn	8.5kn	11.8kn
Fuel Consumption (Inc. Gen.)	0.1t/h	0.12t/h	0.1t/h	0.12t/h	0.18t/h	0.18t/h	0.28t/h
Machinery
Main engine	2X385kW	2X480kW	2X240kW	2X480kW	2X698kW	2X698kW	2X1103kW
Generator	2X40KW	2X40KW	2X50KW	2X50KW	2X50KW	2X50KW	3X75KW
Bow Thruster	/	/	/	/	As Option
