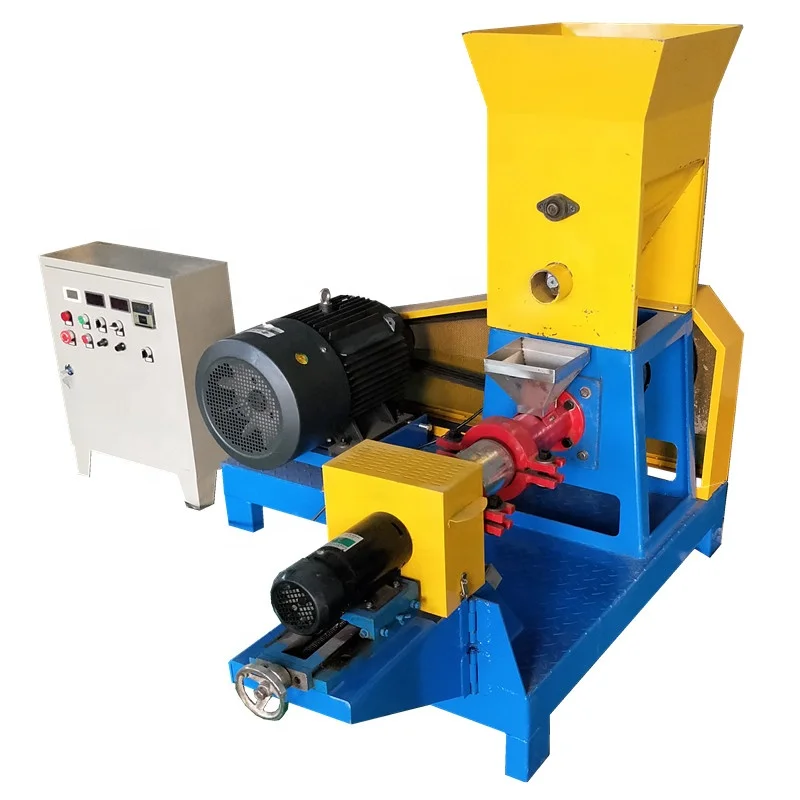

China manufacturer full fat soya extruder soybean meal for animal feed

Product Overview

Description

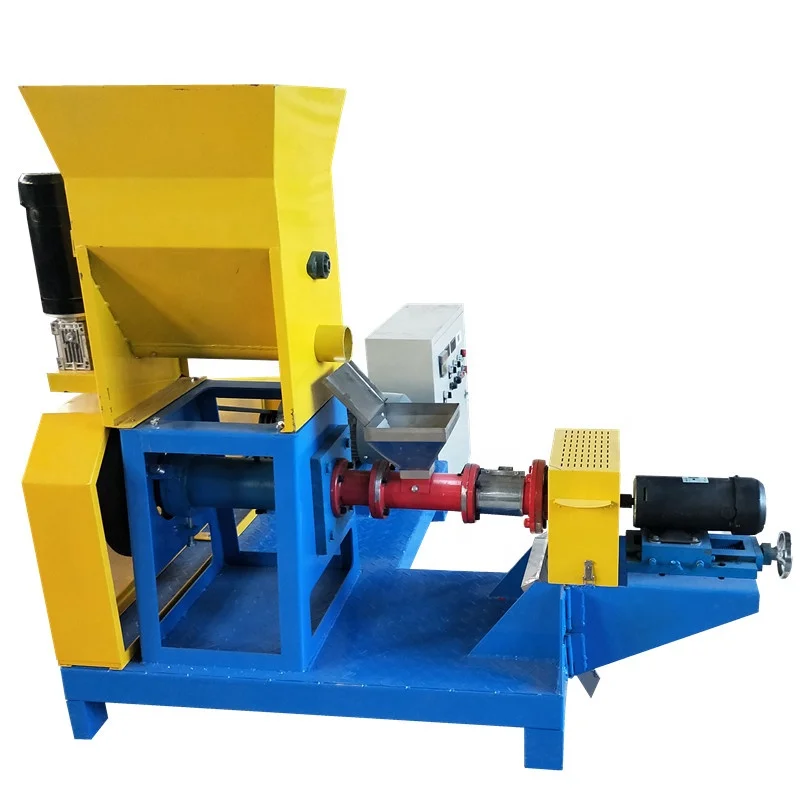

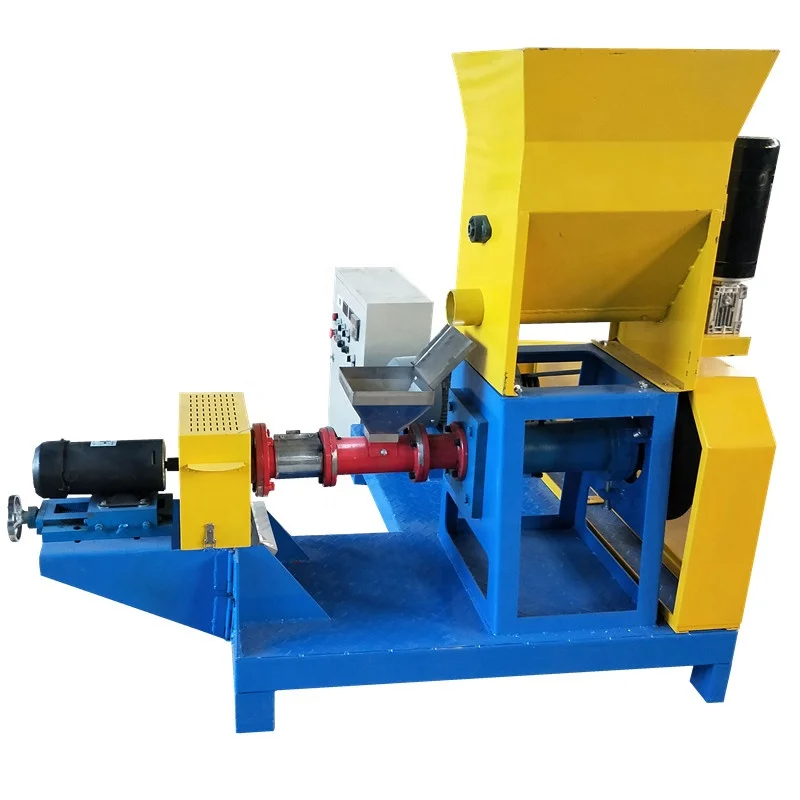

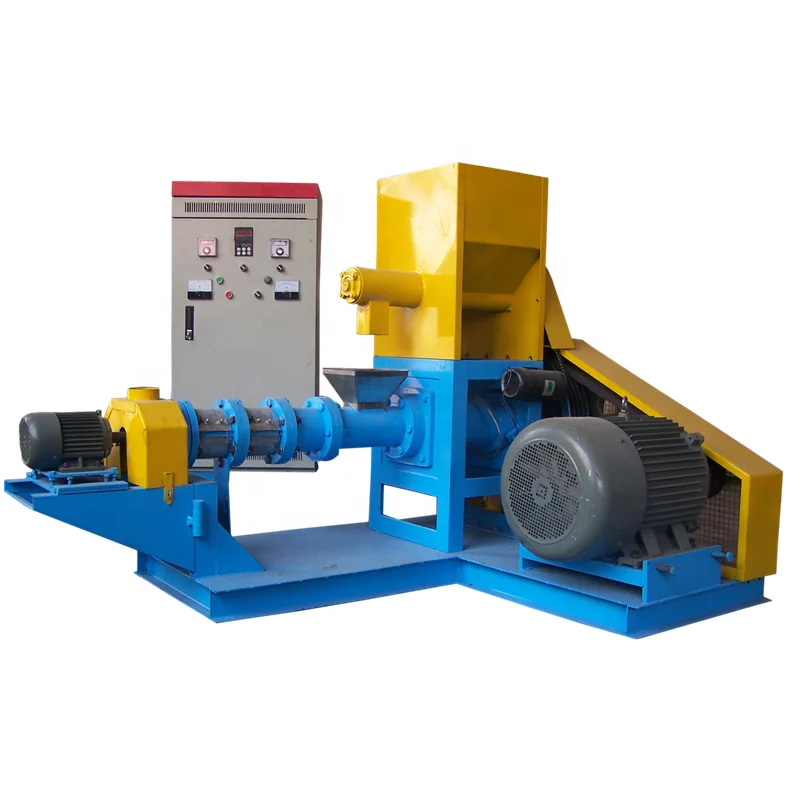

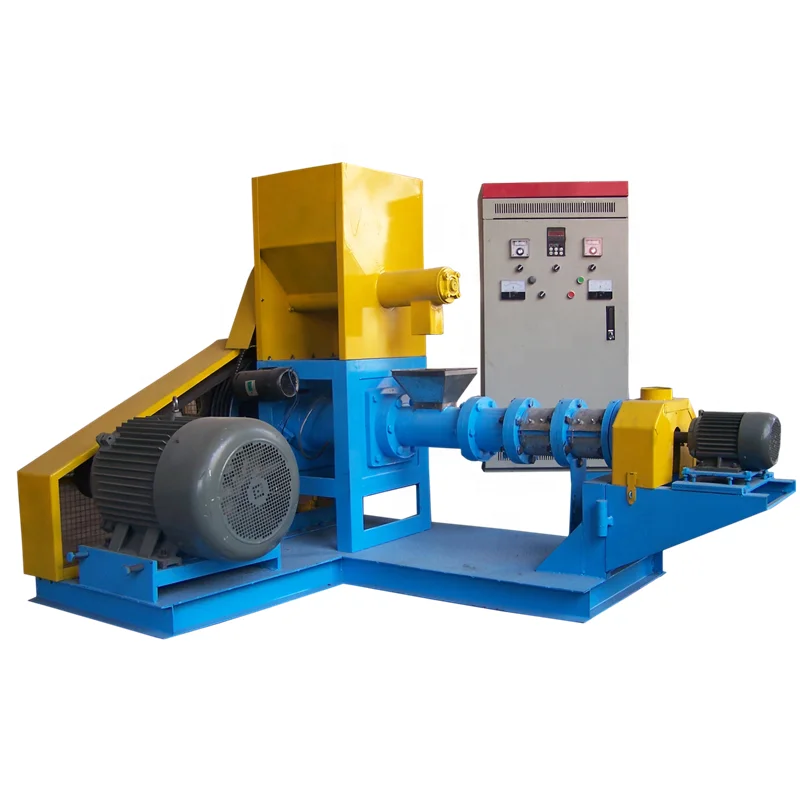

China manufacturer full fat soya extruder soybean meal for animal feed

The soya bean extruder machine is designed to bulk soya,corn for animal feed making with high protein,widely used as source of protein in animal diets, including pig, chicken, cattle, horse, sheep, and fish feed.It is widely used in soybean, maize,soybean meal, cottonseed meal, rice bran and other raw materials.

Feature:

1.High temperature and pressure can effectively kill the bacteria and detoxicate, changing the nutrition resistant factor, lowering the degradation of nutrients, improving the digestibility of protein and starch.

2.Screw and barrel are designed optimized to get longer service life and lower production cost.

3.Novel design, high output, stable operation, the main components is heat treated special alloy material refined, with a high degree of wear resistance and long life.

Working Principle

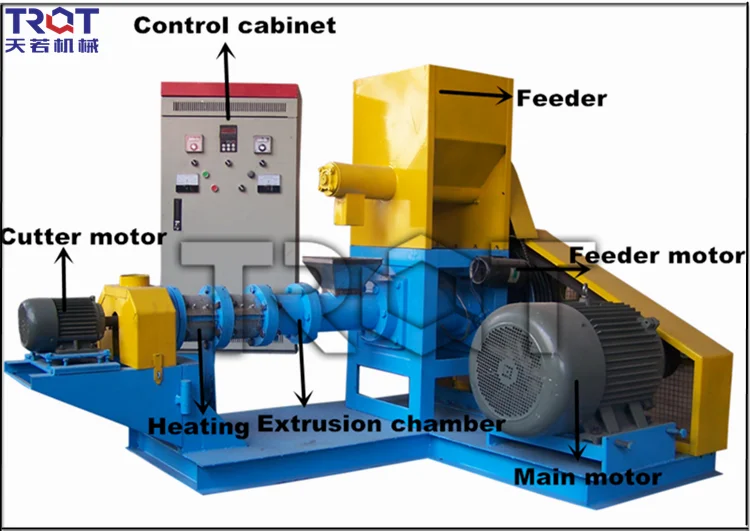

soybean extruder consists of driving system, feeding device, extruding device, and electric control cabinet etc. This machine can transfer mechanical energy to thermal energy by extrusion, friction and shearing function of non-equidistance screw extrusion system, and form a certain pressure and temperature in the extruding chamber.

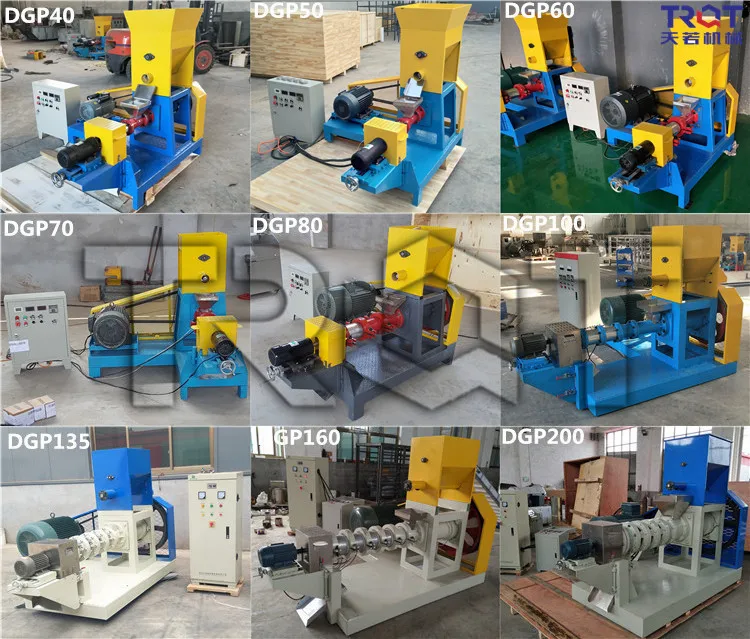

Model	Capacity(kg/h)	Main Power(kw)	Feed Power(kw)	Cut Power(kw)	Screw Dia(mm)	Pelletsize (mm)
DGP40	40-60	7.5	0.4	0.4	Φ40	1-12mm
DGP50	60-80	11	0.4	0.4	Φ50	1-12mm
DGP60	100-150	15	0.4	0.4	Φ60	1-12mm
DGP70	180-250	18.5	0.4	0.4	Φ70	1-12mm
DGP80	300-350	22	0.4	0.6	Φ80	1-12mm
DGP90	400-450	37	1.1	0.6	Φ90	1-12mm
DGP120	500-700	55	1.1	1.5	Φ120	1-12mm
DGP135	800-1000	75	1.1	2.2	Φ133	1-12mm

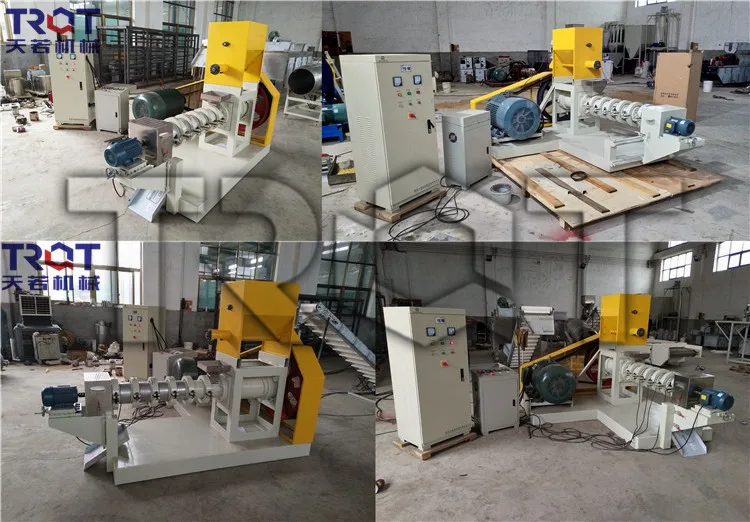

DGP160	1200-1500	90	1.5	2.2	Φ155	1-12mm
DGP200	1800-2000	132	1.5	3.0	Φ195	1-12mm





Wet type extruder
