High Quality Servo Edge Position Control/Web Guide Control system
- Category: >>>
- Supplier: Wuxi Plisen Drive Technology Co. Ltd.
Share on (62067604975):
Product Overview
Description
Product Description
High quality Single axis magnetic powder brake Factory price
Principle:
KAIDE servo deviation correction system epc-80u adopts high-speed CPU operation, supporting EPC following, LPC following, CPC alignment, SPS dislocation (snaking) and other multiple deviation correction methods. The operation panel USES the color touch screen as the man-machine interface to display the rectifying status and operate. The controller is equipped with setting guide and online help system, which makes the operation more convenient.
EPC-80 Parameters:
| Power supply voltage | DC24 ~ 45V, standard 24V |
| Motor driving capacity | AC24 ~ 45V, 10A Max |
| Encoder power supply voltage | DV15V, 200mA Max |
| Analog input | 3-channel 0 ~ 5V, impedance 20K |
| Sensor supply voltage | DC12V, 350mA Max |
| Correction response time | 0.5 ms |
| Analog input resolution | 12 bit ADC |
| Switching input | 3-way NPN |
| Rectifying method | Unilateral/line rectifying, centering rectifying, serpentine rectifying |
| Support sensor type | Ultrasonic, photoelectric, CCD |
| Pusher speed | 1mm/s-75m/s adjustable |
| Thrust | 1000Kgf-1500Kgf, optional |
| ESD protection | Iec1000-4-2, 15Kv(Air), 18Kv(Contact) |
| Screen display | 28inch 260,000 color or 43-inch 260,000 color options |
| Man-machine interaction | TFT touch screen |
| Protection level | IP53 |

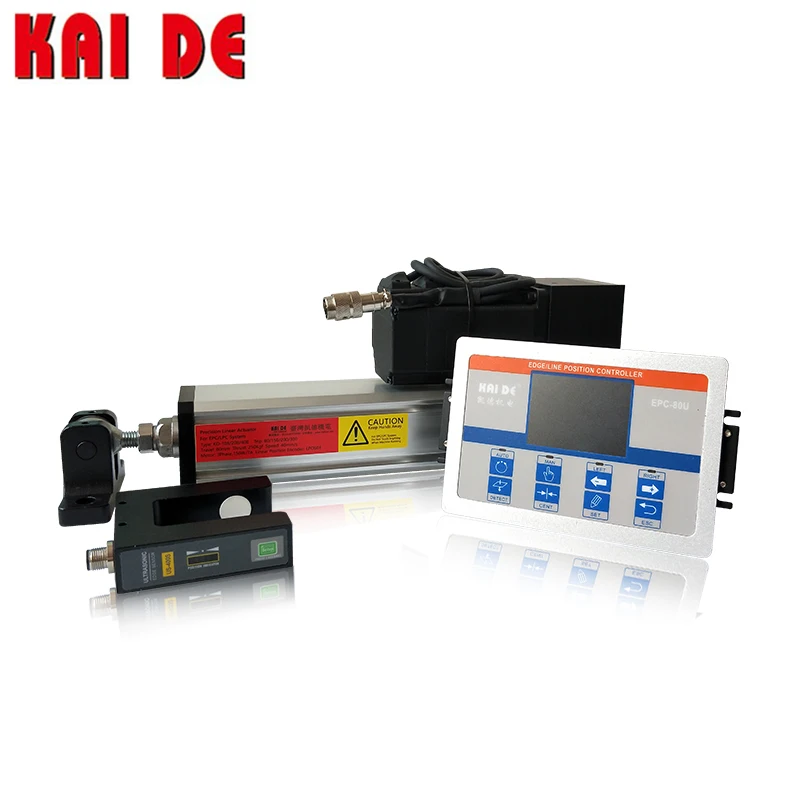

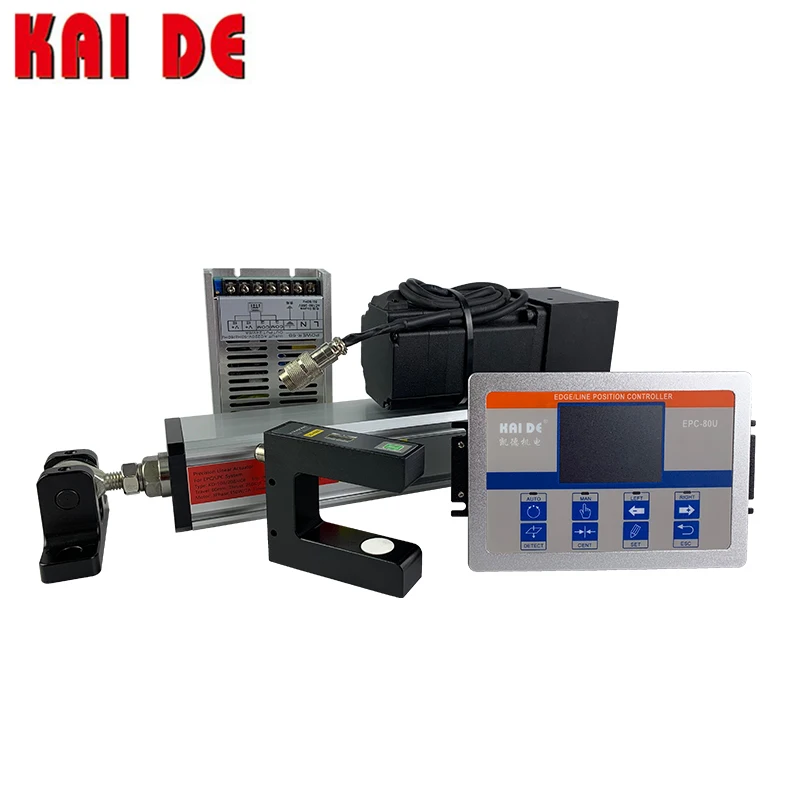

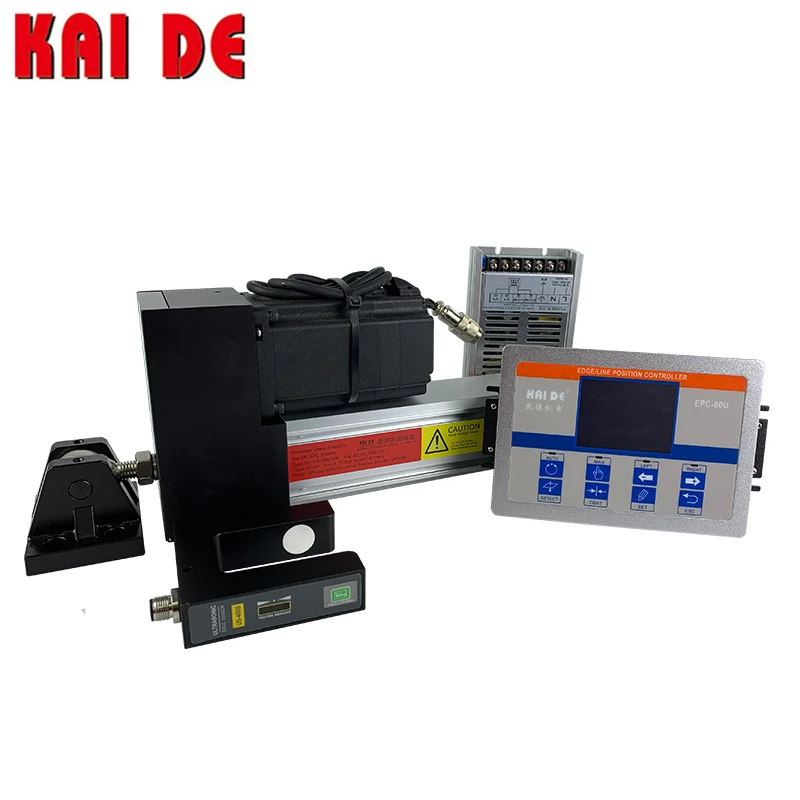

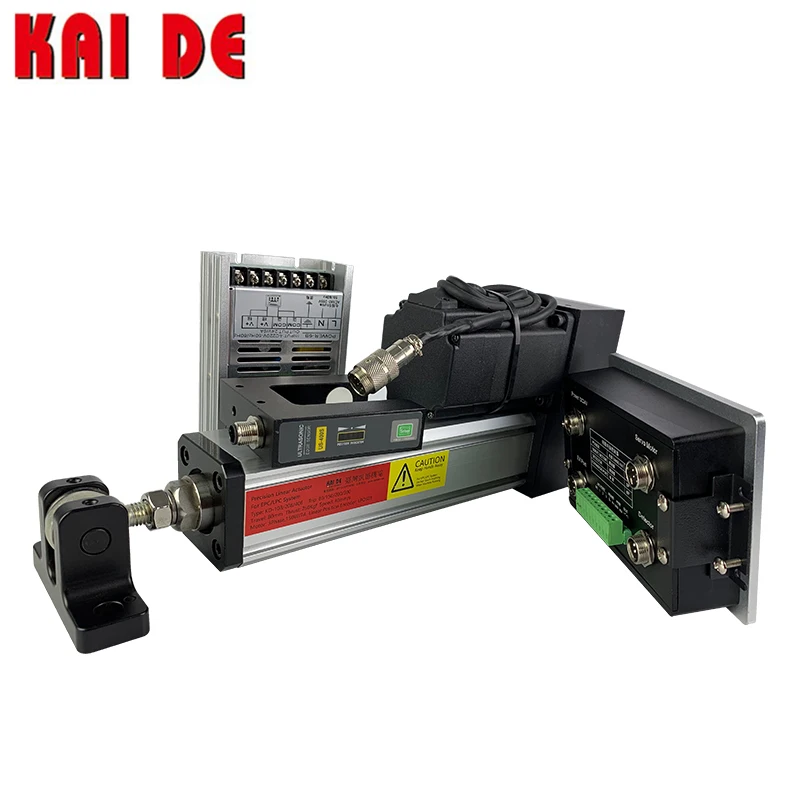

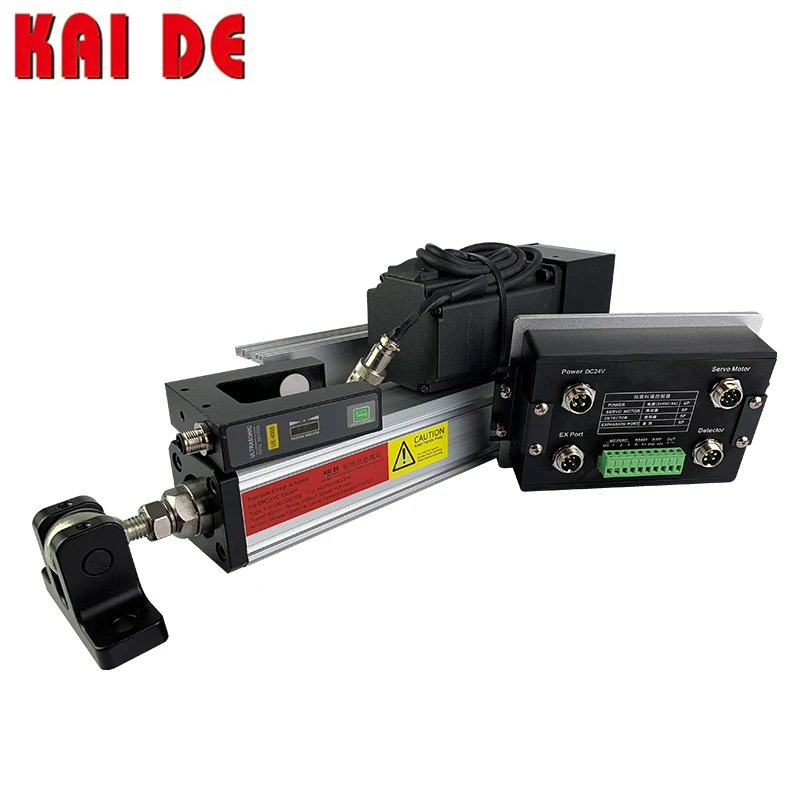

Photographs:

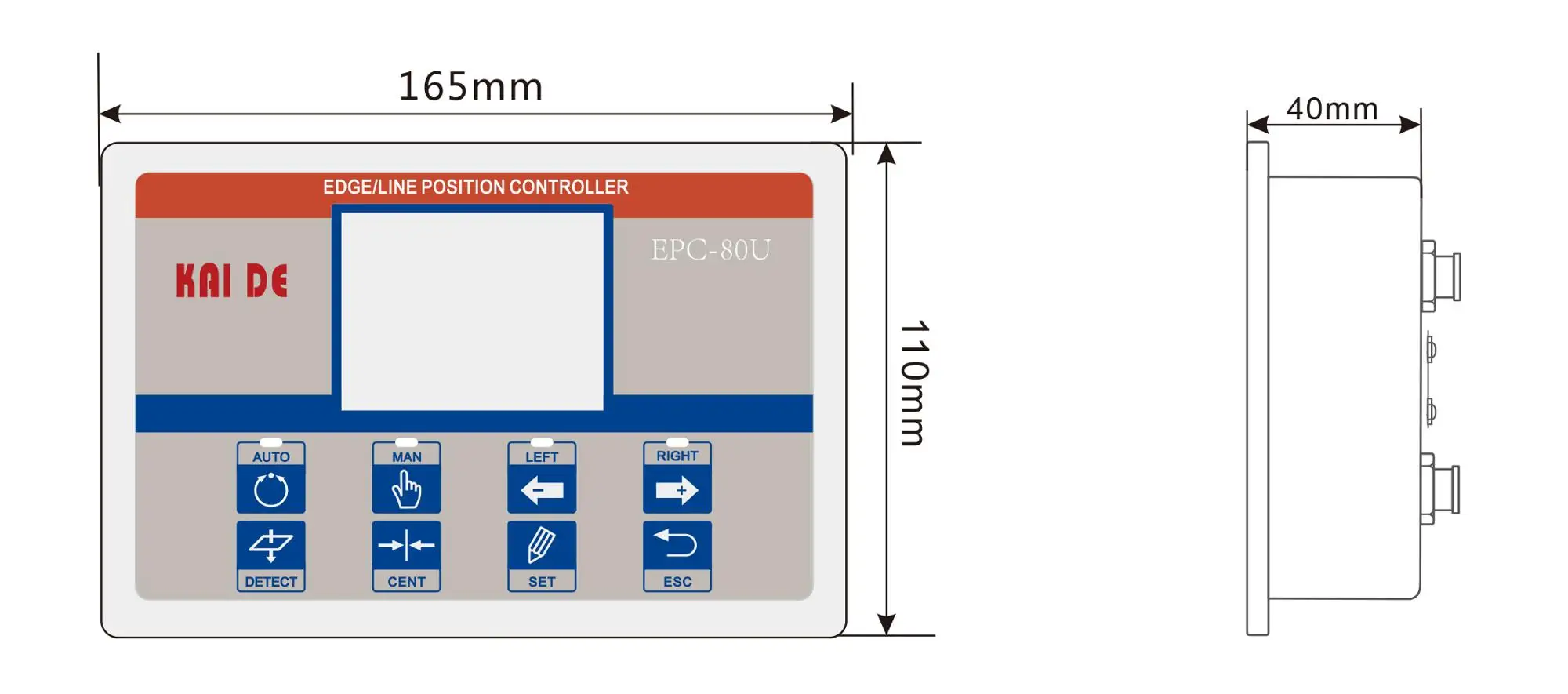

Installation dimensions:
EPC-80U Features:
1, high-performance servo motor vector drive, speed response is rapid, support direct torque control, acceleration and deceleration, speed limit.
2. High-speed CPU operation, support EPC following, LPC following, CPC alignment, SPS dislocation (snaking) and other multiple deviation correction methods.

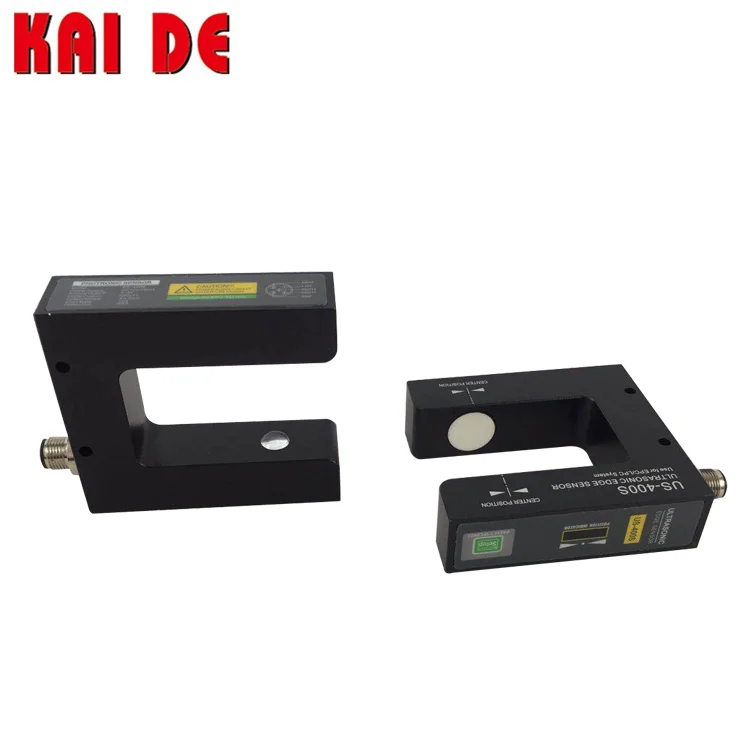

3. Ultrasonic sensor, photoelectric sensor and CCD sensor are supported.
4, color touch screen, man-machine interface beautiful and practical, simple operation.
5. Integrated setting wizard and help system. There are help buttons on each operation page to view concise help information.
6. Servo motor is used to drive the ball screw, with high precision, less noise and no maintenance.
7. Push the full encoder and absolute value linear position feedback device to adapt to different mechanical trips without the trip limit switch and the limit position will never drift.
8, with three high-speed analog input, can be connected to two analog sensors and one external control analog (such as fine-tuning position, snake speed, etc.).
9, with three photoelectric isolation of the switch quantity input, can be set up separately different functions.
10, a variety of software and hardware protection measures, stable and reliable work, strong anti-interference ability.According to the failure of each component there are different failure emergency solutions to ensure 24 hours uninterrupted operation.
11. Flexible installation.

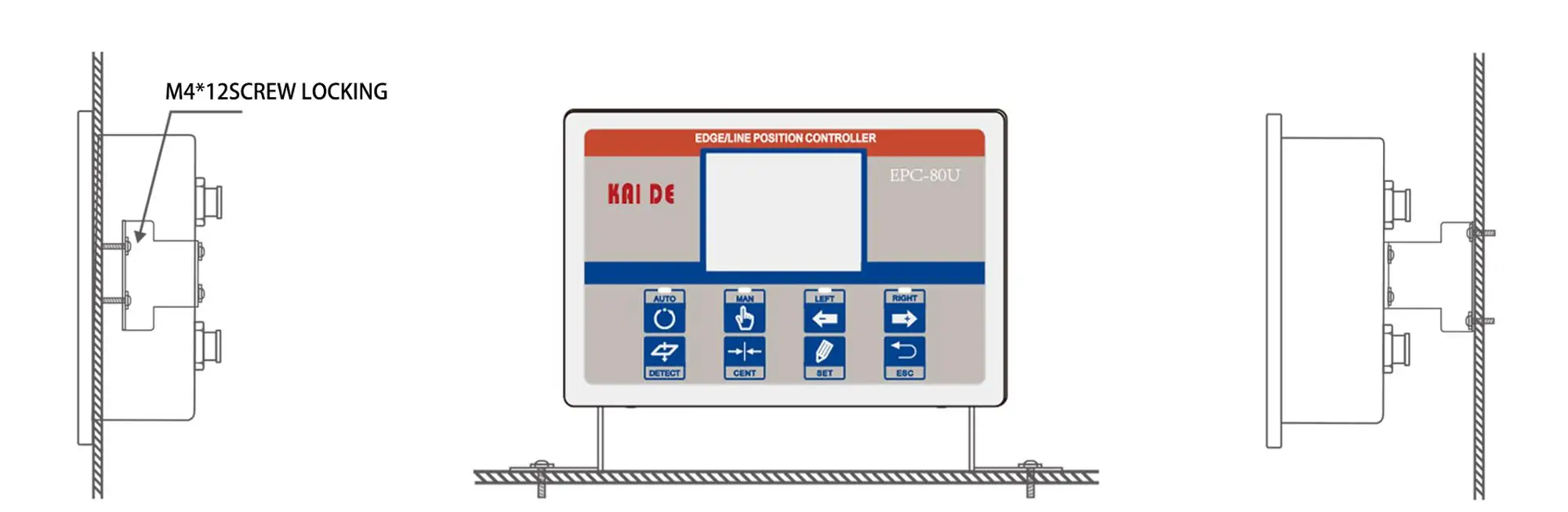

Install the sample:
Embedded mounting Vertical mounting Wall mounting
(Opening size: 151×120)

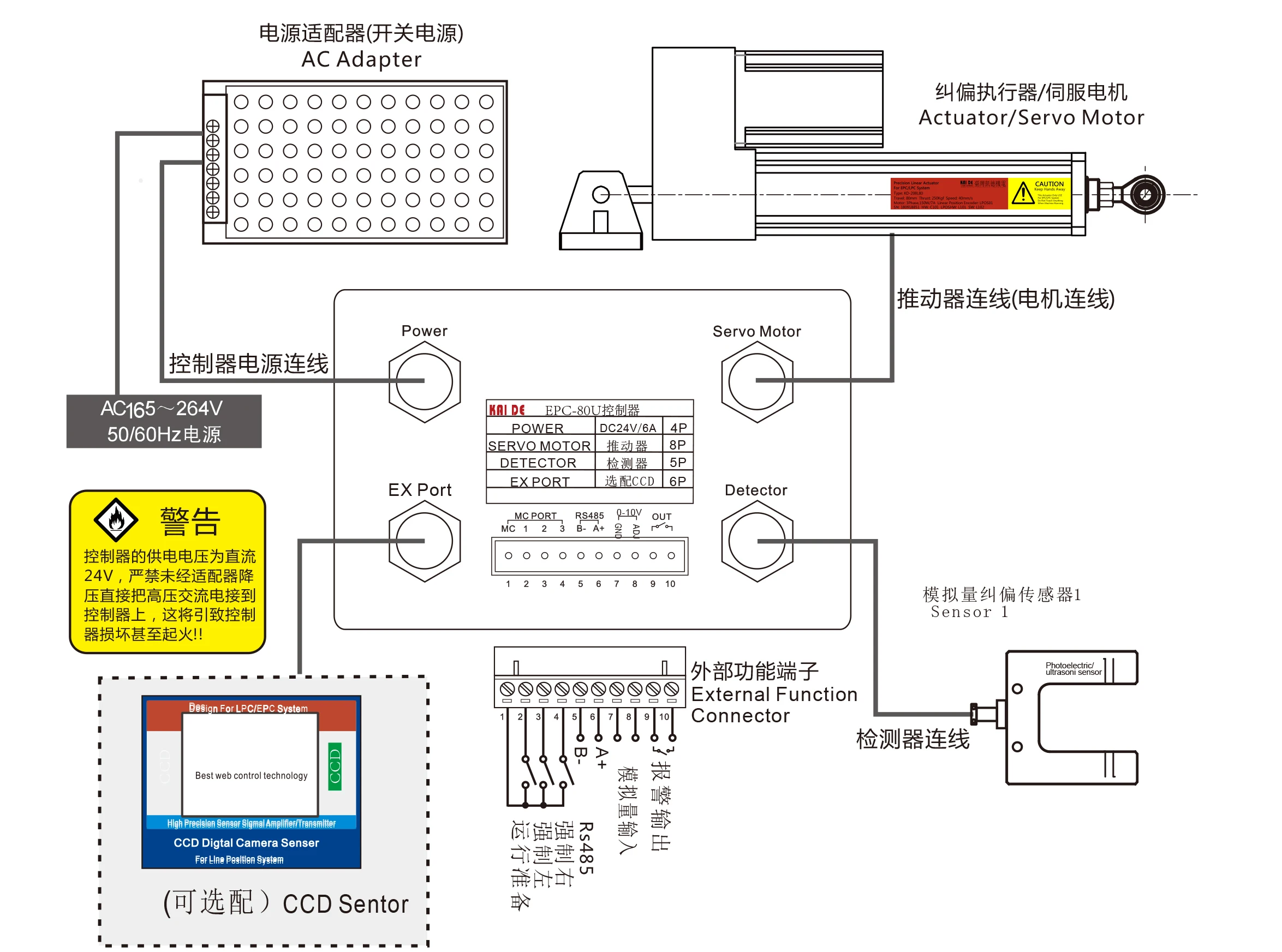

Wiring diagram:
