DH type air-cooled compressed air dryer compressed air
Product Description
WHAT'S REFRIGERATED AIR DRYER?
Refrigerated Air Dryer is a air drying equipment, which works with air compressor and air filters to get the dried and purified compressed air.

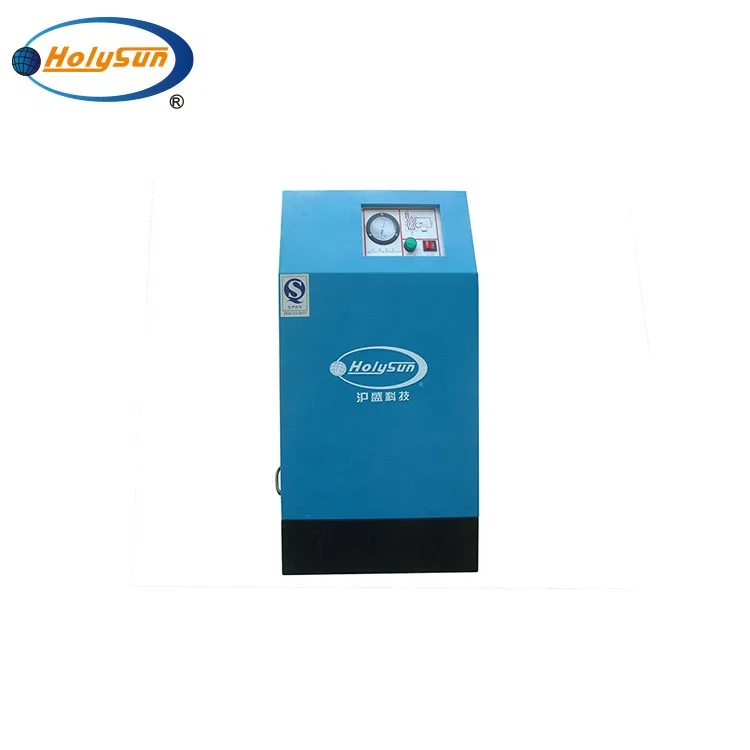

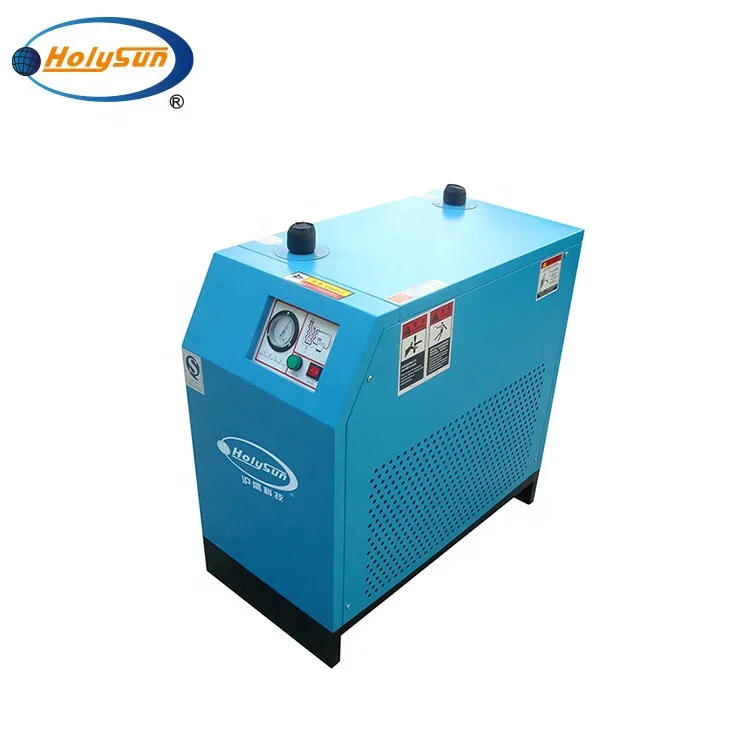

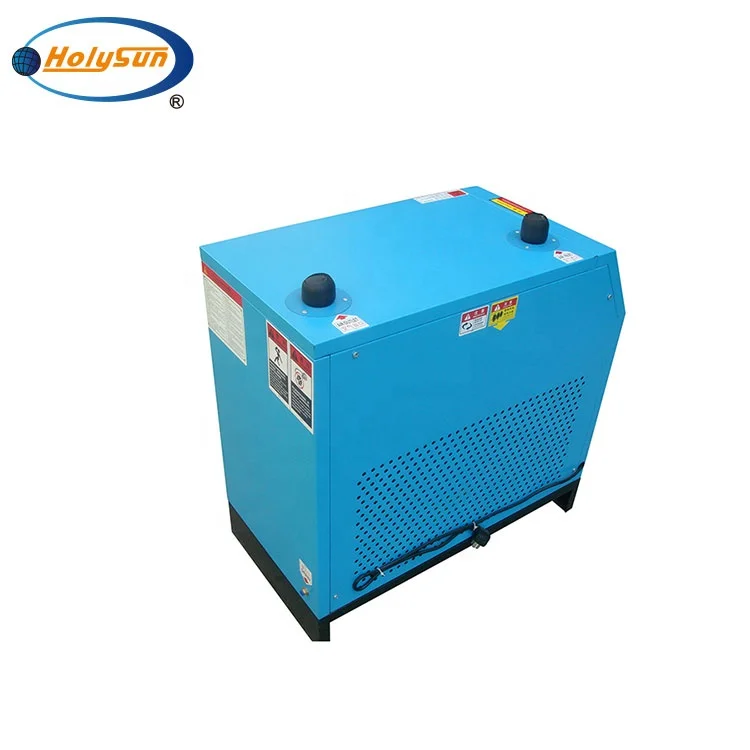

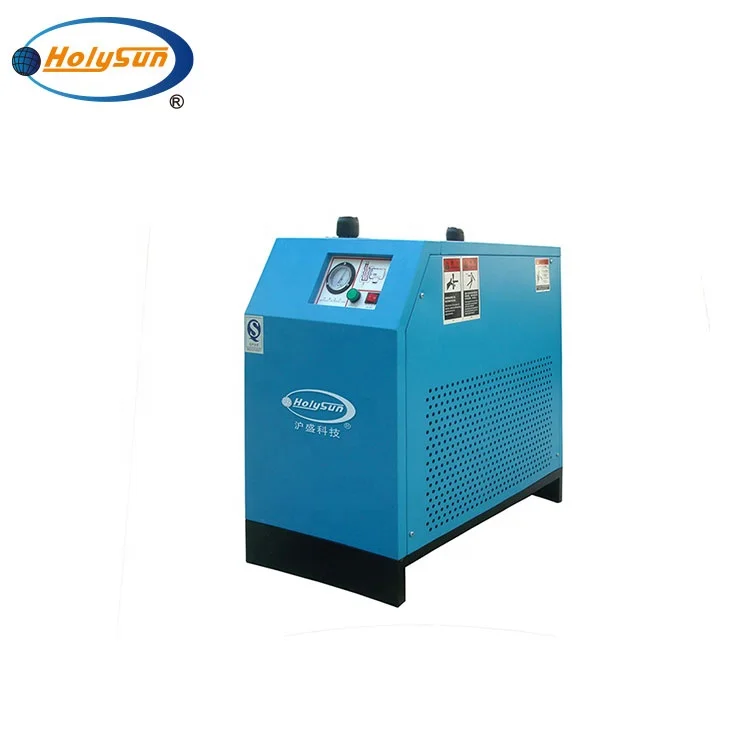

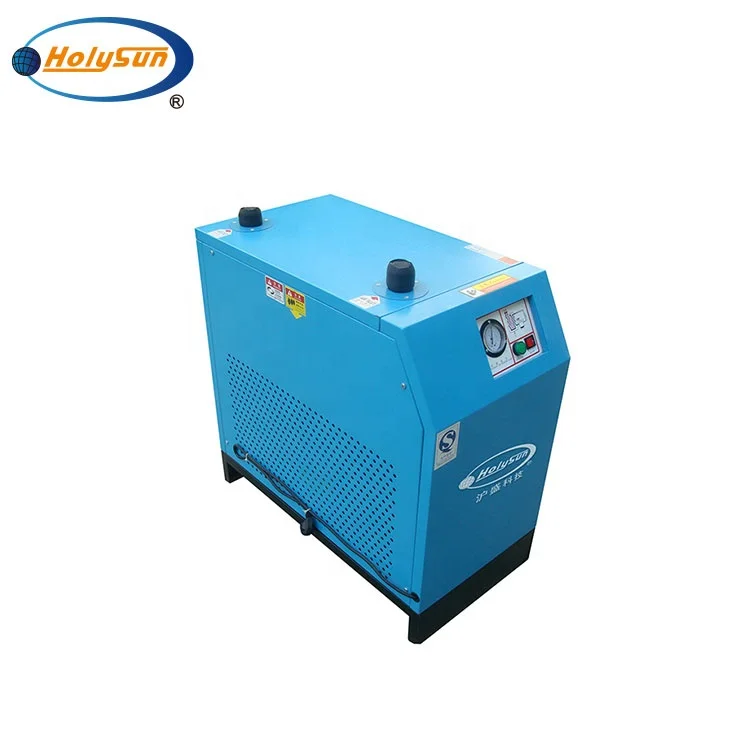

PRODUCT SHOW
INTERNAL PHOTO
HOW IT WORKS?
Refrigerated air dryer is drying through cooling. It cools the compressed air from upstream to certain dew point temperature,condensates most of liquid water with dust and oil,and then drains out of the machine through gas/liquid separator so as to get the dried finished air from its outlet.

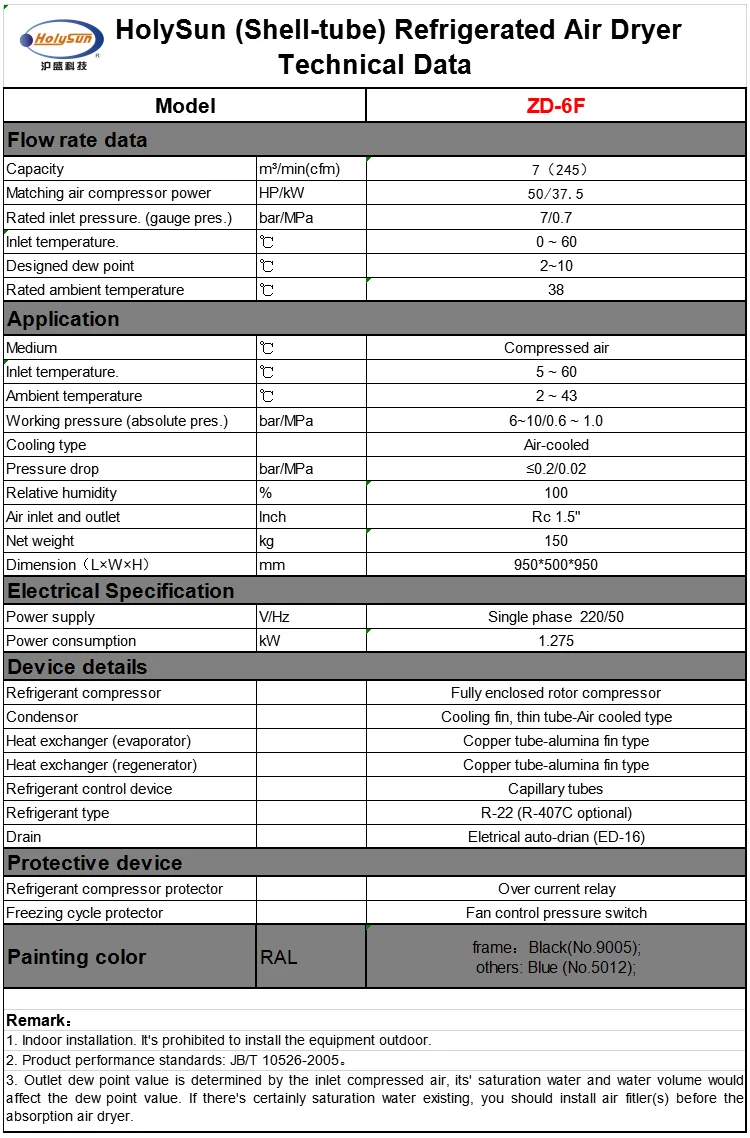

ZD-6F TECHNICAI DATA
ZD SERIES TECHNIAL DATA
HOW TO CHOOSE CORRECT MODELS?
To Choose a Refrigerated Air Dryer correctly, you should consider the actual compressed air flow rate, inlet pressure, inlet temperature, ambiant temperature and the request of dew point. Therefore, Capacity=Compressor FAD÷(table-1)÷(table 2) x (table 3).
Q2: What is the power supply? Can a special power supply be customized? A2: Conventional power supply is 220V/60Hz & 380V/50Hz; 115V/50Hz, 220V/60Hz, 380V/60Hz can be customized!
Q3: What is the working pressure? A3: The normal pressure is 7~10kg (0.7~1.0MPa). High pressure can be customized, click to contact sales consultant.
Q4: Can the dryer be adapted to corrosive gases? A4: No, the conventional dryer is suitable for non-corrosive compressed air purification.
Q5: What is the control method for the dryer? A5: The conventional dryer is controlled by a microcomputer program.
Q6: Can the air dryer use PLC control?
A6: Yes, HOLYSUN strong design team can adopt PLC for actual requirements.
Q7: What kind of gas of the air dryer? A7: We use environmental friendly refrigerant of R-134a, R-407C, R-410a etc.
Q8: Do you have a discount on your price? A8: Welcome to negotiate with us for bulk order or if you’re an air compressor manufacturer and dealers.
Q9: What qualification certificates do you have? A9:HOLYSUN has a production license, CE, ISO, China Top Ten Famous Brands and various patent certificates.
Q10: What is your market distribution? A10: 60% China mainland and 40% overseas.
